Voltage Regulator Rectifier for Kawasaki KFX 700 cc KLF 300 cc KVF 300 360 400 650 700 cc Suzuki LTV 700 cc 1999-2013
RMSTATOR
SKU: RM30W02
In Stock
RMSTATOR
Voltage Regulator Rectifier for Kawasaki KFX 700 cc KLF 300 cc KVF 300 360 400 650 700 cc Suzuki LTV 700 cc 1999-2013
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Voltage Regulator Rectifier for Kawasaki KFX 700 cc KLF 300 cc KVF 300 360 400 650 700 cc Suzuki LTV 700 cc 1999-2013
Details
Details

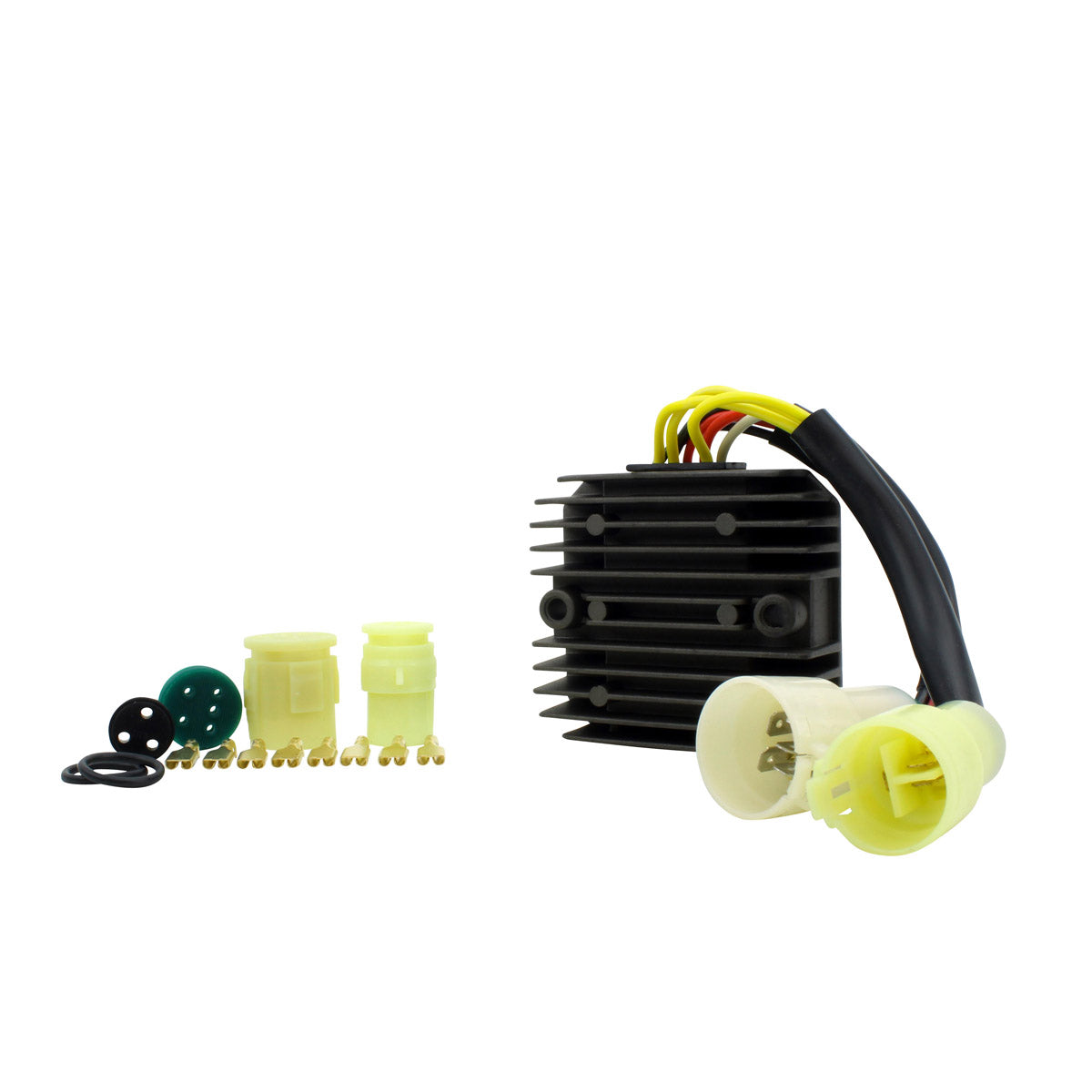

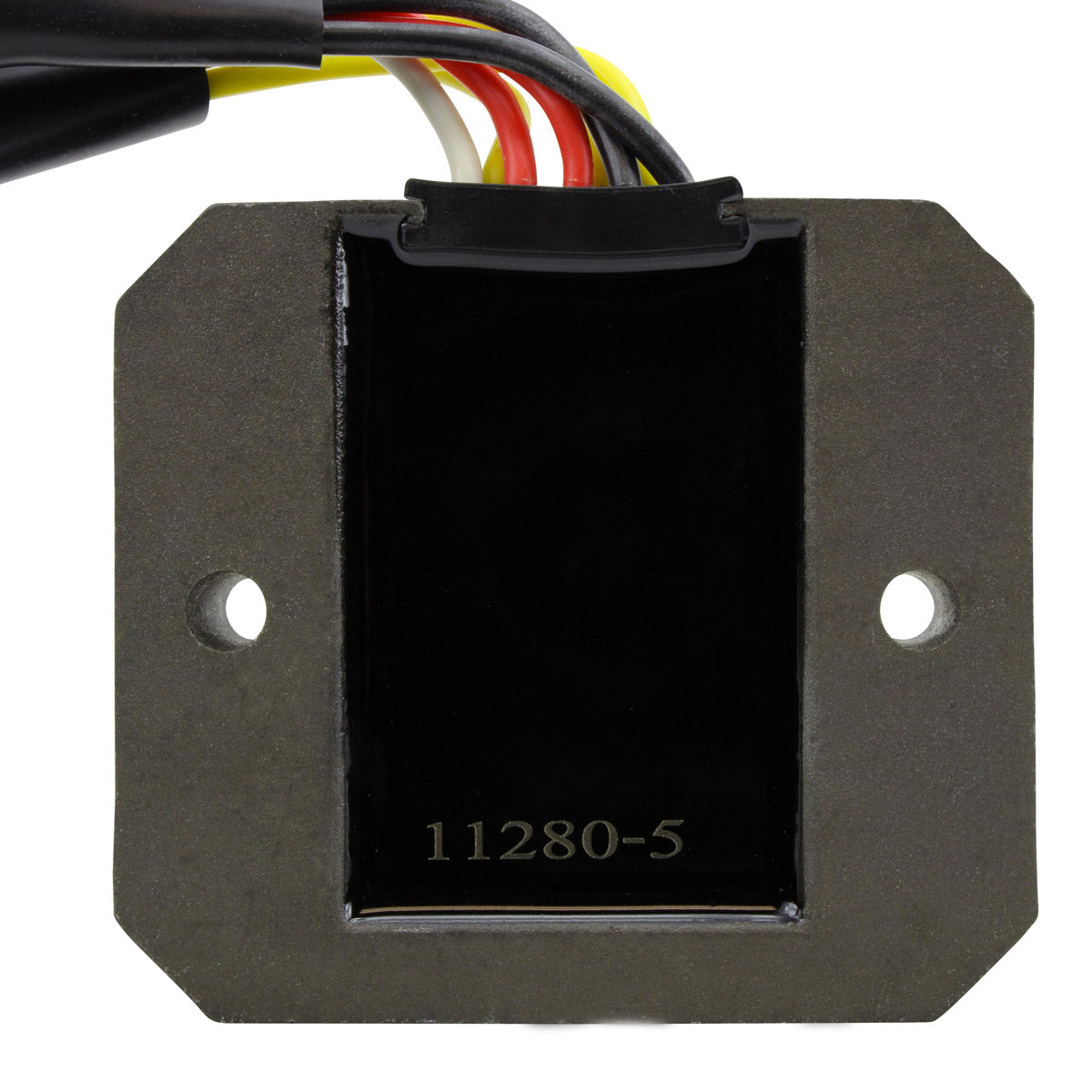

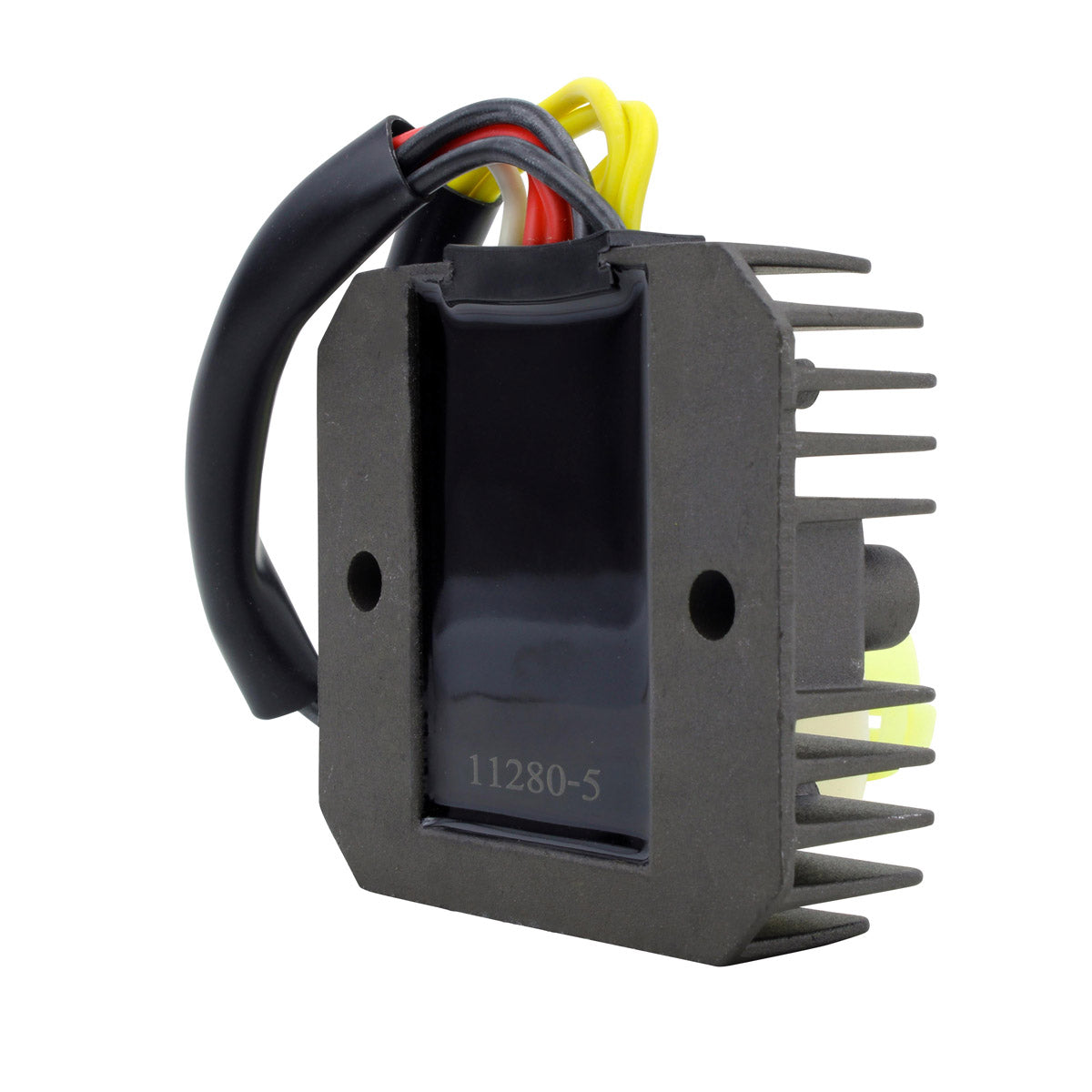

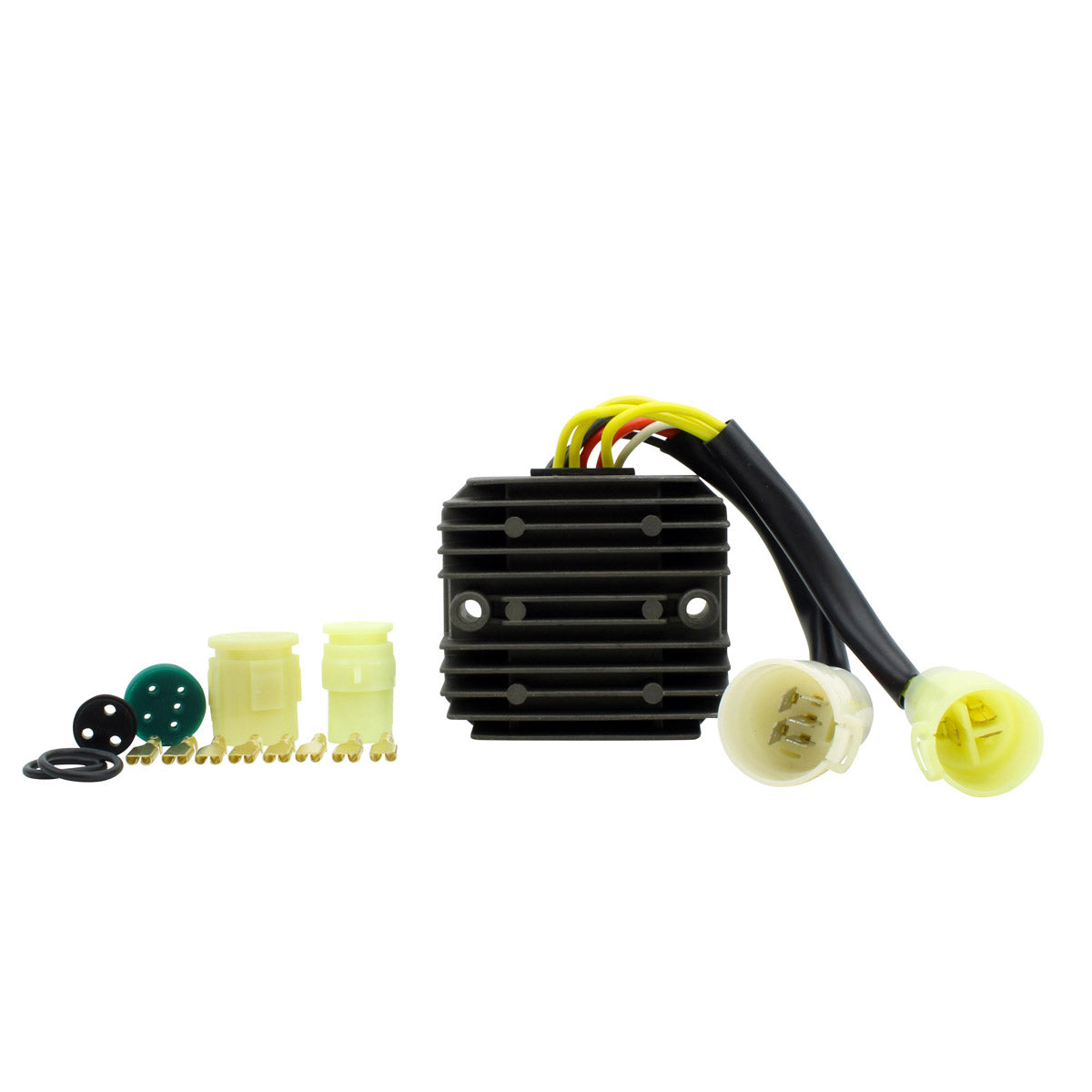

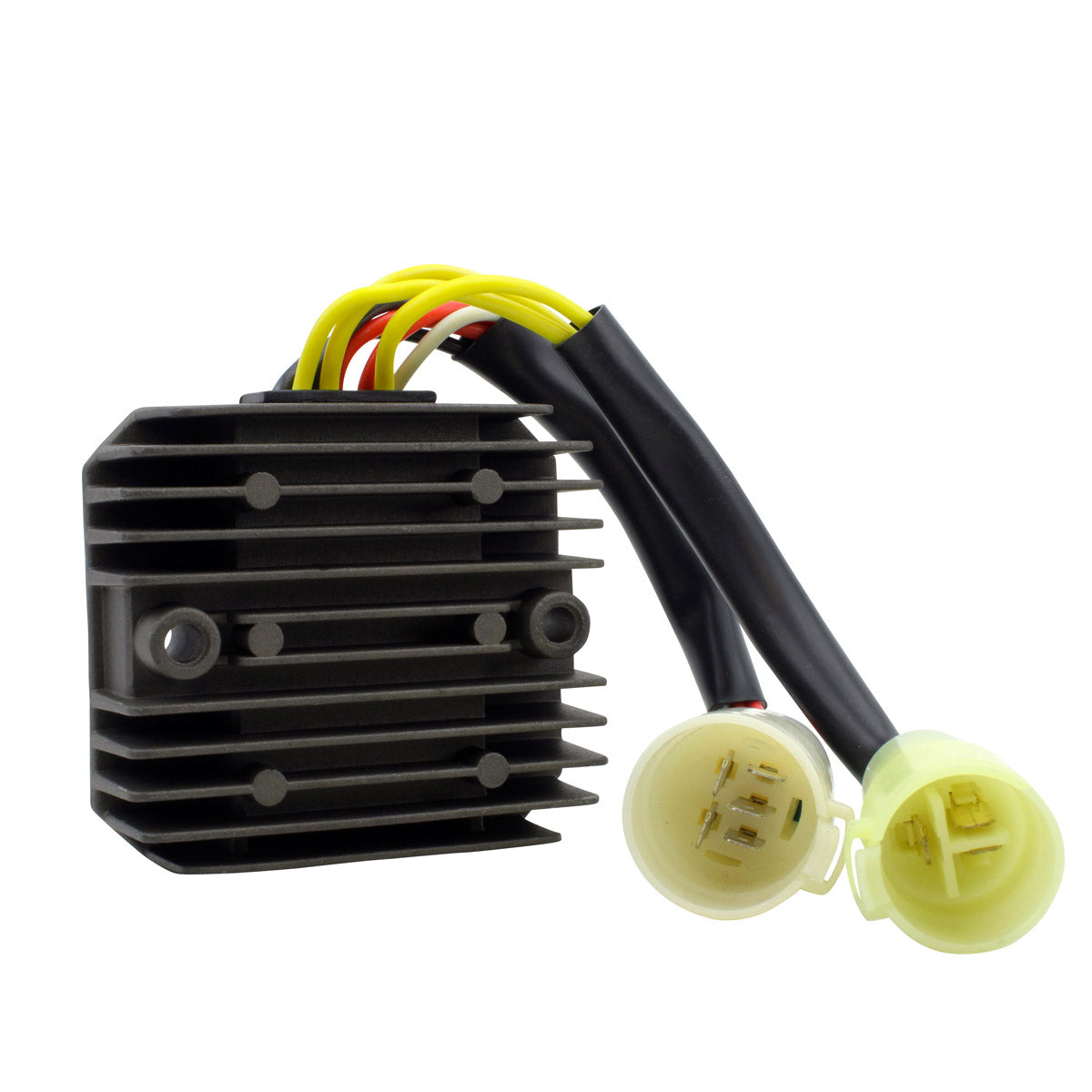

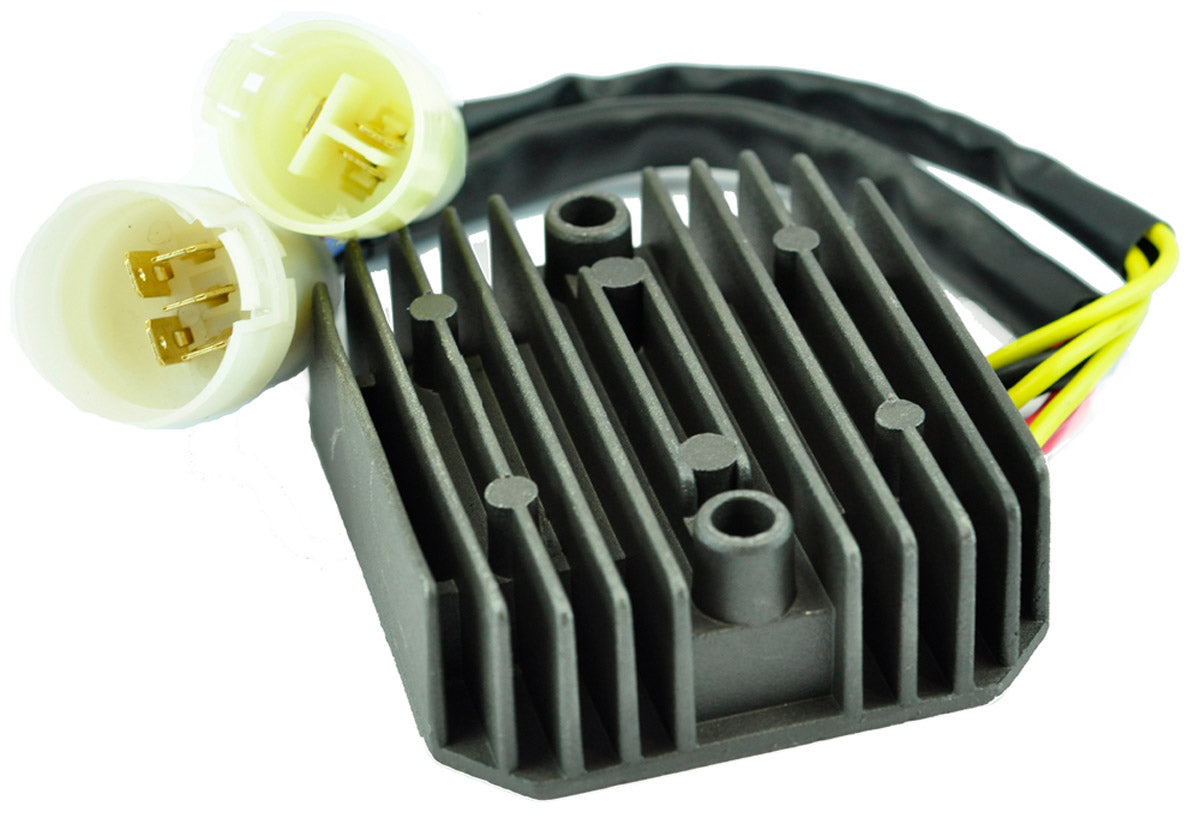

Brand new voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.

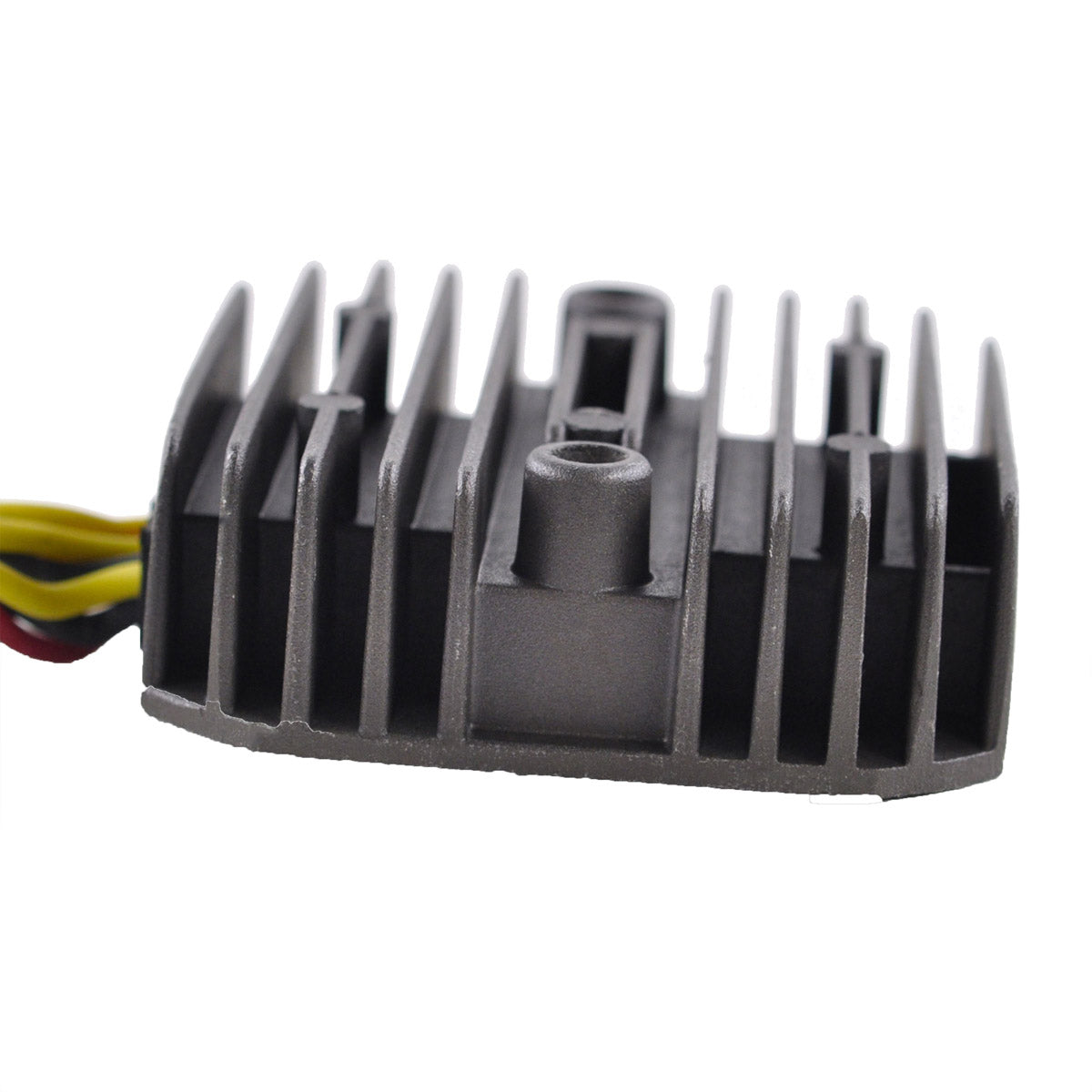

- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
*Kawasaki KLF 300 from 1992 to 2004 have more than one possible regulator rectifiers; the 2 parts available are the: RM30W02 and RM30401. Please compare with your original part
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 80 mm
Length: 90 mm
Height: 28 mm
Fixation holes center to center: 70 mm
Wires length: 200 mm
Other specifications:

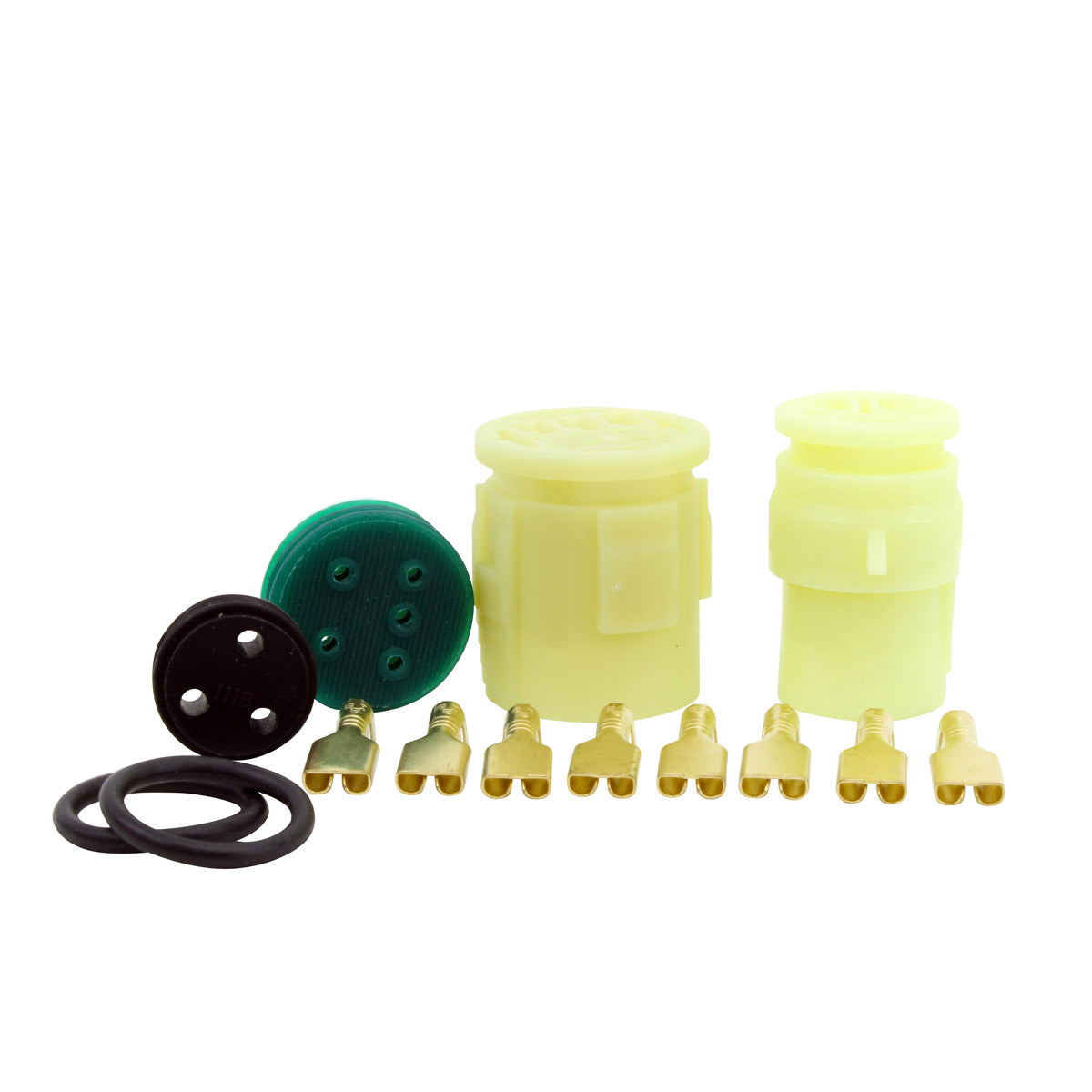

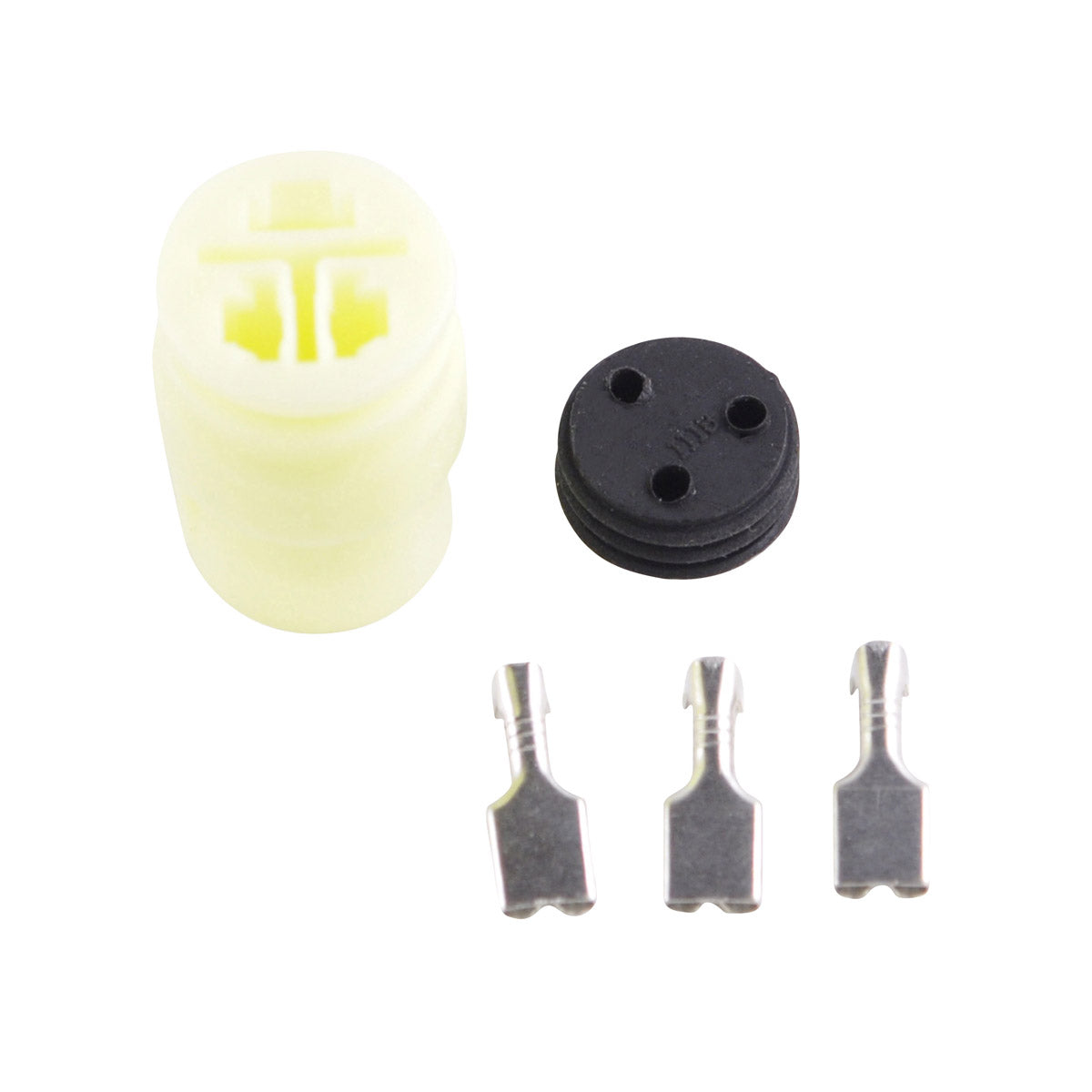

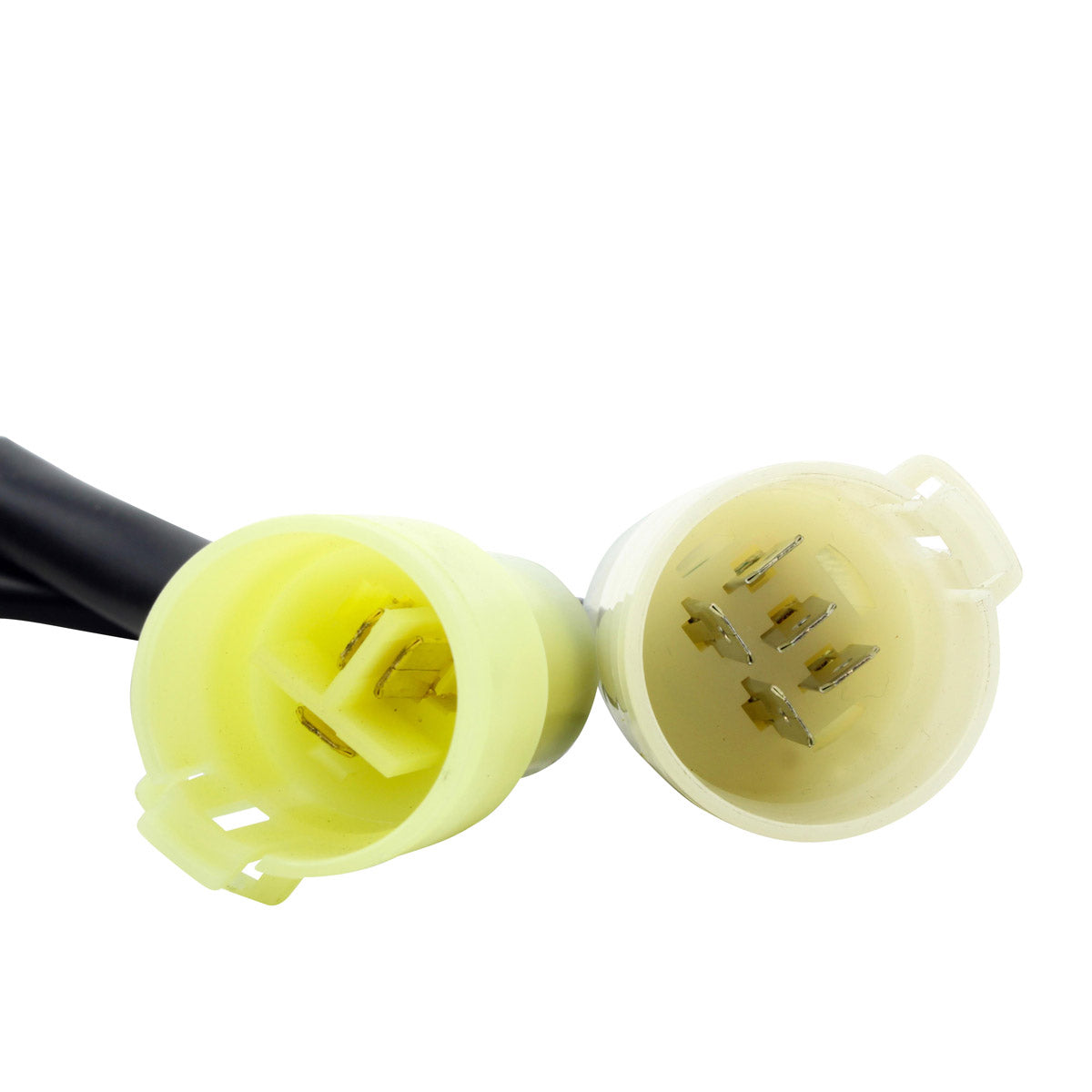

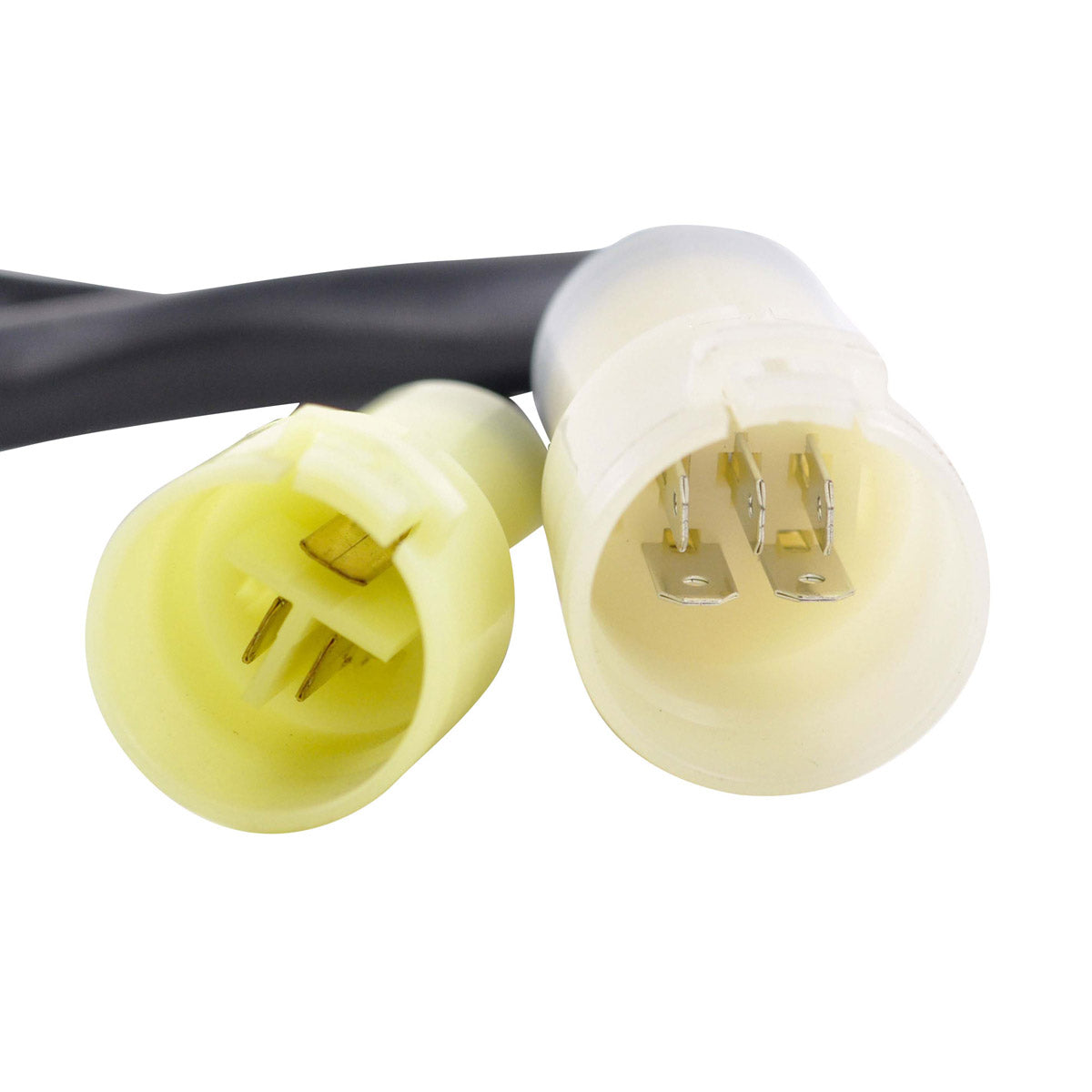

Number of plugs: 2
Number of pins: 8
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C
Interchange Part Nº
Interchange Part Nº
- 21066-1112
- 21066-0047
- K2106-61112
- K2106-60047
Installation
Installation
Before installing your new regulator/rectifier;
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
