Voltage Regulator for Arctic Cat EXT 580 | Honda RVT 1000 | KTM 690 Enduro | Suzuki GV 1200 1983-2024 62511034100 31600-MB4-018 3005-057

RMSTATOR
SKU: RM30T10
Low Stock
RMSTATOR

Voltage Regulator for Arctic Cat EXT 580 | Honda RVT 1000 | KTM 690 Enduro | Suzuki GV 1200 1983-2024 62511034100 31600-MB4-018 3005-057

$109.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Voltage Regulator Rectifier for Arctic Cat EXT Pantera Honda CBR RVT VF KTM Enduro Suzuki Supermoto 580-1100 1983-2016
Voltage Regulator for Arctic Cat EXT 580 | Honda RVT 1000 | KTM 690 Enduro | Suzuki GV 1200 1983-2024 62511034100 31600-MB4-018 3005-057
$109.89

Details

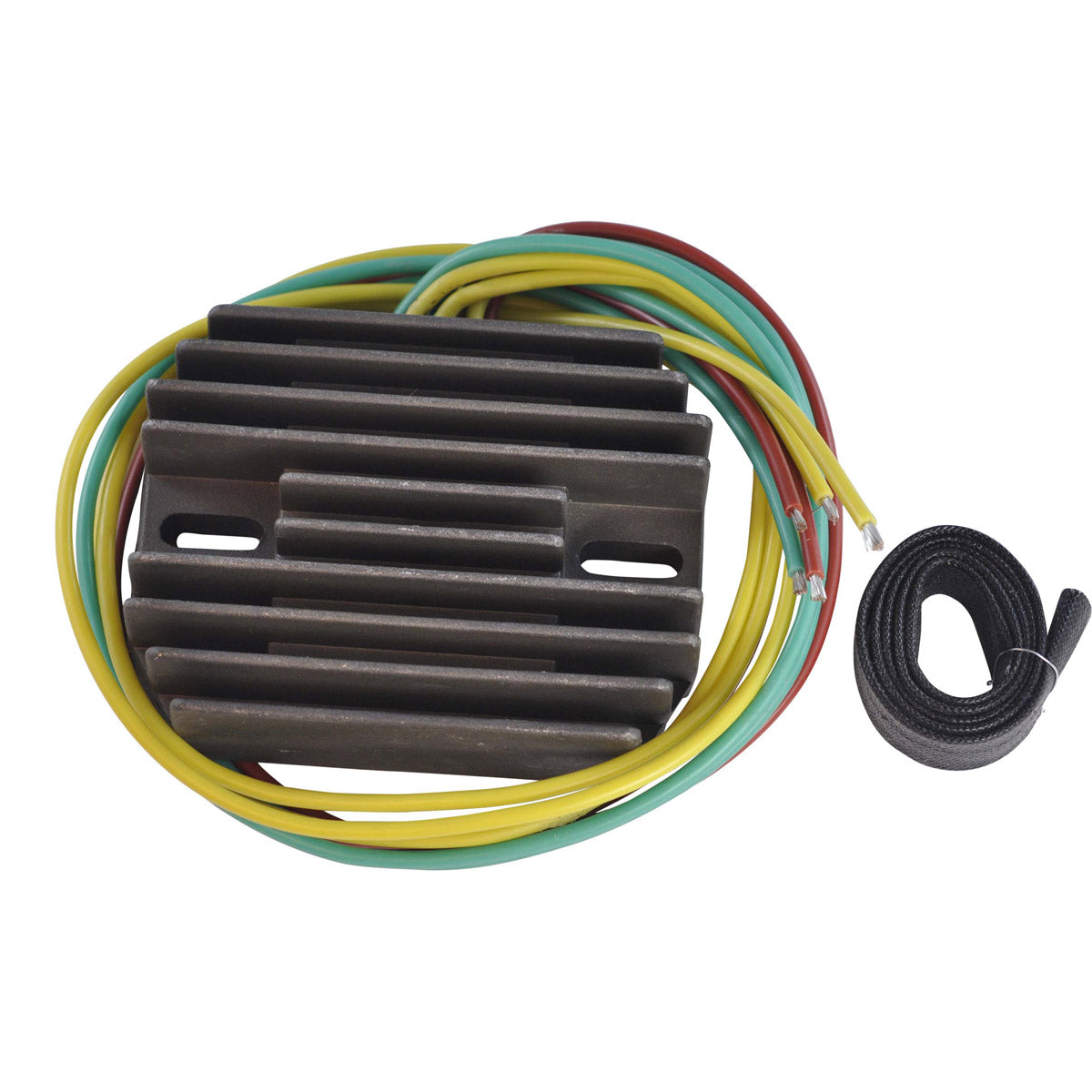

Brand new voltage regulator rectifier

  • You must re-install your original connector.
  • Once your connector is re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install.
  • No assembly required
  • The Quality exceeds the OEM equipment

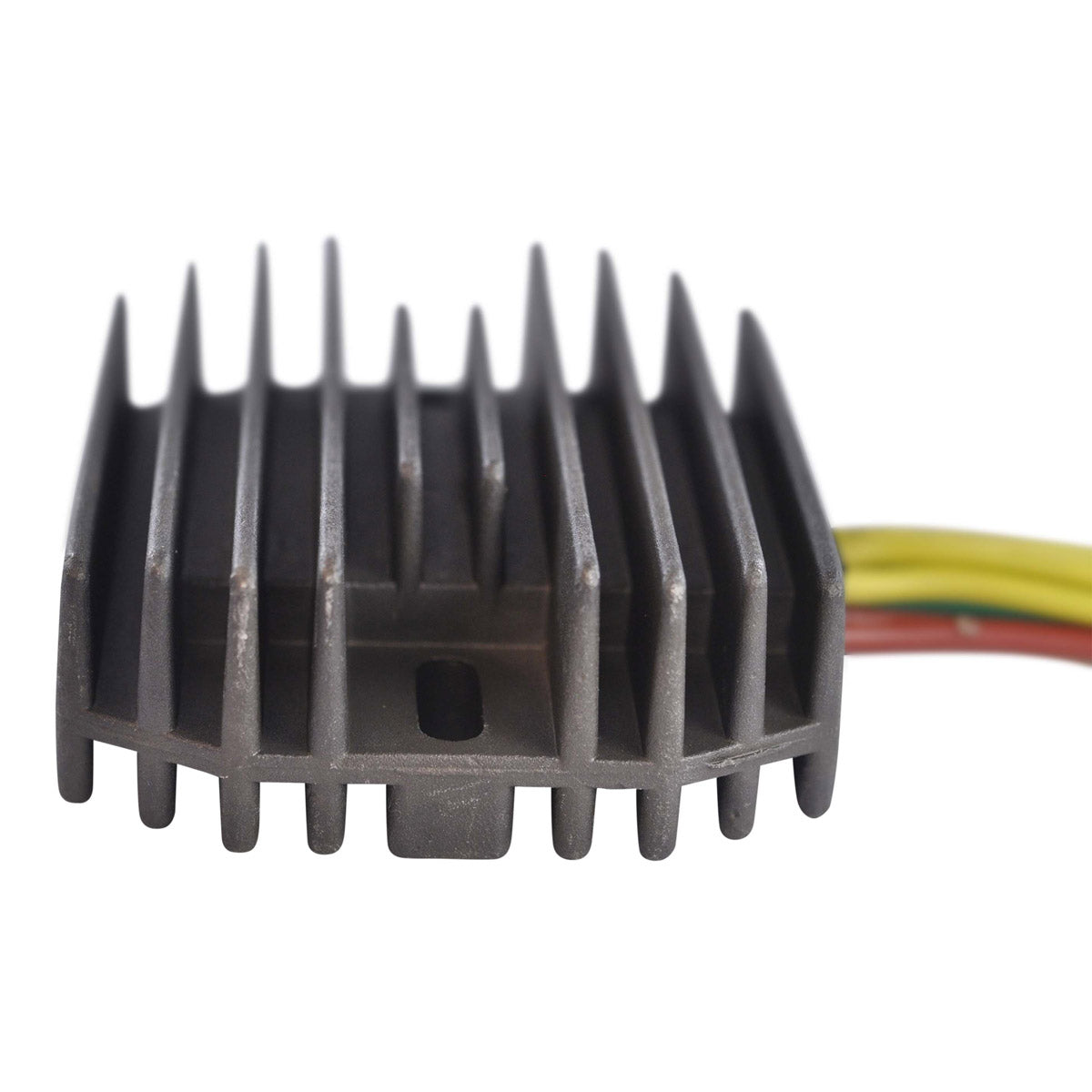

  • Improved heat sink and charging capabilities
  • Higher grade of electric components.
  • All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Width: 80 mm
Length: 104 mm
Height: 31 mm
Fixation holes center to center: 76 mm

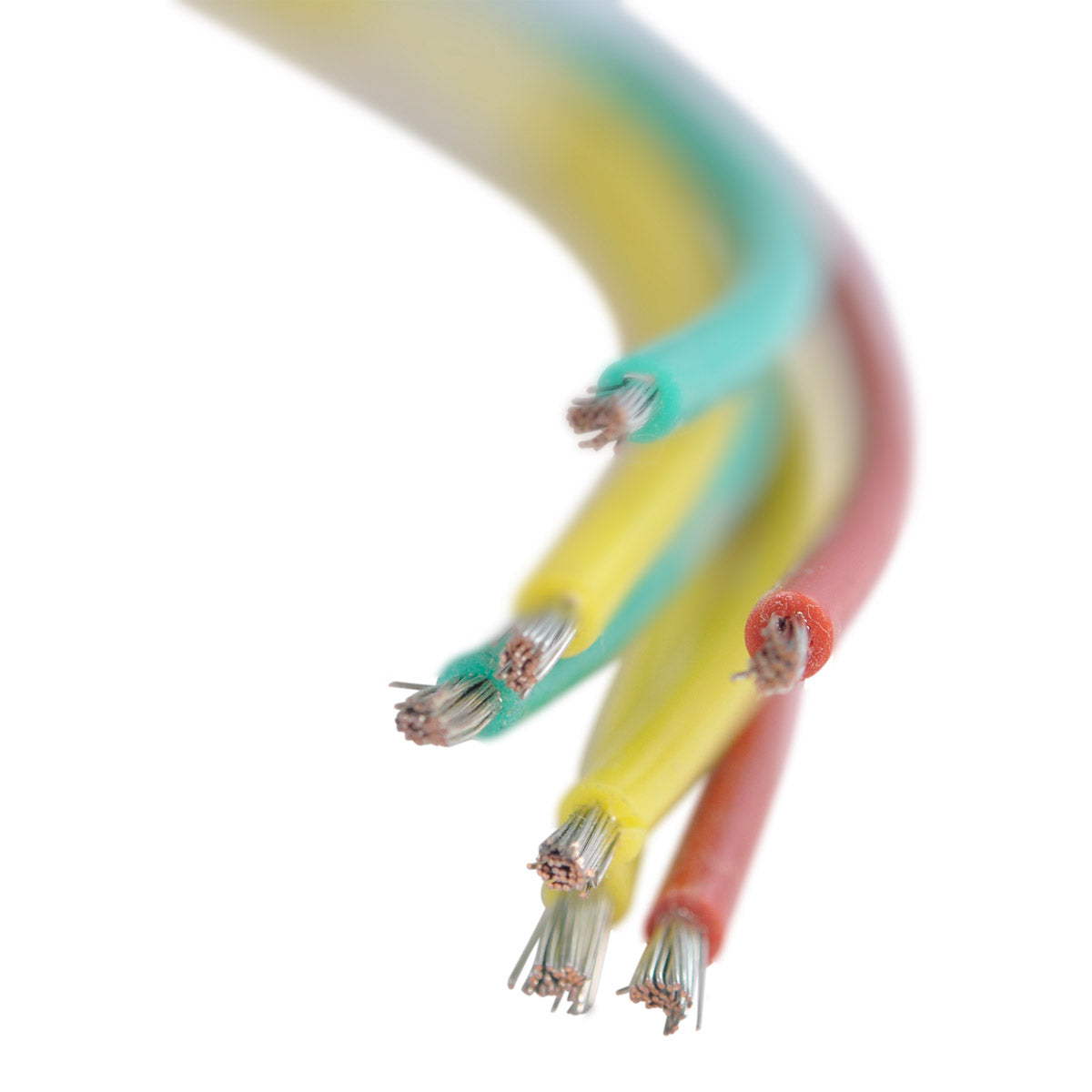

Wires length: 500 mm

Other specifications:
Number of plugs: 0
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C

Interchange Part Nº

  • 62511034100
  • 31600-MBG-D00
  • 62511034000
  • 21066-025
  • 31600-MB4-008
  • 31600-MG8-008
  • 32800-05A00
  • 31600-MB4-018
  • 3005-057
  • 31600-MN0-008
  • 31600-MBG-306
  • 31600-MBG-D01
  • 31600-MAT-E01
  • 31600-MCF-003
  • 31600-MCF-D30

Installation

Before installing your new regulator/rectifier;
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
