Voltage Regulator Rectifier for Suzuki VX VZ Marauder 800 1990-2004 | 32800-45C01 / 32800-45C00
RMSTATOR
SKU: RM30F06
In Stock
RMSTATOR
Voltage Regulator Rectifier for Suzuki VX VZ Marauder 800 1990-2004 | 32800-45C01 / 32800-45C00
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Voltage Regulator Rectifier for Suzuki VX VZ Marauder 800 1990-2004 | 32800-45C01 / 32800-45C00
Details
Details
Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested

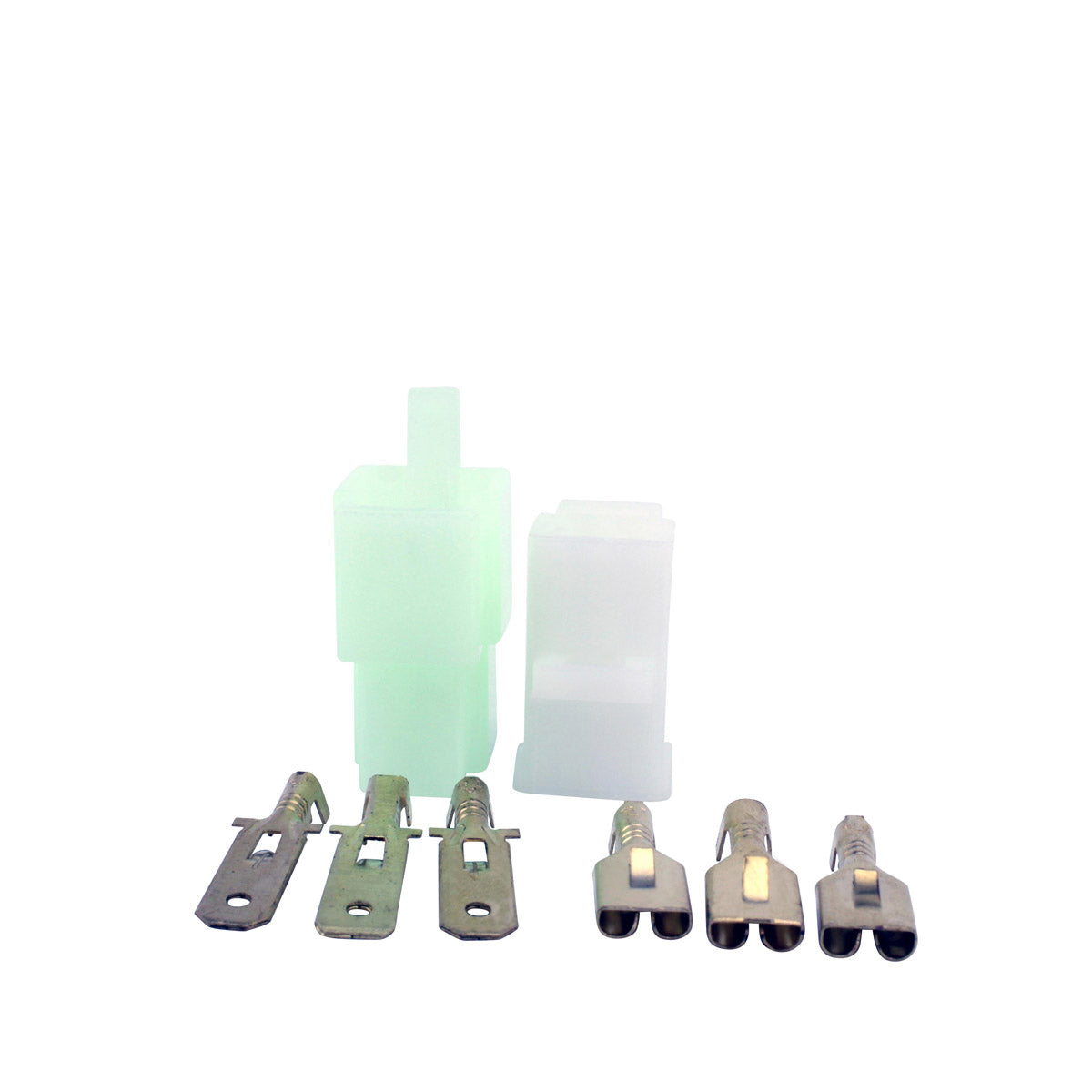

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 25 mm
Length: 79 mm
Height: 68 mm
Wires length: 500 mm
Fixation holes center to center: 53 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Interchange Part Nº
Interchange Part Nº
- 32800-45C01
- 32800-45C00
- 10-215
Installation
Installation
Before installing your new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
