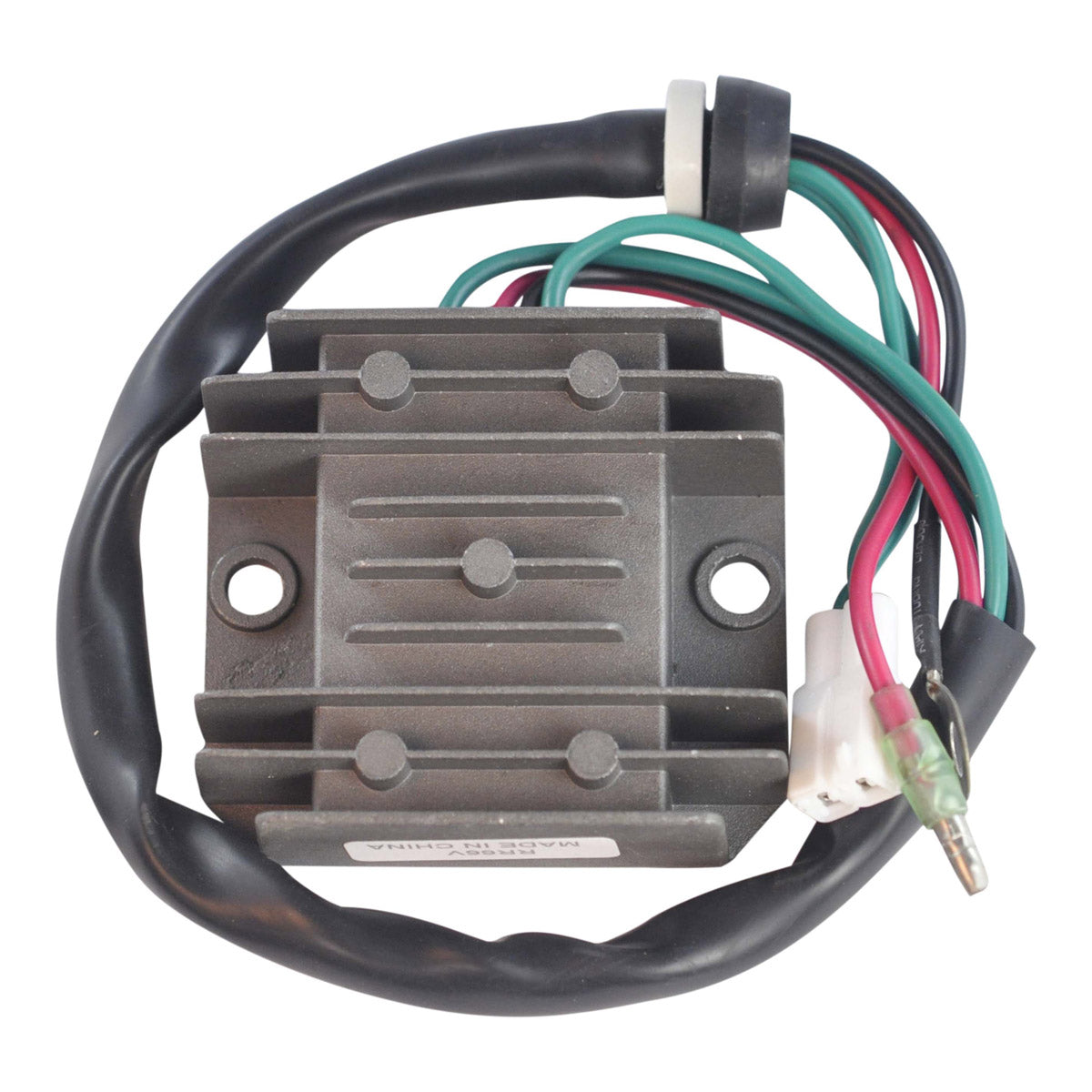

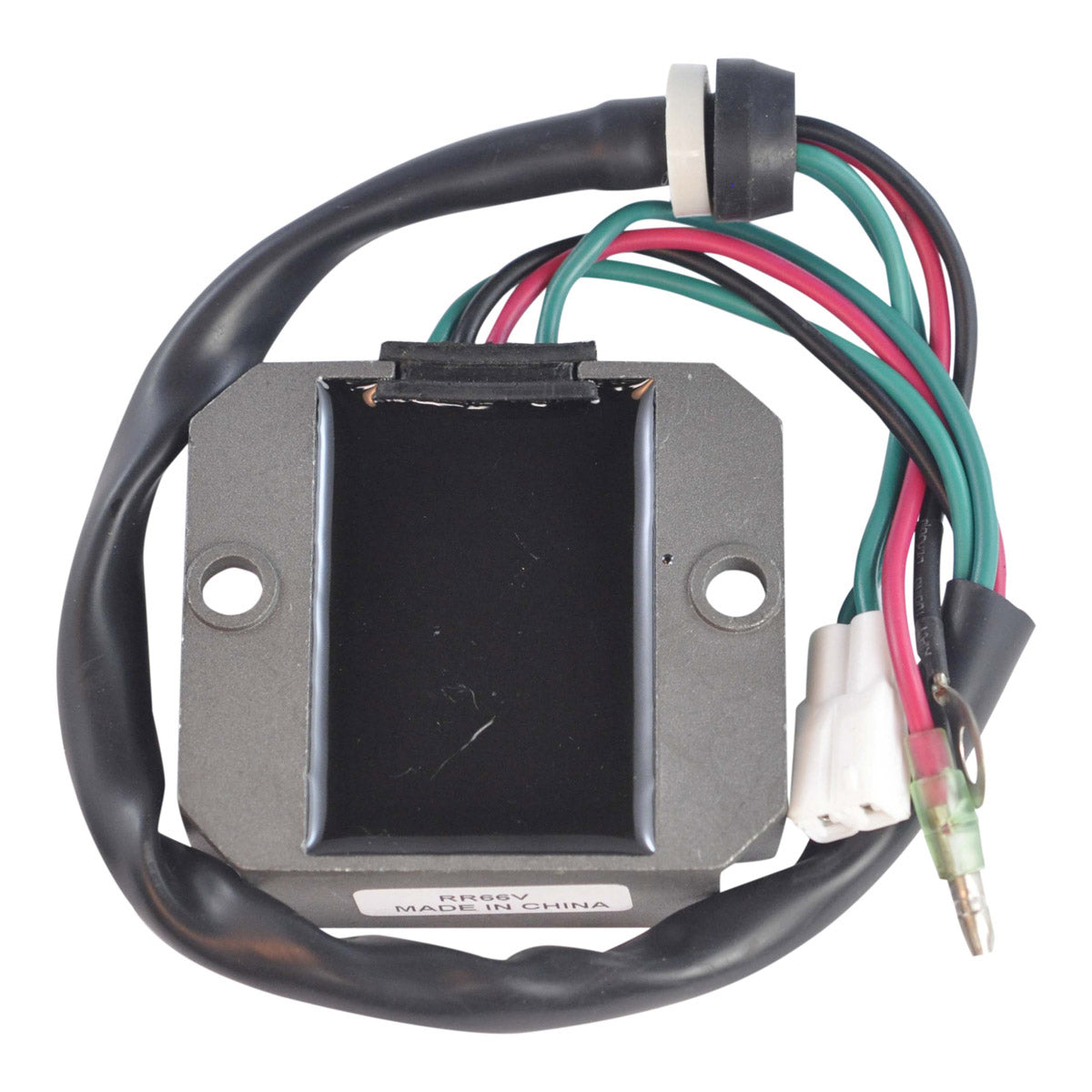

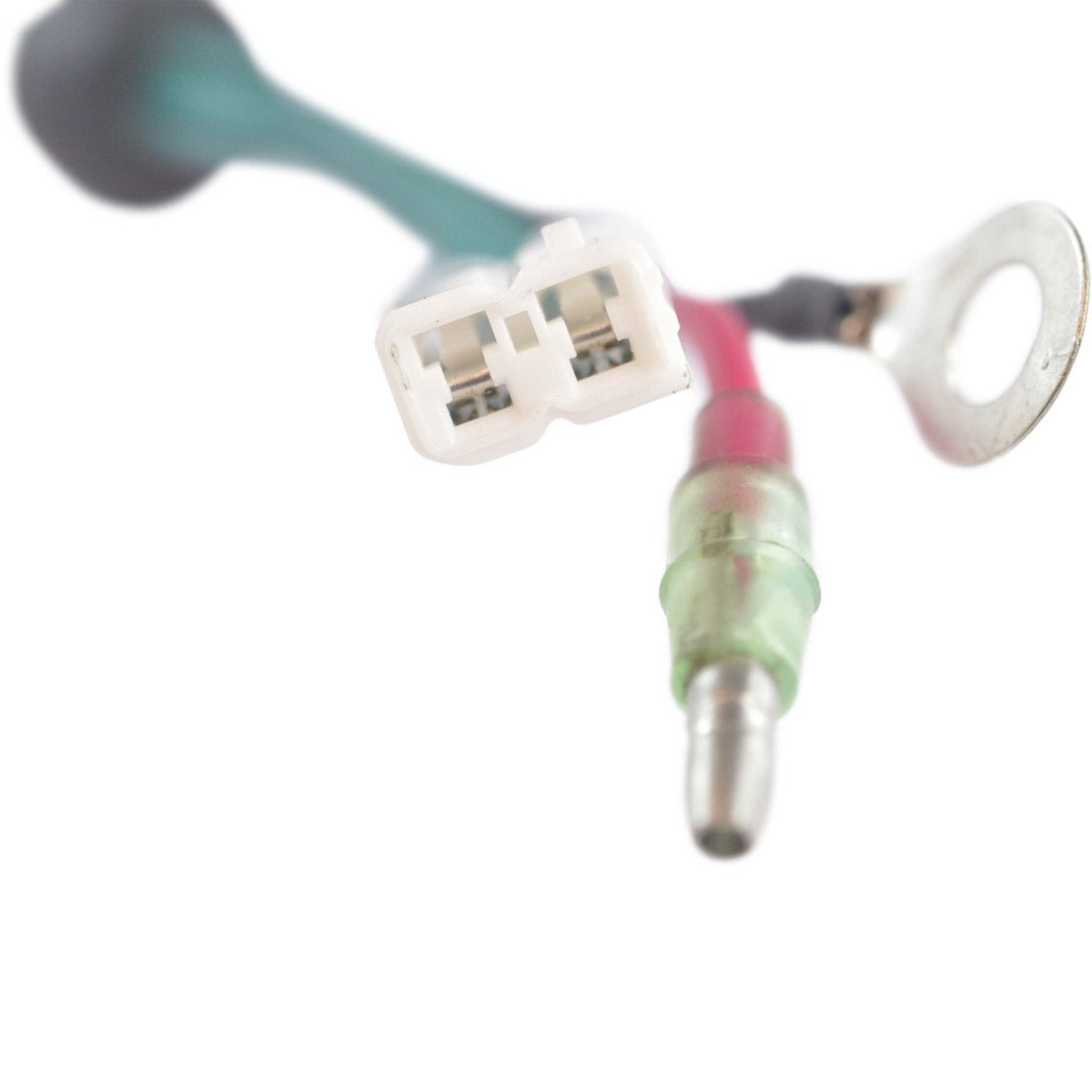

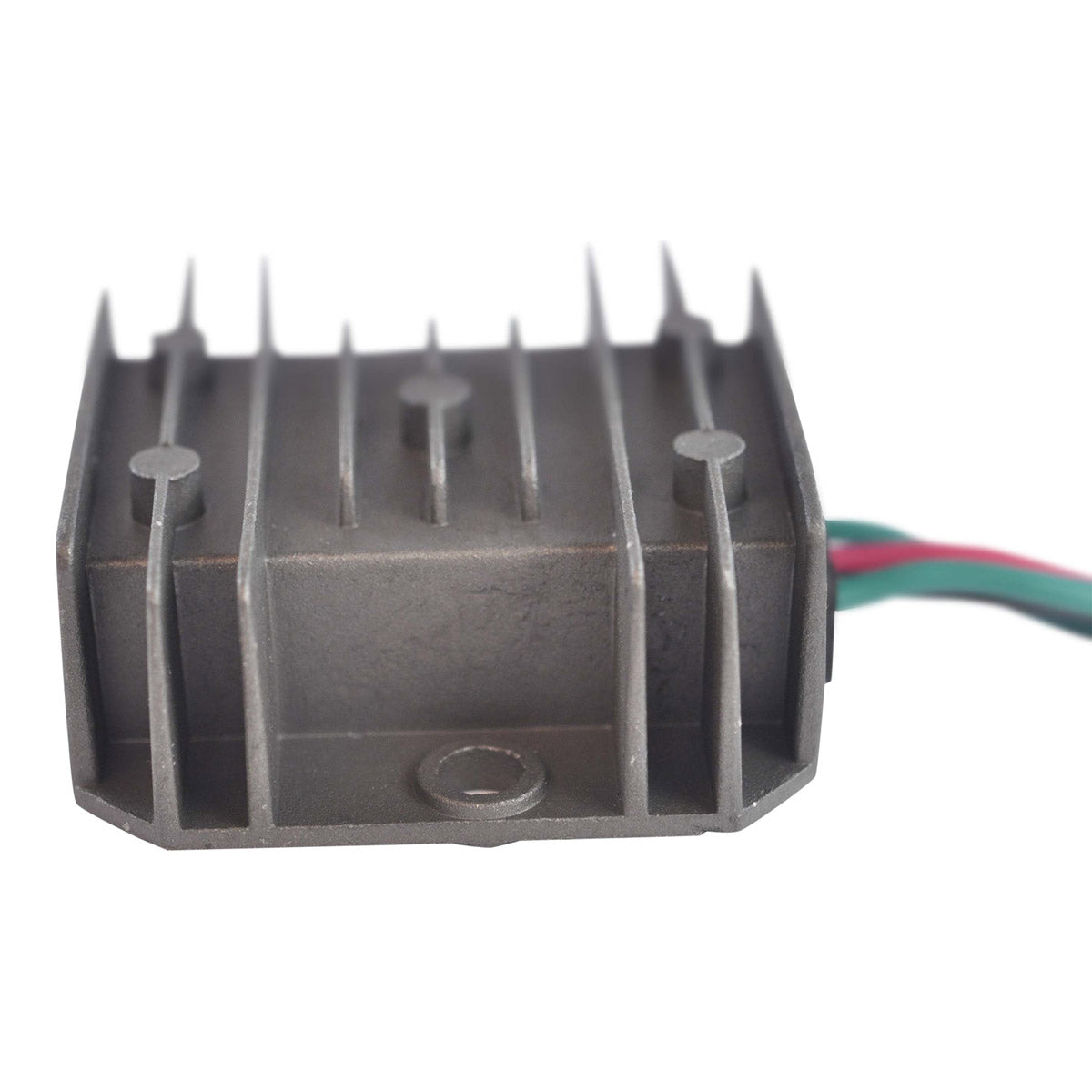

Voltage Regulator Rectifier for Yamaha GP XL XLT 1200 XR 1800 1999-2005

Voltage Regulator Rectifier for Yamaha GP XL XLT 1200 XR 1800 1999-2005

Name: Voltage Regulator Rectifier for Yamaha GP XL XLT 1200 XR 1800 1999-2005
Brand: RMSTATOR
SKU: RM30923
Price: 97.89 USD
Availability: InStock

RMSTATOR

SKU: RM30923

In Stock

RMSTATOR

Voltage Regulator Rectifier for Yamaha GP XL XLT 1200 XR 1800 1999-2005

$97.89

This product fits your

FITMENT WARNING:

This product does not fit your

This product is ride specific

Shop By Vehicle

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Voltage Regulator Rectifier for Yamaha GP XL XLT 1200 XR 1800 1999-2005

$97.89

Details

Brand new improved voltage regulator rectifier

AC regulator rectifier
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required
The Quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components.
All products shipped are tested

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 59 mm
Length: 66 mm
Height: 24 mm
Fixation holes center to center: 55 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Interchange Part Nº

66V-81960-00-00

Installation

Before installing your new regulator/rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
