AC/DC Voltage Regulator Rectifier for Yamaha V-Max 1200 1996-2007

RMSTATOR
SKU: RM30435
Low Stock
RMSTATOR

AC/DC Voltage Regulator Rectifier for Yamaha V-Max 1200 1996-2007

$116.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
AC/DC Voltage Regulator Rectifier for Yamaha V-Max 1200 1996-2007
AC/DC Voltage Regulator Rectifier for Yamaha V-Max 1200 1996-2007
$116.89

Details

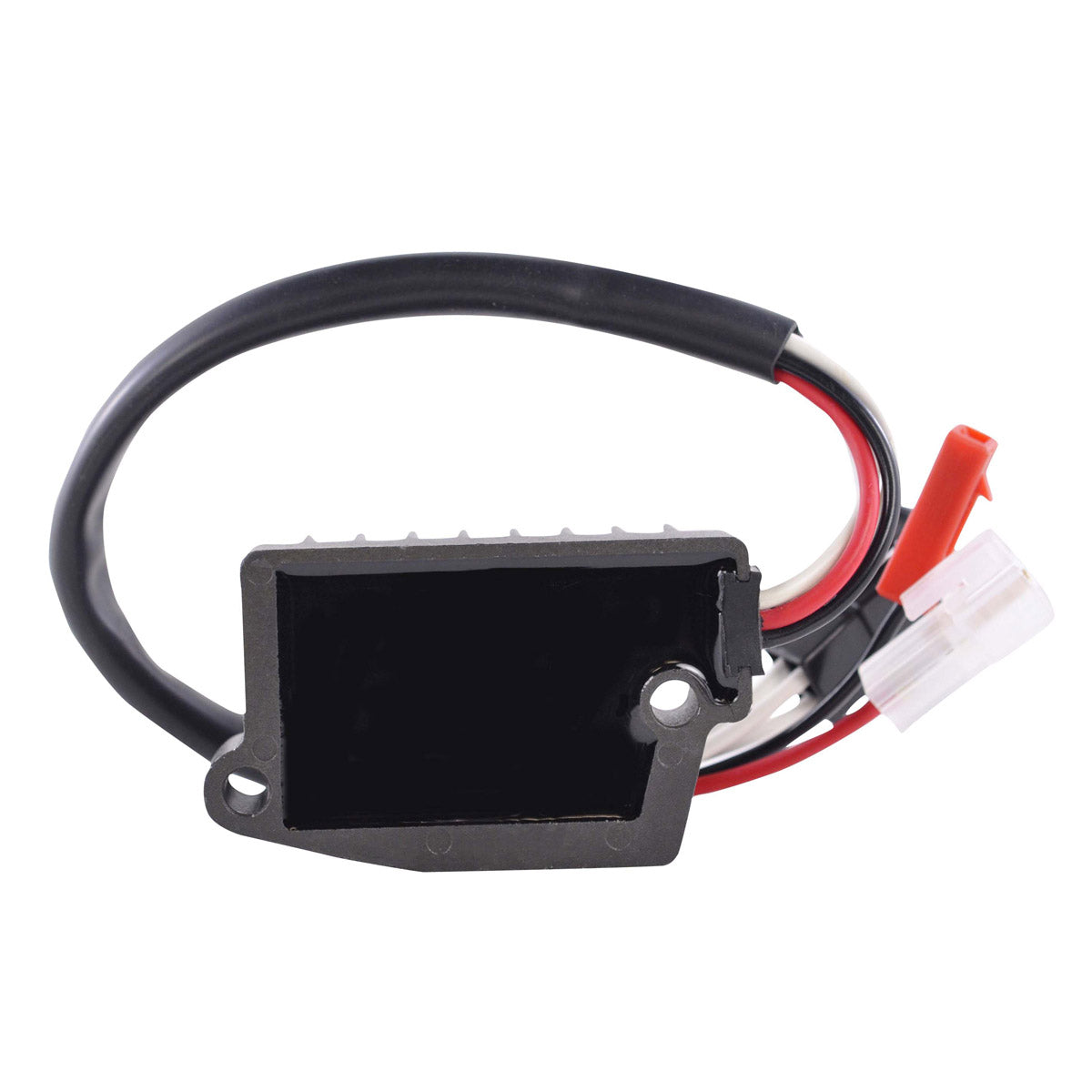

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.

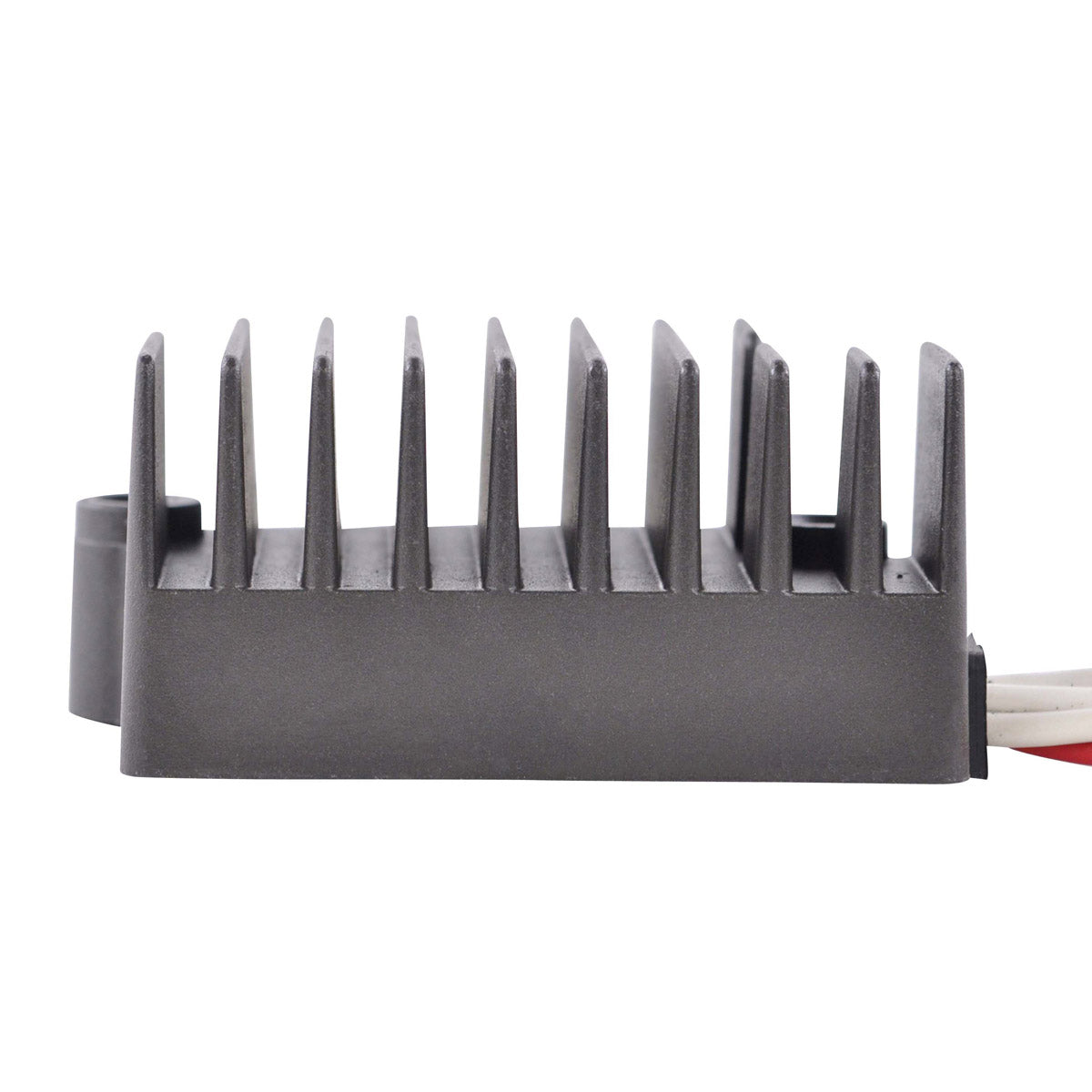

  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment
  • All products shipped are tested

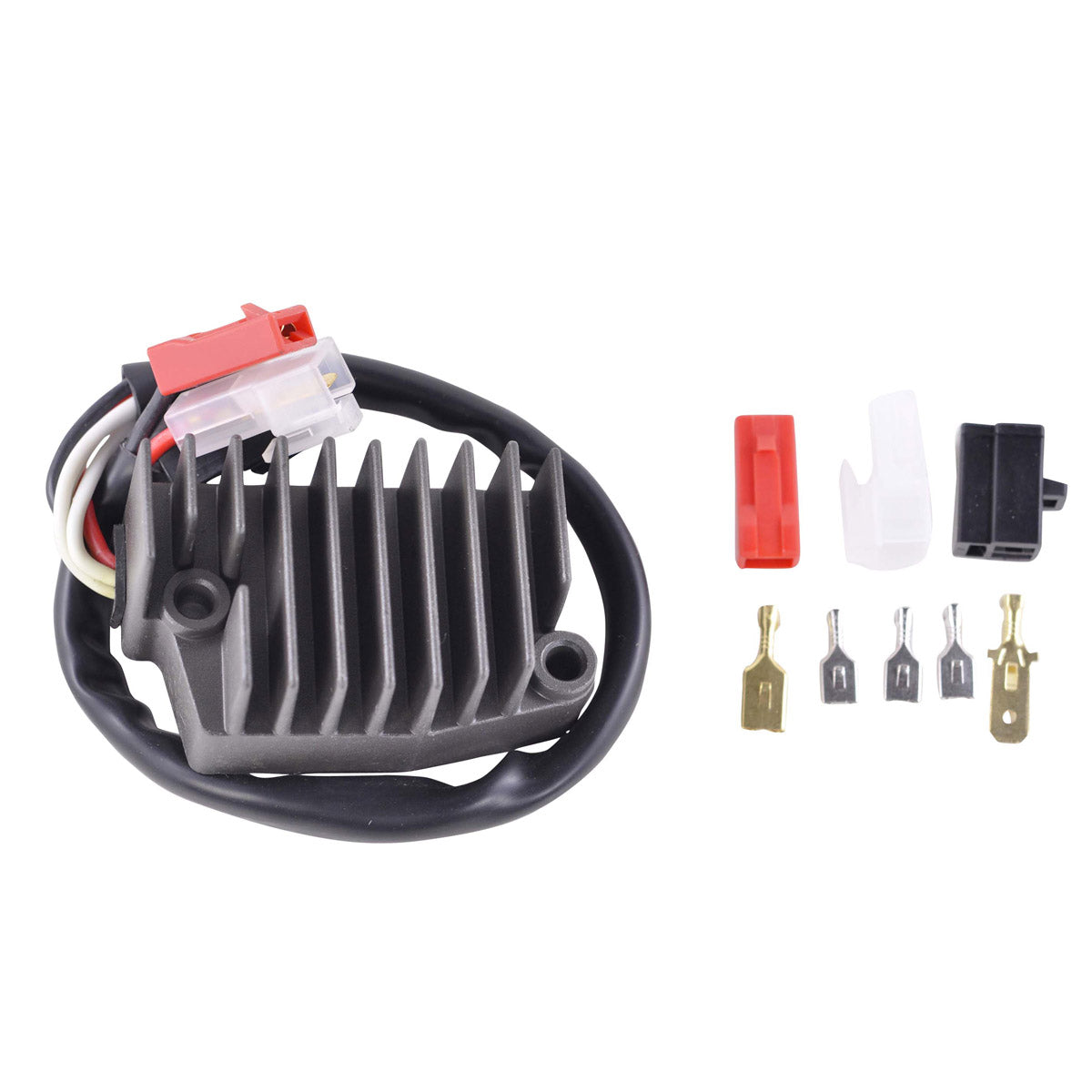

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 52 mm
Length: 87 mm
Height: 40 mm
Wires length: 325 mm, 365 mm & 380 mm
Fixation holes center to center: 68 mm

Other specifications:

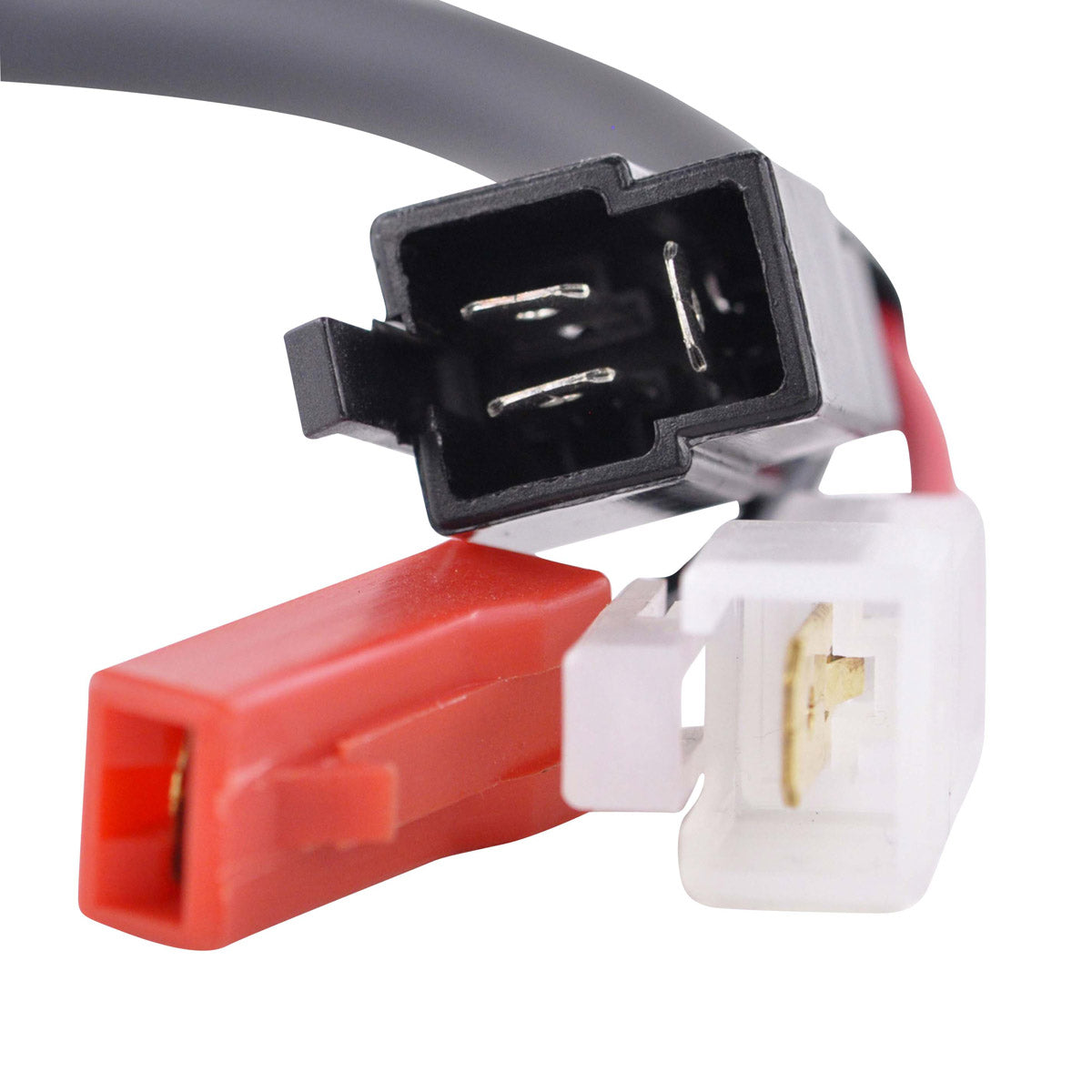

Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A / 300
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Interchange Part Nº

  • 3JP-81960-00-00
  • 3JP-81960-01-00

Installation

Before installing your new voltage regulator rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulatorrectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
