Voltage Regulator Rectifier for Ski-Doo Lynx Expedition Freestyle MX Z MX ZX Skandic Summit Rave 300 380 550 2005-2009
RMSTATOR
SKU: RM30373
In Stock
RMSTATOR
Voltage Regulator Rectifier for Ski-Doo Lynx Expedition Freestyle MX Z MX ZX Skandic Summit Rave 300 380 550 2005-2009
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Voltage Regulator Rectifier for Ski-Doo Lynx Expedition Freestyle MX Z MX ZX Skandic Summit Rave 300 380 550 2005-2009
Details
Details

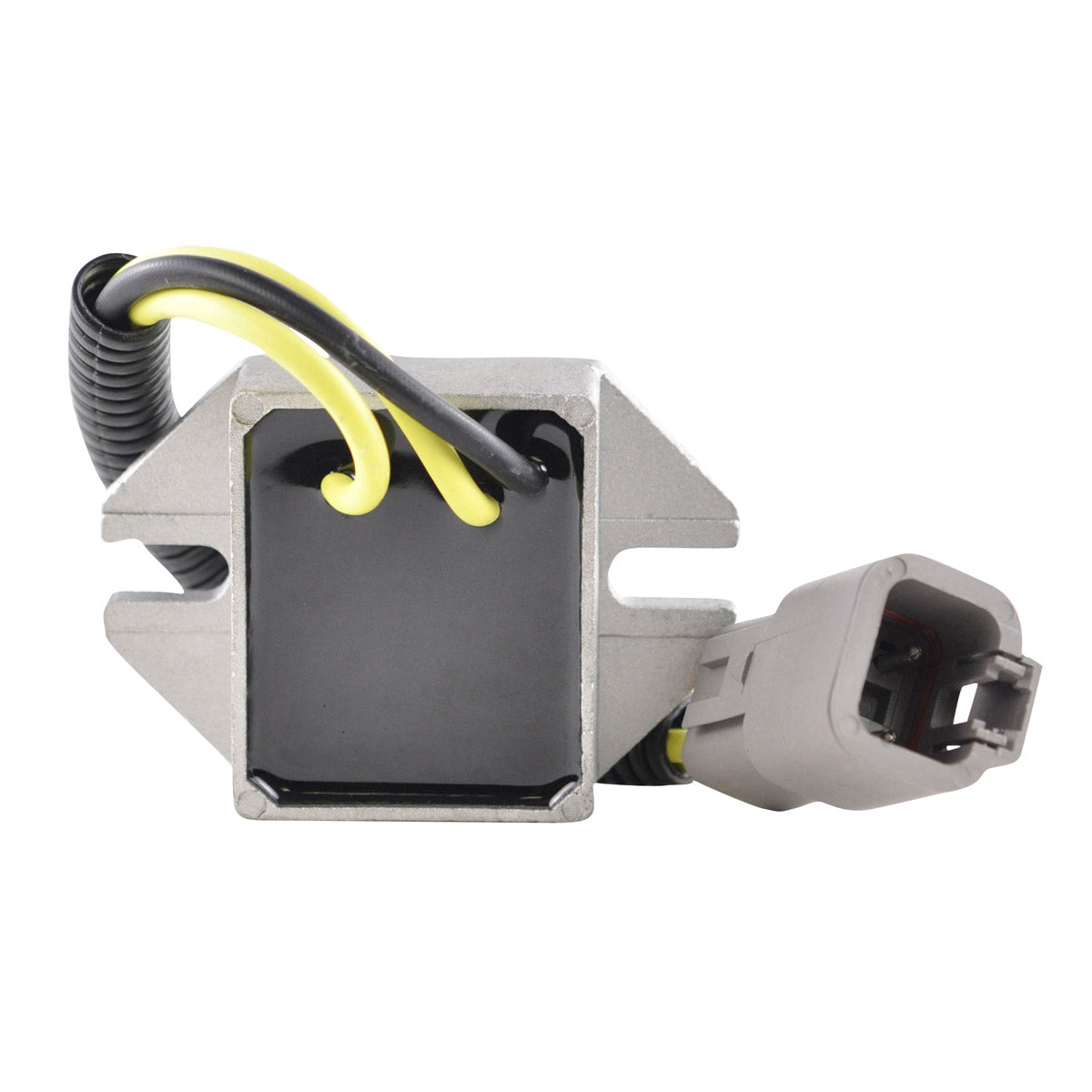

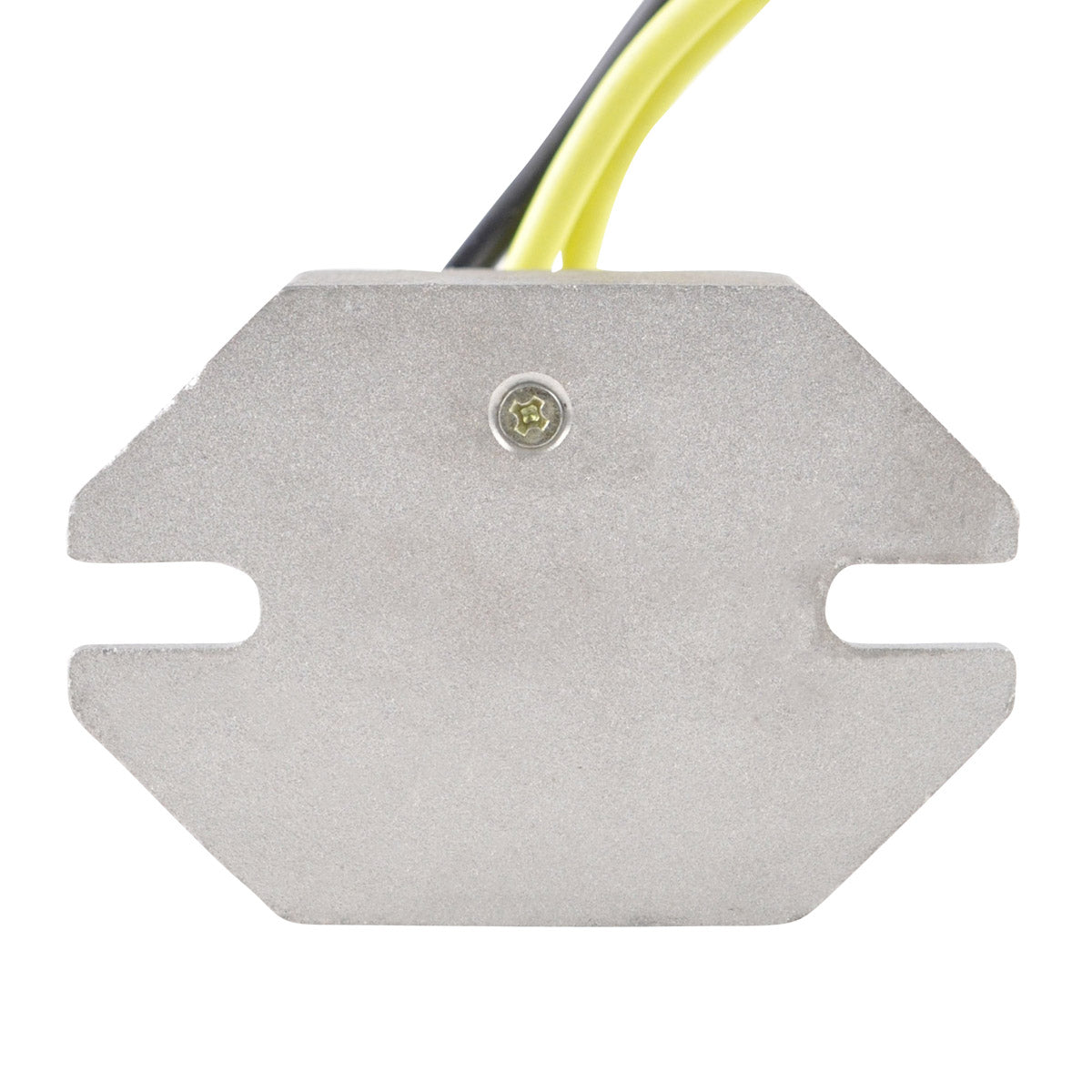

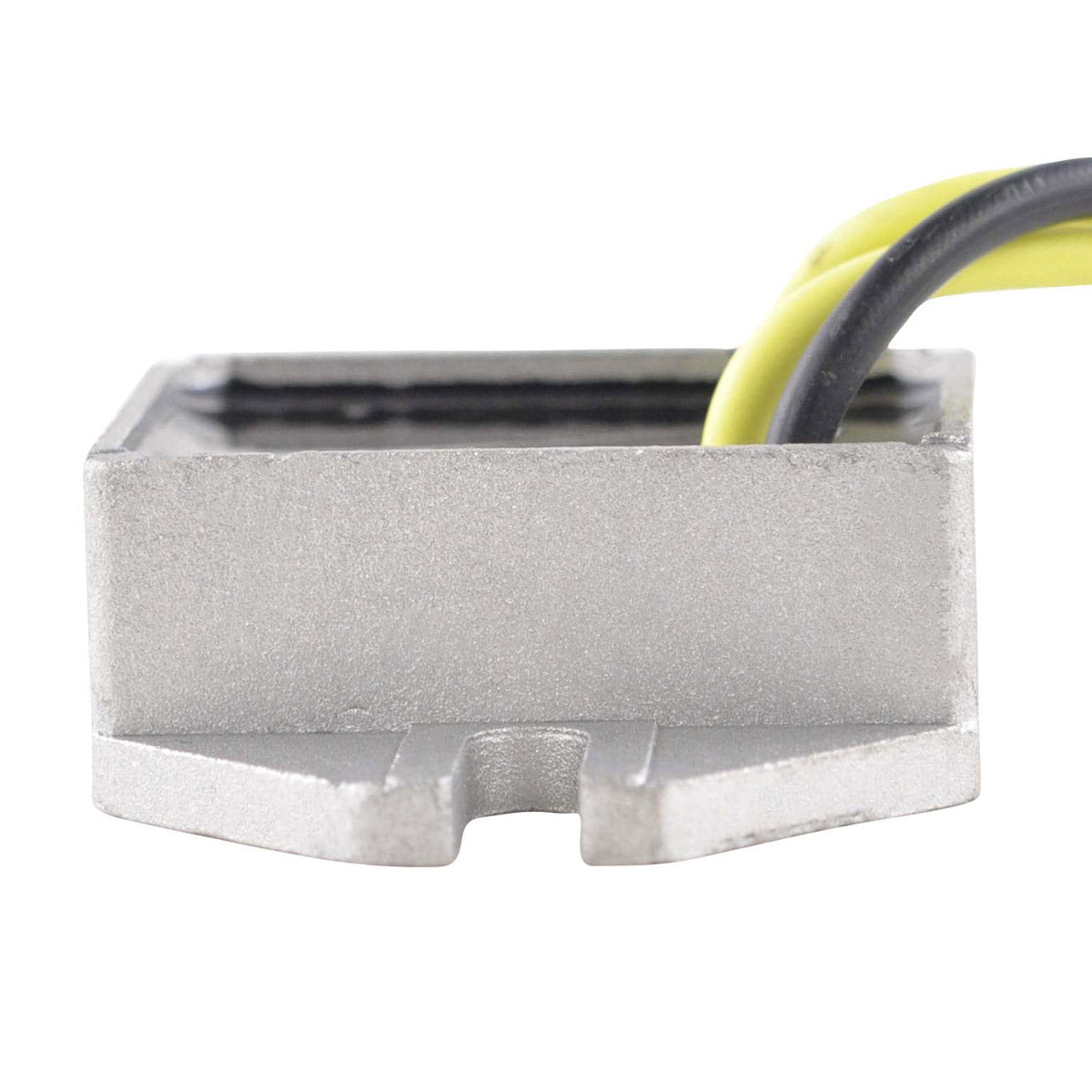

Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Please note there is a possibility of two regulators with certain models depending on if it has a crank start or an electric start. These models include the following :
- Ski-Doo Expedition 550 2005
- Ski-Doo Skandic Tundra 300 2006-2008
- Ski-Doo Freestyle 550 2007-2008
- Ski-Doo MX Z 5502007
- Ski-Doo MX ZX 550 2009
For models with a crank starter as starting type, use part RM30914.
Specifications
Specifications
Dimensions:
Width: 47 mm
Length: 54 mm
Height: 22 mm
Wires length: 170 mm
Fixation holes center to center: 65 mm
Other specifications:

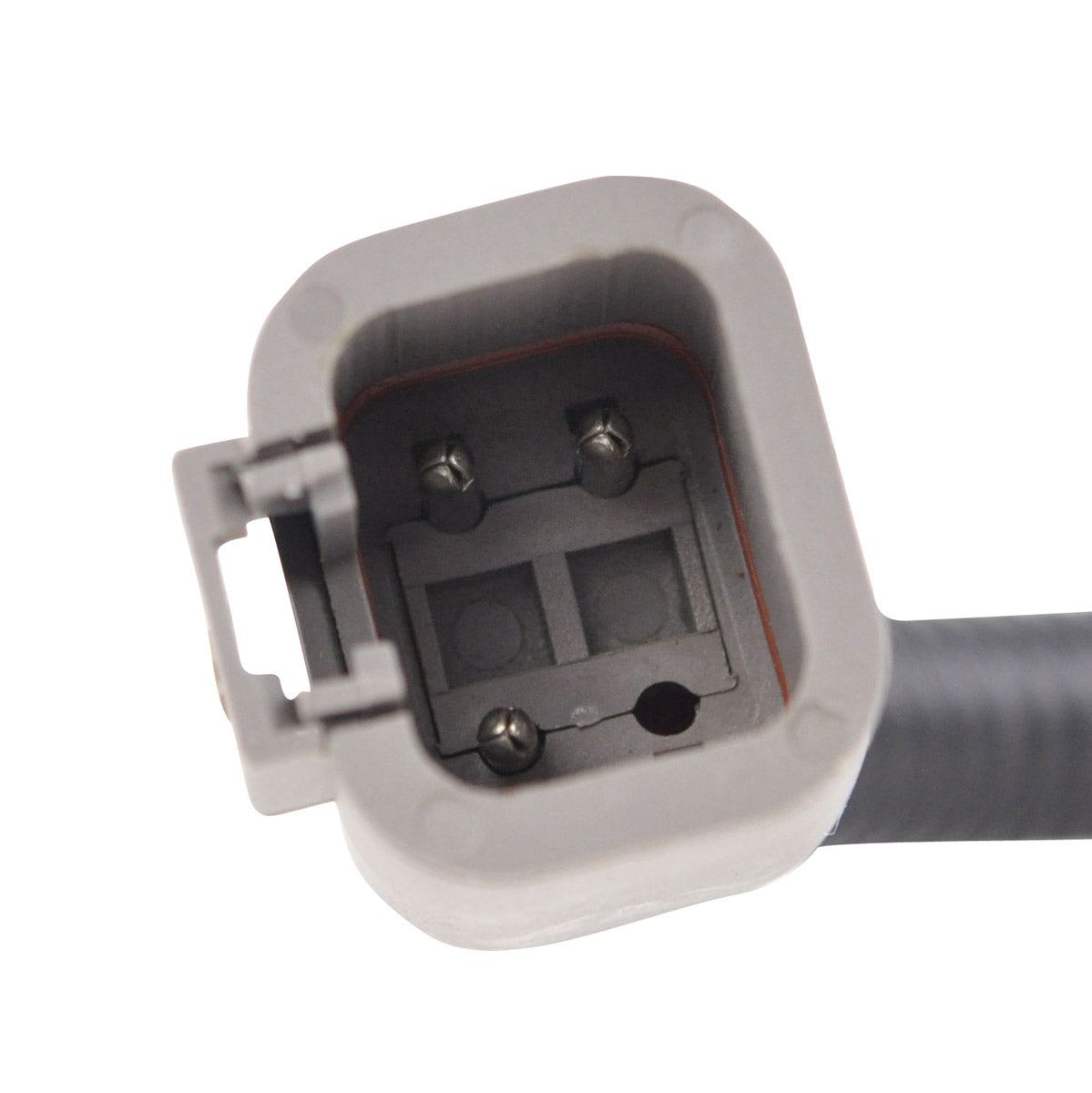

Number of plugs: 1
Number of pins: 3
Number of wires: 3
Width: 47 mm
Length: 54 mm
Height: 22 mm
Wires length: 170 mm
Fixation holes center to center: 65 mm
Other specifications:
Number of plugs: 1
Number of pins: 3
Number of wires: 3
Interchange Part Nº
Interchange Part Nº
- 515176188
Installation
Installation
Before installing your new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
