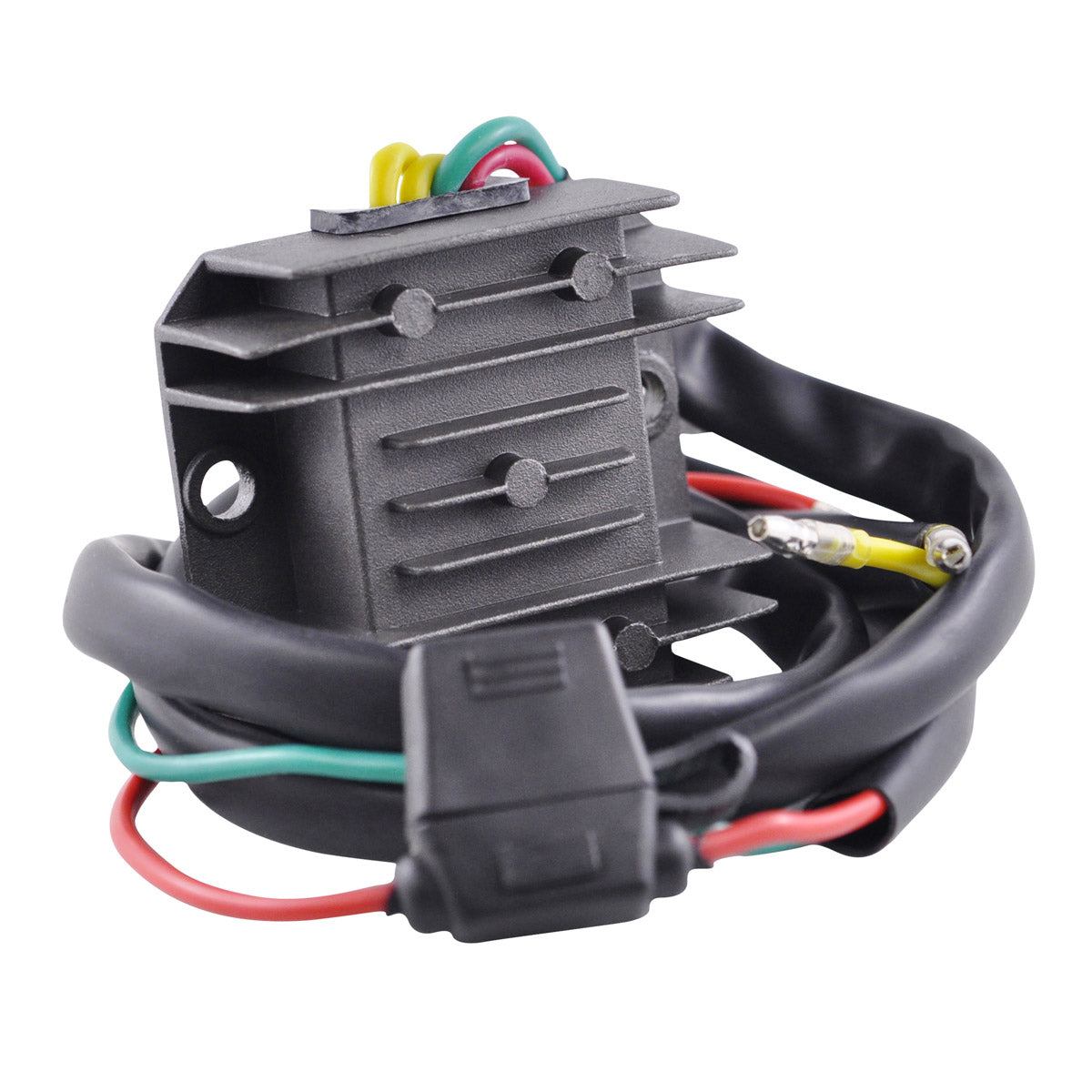

Voltage Regulator Rectifier for Honda CB 350 / 360 | CL 350 / 360 Scrambler | CJ 360 T 1968-1977 | # 31700-358-305
RMSTATOR
SKU: RM30343
In Stock
RMSTATOR
Voltage Regulator Rectifier for Honda CB 350 / 360 | CL 350 / 360 Scrambler | CJ 360 T 1968-1977 | # 31700-358-305
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
$33.79
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Voltage Regulator Rectifier for Honda CB 350 / 360 | CL 350 / 360 Scrambler | CJ 360 T 1968-1977 | # 31700-358-305
Details
Details
Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- Charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 58 mm
Length: 68 mm
Height: 25 mm
Wires length: 300 mm & 600 mm
Distance between fixation holes center to center: 53 mm
Other specifications:
Number of plugs: 4
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 35 A / 400 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Interchange Part Nº
Interchange Part Nº
- 31700-358-305
- 31700-358-013
- 31700-358-003
Installation
Installation
Before installing your new voltage regulator rectifier;
The OEM stator had a split charging coil to produce more power when the lights were on.
With this regulator you should do the following to produce full output at all times for battery charging.
Connect stator Yellow and White wires together, and to 1 of the Yellow wires on regulator.
Connector stator Pink wire to the other Yellow wire on regulator.
Connect regulator Green wire to Battery negative terminal.
Connect regulator Red wire to Battery positive terminal.
Connect stator Yellow wires to regulator Yellow wires (does not matter which).
Connect regulator Green wire to Battery negative terminal.
Connect regulator Red wire to Battery positive terminal.
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Please Note :This unit replaces BOTH your original separate regulator and rectifier. Both original parts will need to be removed. It will require a new mounting location, bracket as it is not a direct fit for the OEM mounting location of either original part.
To connect to an OEM (3-wire) stator:
To connect to an aftermarket high output (2-wire) stator:
Please secure the other unused wires from removing the original components.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
