Mosfet Voltage Regulator Rectifier for Polaris Sportsman 550 / X2 550 / 550 XP / 850 / 850 XP 2009 2010
RMSTATOR
SKU: RM30338
In Stock
RMSTATOR
Mosfet Voltage Regulator Rectifier for Polaris Sportsman 550 / X2 550 / 550 XP / 850 / 850 XP 2009 2010
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Mosfet Voltage Regulator Rectifier for Polaris Sportsman 550 / X2 550 / 550 XP / 850 / 850 XP 2009 2010
Details
Details

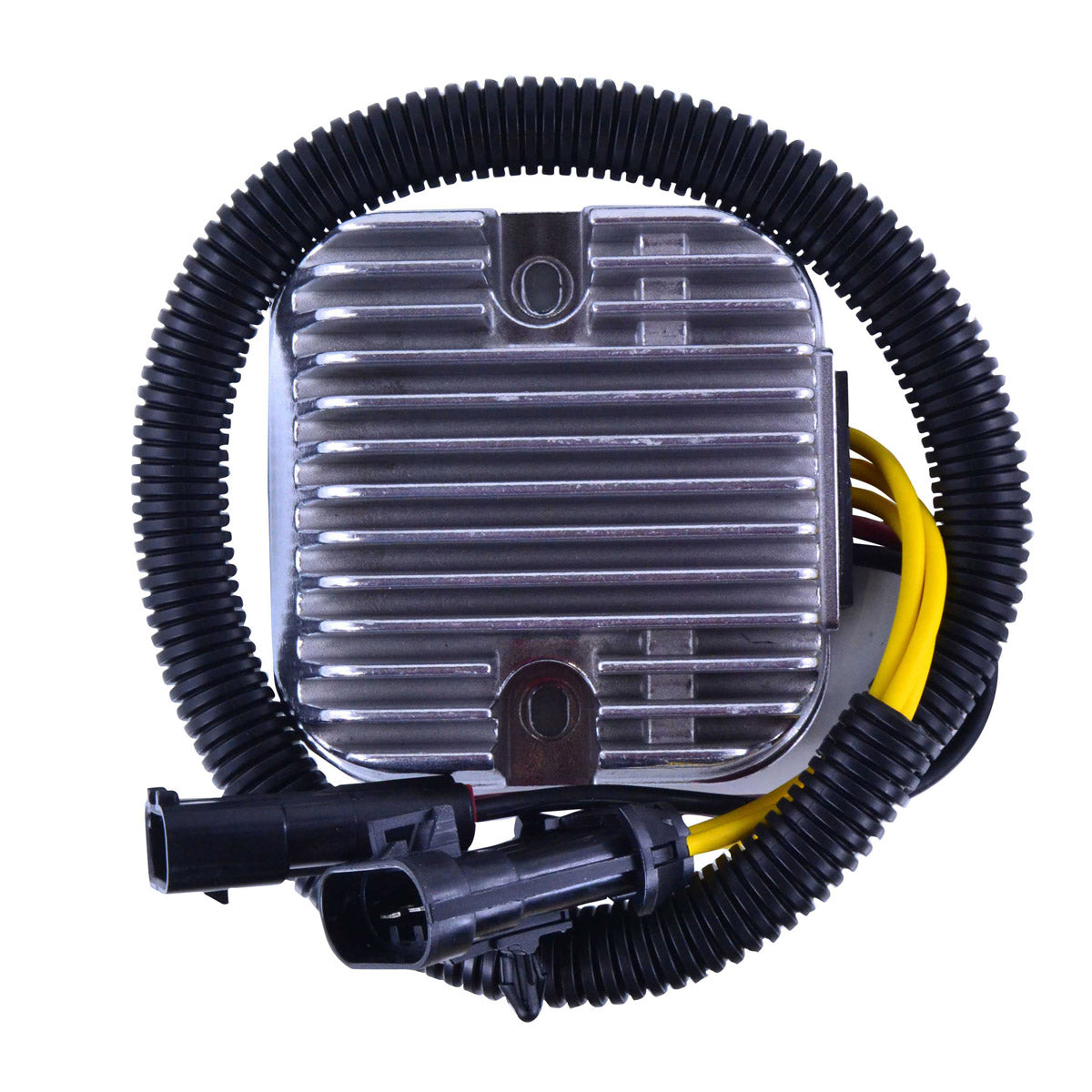

Brand new Mosfet voltage rectifier regulator
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
How does a Mosfet regulator rectifier work?
With
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Specifications
Specifications
Dimensions :
Width : 110mm
Length : 110mm
Height: 50mm
Fixation holes center to center : 80mm
Wires length: 630mm and 145mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Interchange Part Nº
Interchange Part Nº
- 4011636
Installation
Installation
Before installing your new voltage regulator rectifier;
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
