Voltage Regulator Rectifier for Triumph Daytona 675 675R / Street Triple 675 675R 2006-2020

RMSTATOR
SKU: RM30104
Low Stock
RMSTATOR

Voltage Regulator Rectifier for Triumph Daytona 675 675R / Street Triple 675 675R 2006-2020

$136.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Voltage Regulator Rectifier for Triumph Daytona 675 675R / Street Triple 675 675R 2006-2020
Voltage Regulator Rectifier for Triumph Daytona 675 675R / Street Triple 675 675R 2006-2020
$136.89

Details

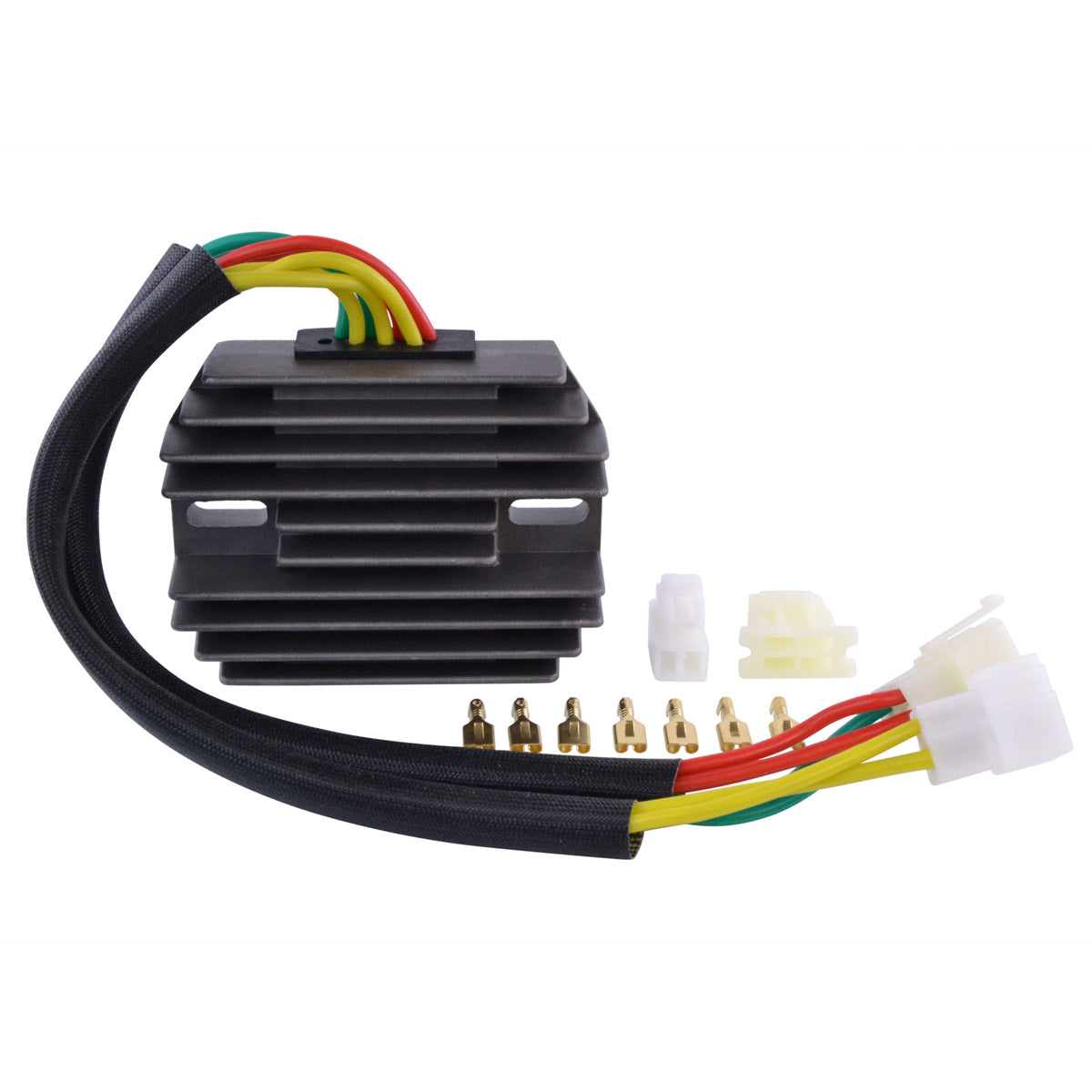

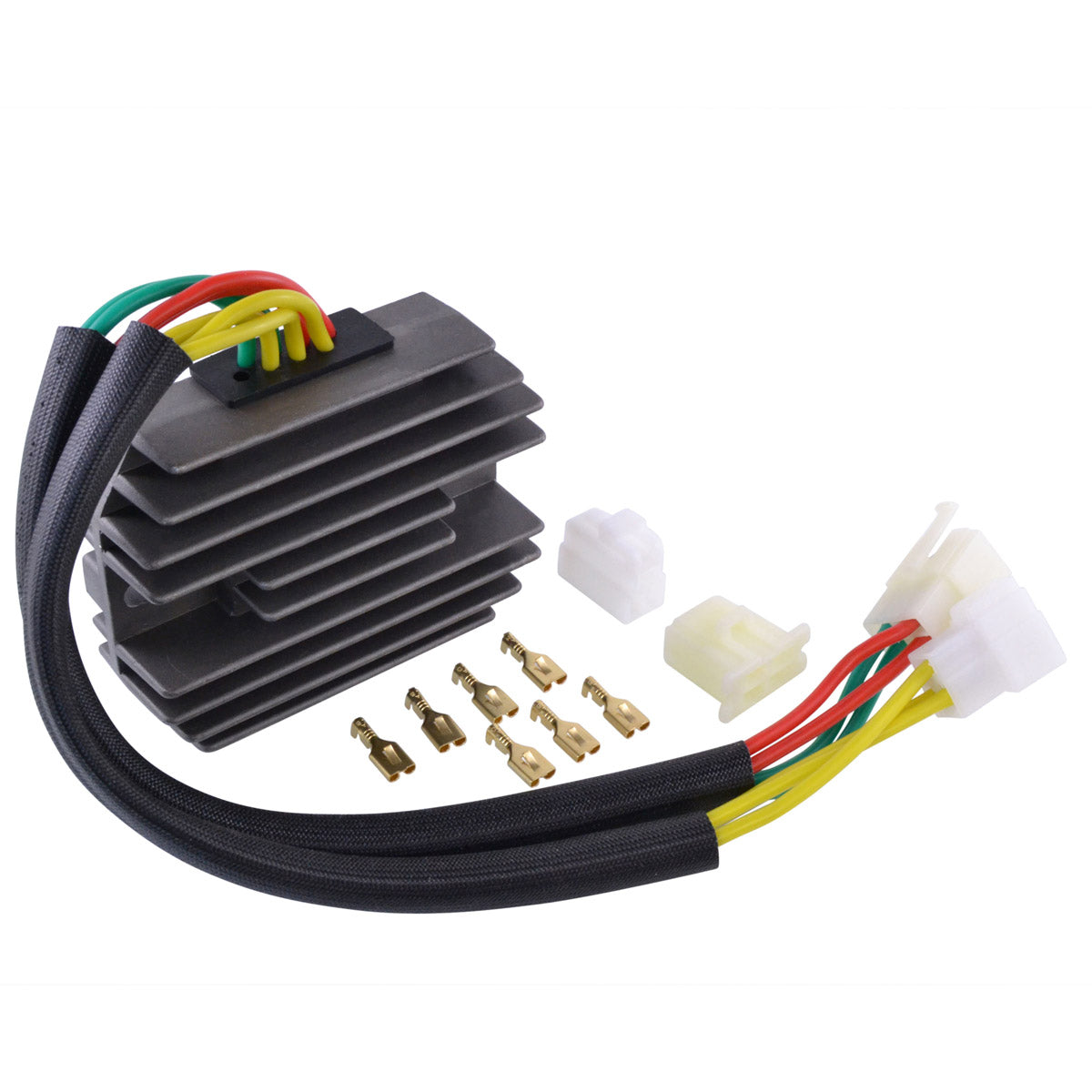

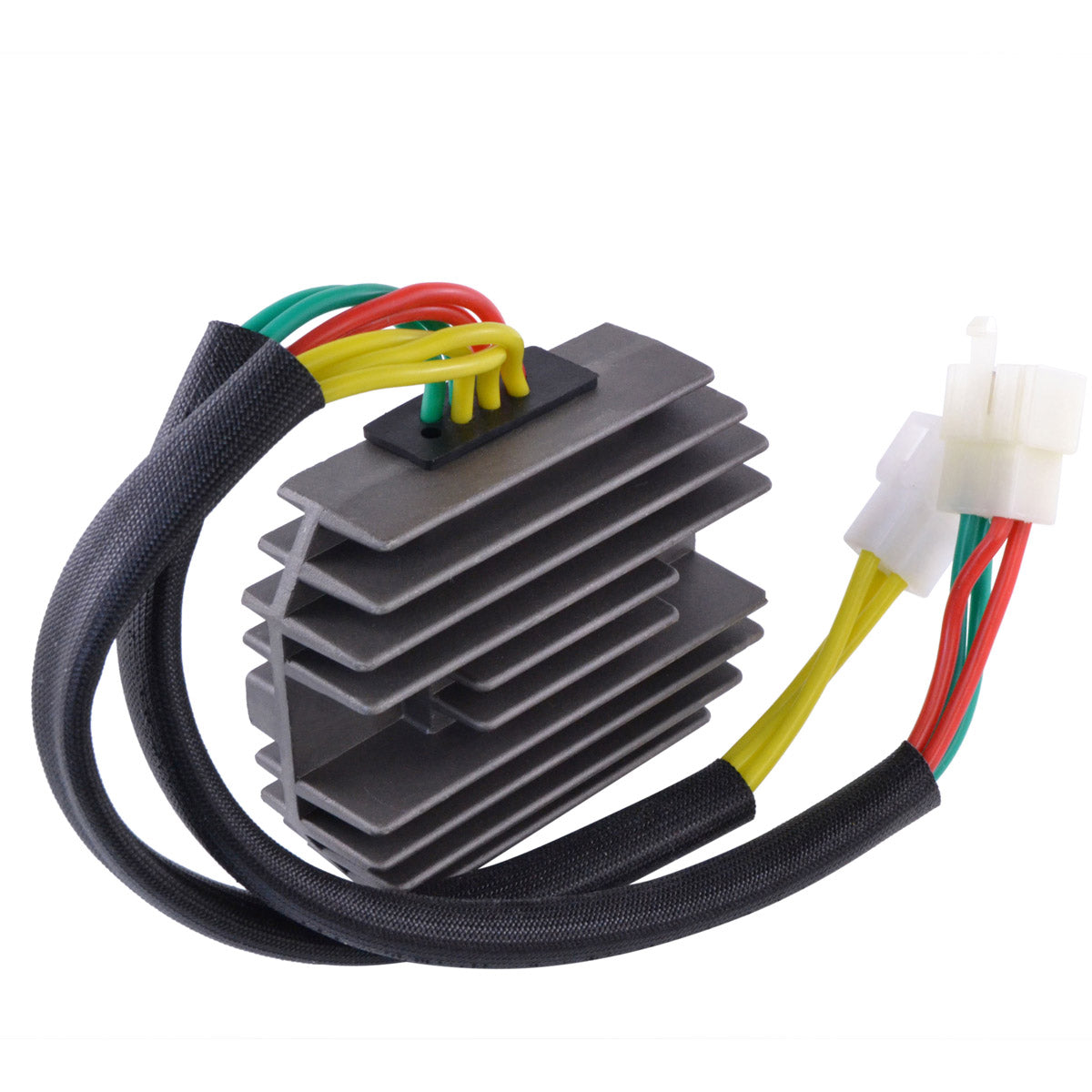

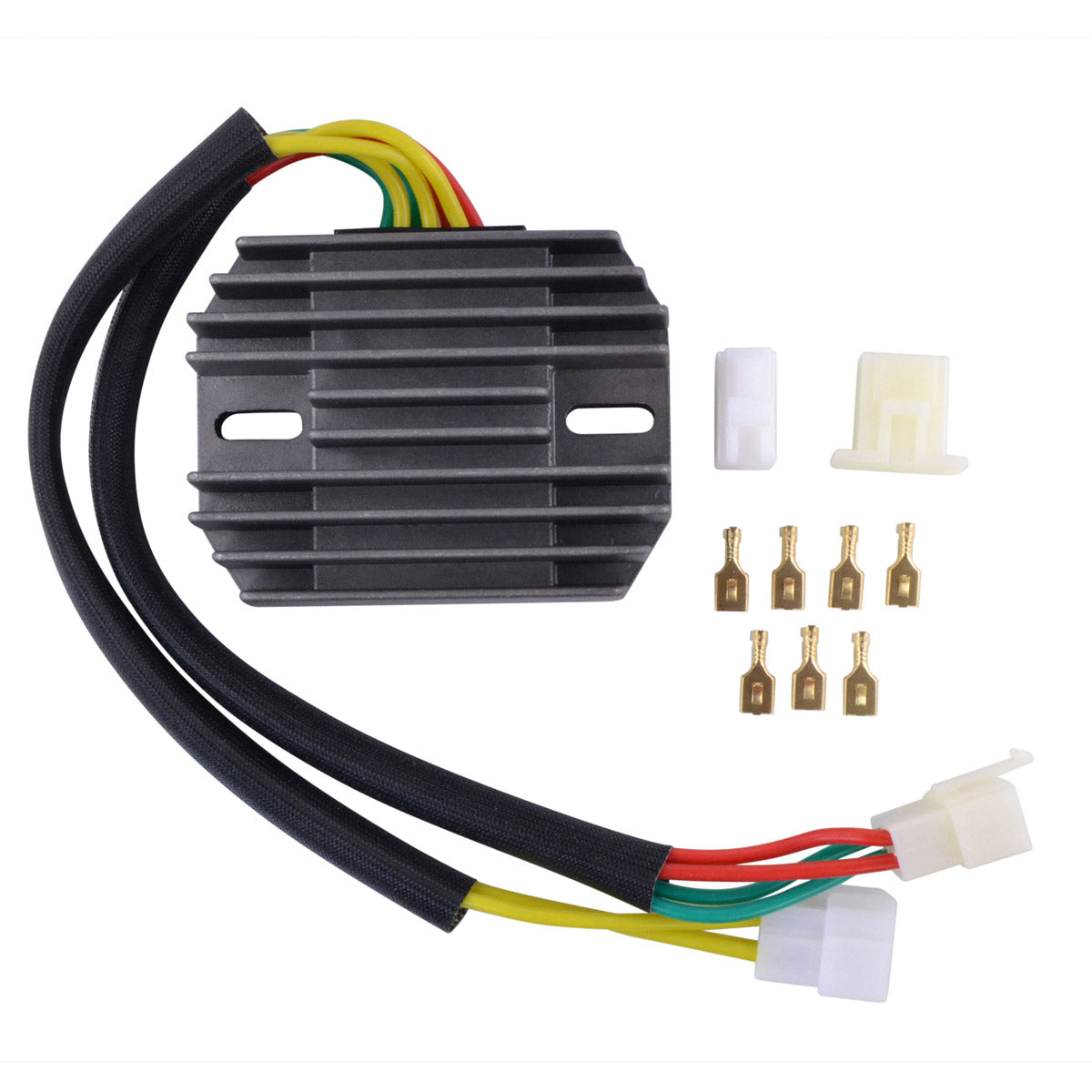

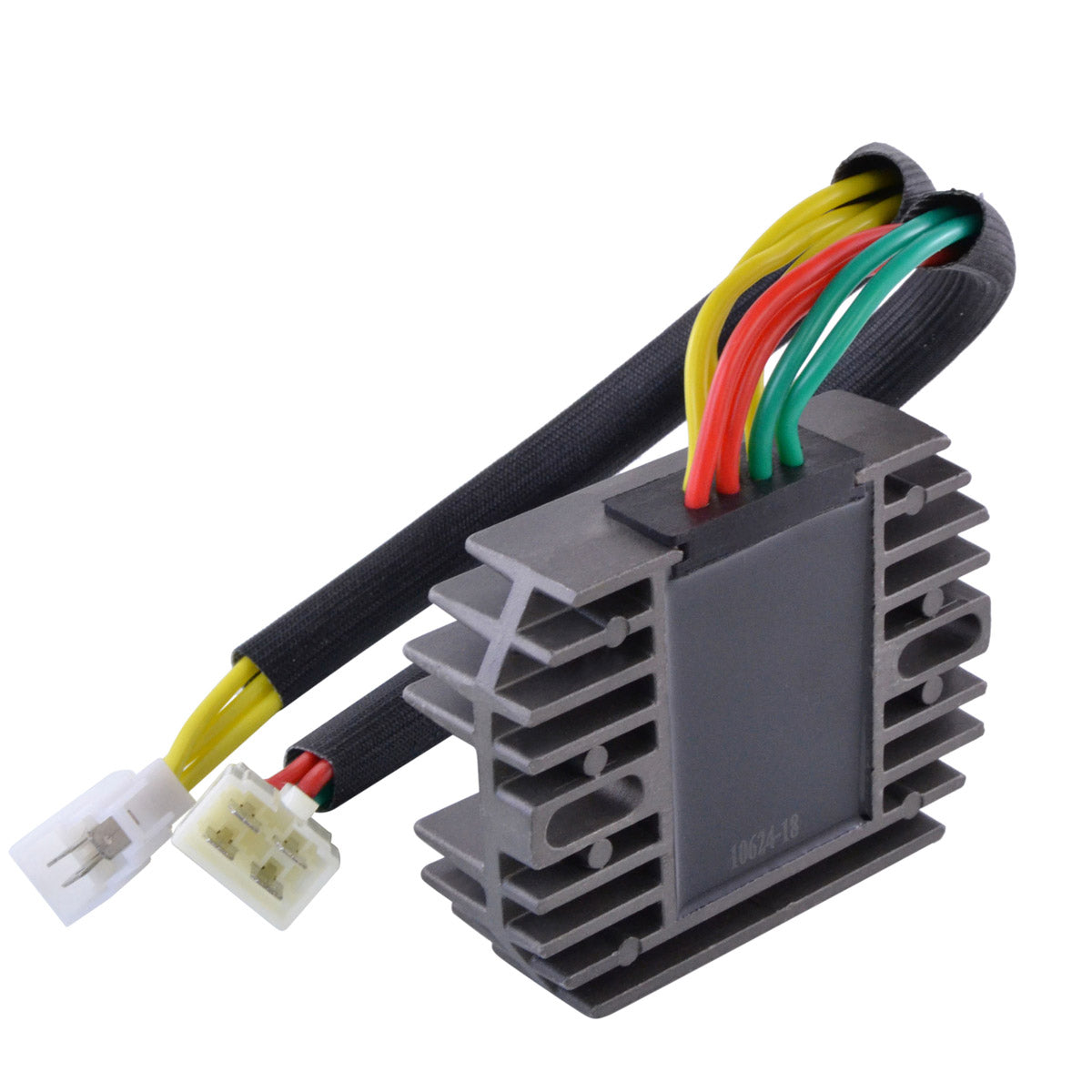

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 80 mm
Length: 103 mm
Height: 33 mm
Wires length: 350 mm
Distance between fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: <15 V
Operation Temperature: -20°C to 85°C

Interchange Part Nº

  • T1301234
  • T1300823

Installation

Before installing your new voltage regulator rectifier:
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
