Kit Stator + Crankcase Cover Gasket + External Ignition Coil for Yamaha YFM 350 Warrior / Big Bear 1987-1989

RMSTATOR
SKU: RM22864
Out of stock
RMSTATOR

Kit Stator + Crankcase Cover Gasket + External Ignition Coil for Yamaha YFM 350 Warrior / Big Bear 1987-1989

$244.27
Sold out
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle
Kit Stator + Crankcase Cover Gasket + External Ignition Coil for Yamaha YFM 350 Warrior / Big Bear 1987-1989
Kit Stator + Crankcase Cover Gasket + External Ignition Coil for Yamaha YFM 350 Warrior / Big Bear 1987-1989
Sold out

Details

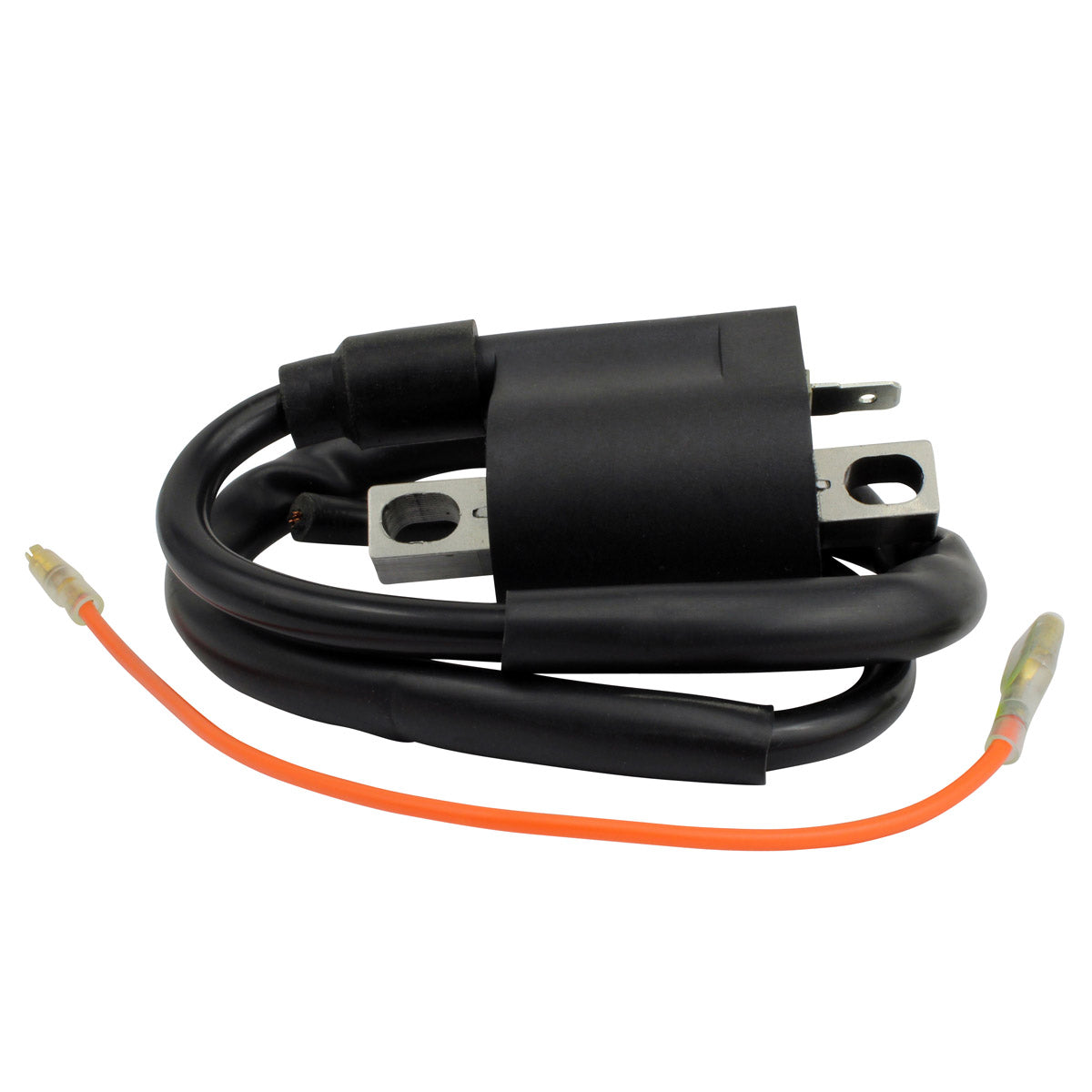

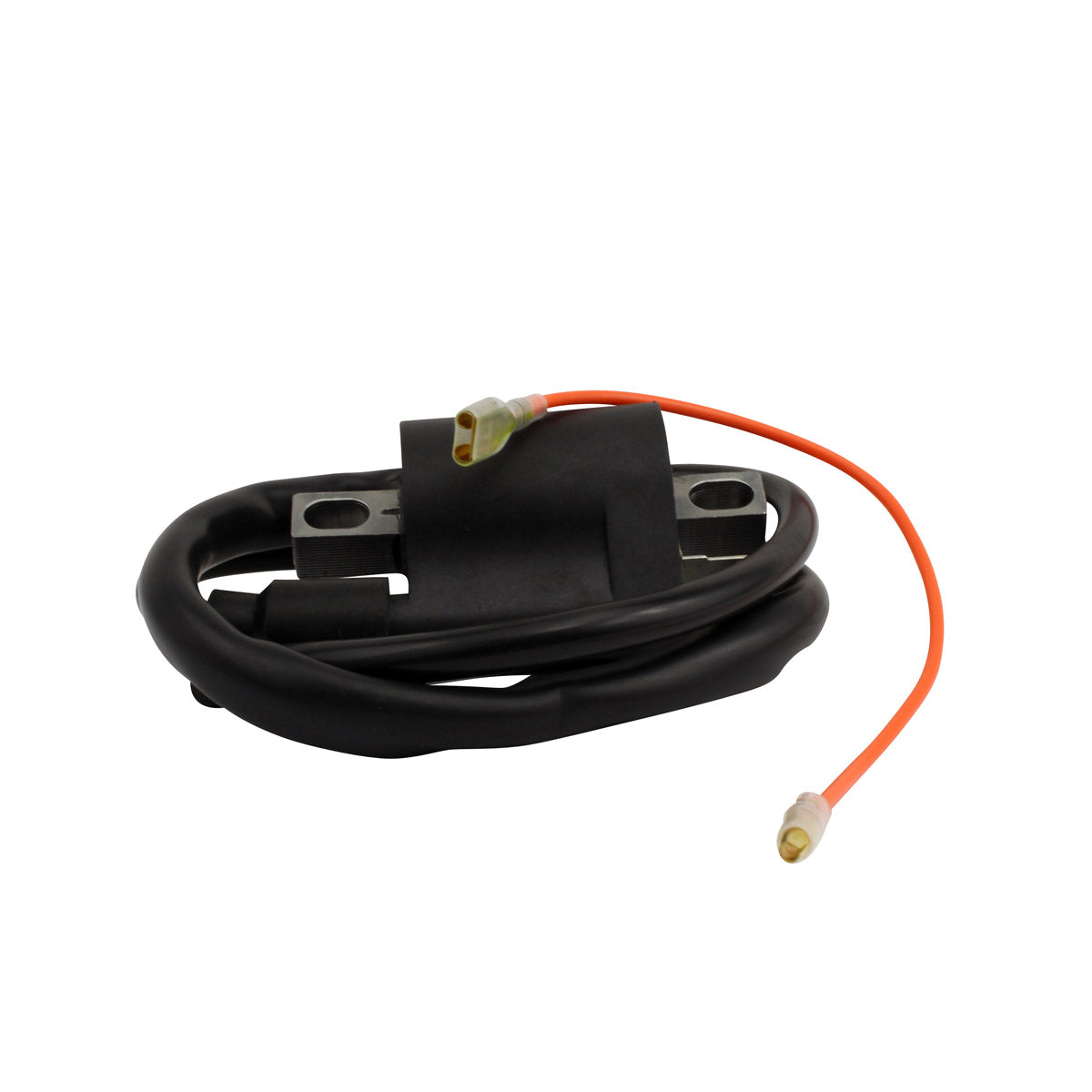

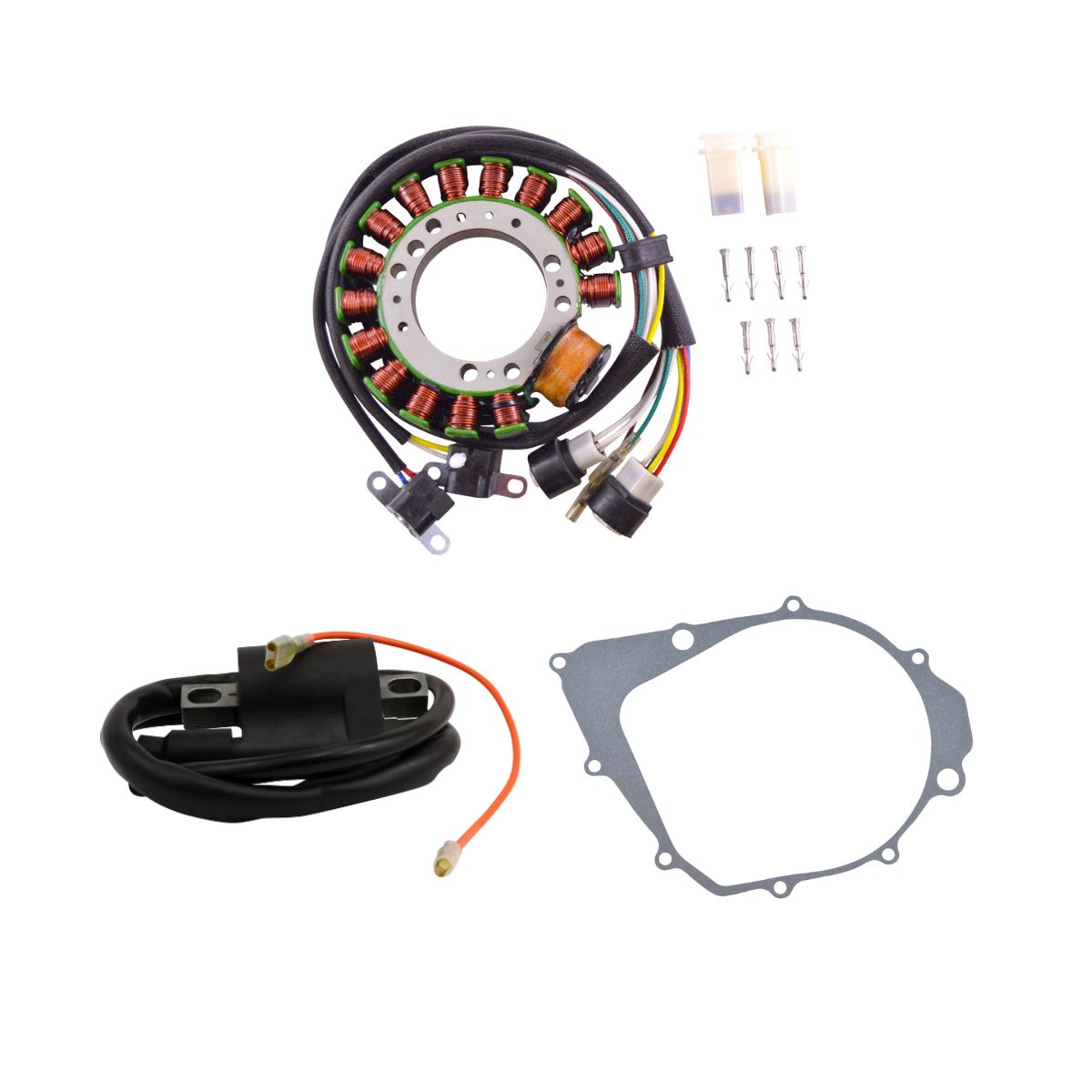

Brand new Stator + External ignition coil + Crankcase Cover Gasket Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Crankcase cover gasket included
External Ignition Coil
  • You must re-install your OEM spark plug cap(s)
  • Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
  • Highest grade of lamination materials

Specifications

Stator
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm

Other specifications:
Number of wires : 9
Number of plugs: 4
Number of terminals : 9

Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pick up : Red to Blue = 221 ohms+/-20%
Pick up :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%

Interchange Part Nº

  • Stator :

    2XK-85510-20-00
  • 1UY-85510-20-00
  • Gasket :

    3GD-15451-00-00
  • External Ignition Coil :

    1UY-82310-41-00
  • 4KB-82310-00-00
  • 3HN-82310-00-00
  • 29U-82310-41-00

Installation

Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

External ignition coil
Remove the yellow wire from the external ignition coil, if it is not applicable to your model.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
