Kit Stator 100 W + PeakRPM CDI + Backplate for Yamaha YFZ 350 Banshee 1987-1994
RMSTATOR
SKU: RM22845
In Stock
RMSTATOR
Kit Stator 100 W + PeakRPM CDI + Backplate for Yamaha YFZ 350 Banshee 1987-1994
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
$359.78
Kit Stator 100 W + PeakRPM CDI + Backplate for Yamaha YFZ 350 Banshee 1987-1994
Details
Details
Brand New Kit Stator 100 W + PeakRPM CDI Box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

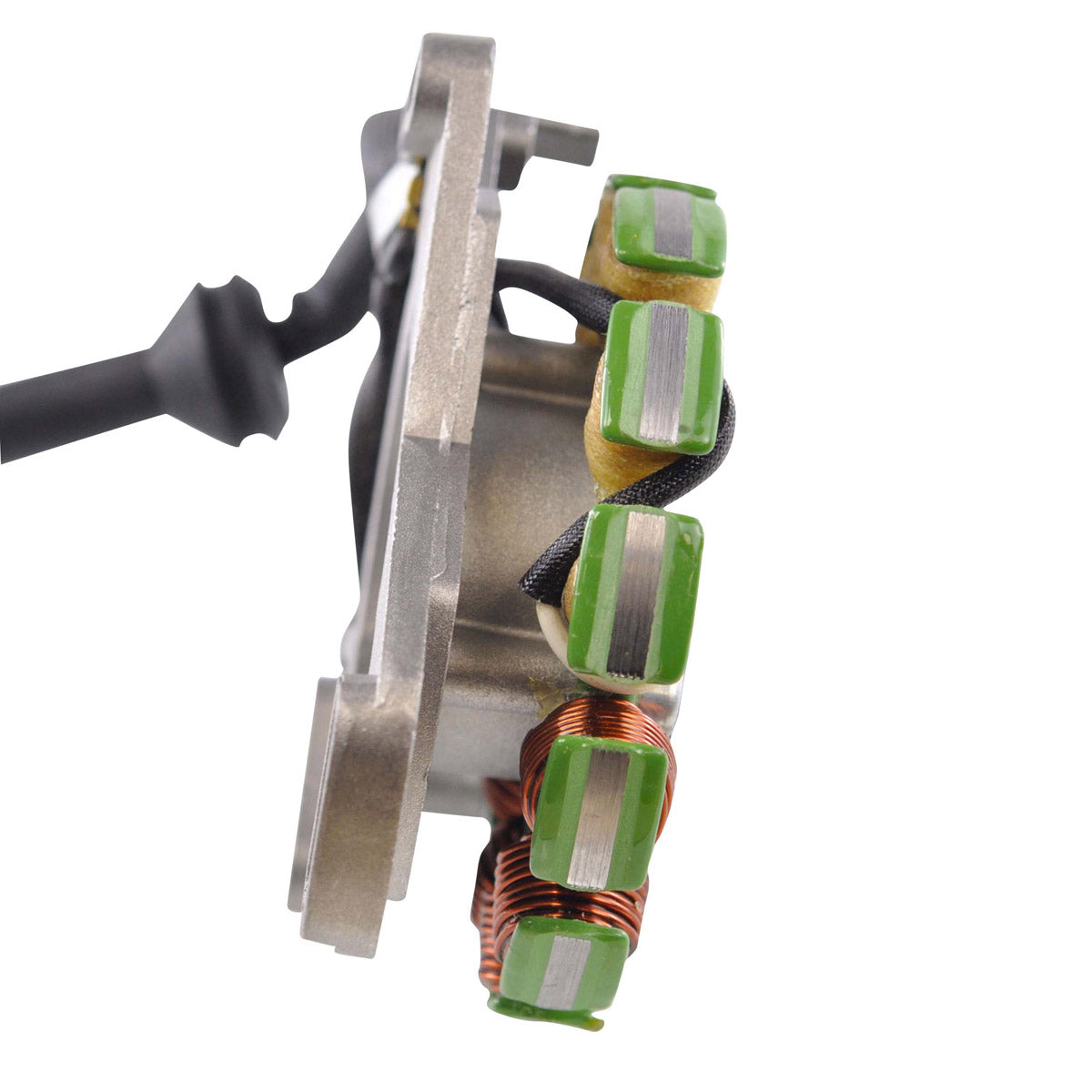

Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

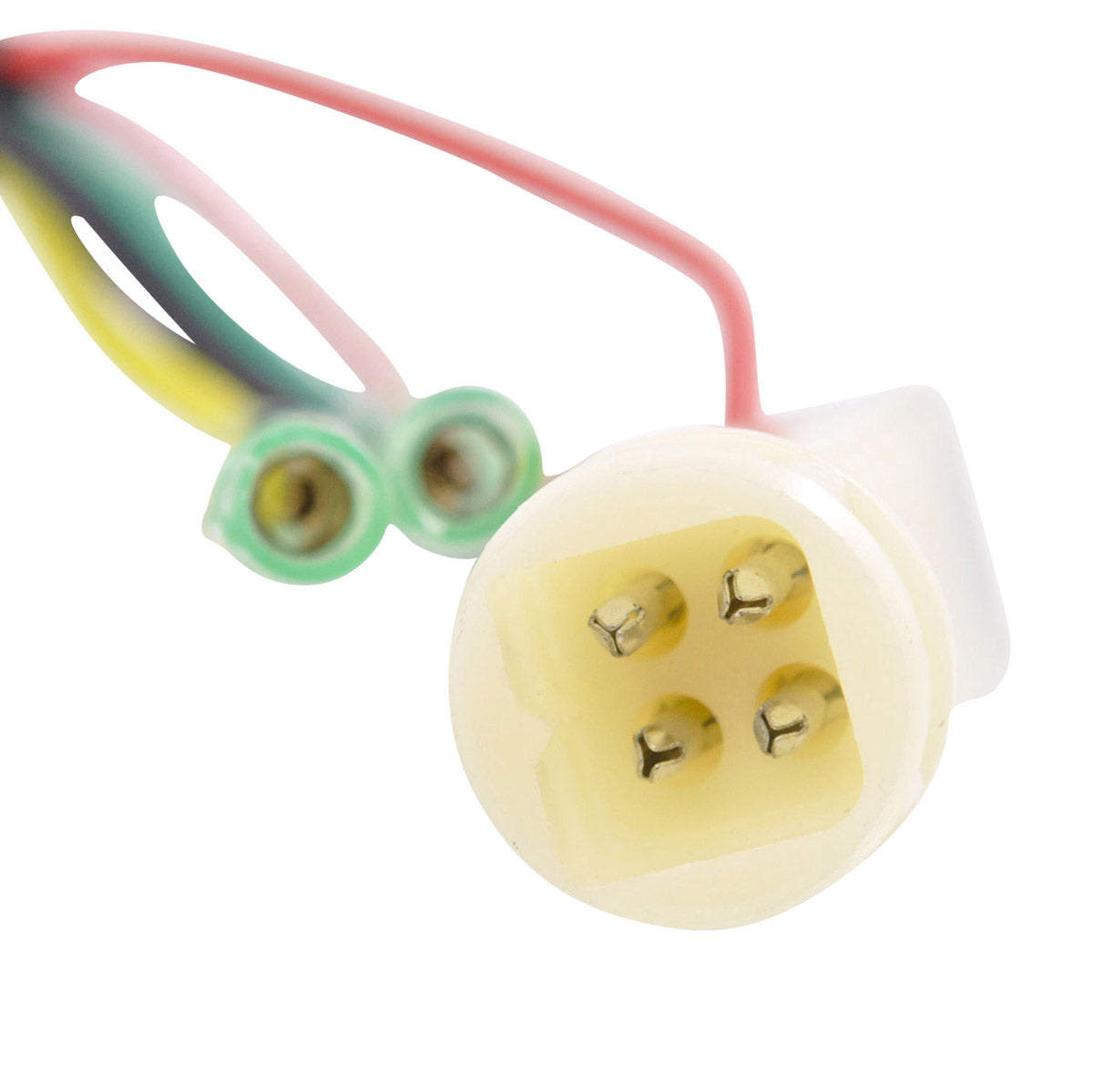

- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
Specifications
Specifications
Dimensions Stator
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%

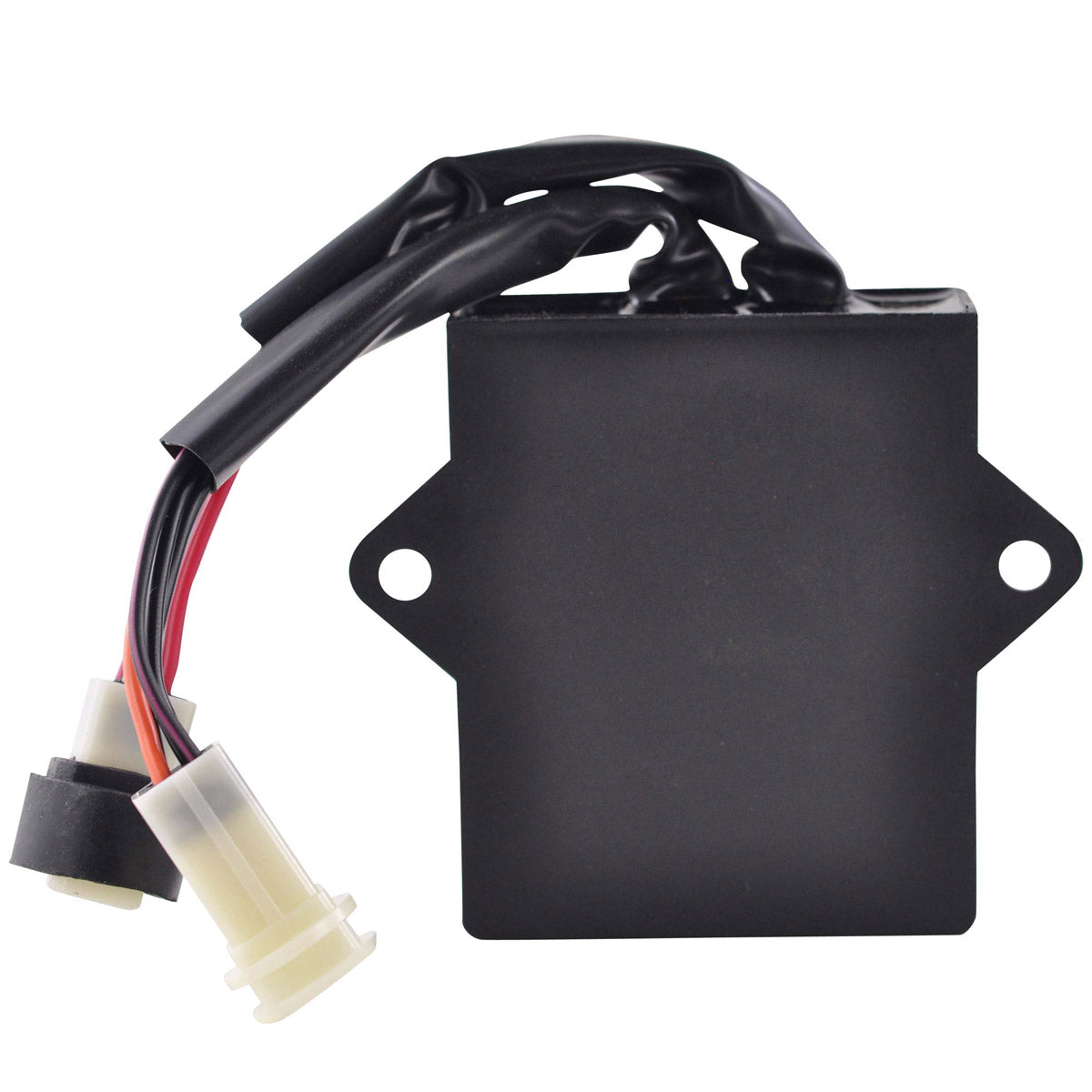

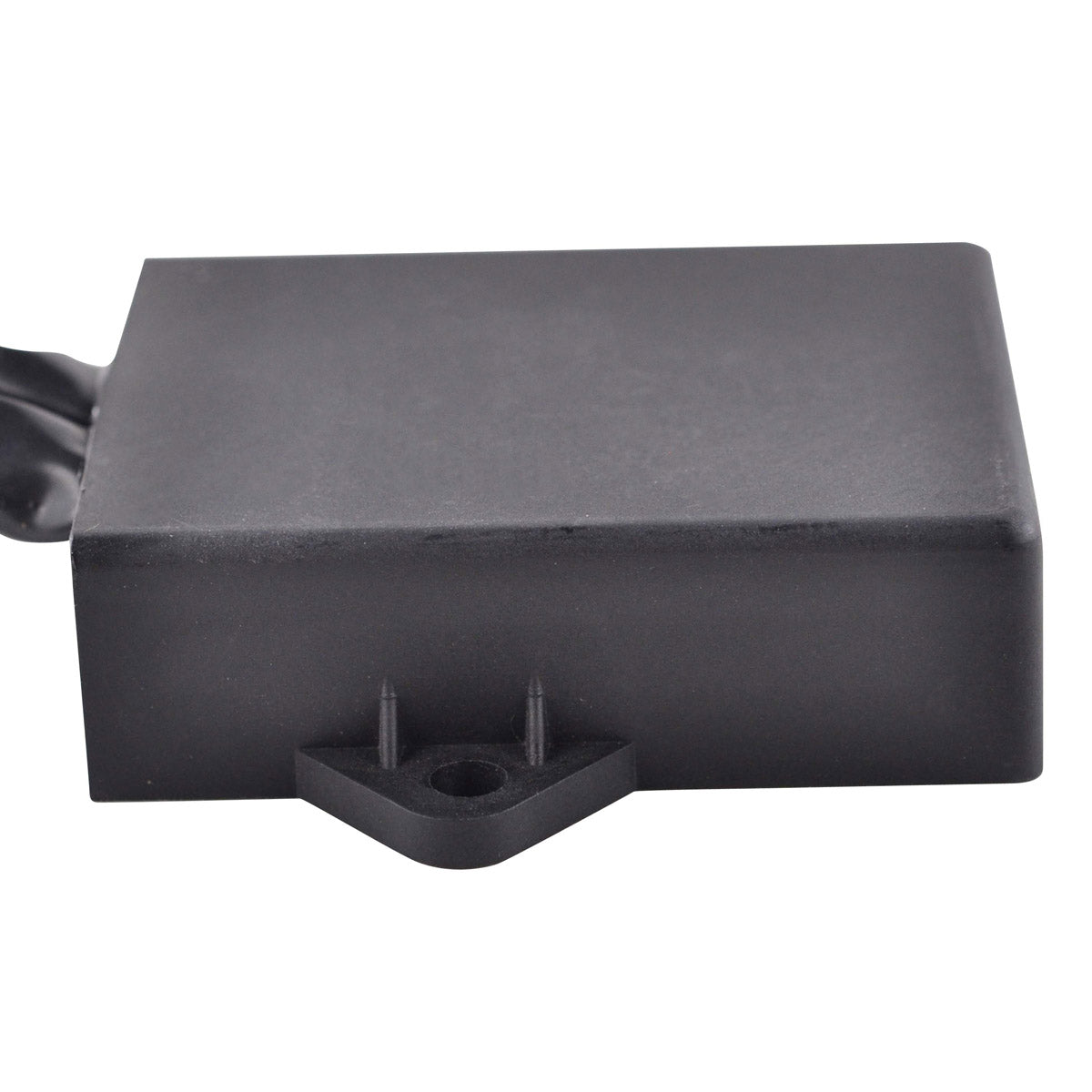

Dimensions CDI Box :
Height: 25mm
Length: 85mm
Width: 71mm
Other specifications:
Number of plugs: 2
Number of pins: 8
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%
Dimensions CDI Box :
Height: 25mm
Length: 85mm
Width: 71mm
Other specifications:
Number of plugs: 2
Number of pins: 8
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box..
Interchange Part Nº
Interchange Part Nº
-
Stator :
2GU-85510-50-00 -
CDI Box :
2GU-85540-51-00
Installation
Installation
Before installing your new stator
Our CDI may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Our CDI may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
