Not following these instructions may result in damaging the part or other components on your vehicle.

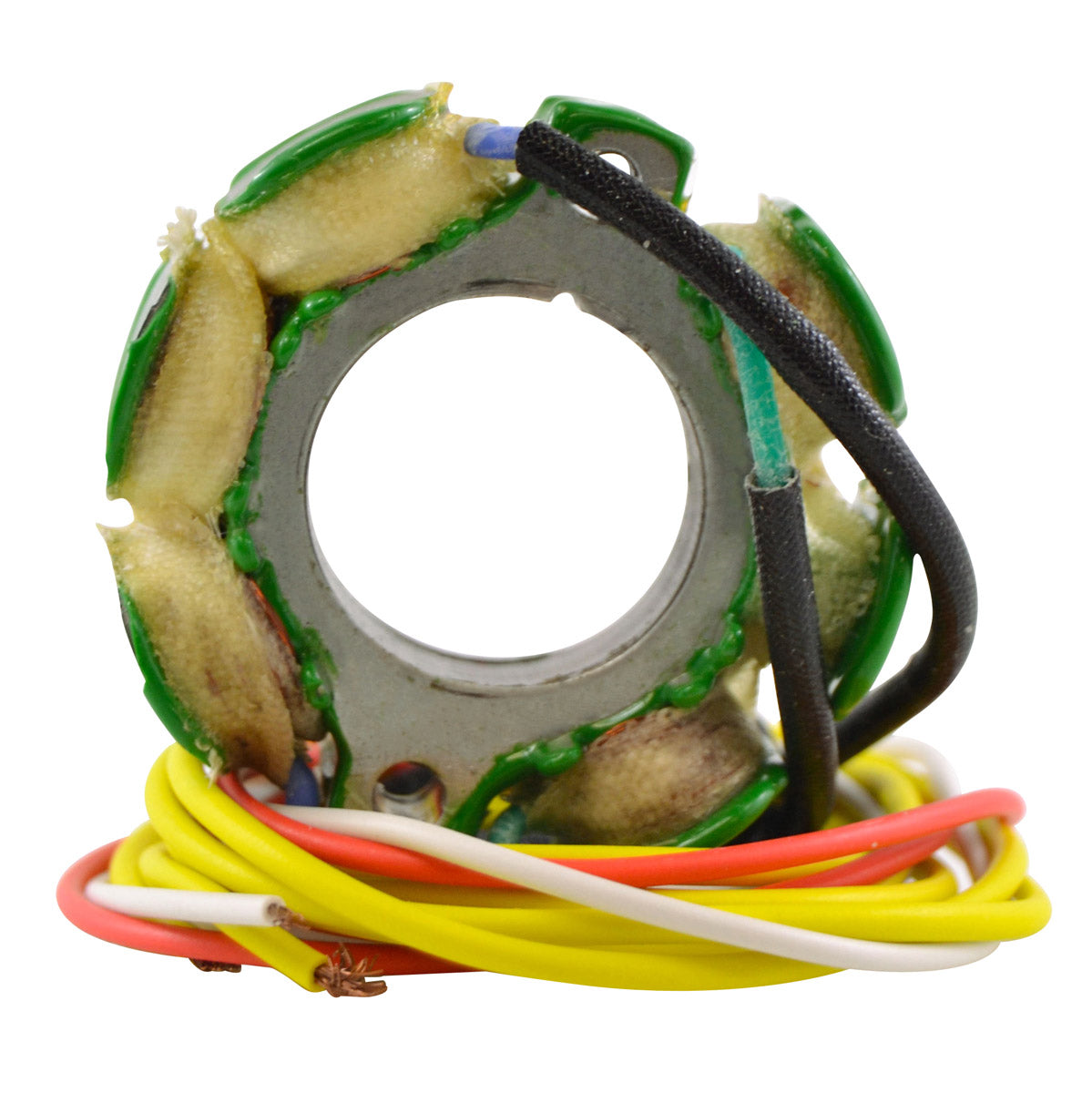

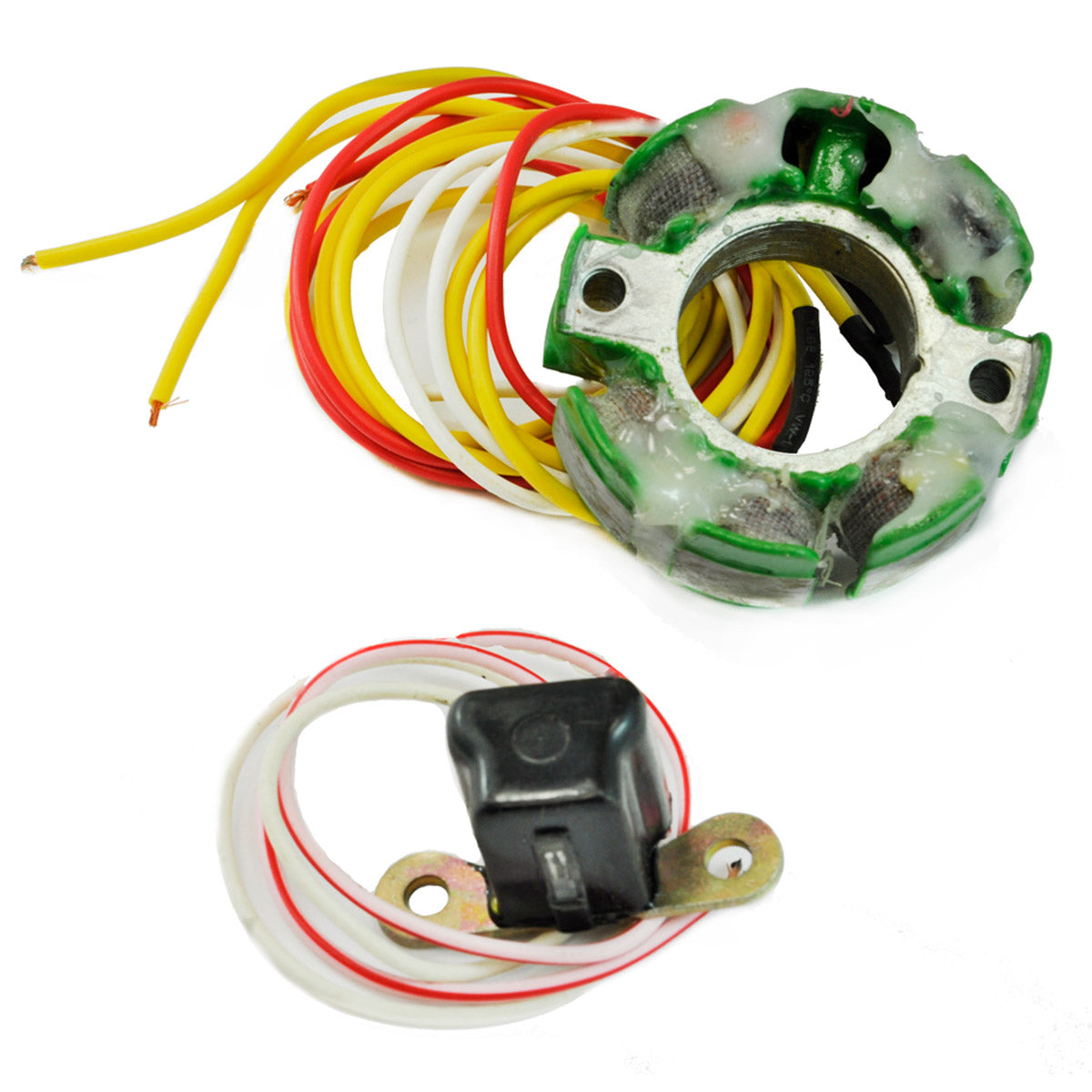

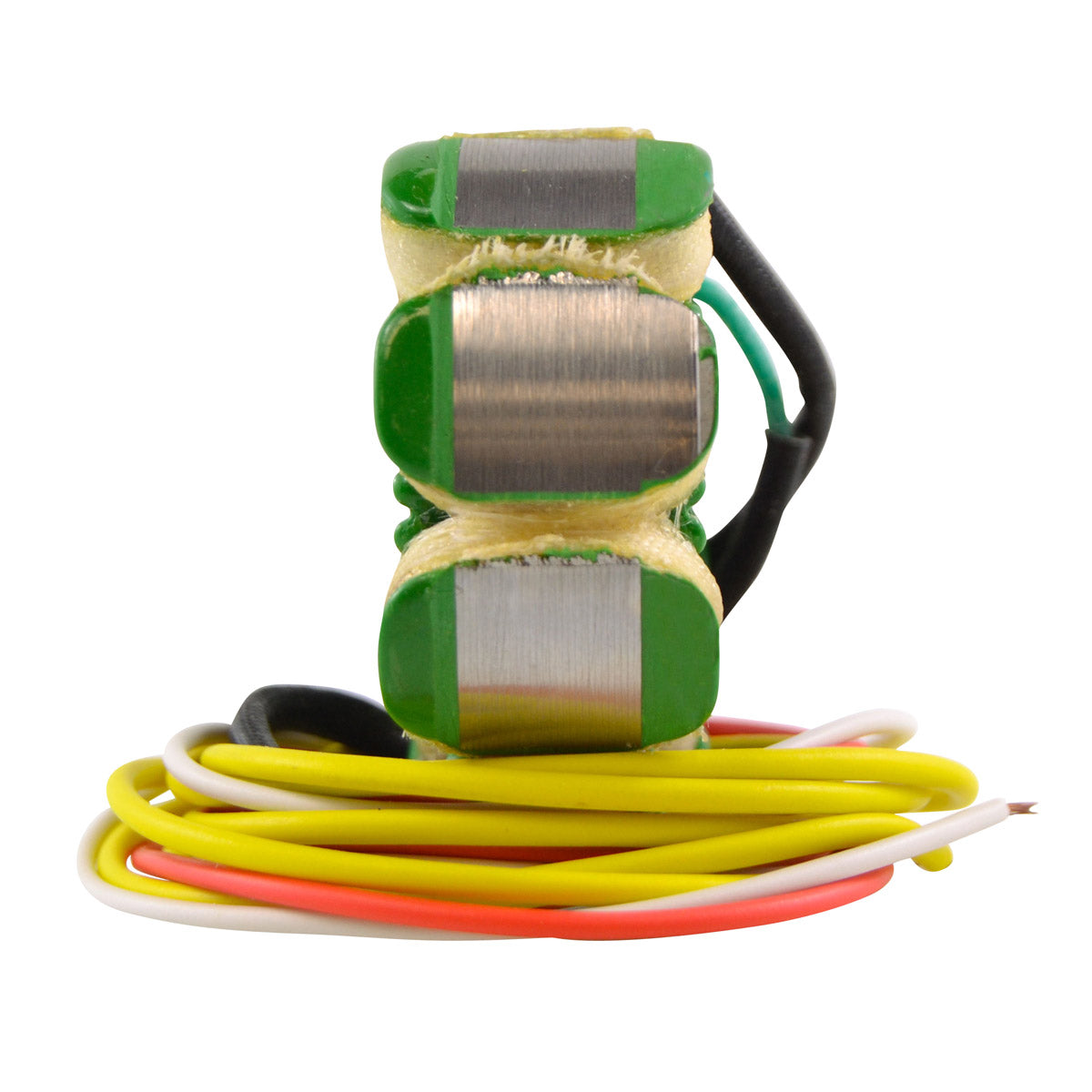

Before installing your new stator

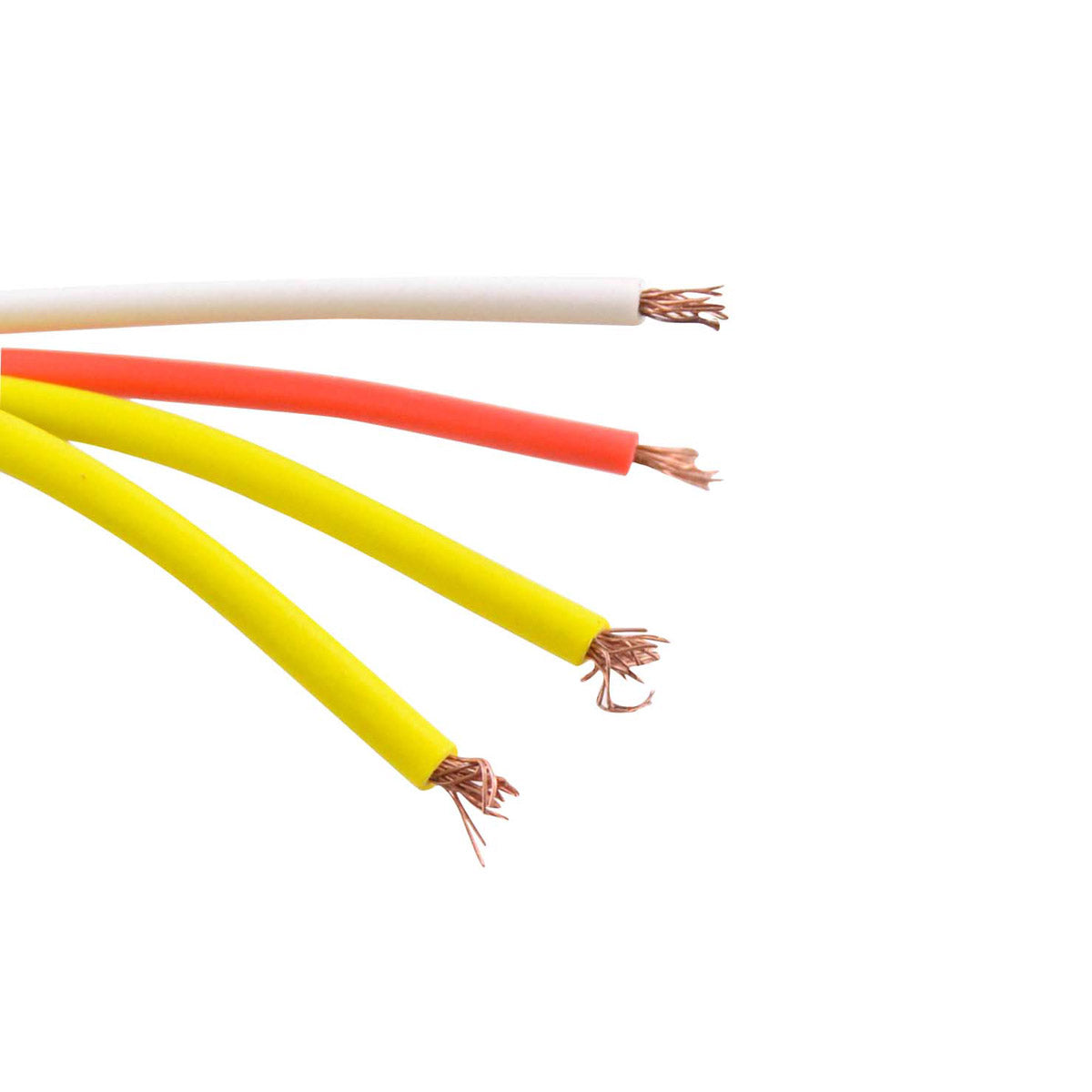

1. Solder RED wire from RM01293 stator to original BLACK/RED
2. Solder WHITE wire from RM01293 stator to original WHITE/RED
3. The two yellow wires for the RM01293 stator are provided for late model RM's that require a power valve supply. If your bike does not have these two wires, you have two options :
   A) Simply cut the wires and insulate them so they cannot short out
   B) Use it for a low wattage light. To do this, you must route the two yellow wires through the stator harness

Note : When bolting stator in always use locking compound.

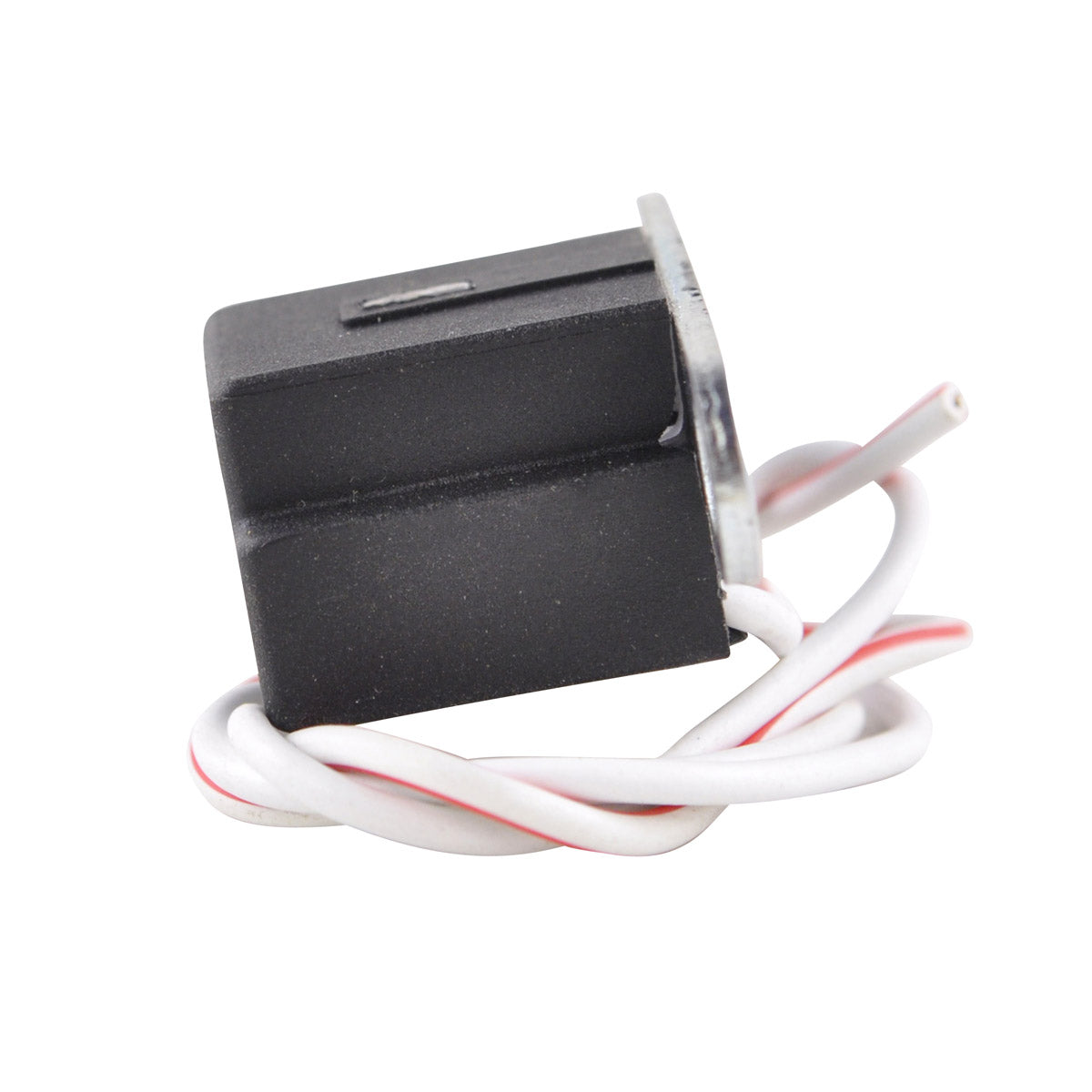

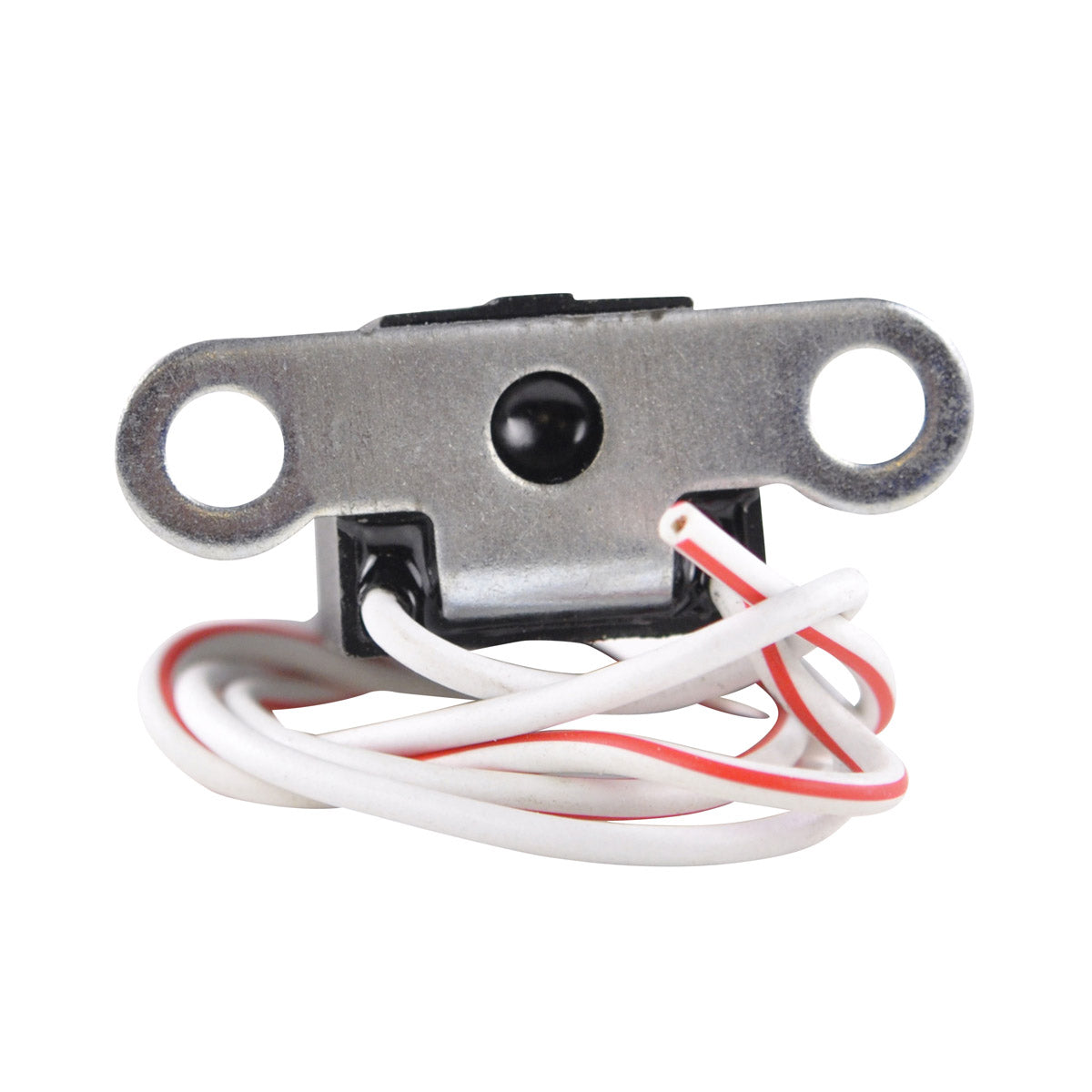

Pickup Pulsar Coil :

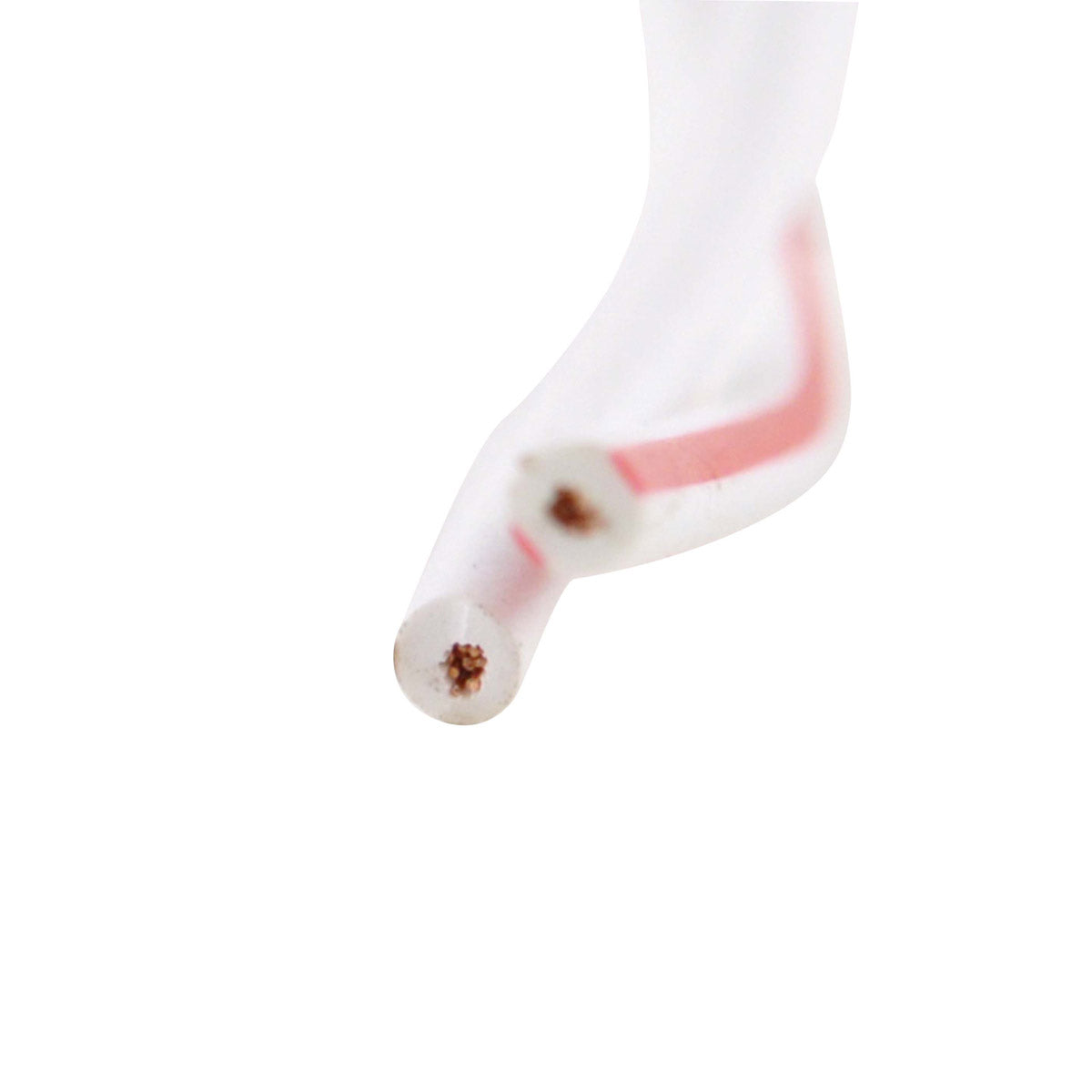

1. By using a small soldering iron weld the wires to the ones on your wiring harness.
2. Insulate your solders with heat shrink.
3. Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
4. Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010".
5. If no spark or erratic spark, switch the wires at the plug.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
