Stator + Pickup Coil for Honda CR 125 / 250 / 500 1984-1986 | Suzuki RM 125 / 250 1986-1995 | 31100-KA5-761 32101-27C10
RMSTATOR
SKU: RM22842
In Stock
RMSTATOR
Stator + Pickup Coil for Honda CR 125 / 250 / 500 1984-1986 | Suzuki RM 125 / 250 1986-1995 | 31100-KA5-761 32101-27C10
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator + Pickup Coil for Honda CR 125 / 250 / 500 1984-1986 | Suzuki RM 125 / 250 1986-1995 | 31100-KA5-761 32101-27C10
Details
Details

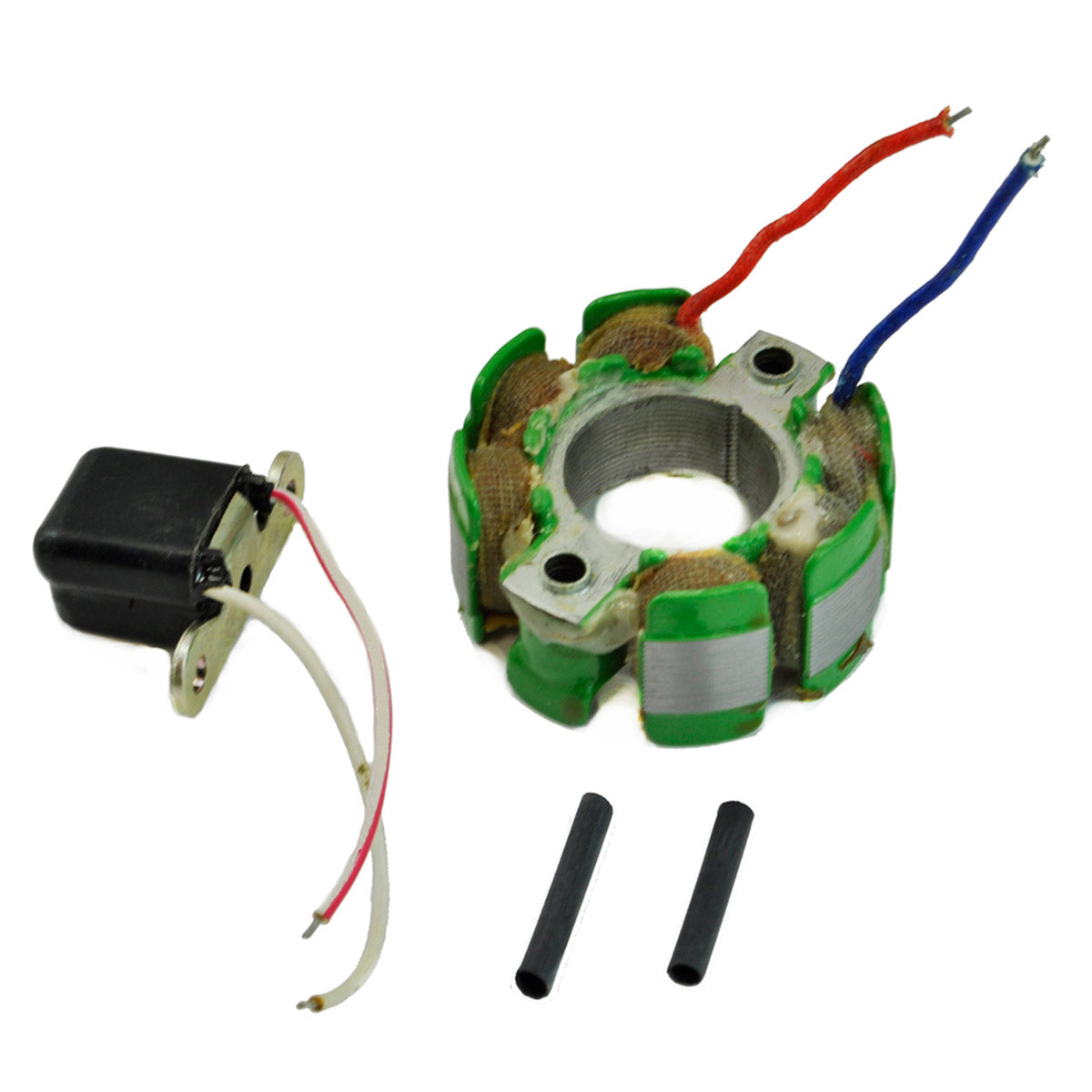

Brand new Stator + Pick-Up Coil Kit
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new Stator- You must re-install your original connector and grommet (see picture)
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
- Higher grade of electric components
- Highest grade of copper winding, resistant to 200 degrees Celsius
- We offer a brand new pickup/pulsar coil for you to repair your stator
- Often unavailable from the OEM manufacturer
Specifications
Specifications

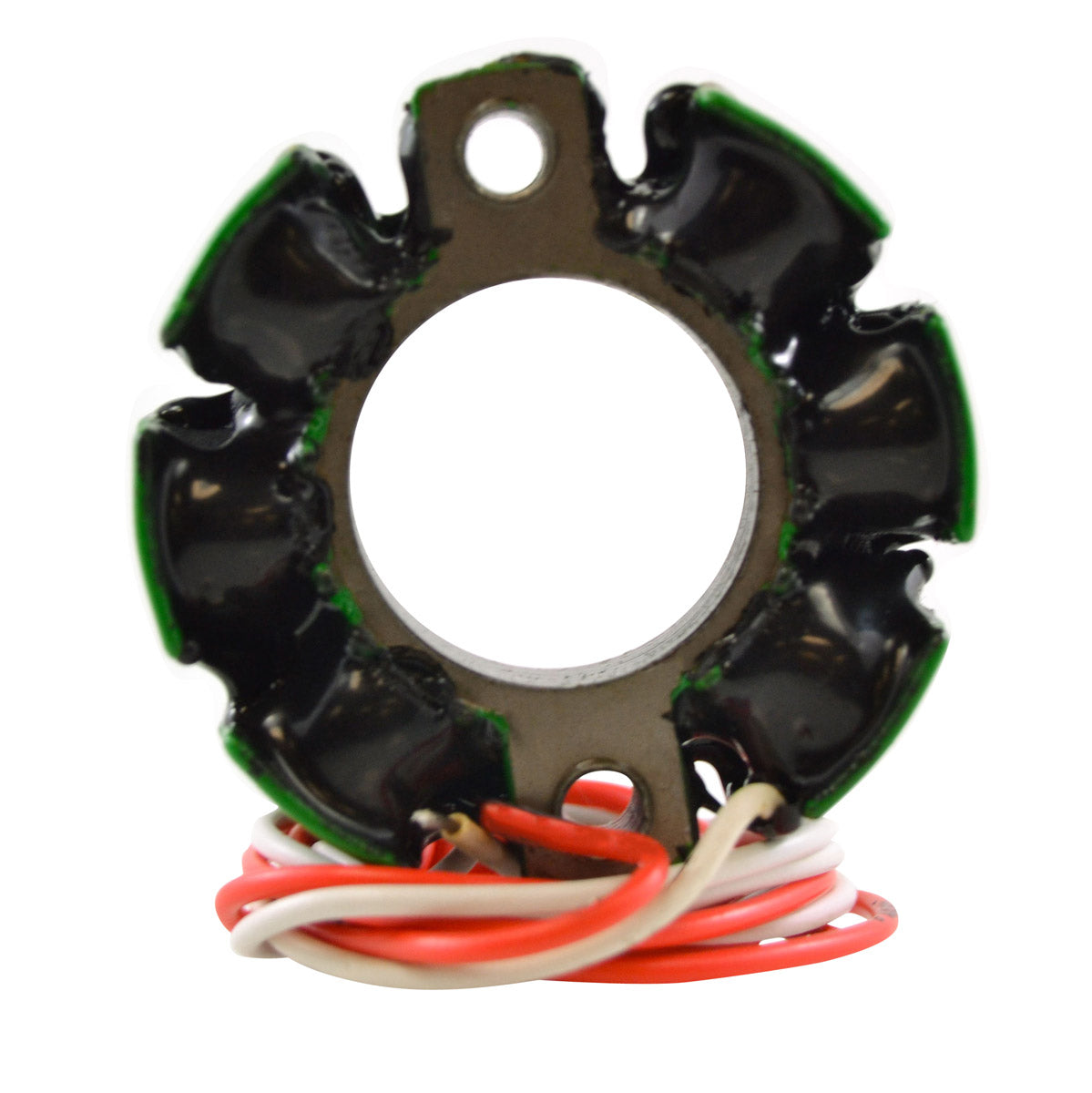

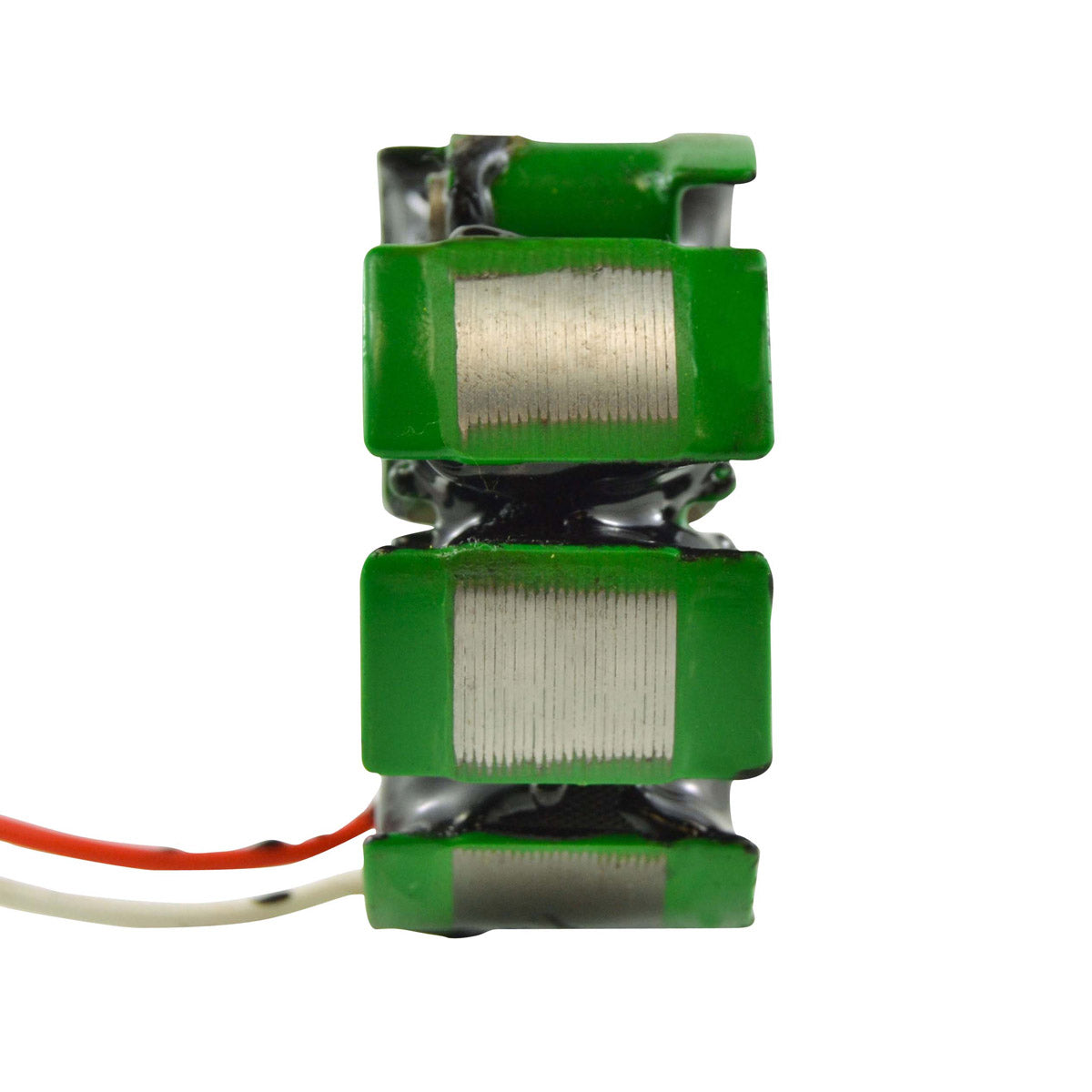

Stator
Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Thickness : 16mm

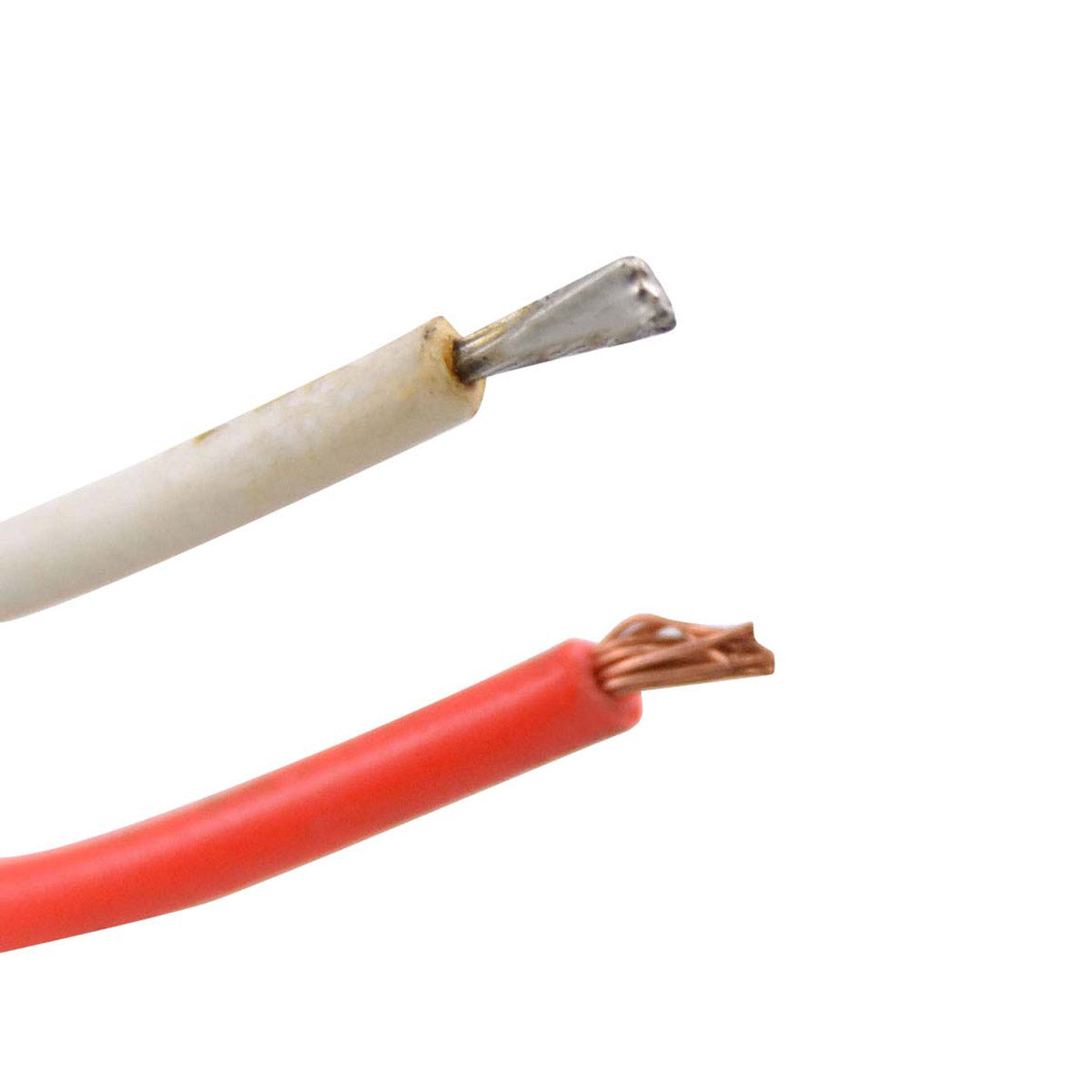

Length of wires Stator to terminal : 75mm
Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Thickness : 16mm
Length of wires Stator to terminal : 75mm
Other specifications :
Number of wires : 2
Number of plugs : N/A
Number of pins : 1
Wire to wire resistance :
Source : Blue to Red = 107 ohms +/-20%

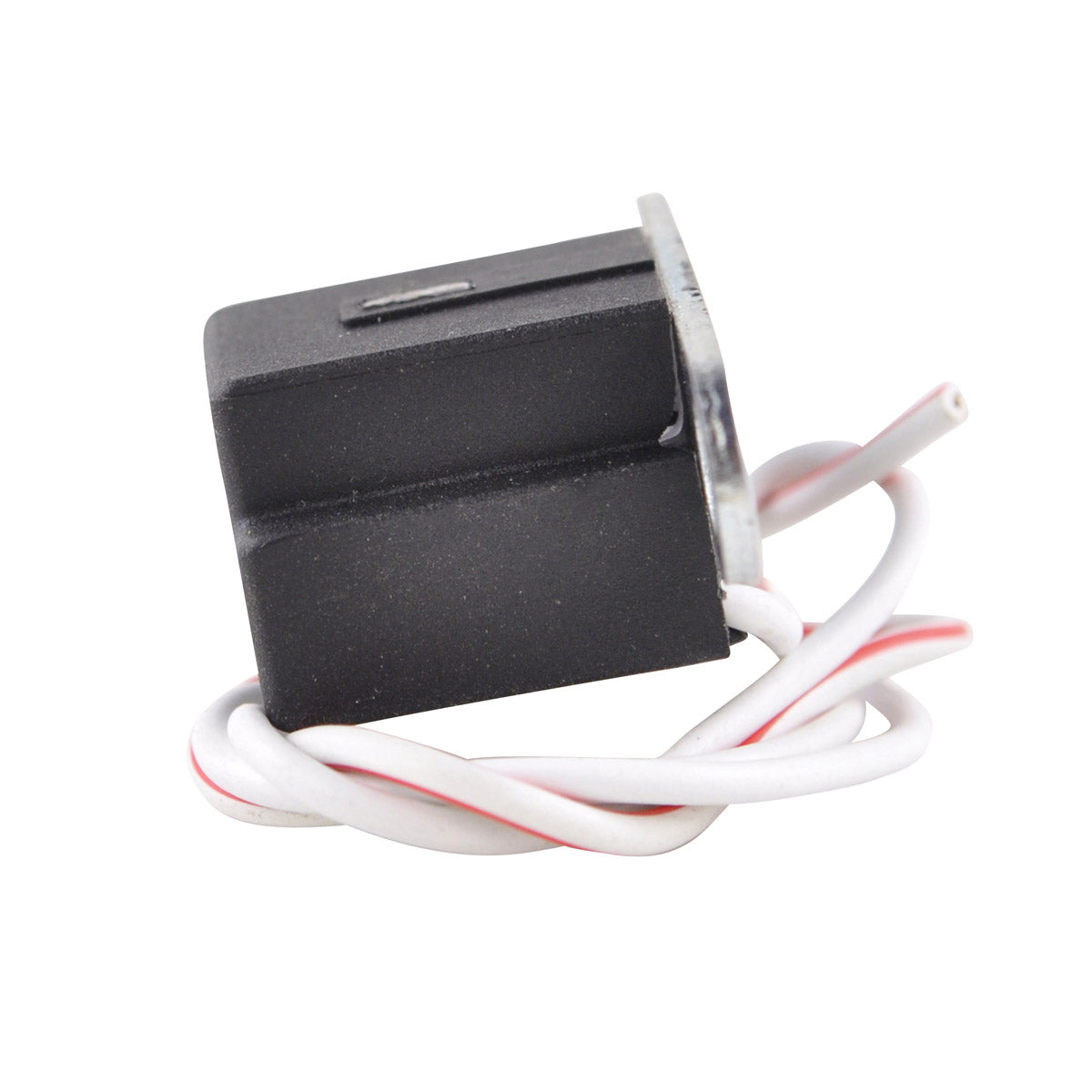

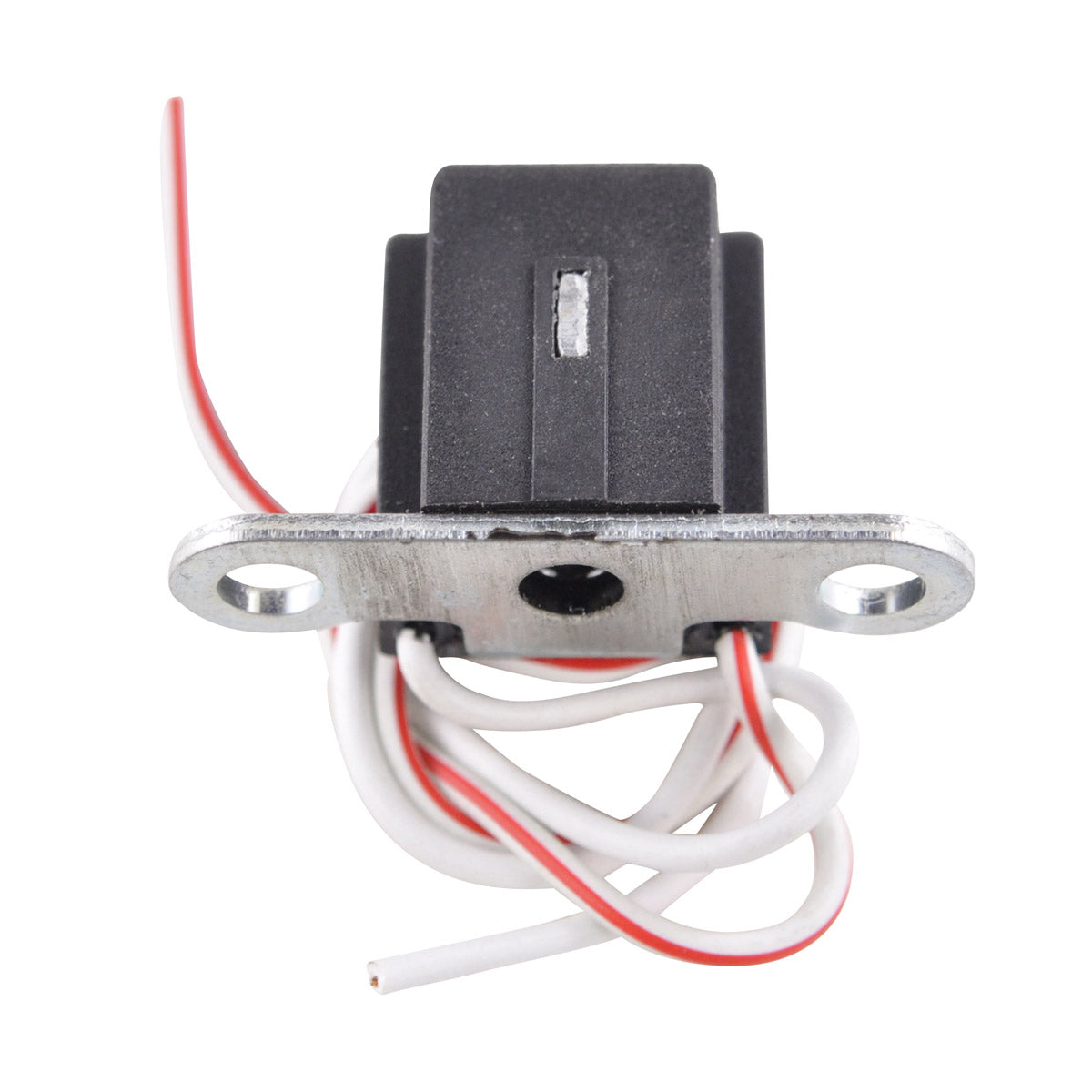

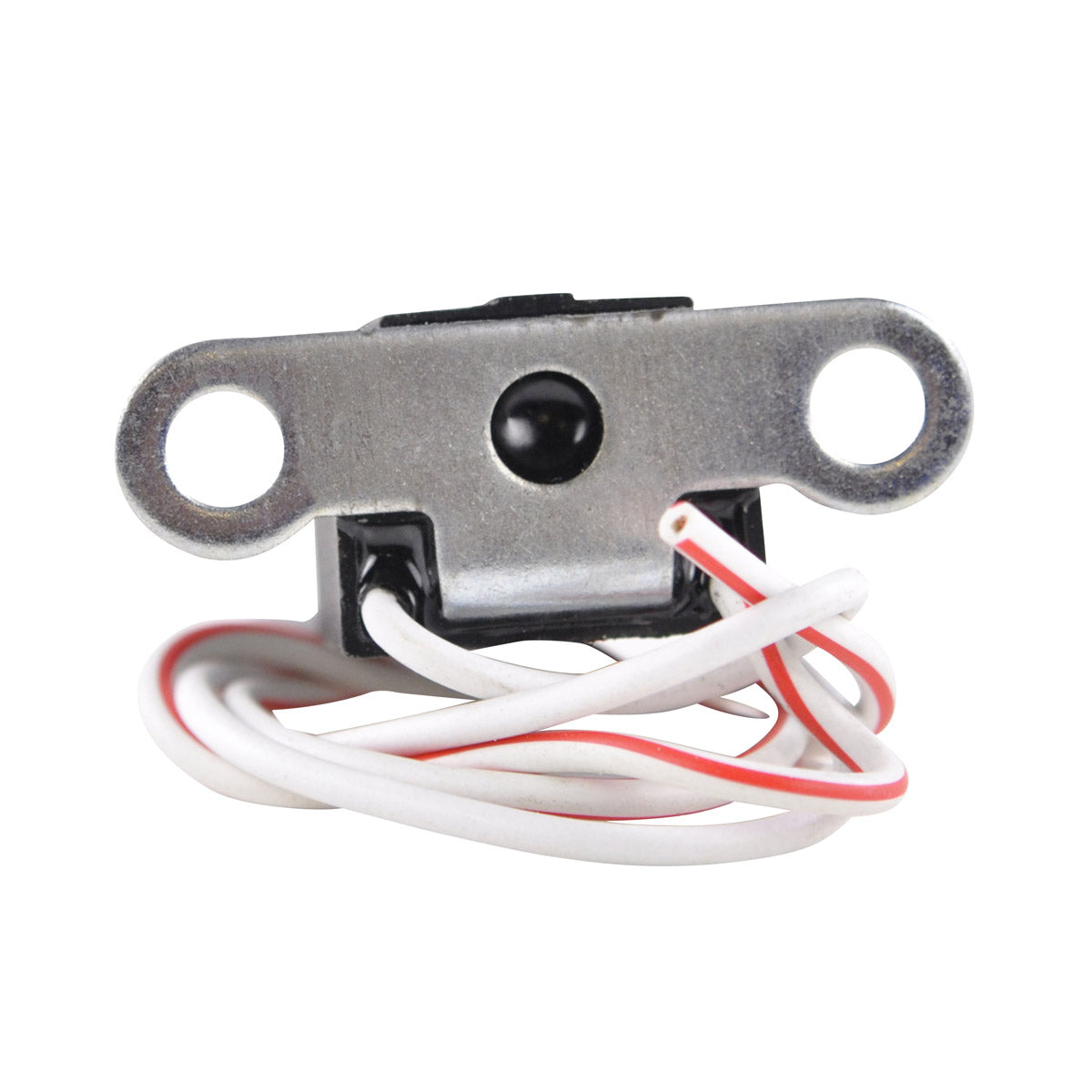

Pick up coil
Dimensions :
Height : 25mm
Length : 18mm
Width : 22mm
Fixation holes center to center : 35mm

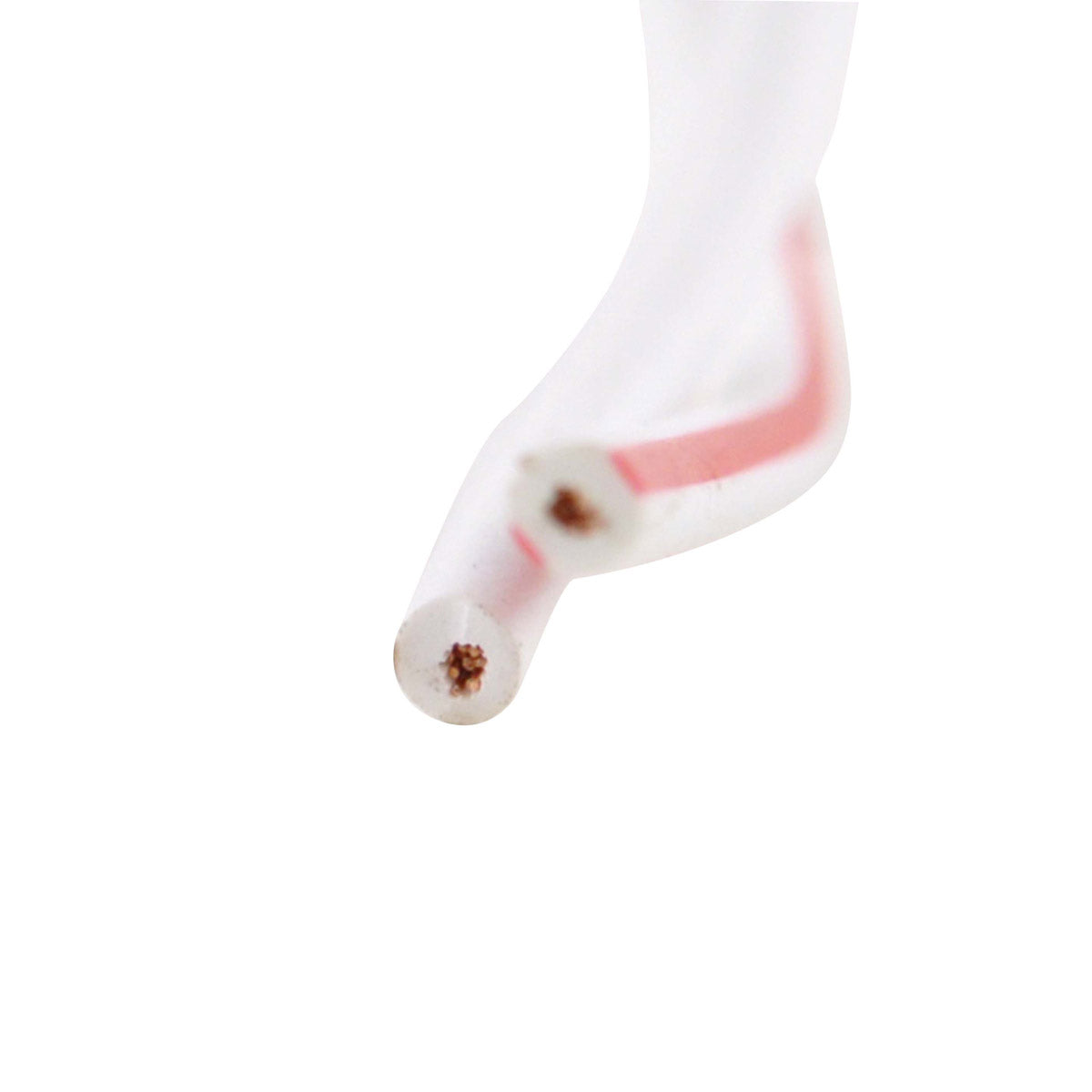

Wire length : 90mm
Wire to wire resistance :
Pink/Red to White = 100 ohms +/-20%
Interchange Part Nº
Interchange Part Nº
-
Stator :
31120-KA3-761 - 31120-KA4-761
- 31100-KA5-761
-
Pickup Coil :
31120-KA3-761 - 32160-27C00
- 31100-KA5-761
- 31120-KA4-761
Installation
Installation
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
