Stator + CDI Box + Ignition Coil + Gasket for Yamaha YFM 350 Warrior 1997-2001
Stator + CDI Box + Ignition Coil + Gasket for Yamaha YFM 350 Warrior 1997-2001

Details
Details

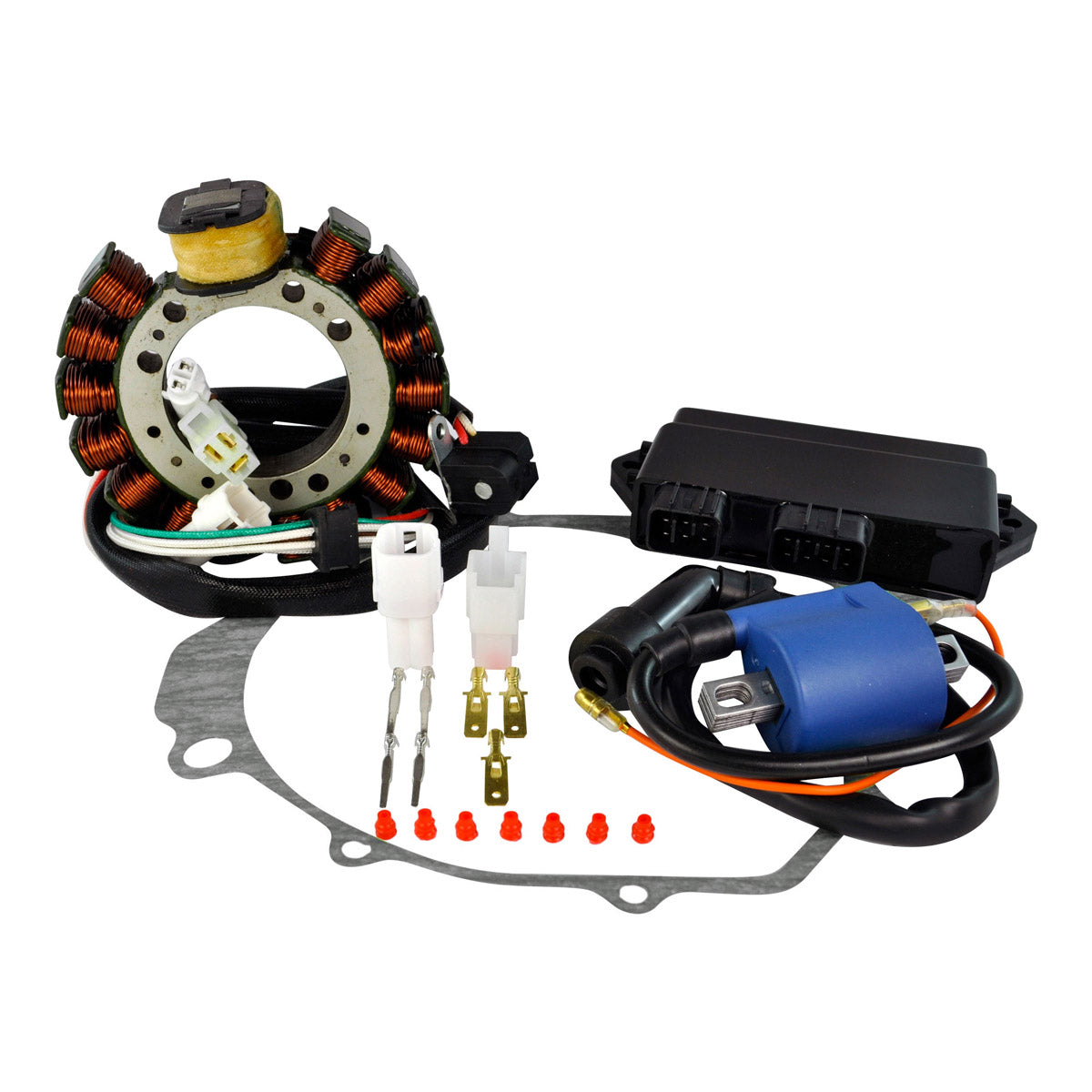

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

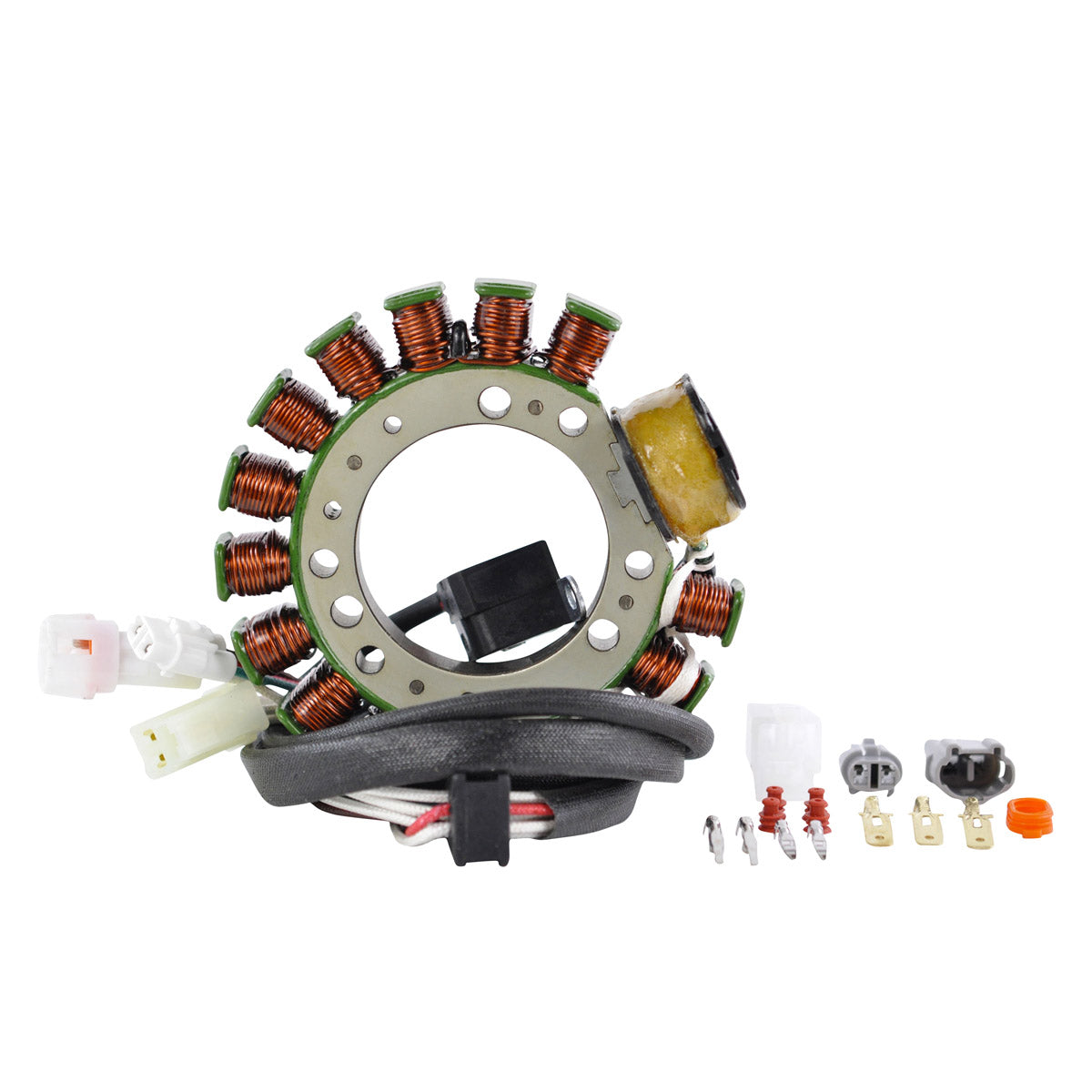

Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

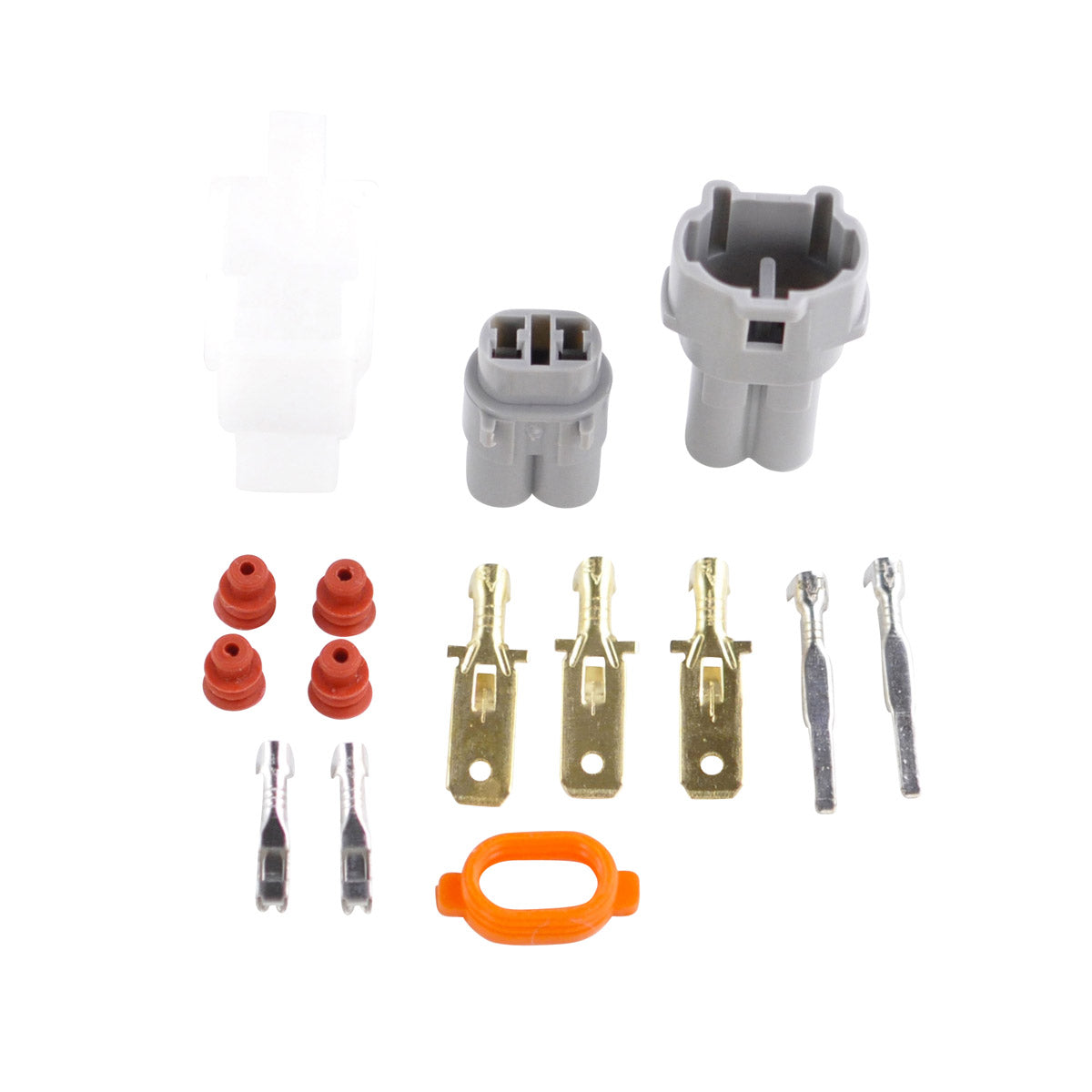

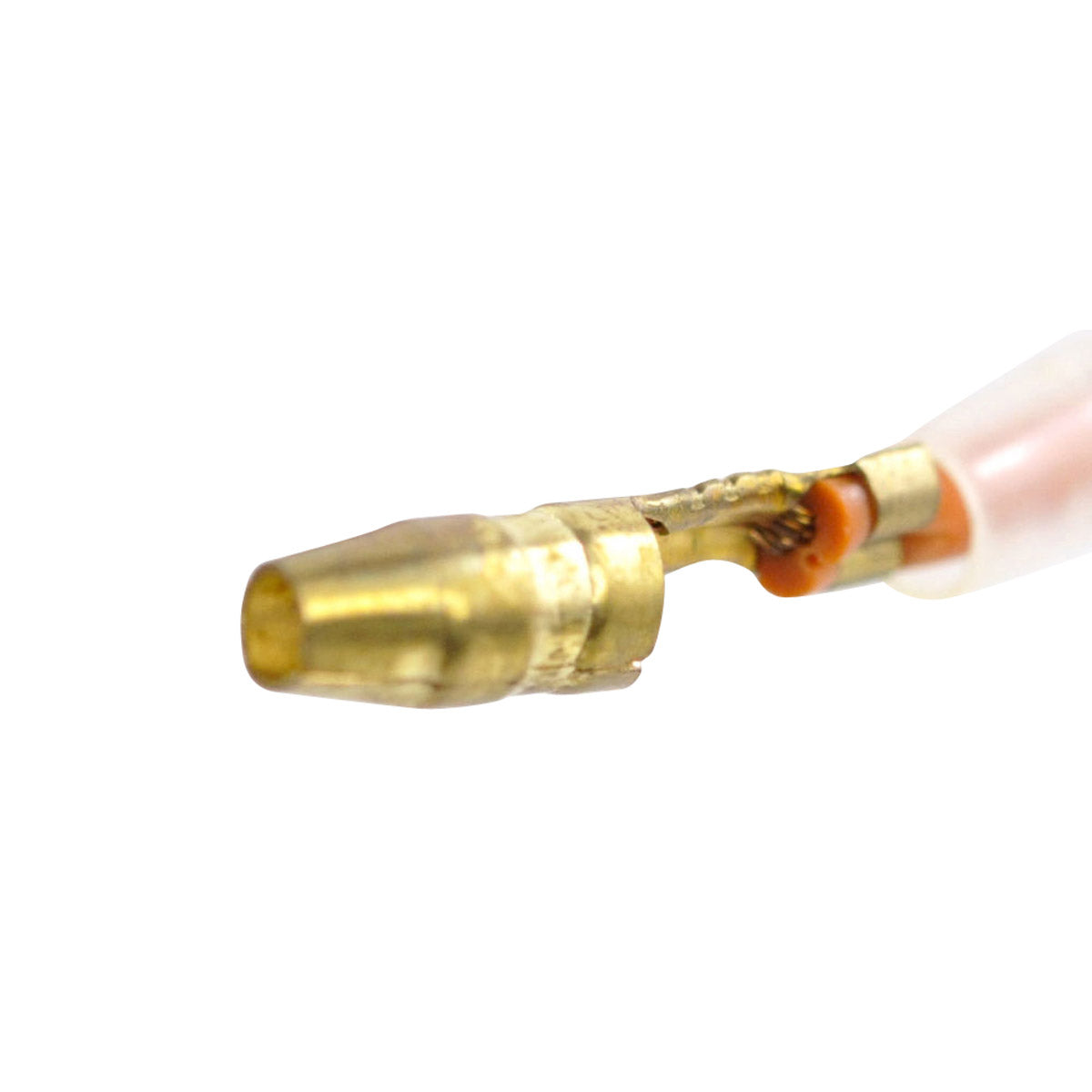

- Connector included
- Rubber grommet included

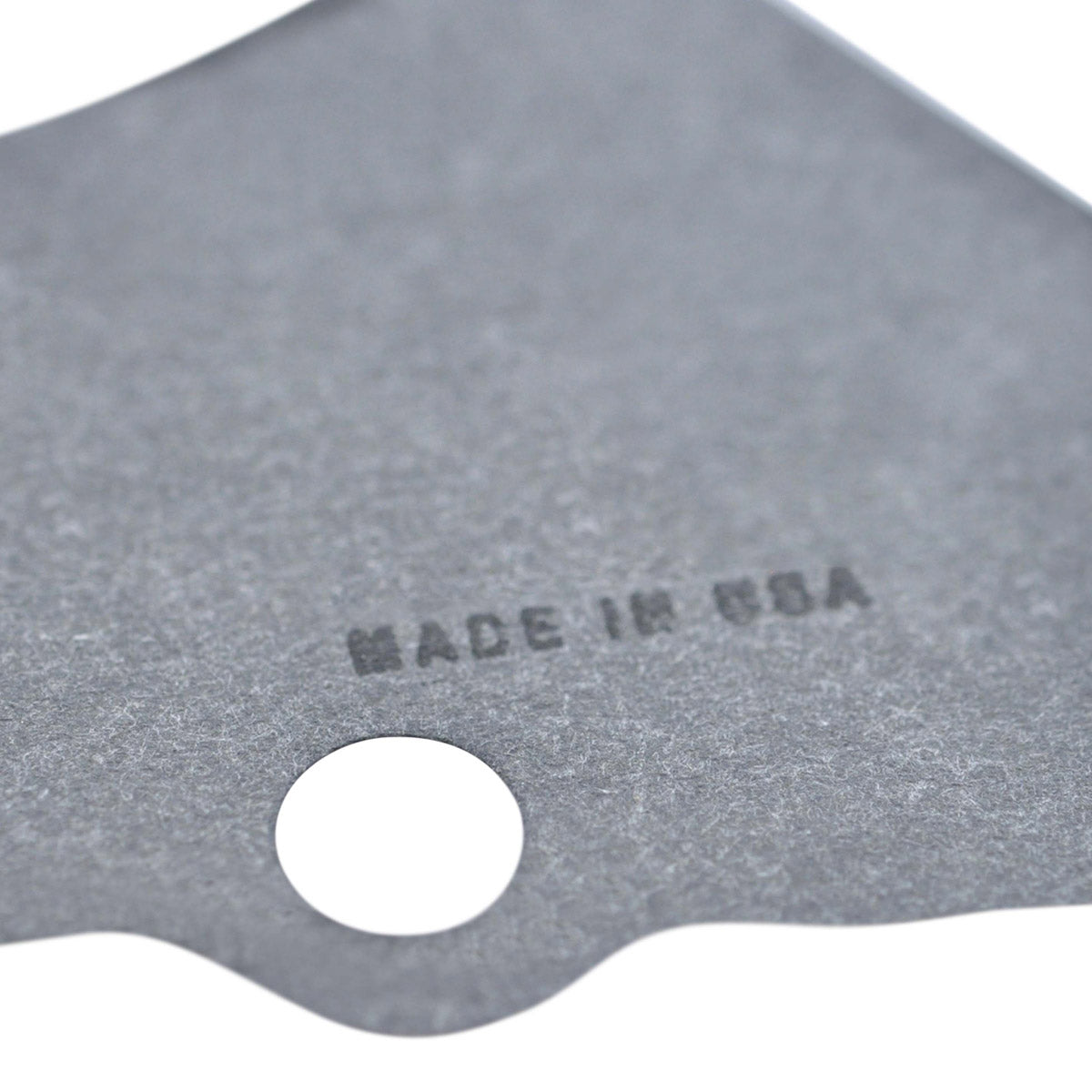

- Crankcase cover gasket included

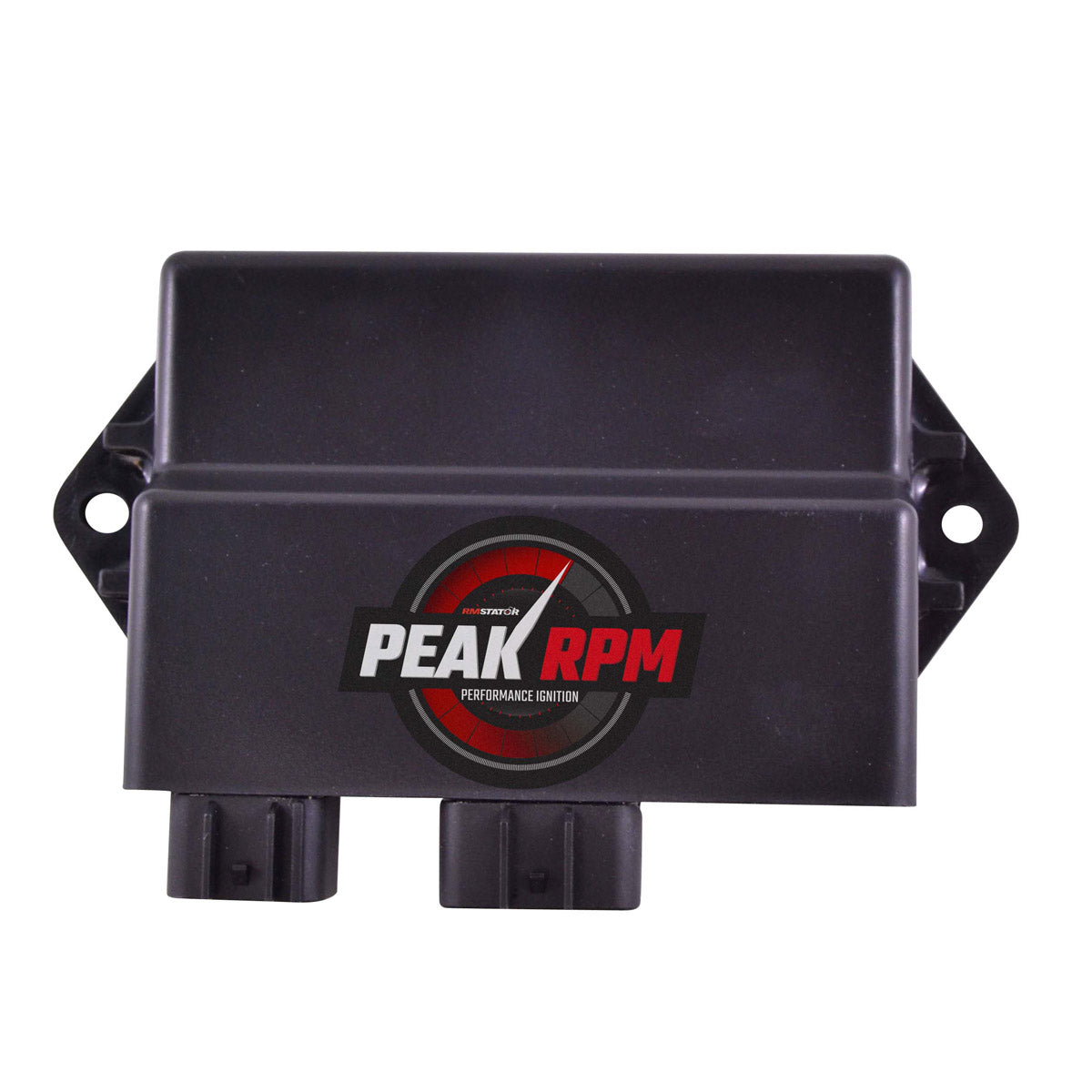

PeakRPM CDI Box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
- Highest grade of lamination materials
- The Quality exceeds the OEM equipment
- Spark plug cap(s) included
Specifications
Specifications
Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 420mm
Length of pickup coil's wire to grommet : 300mm
Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%
CDI Box
Height: 27mm
Length: 142mm
Width: 95mm
Other specifications:

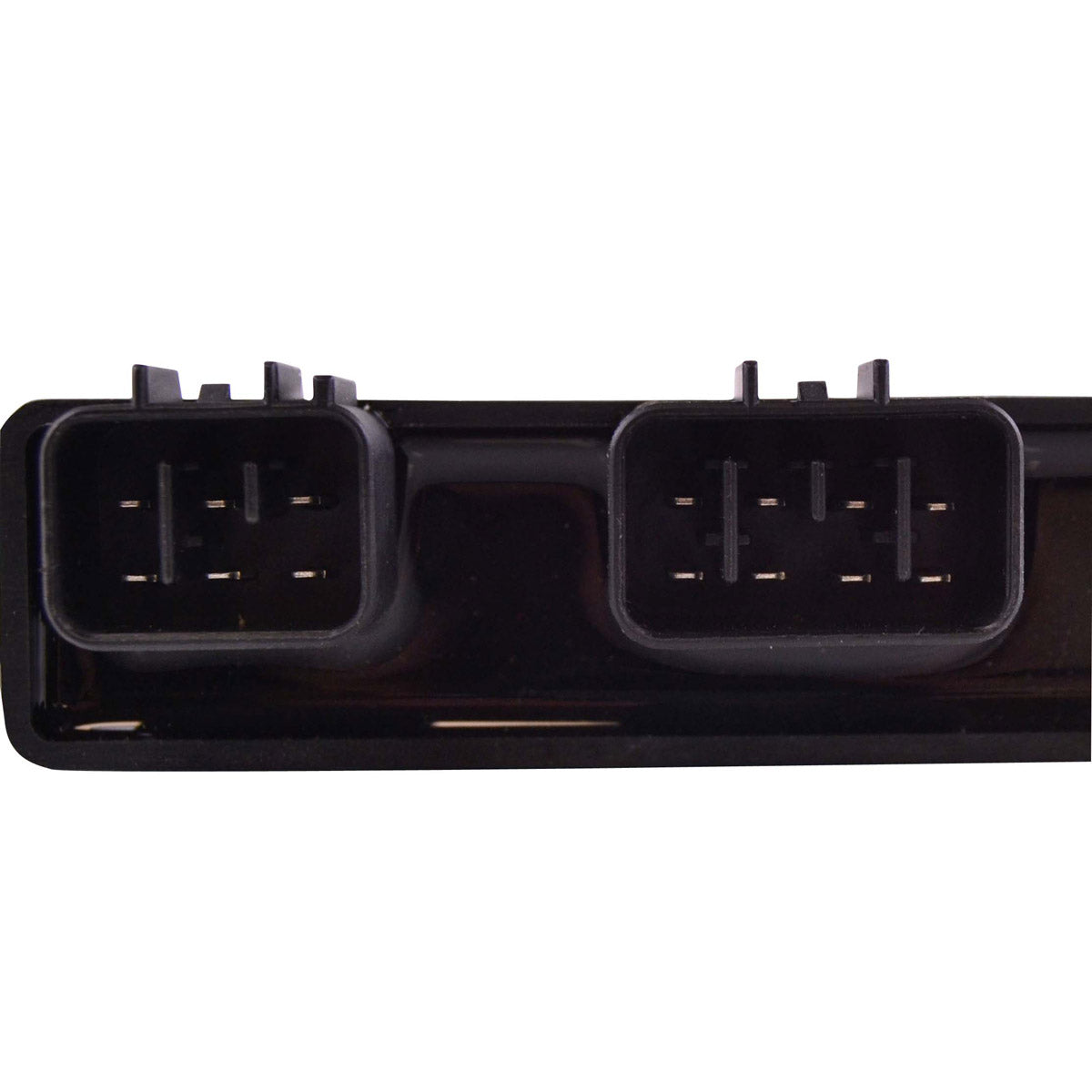

Number of plugs: 2
Number of pins: 14
Fixation holes center to center: 55 mm
Interchange Part Nº
Interchange Part Nº
-
Stator :
4GB-85510-00-00 - 3HN-85510-10-00
-
CDI Box :
3GD-85540-40-00 -

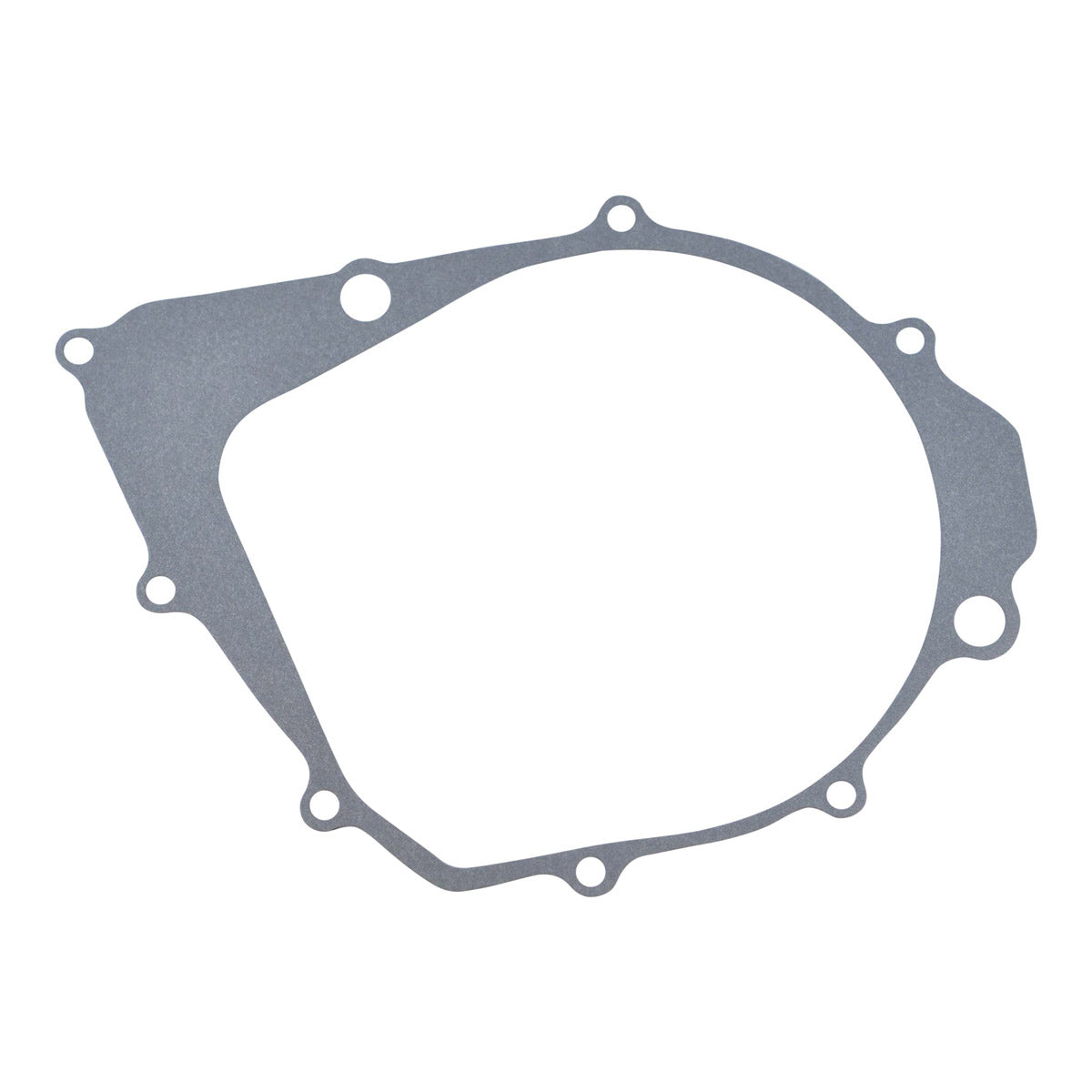

Gasket :
3GD-15451-00-00 -

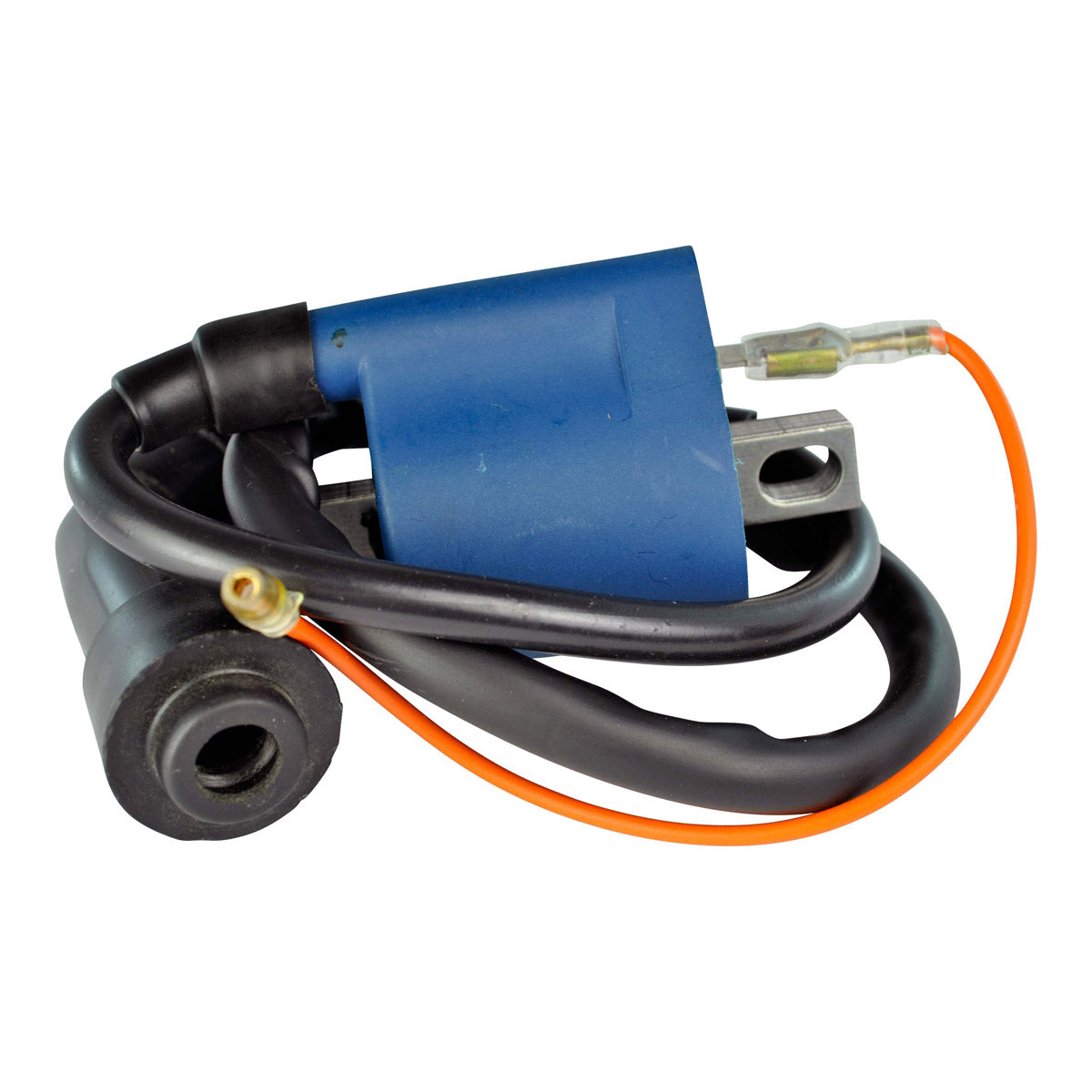

External Ignition Coil :
3GD-82310-10-00 - 3HN-82310-00-00
- 1UY-82370-20-00
- 3NS-82370-00-00
- 4KB-82310-00-00
Installation
Installation
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
CDI Box
Our CDI may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.
External ignition coil
Remove the yellow wire from the external ignition coil, if it is not applicable to your model.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
