Ignition Coil for Honda CB 750 1100 | CBR 600 900 1000 | GL 1500 | VF / VT 750 | VTX 1300 1966-2018 | 30400-306-673
RMSTATOR
SKU: RM06033
In Stock
RMSTATOR
Ignition Coil for Honda CB 750 1100 | CBR 600 900 1000 | GL 1500 | VF / VT 750 | VTX 1300 1966-2018 | 30400-306-673
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Please note : This coil will work fine for many Honda fitments, but is physically larger than the OEM coil (102mm between mounting holes, please compare to your original). It will require modifying your original mounting bracket or relocating the coil to fit correctly. This applies to Honda OEMs:
- 30510-KT7-003
- 30510-KT7-013
- 30510-KT7-023
- 30510-MM5-003
- 30510-MW0-003
Read more
Ignition Coil for Honda CB 750 1100 | CBR 600 900 1000 | GL 1500 | VF / VT 750 | VTX 1300 1966-2018 | 30400-306-673
Details
Details

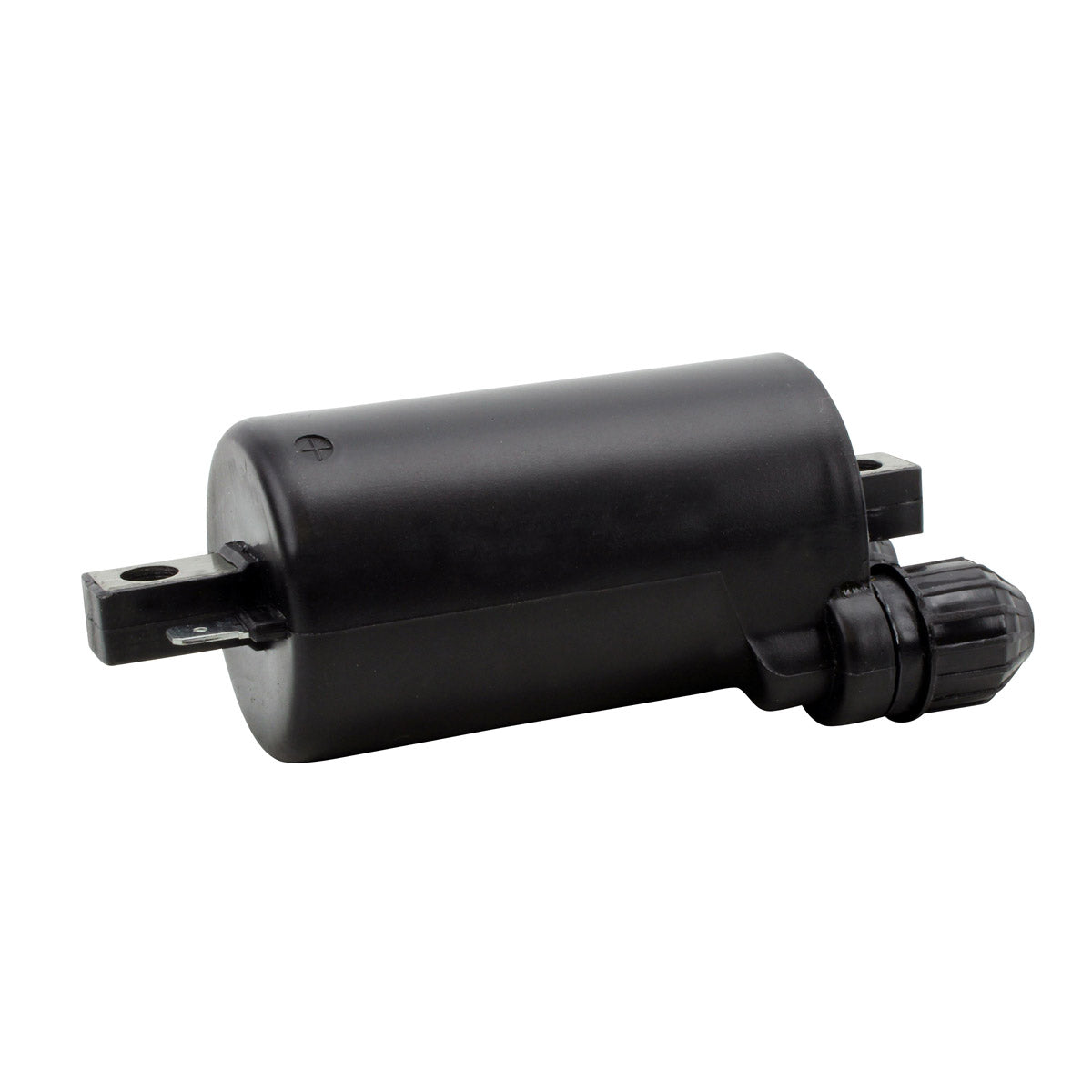

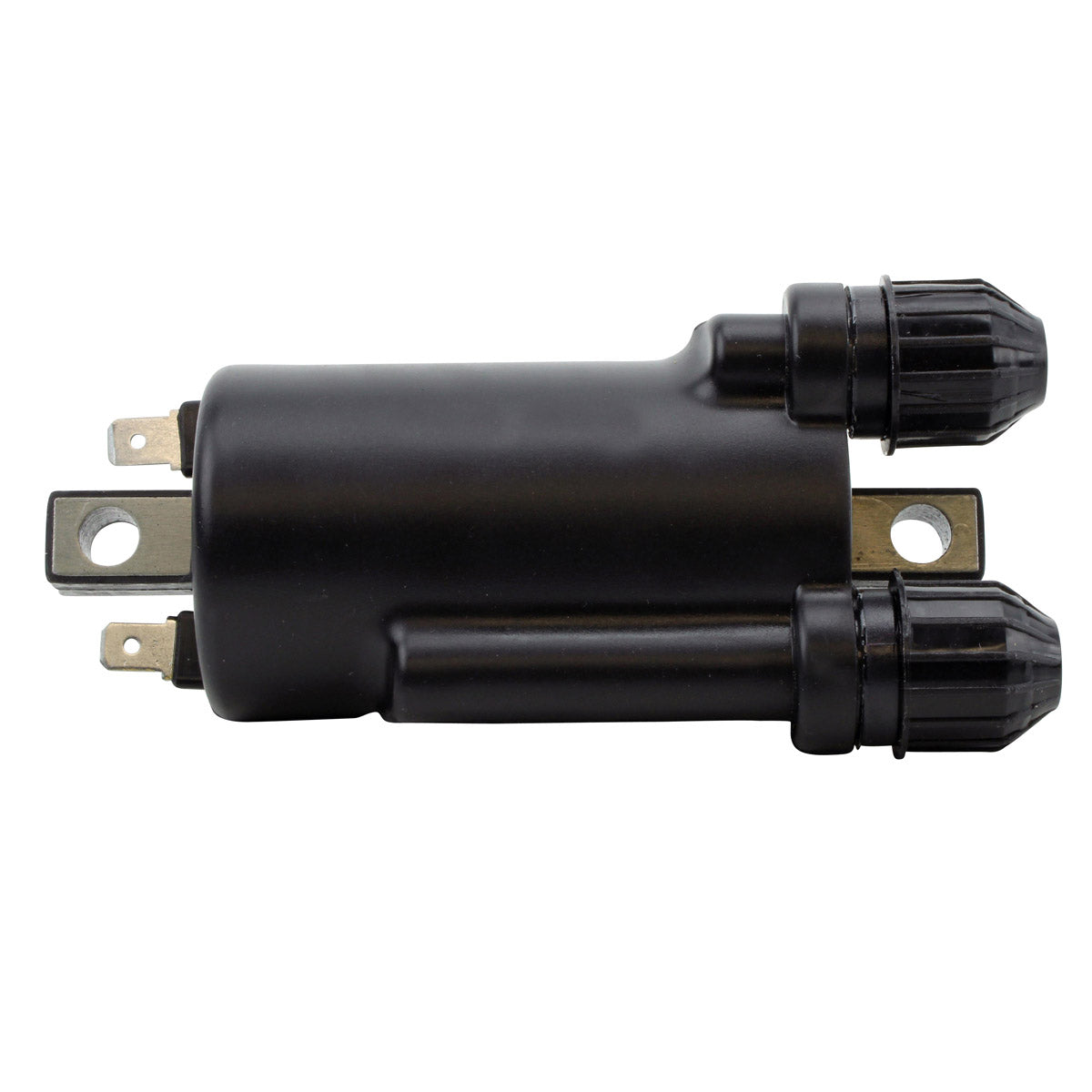

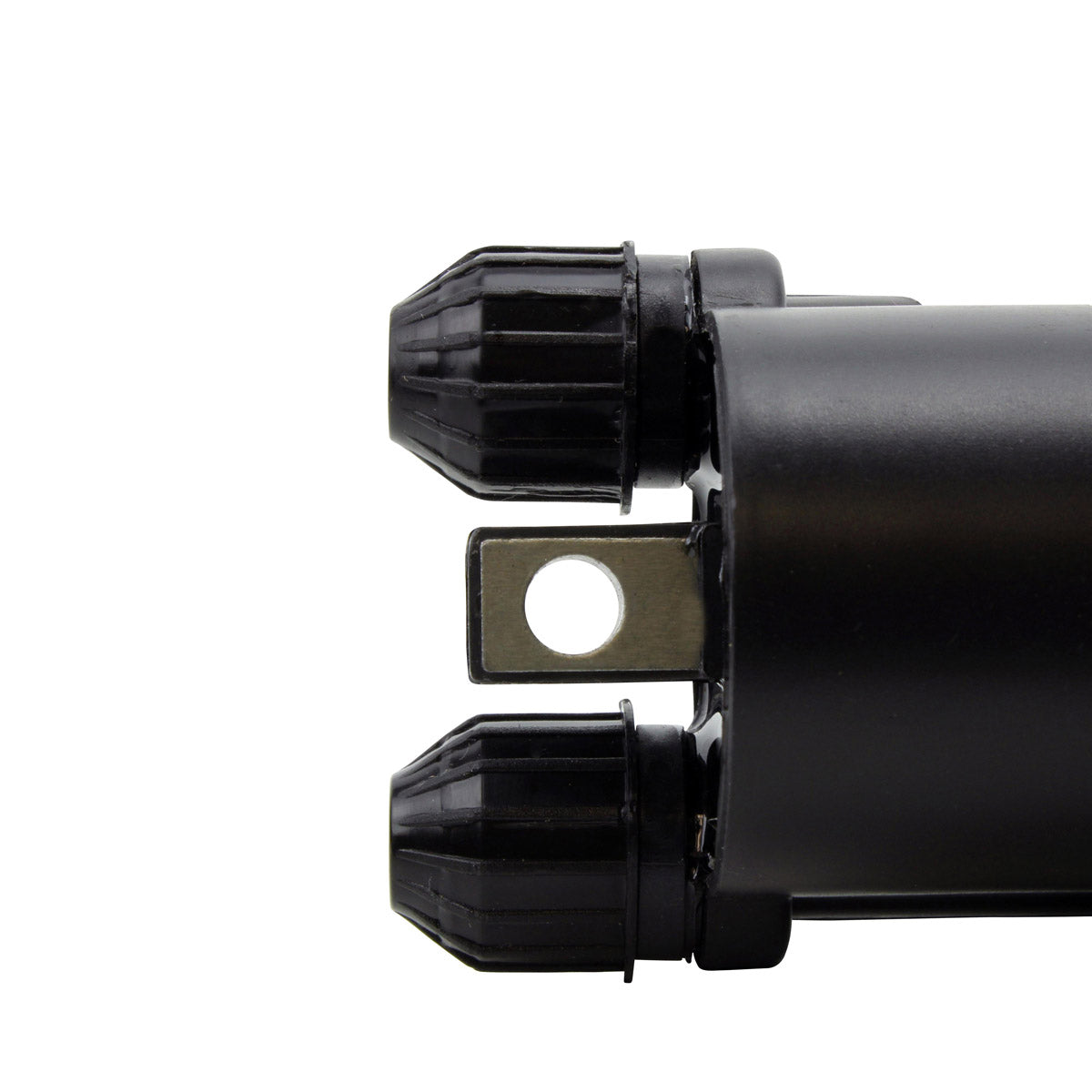

Brand new external ignition coil 12 volts
PLEASE READ THIS FIRST!! DO NOT ASSUME THIS COIL WILL WORK FOR YOUR BIKE JUST BECAUSE YOUR MODEL IS LISTED IN THIS AD
If you have a 4 cylinder bike that has 2 coils OR a two cylinder bike with one coil, and each coil has two spark plug wire outputs, this coil will work!
- You must re-install your OEM spark plug cap(s).
- Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install.
- Highest grade lamination materials.
- All products shipped are tested.
NOTE: Our Client used this coil while repairing many models. In some circumstances you may need to modify the way the coil is mounted to the bike, but at this price it is a very inexpensive alternative to purchasing a coil costing twice as much from the Dealer!
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Bracket center to bracket: 102 mm
Resistance:
2.42 ohm+/- 12%
11.5~12 k-ohm
12 Volts
Interchange Part Nº
Interchange Part Nº
- 30510MCC003
- 30511-MGC-D31
- 30510-MCC-003
- 30510-MW0-003
- 30500-422-013
- 30510-KT7-023
- 30400-306-673
- 30500-202-003
- 30500-202-014
- 30500-422-003
- 30500KPP862
- 30500-202-004
- 30504-300-004
- 30520-333-013
- 30530-413-003
- 31103-300-035
- 31103-300-045
- 30400-306-672
- 30500-230-000
- 30500-292-670
- 30500-292-671
- 30510-333-013
- 30510-KT7-003
- 30510-KT7-013
- 30510-MM5-003
Installation
Installation
Remove spark plug cap(s) from your OEM external ignition coil.
Screw cap(s) on the new external ignition coil.
Remove the yellow wire from external the ignition coil, if it is not applicable to your model.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
