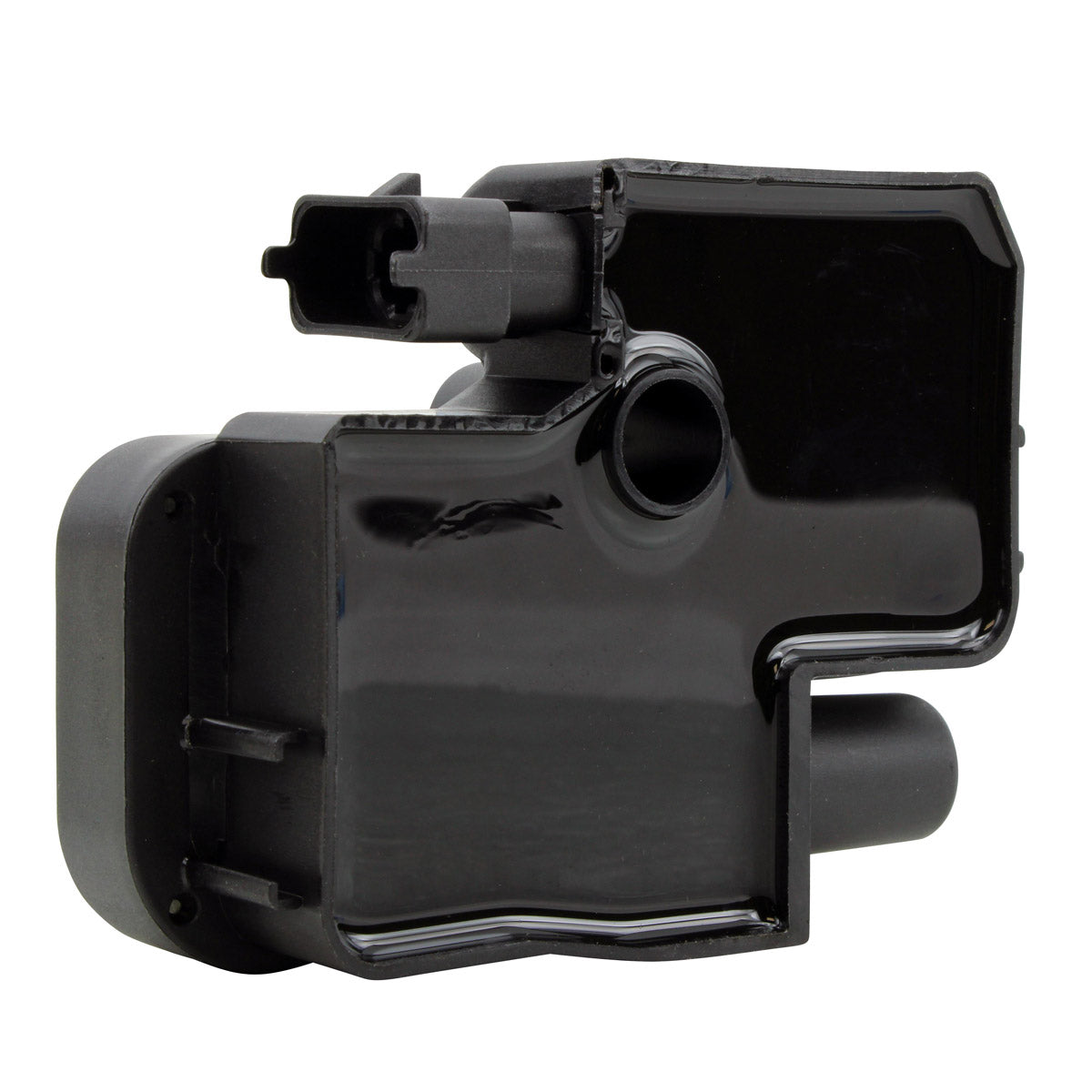

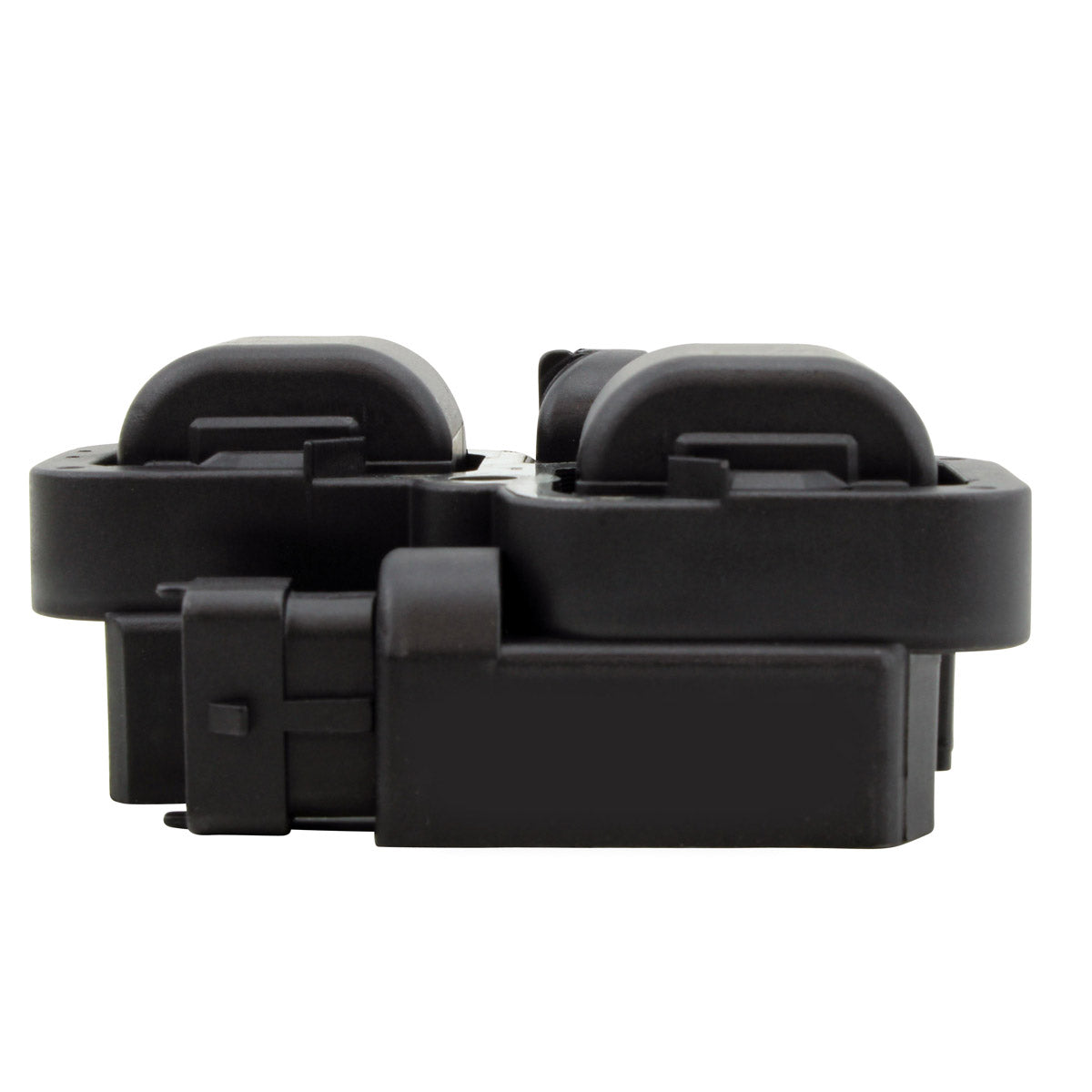

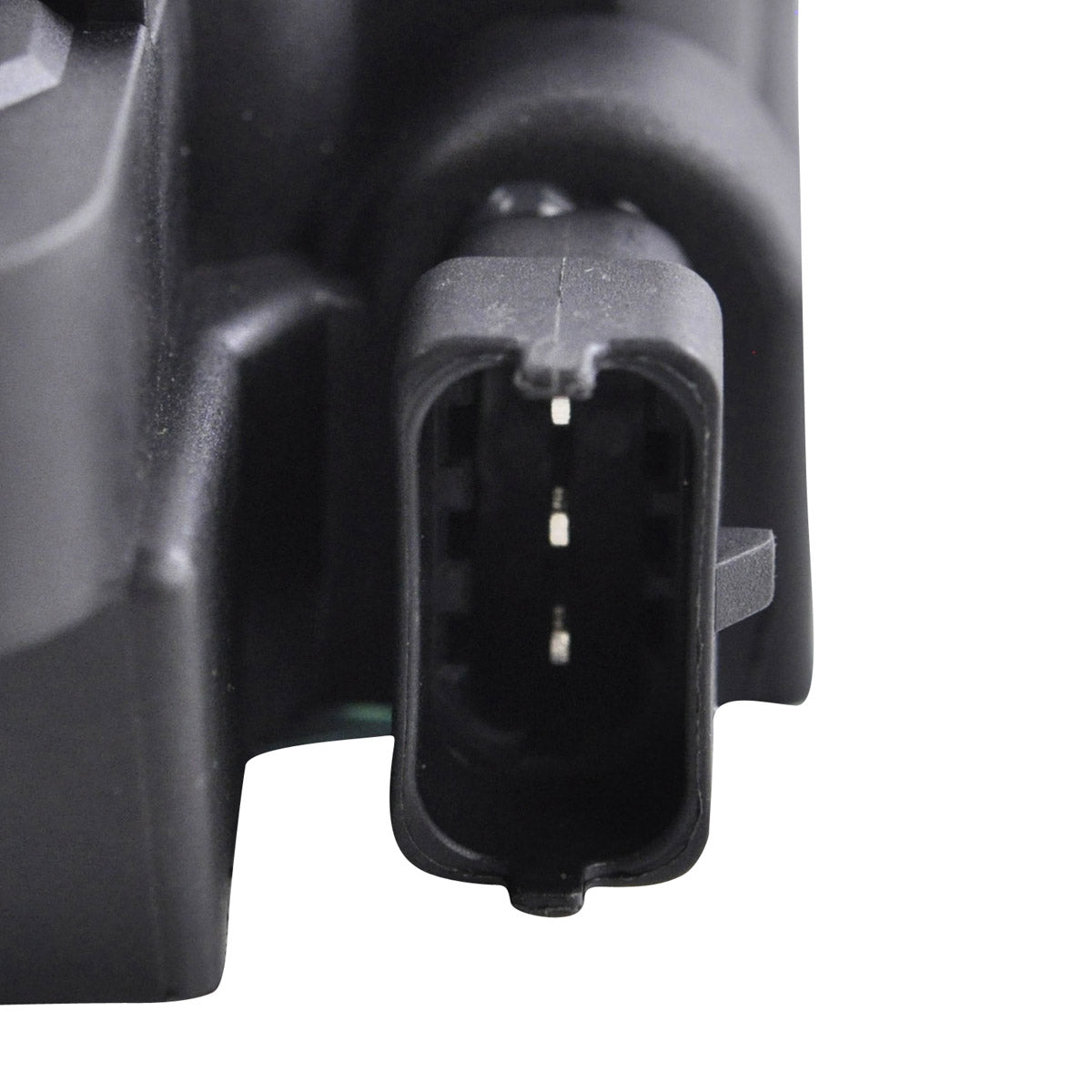

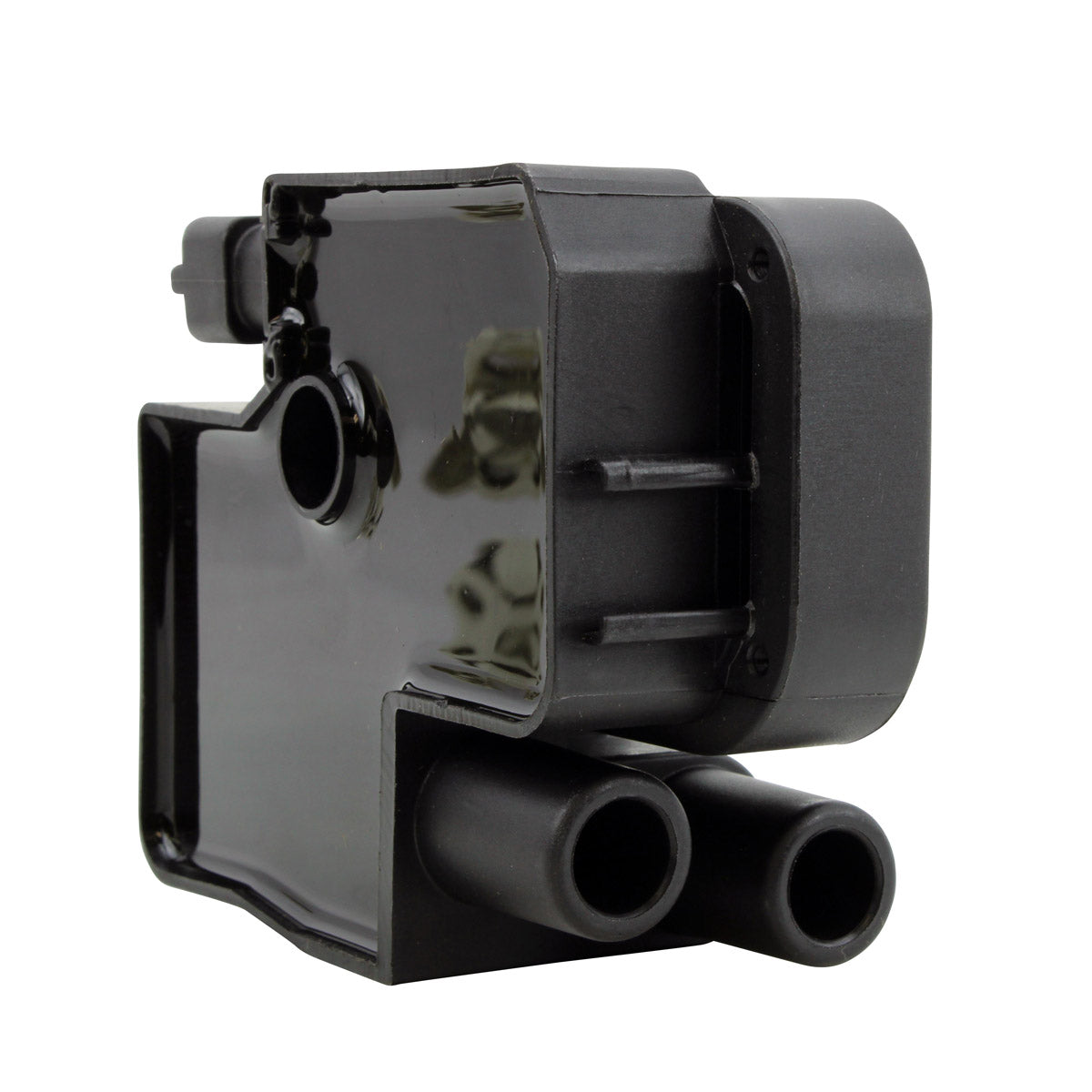

External Ignition Coil for Can Am | Lynx | Polaris | Sea-Doo | Ski-Doo | Victory 2000-2026 | 2876049 4010425 420266070

RMSTATOR
SKU: RM06021
In Stock
RMSTATOR

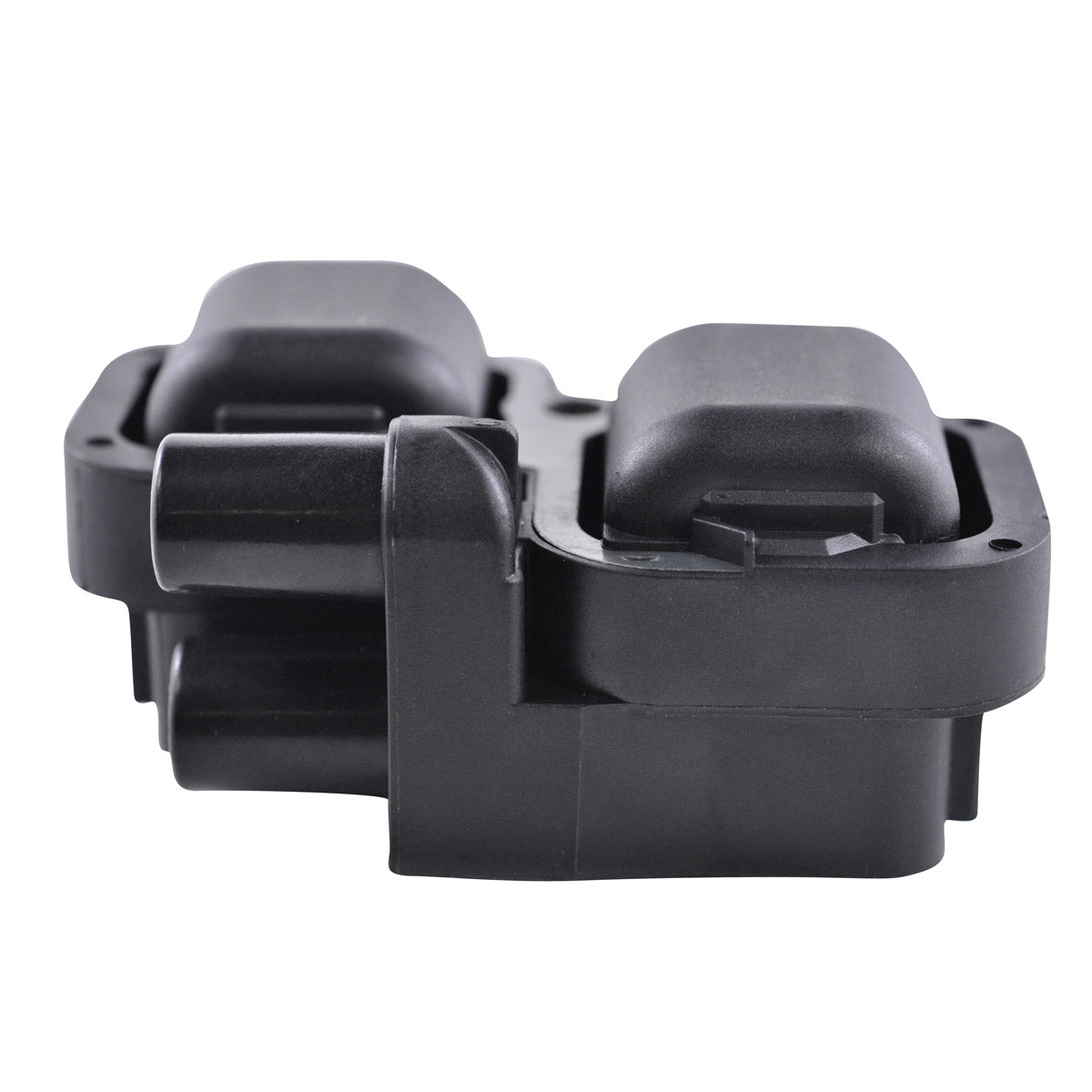

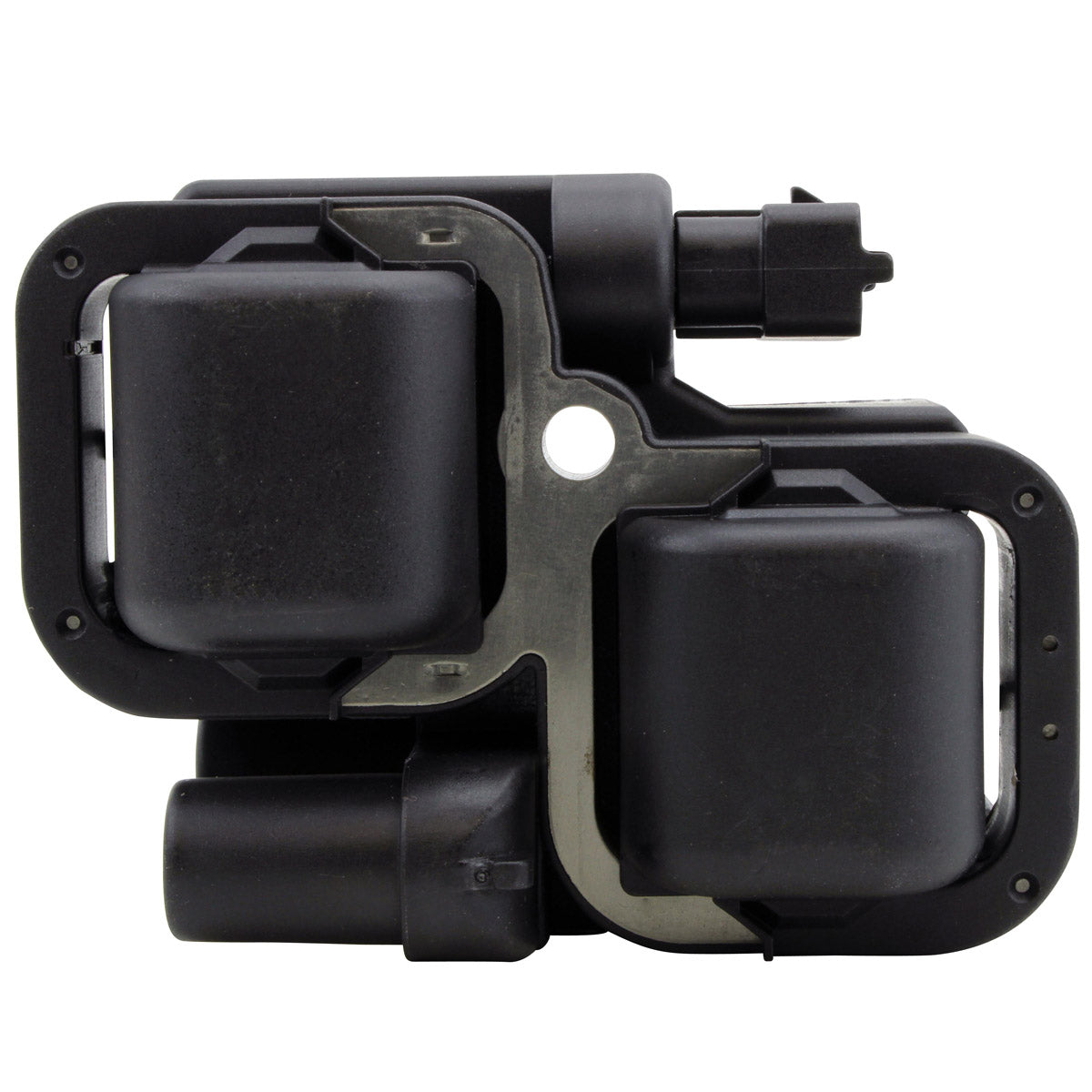

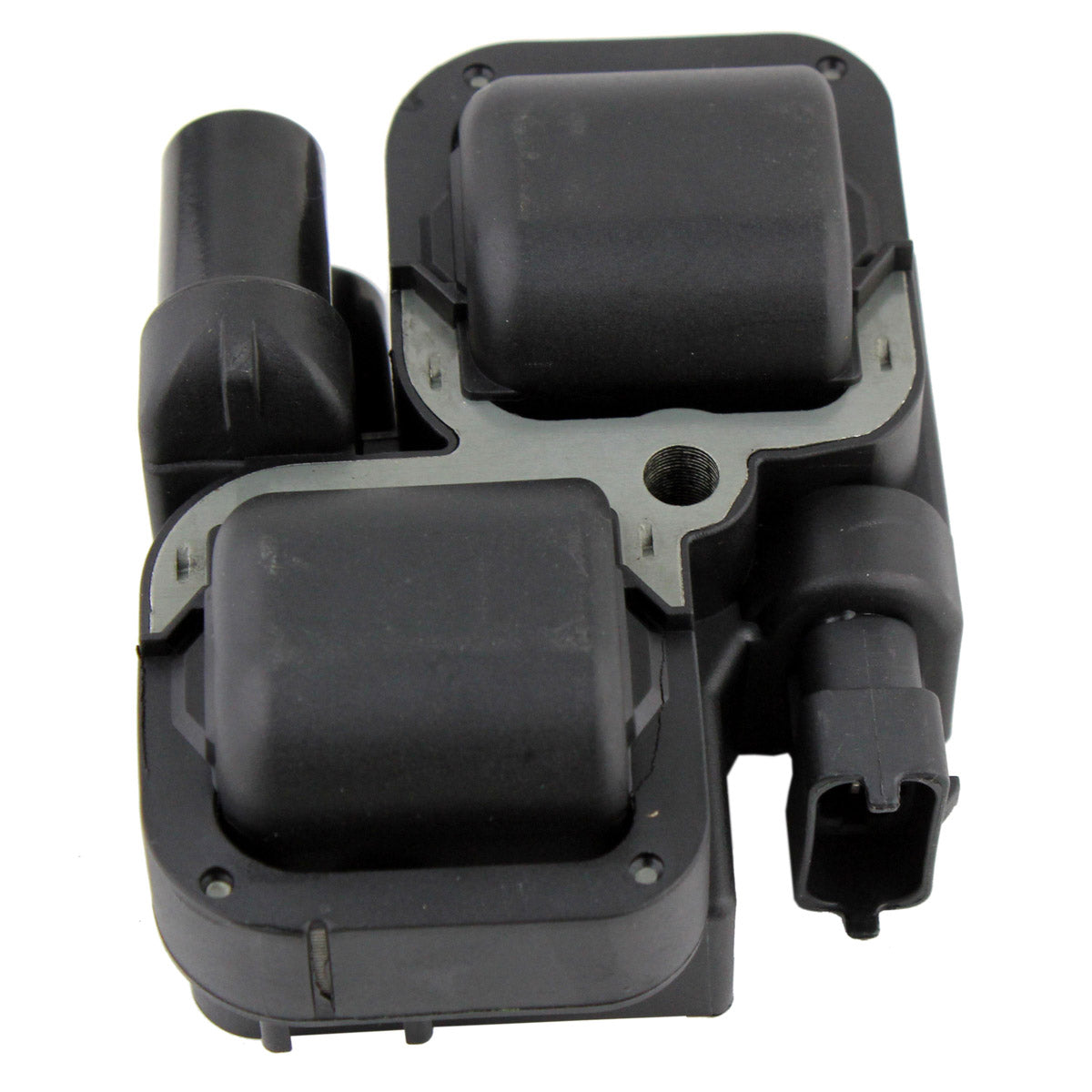

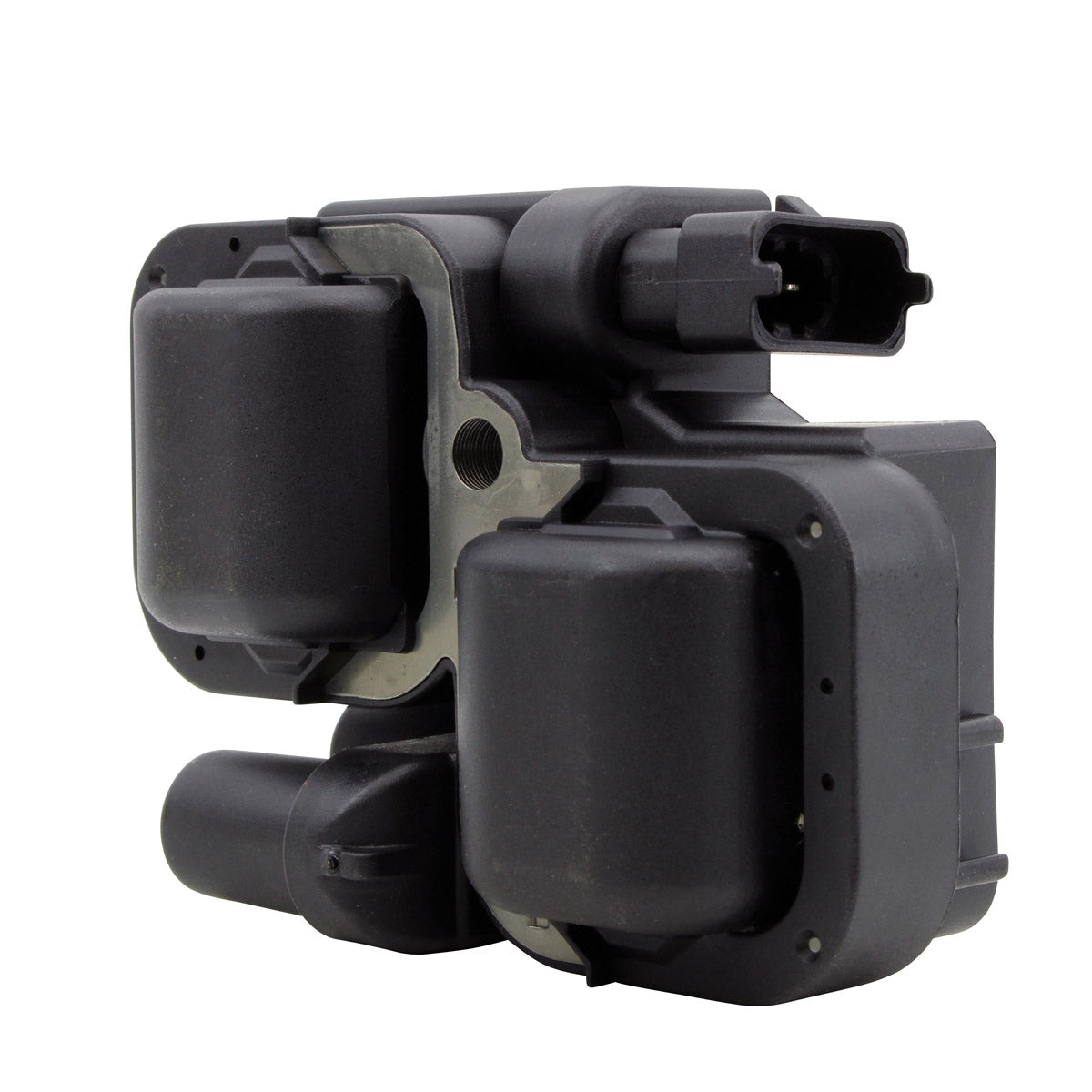

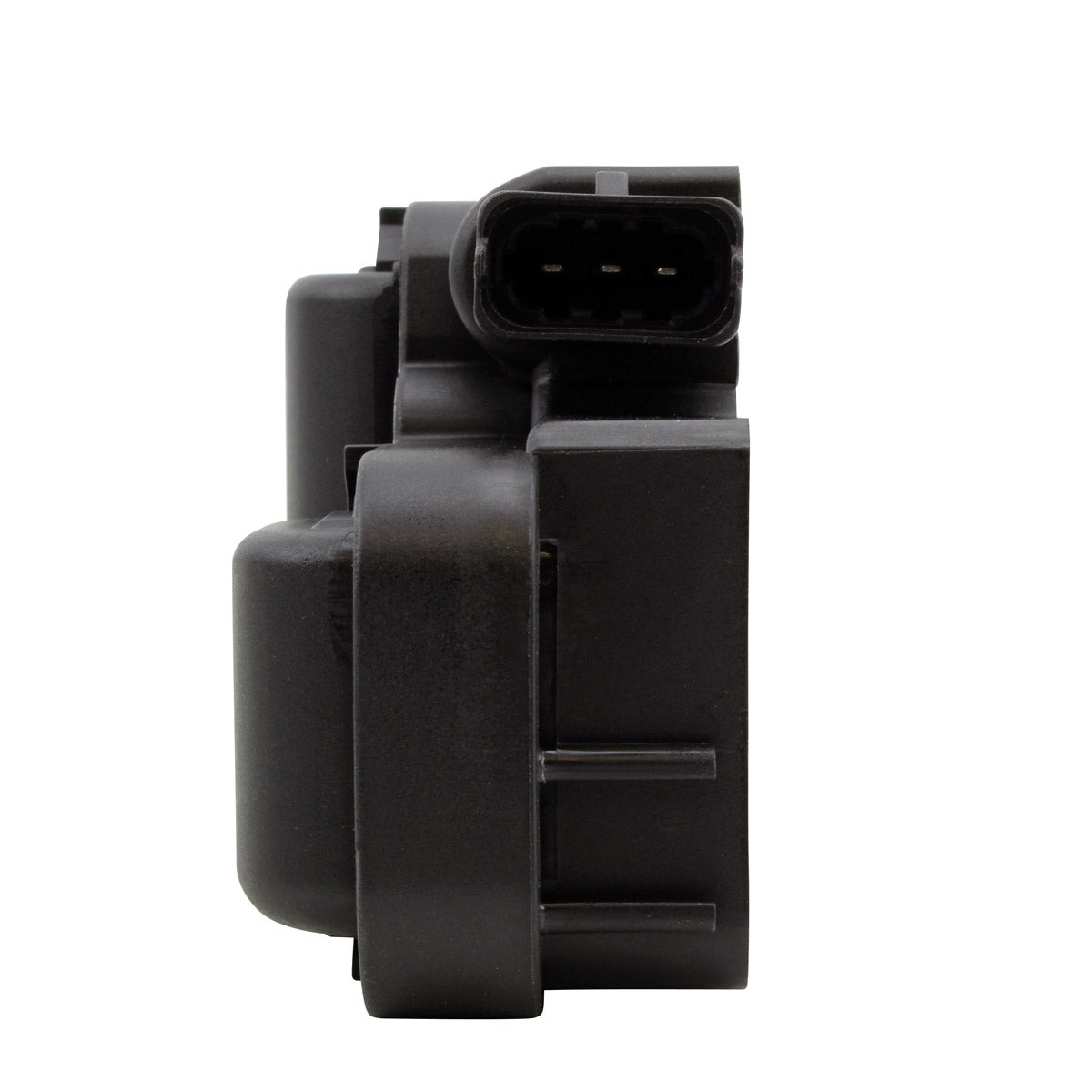

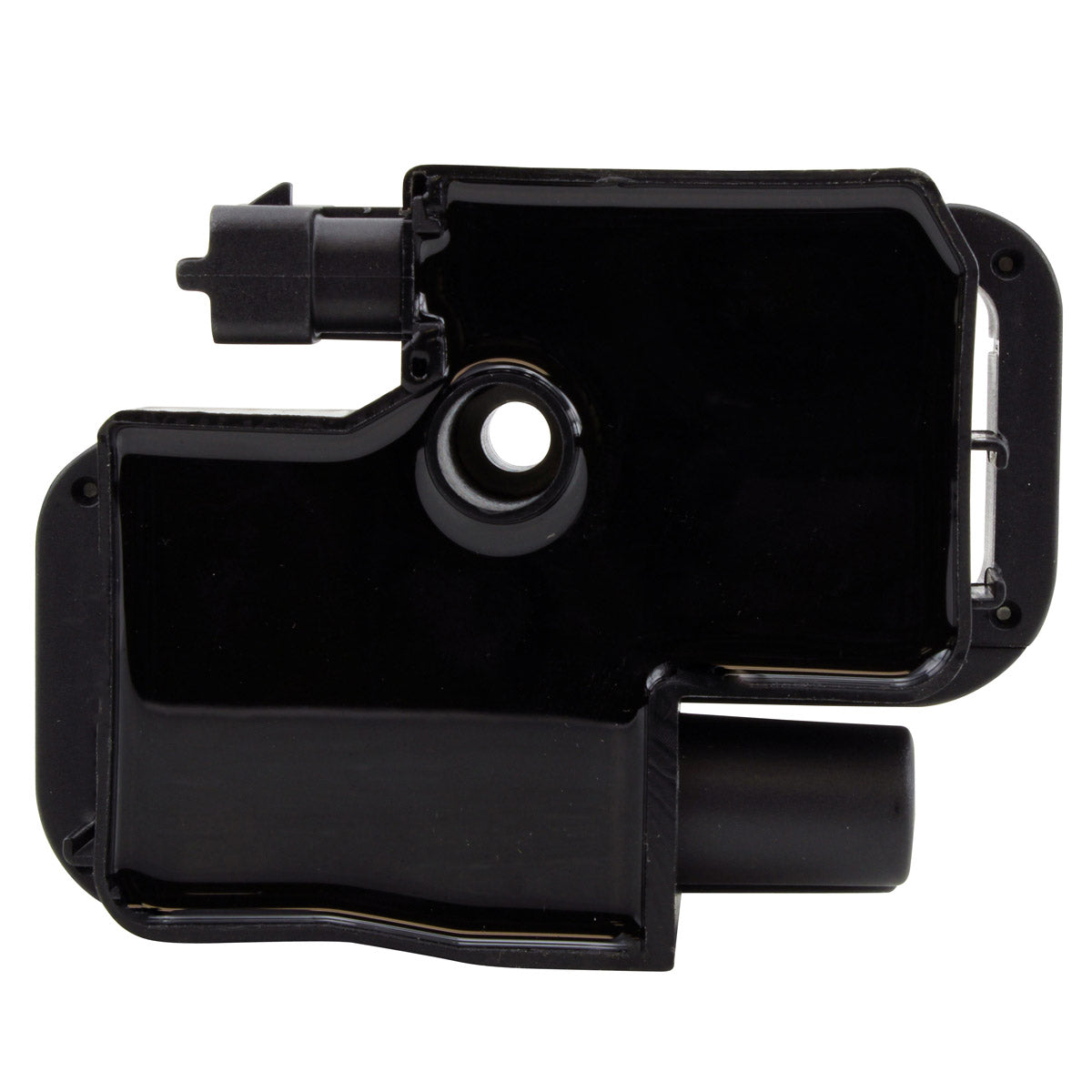

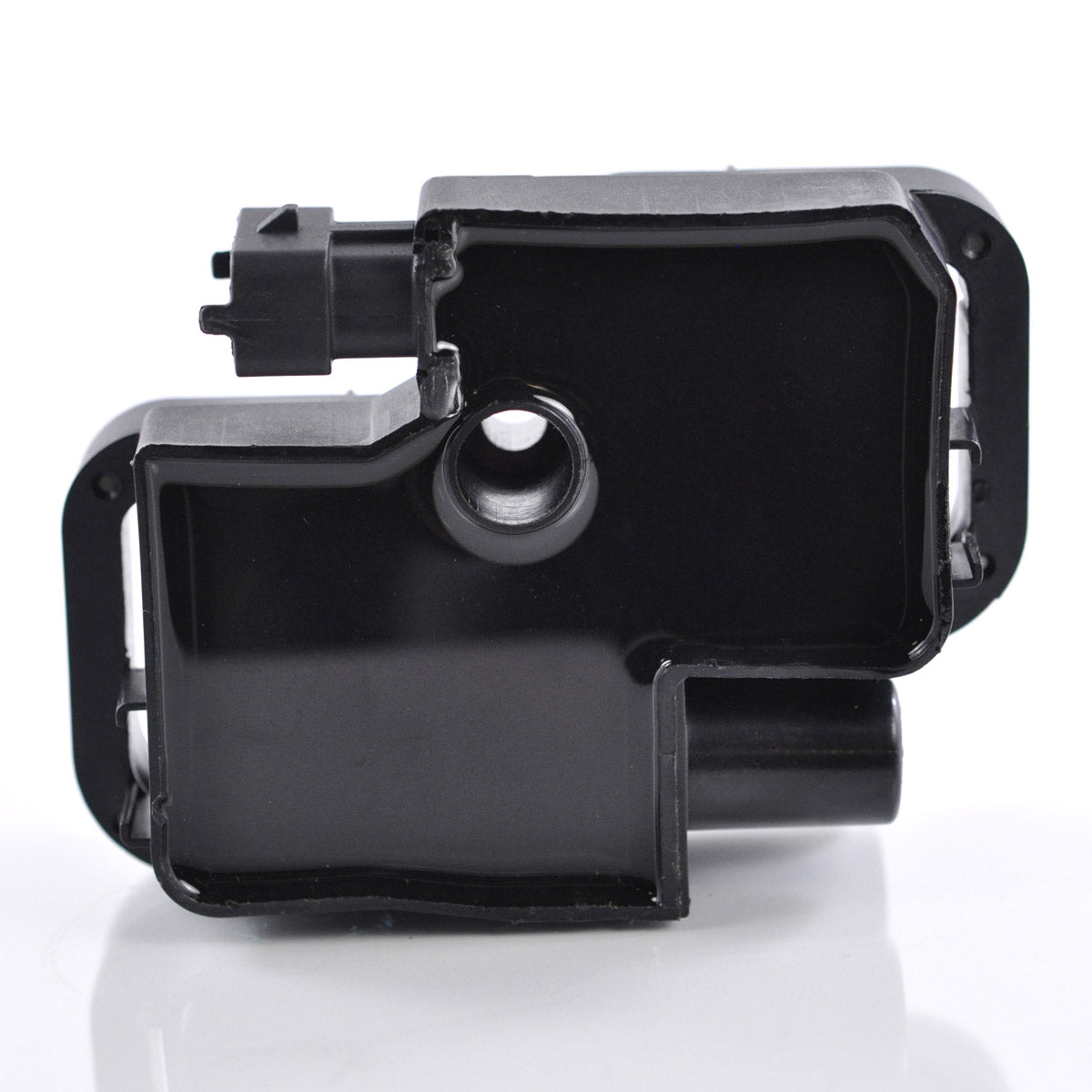

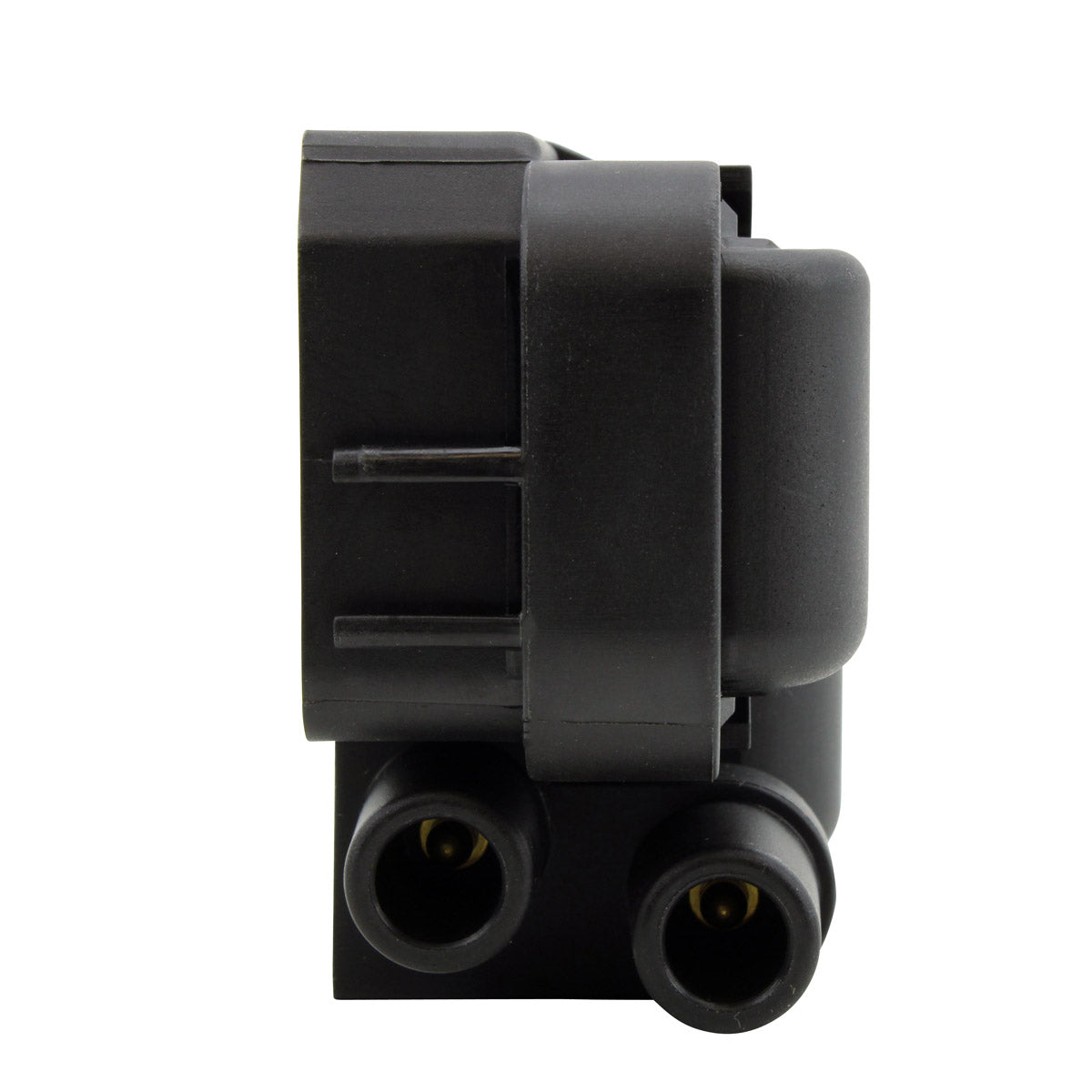

External Ignition Coil for Can Am | Lynx | Polaris | Sea-Doo | Ski-Doo | Victory 2000-2026 | 2876049 4010425 420266070

$89.09
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle
External Ignition Coil for Can Am | Lynx | Polaris | Sea-Doo | Ski-Doo | Victory 2000-2024 | 2876049 4010425 420266070
External Ignition Coil for Can Am | Lynx | Polaris | Sea-Doo | Ski-Doo | Victory 2000-2026 | 2876049 4010425 420266070
$89.09

Details

Brand new external ignition coil

  • The updated replacement design used by OEM part number 278001546 and our RM06021 integrates this internally and no longer requires the separate external wire.
  • You must re-install your OEM spark plug cap(s).
  • Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Width: 72 mm
Length: 100 mm
Height: 45 mm
Resistance:
Primary Resistance (between terminals 1&2 and 2&3): 0.9 ohms +/-20%
PTO Spark Plug Wire: 7.0k ohms +/- 5%
MAG Spark Plug Wire: 7.4k ohms +/- 5%

Interchange Part Nº

  • 0221503036
  • 001587803
  • 0040100297
  • 0221503035
  • 5098138AA
  • 51259190016
  • A0001587803
  • N61100000
  • 001587303
  • 1789358
  • 221503037
  • 270600002
  • 420266070
  • 278001546
  • 2876049
  • 4010425

Installation

RM06021 is compatible with both 2004 and 2005 Sea-Doo 3D RFI models equipped with the Rotax 787 RFI engine.

The original OEM coil (278001312) used an additional single-wire lead as part of the older grounding/shielding design. The updated replacement design used by OEM part number 278001546 and our RM06021 integrates this internally and no longer requires the separate external wire.

When installing RM06021:

The original single-wire harness lead is no longer used. Leave the wire disconnected and properly insulated/capped. Do not connect the wire to chassis ground unless specifically instructed by the OEM service manual.

The RM06021 coil grounds through the mounting bracket/core and primary connector system, matching the updated OEM-style design.

Remove spark plug cap(s) from your OEM external ignition coil. Screw cap(s) on the new external ignition coil.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
