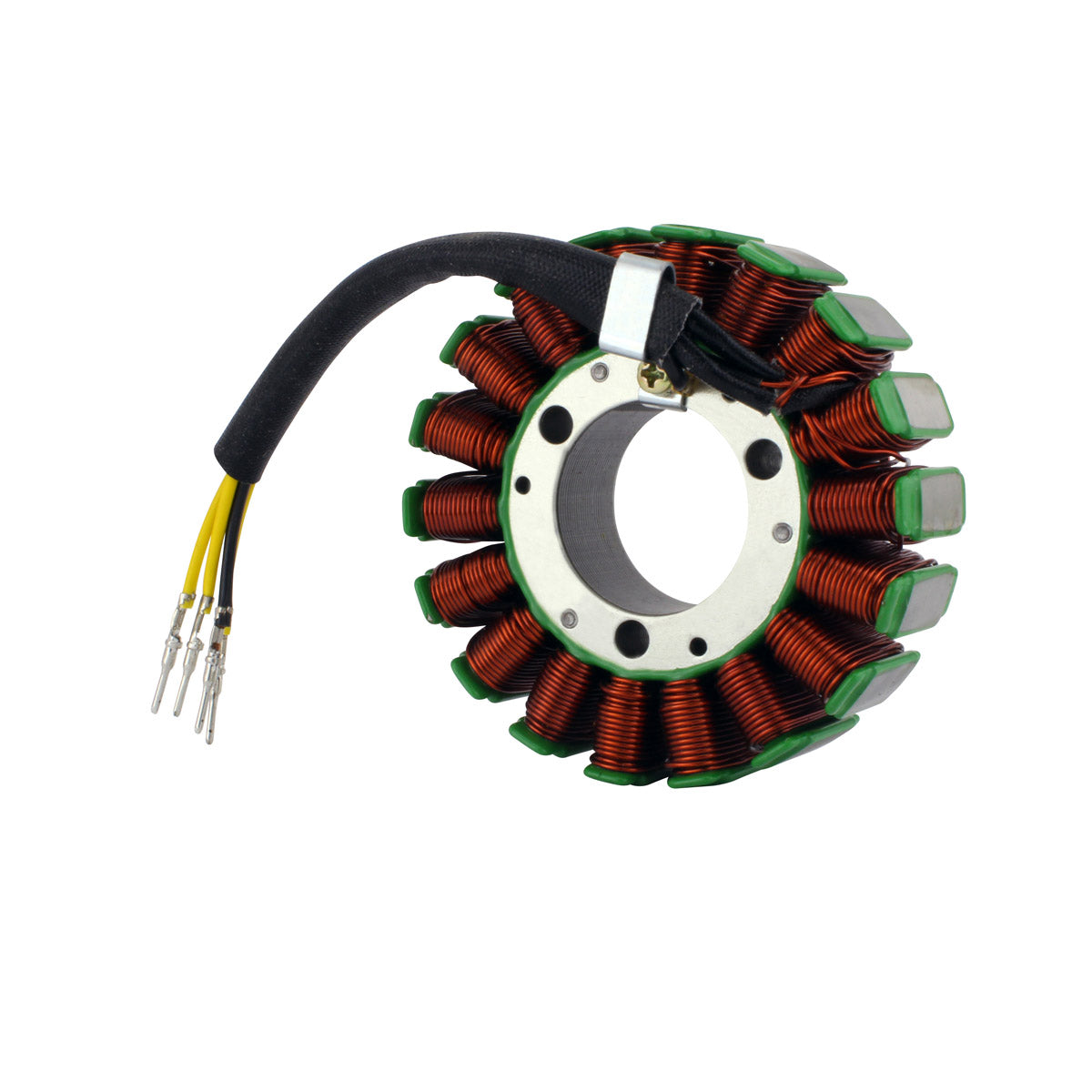

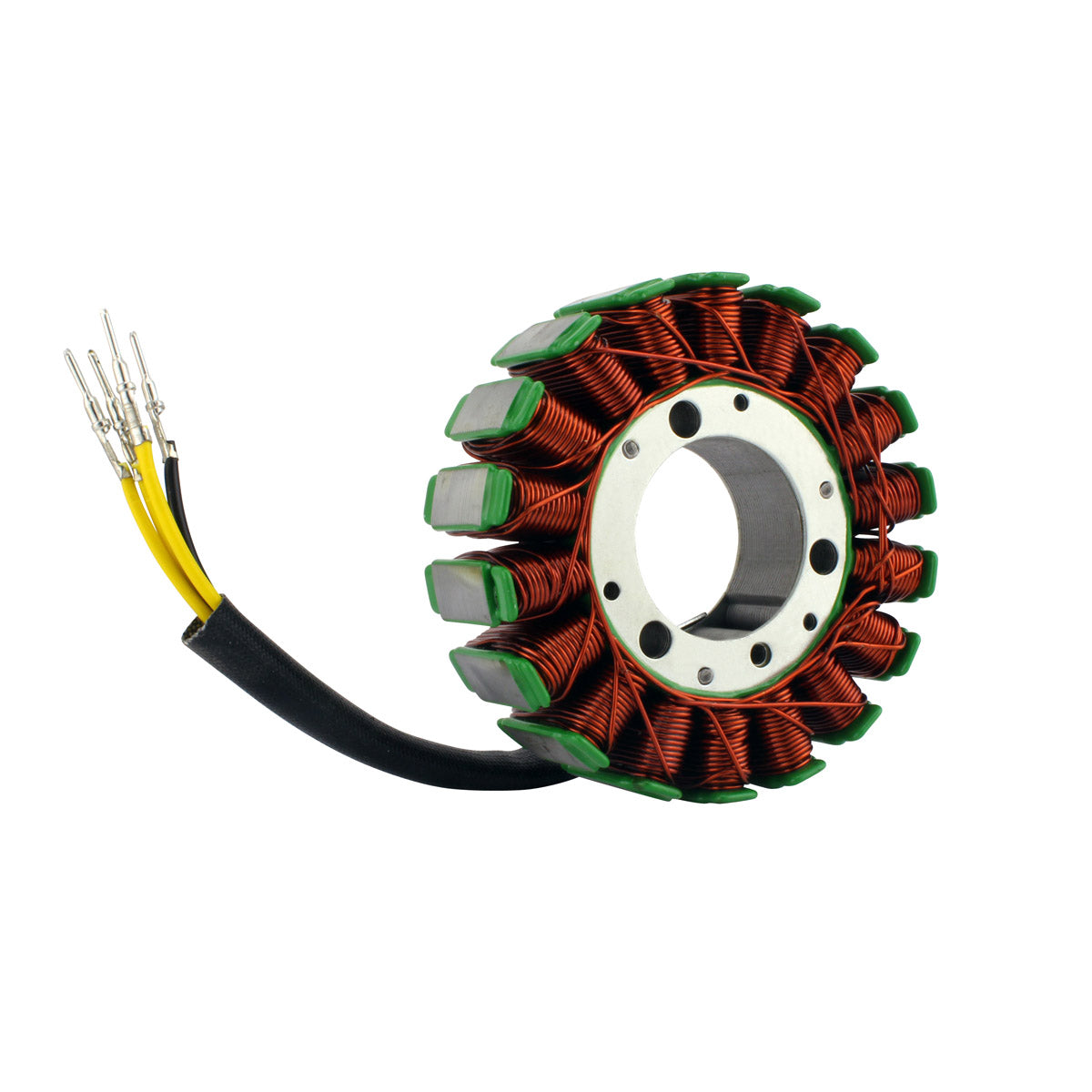

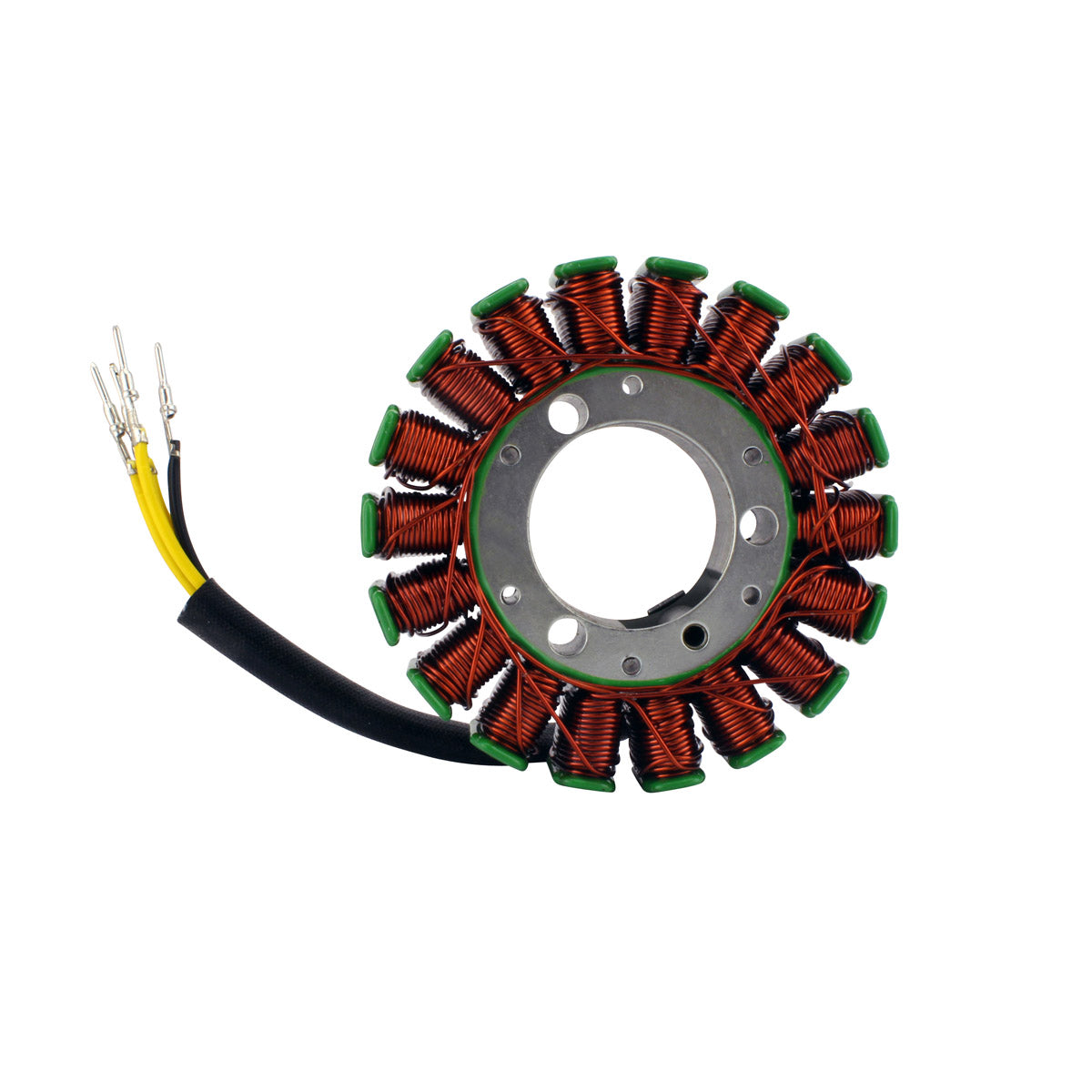

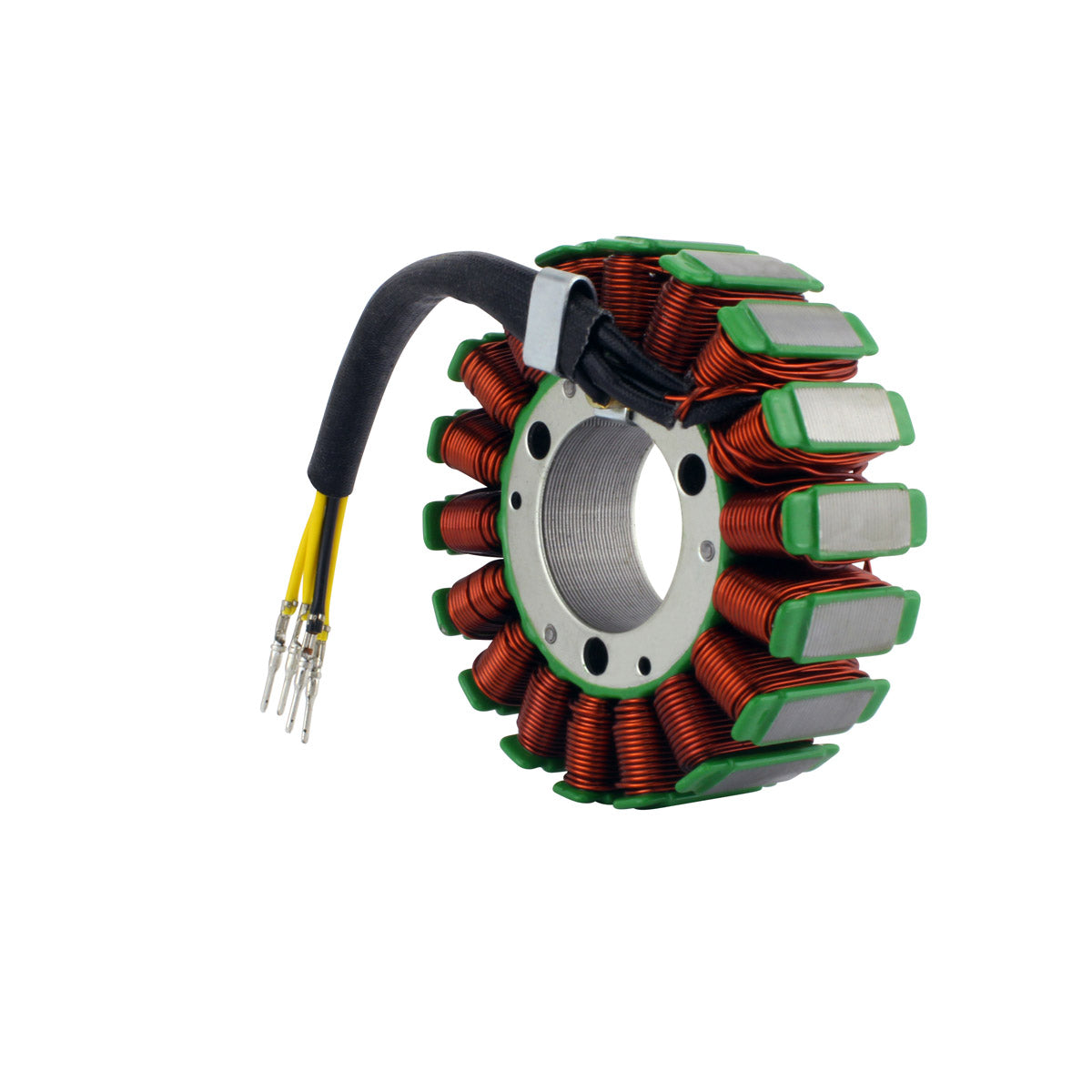

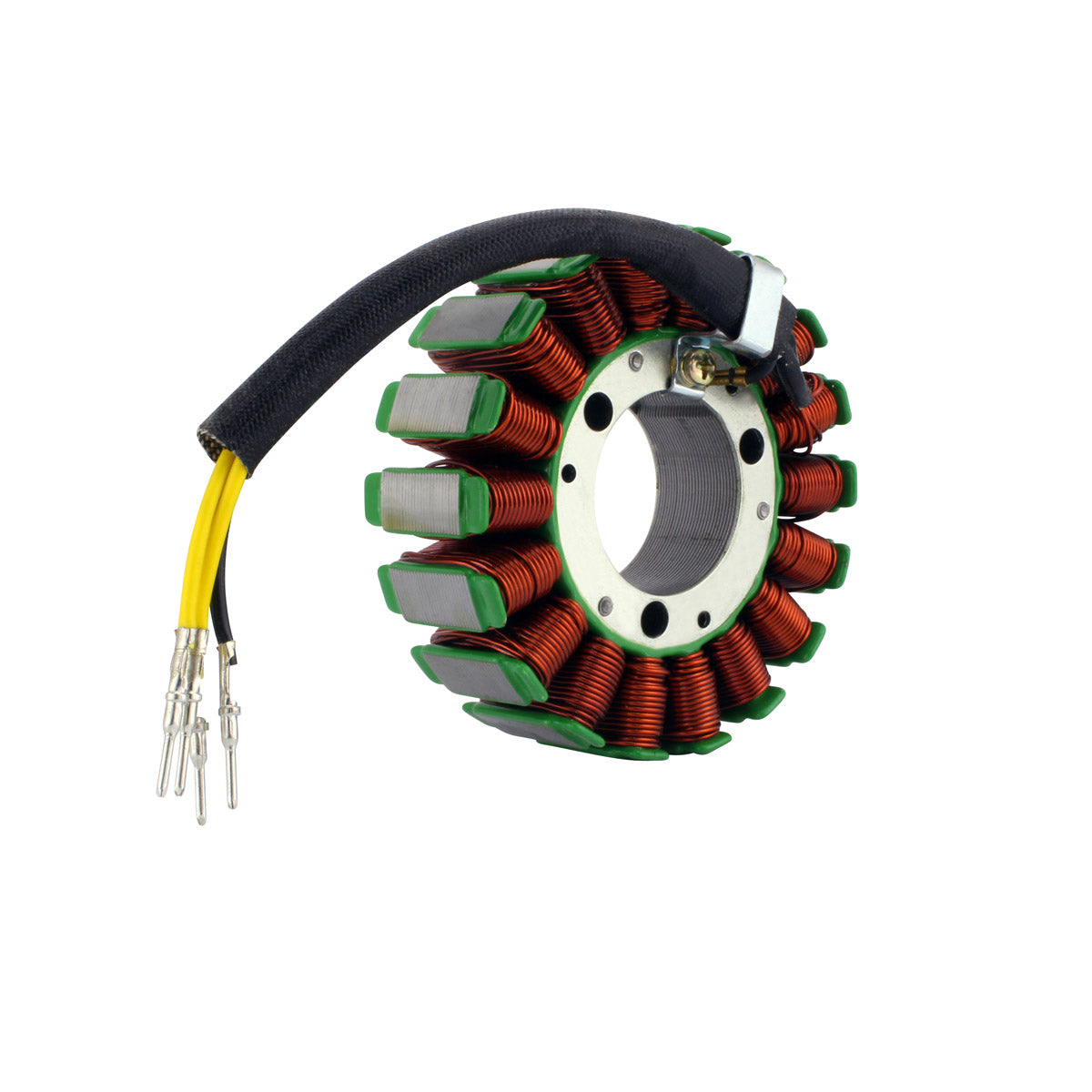

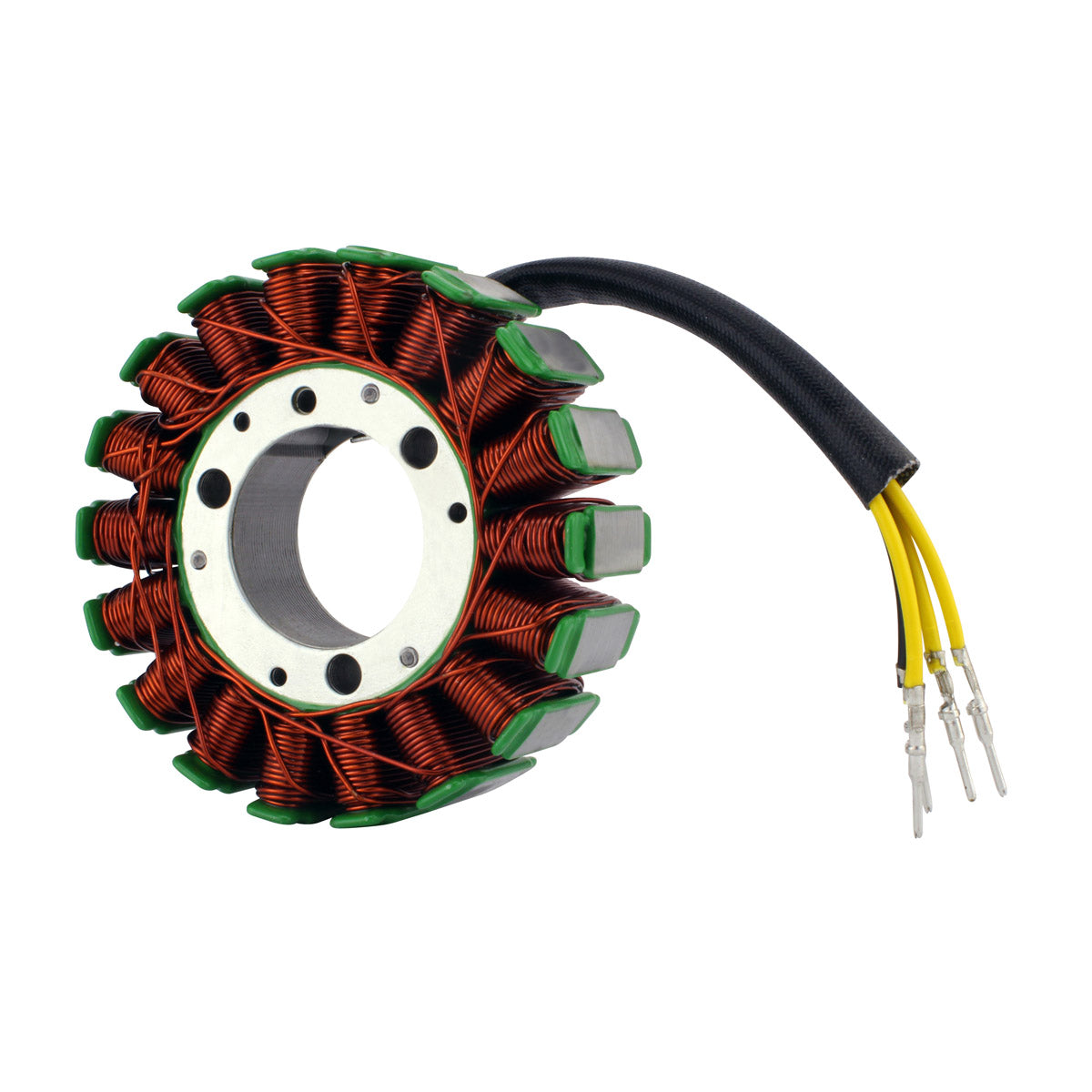

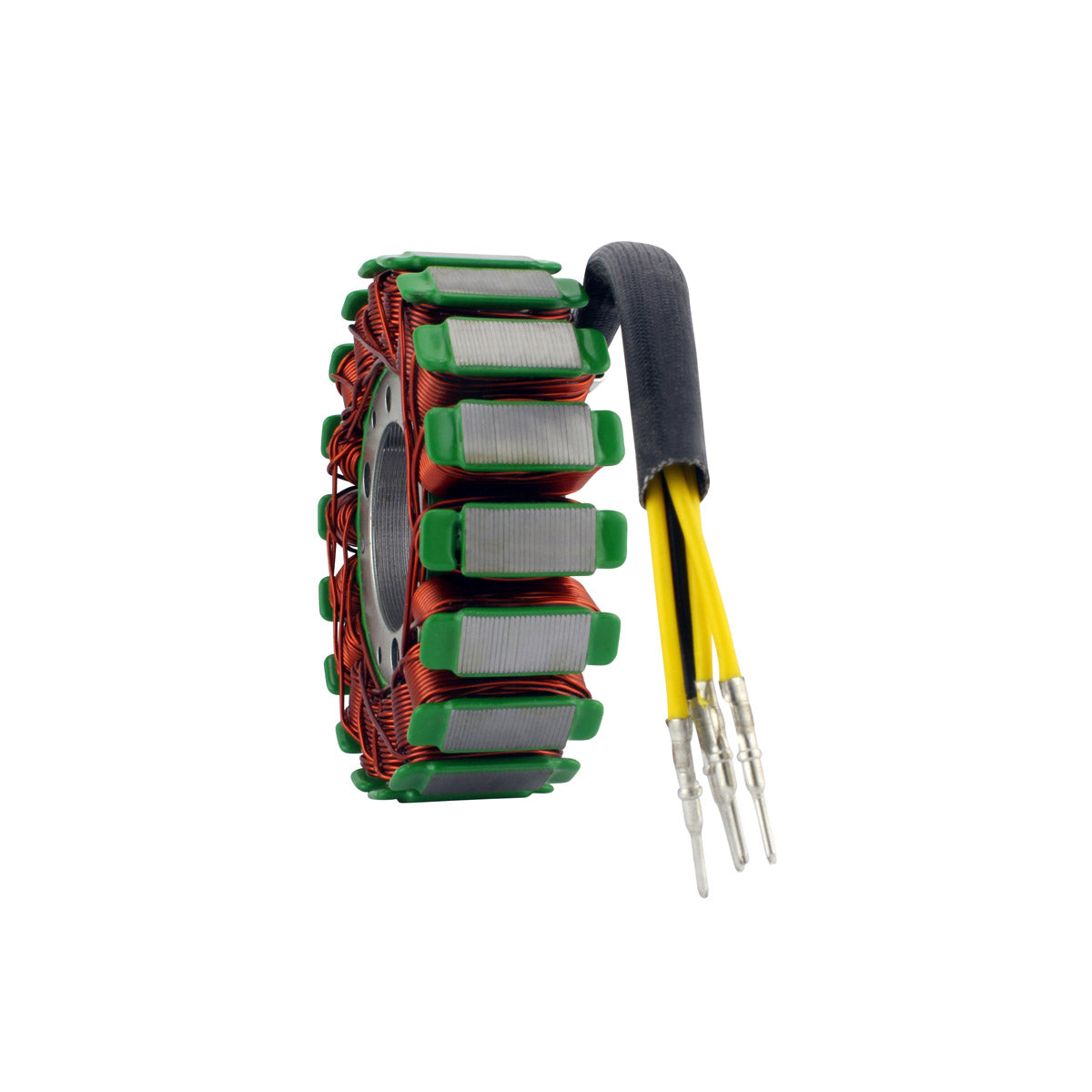

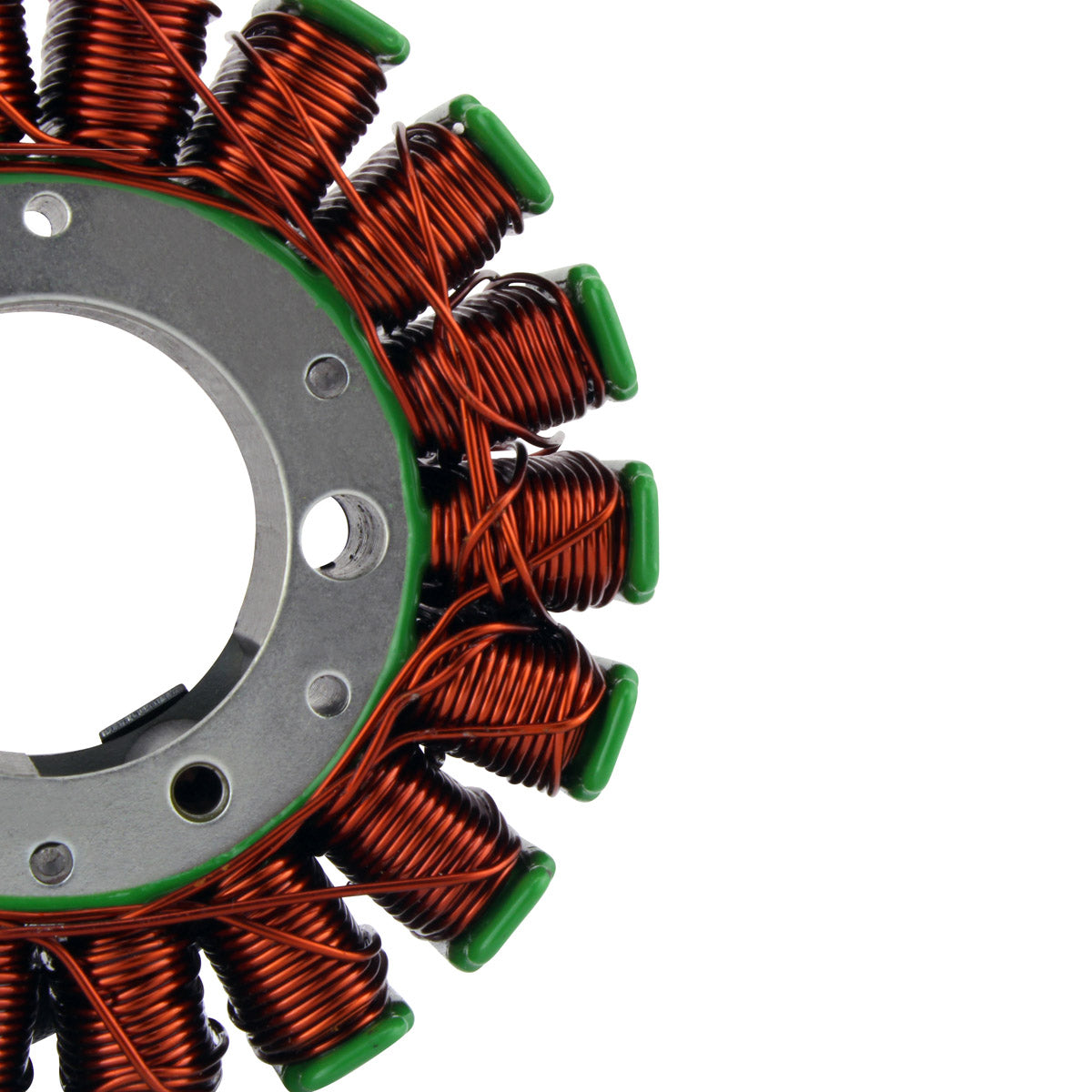

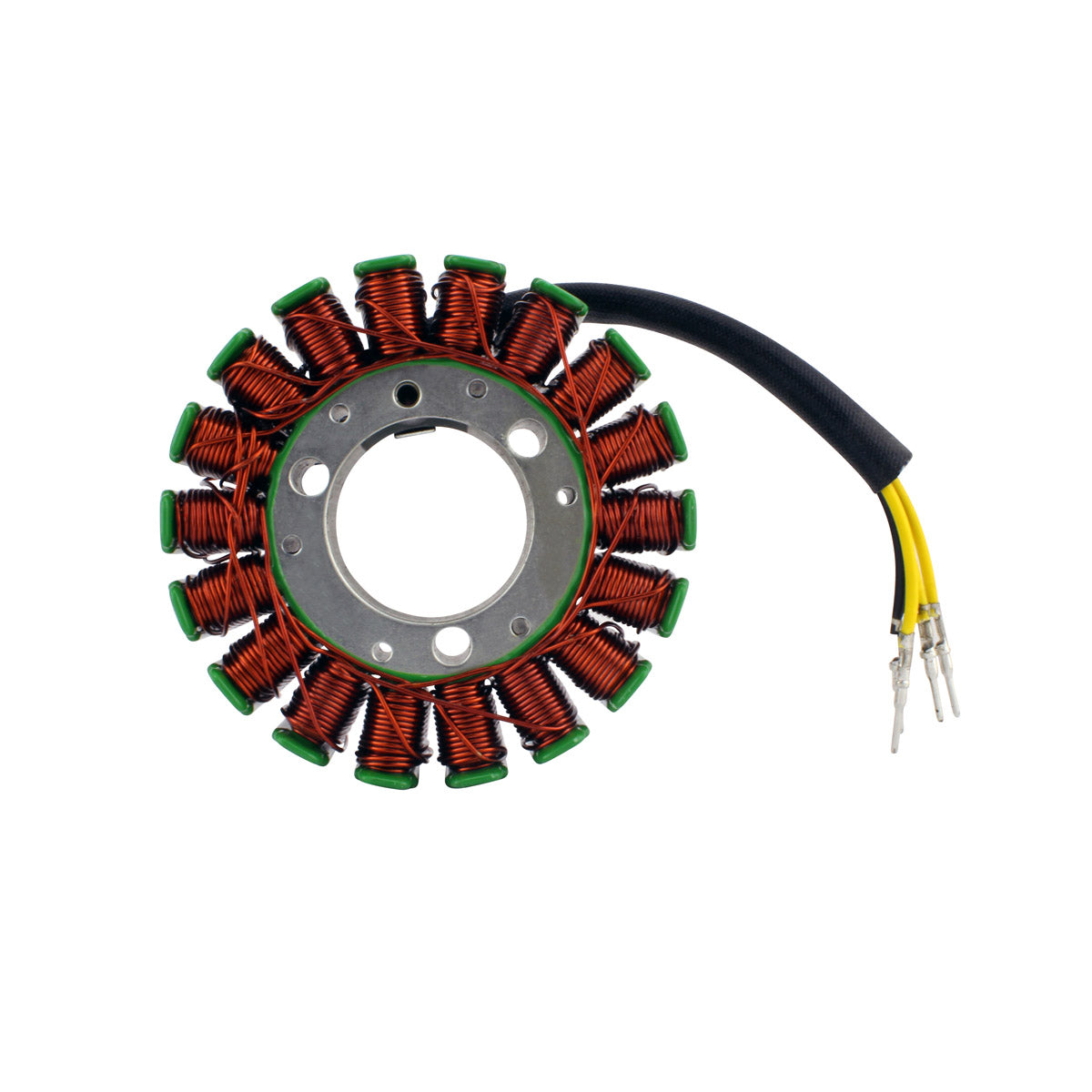

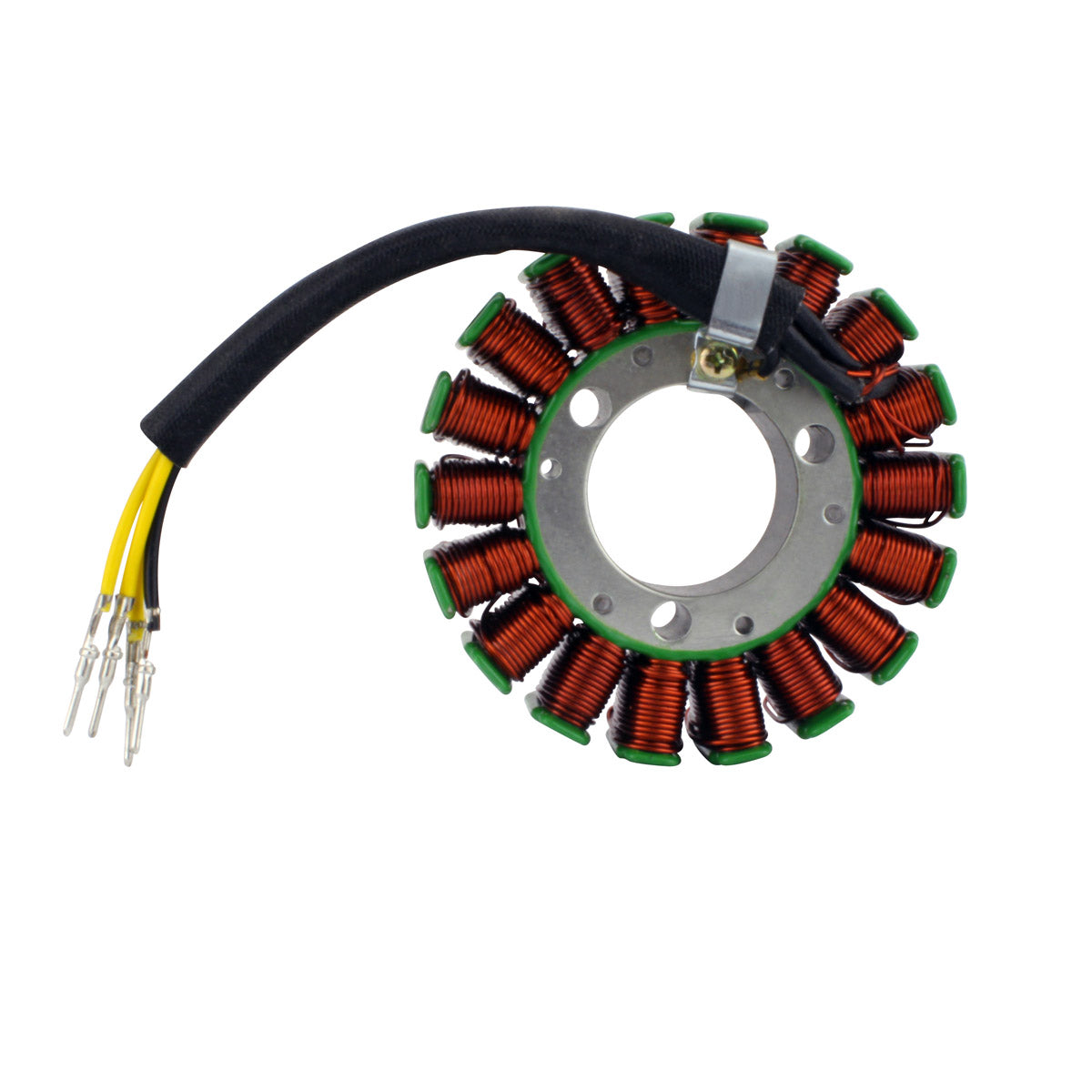

Stator for Sea-Doo GSX 800 951 / SPX 800 / GTI 800 / GTX 800 951 / RX 951 / XP 951 / LRV 951 1995-2005
RMSTATOR
SKU: RM01530
In Stock
RMSTATOR
Stator for Sea-Doo GSX 800 951 / SPX 800 / GTI 800 / GTX 800 951 / RX 951 / XP 951 / LRV 951 1995-2005
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Stator for Sea-Doo GSX 800 951 / SPX 800 / GTI 800 / GTX 800 951 / RX 951 / XP 951 / LRV 951 1995-2005
Details
Details
Brand new aftermarket stator

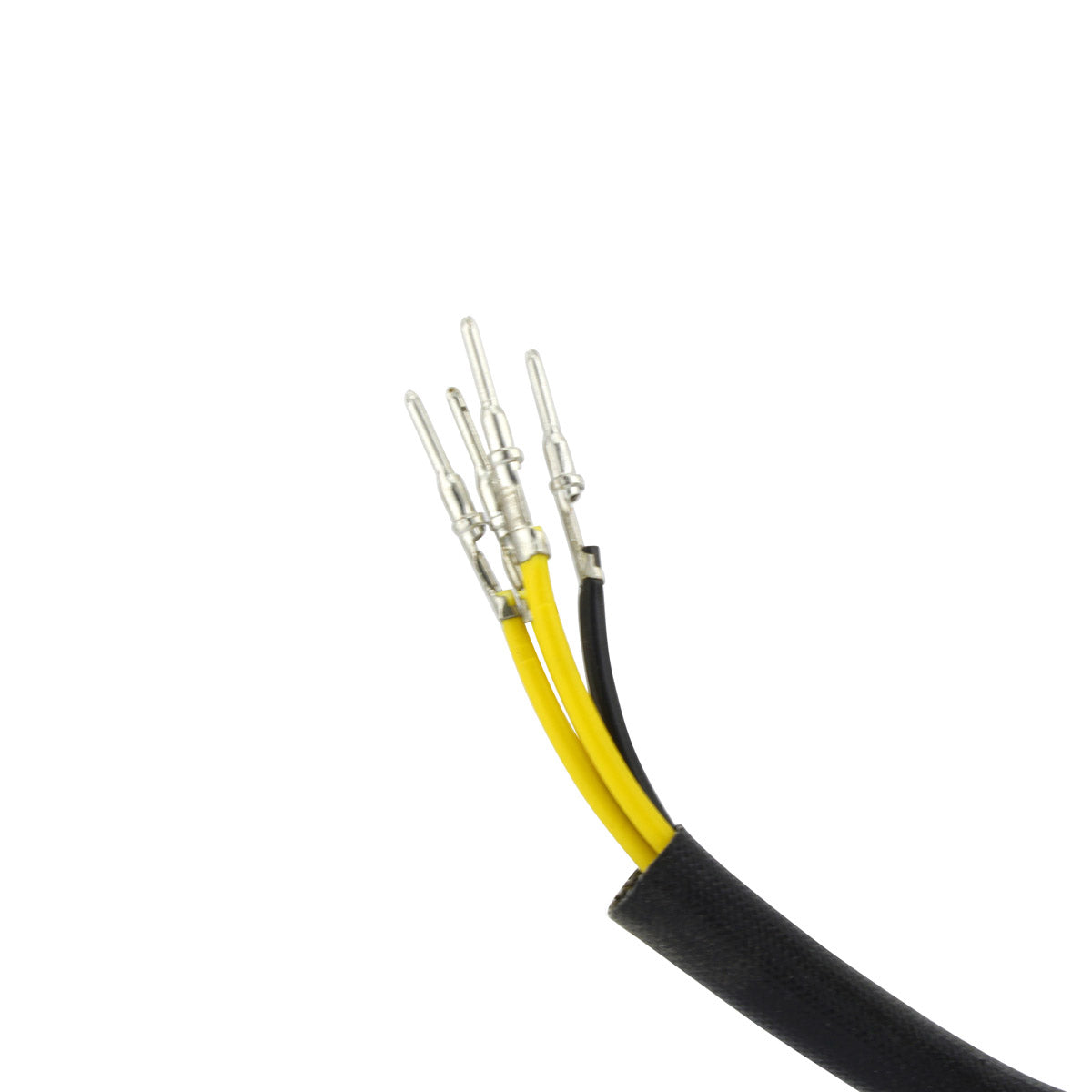

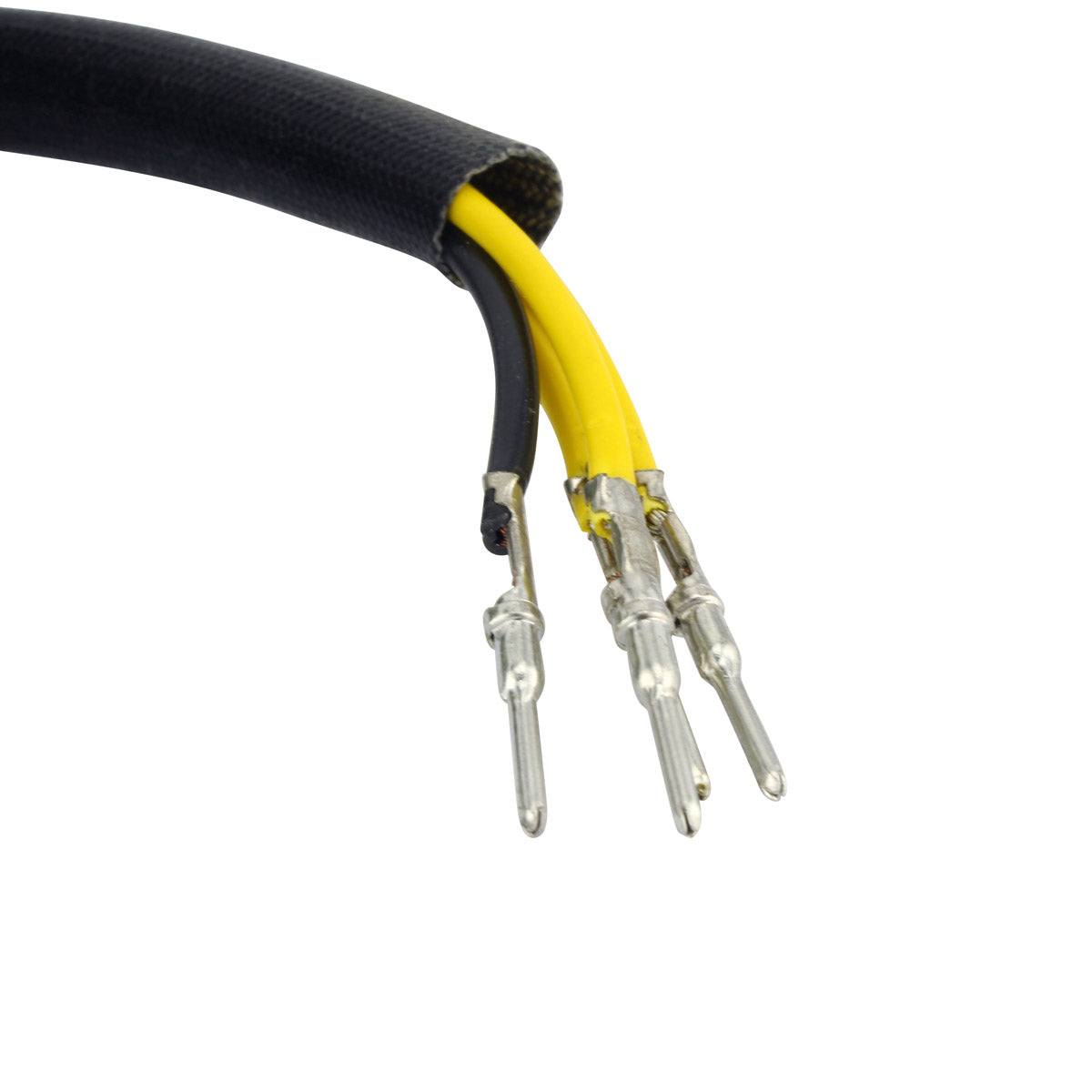

- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 22mm
Length of wires stator to grommet : 102mm
Other specifications :
Number of wires : 4
Number of plugs : 1
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.6ohms +/-20%
Interchange Part Nº
Interchange Part Nº
- 420887950
- 290887950
- 420887951
Installation
Installation
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
