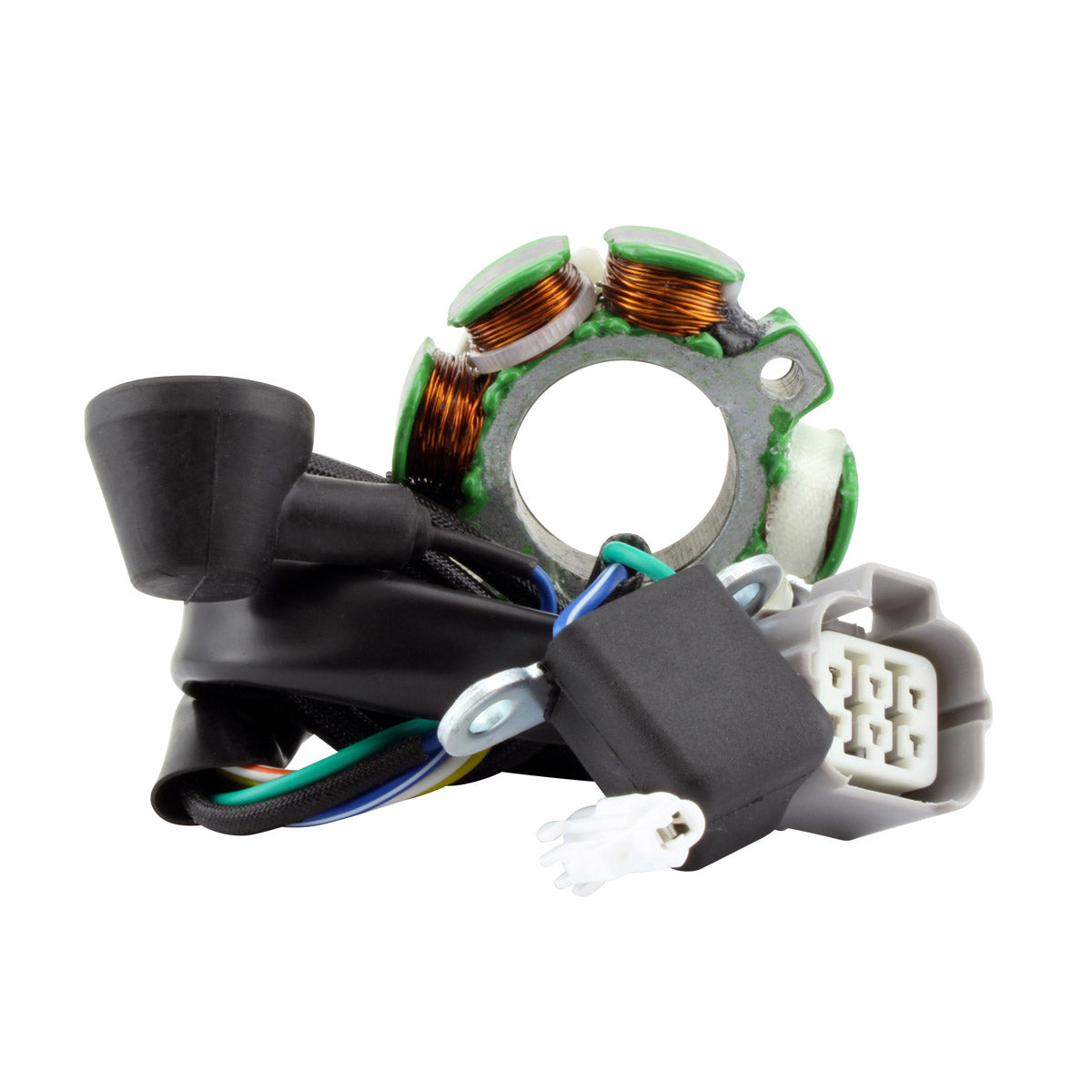

Stator for Kawasaki KX250F 2004-2010 | Suzuki RMZ250 2004-2006 | # 21003-048 21003-0091 K2100-30027 K2100-30048
RMSTATOR
SKU: RM01376
In Stock
RMSTATOR
Stator for Kawasaki KX250F 2004-2010 | Suzuki RMZ250 2004-2006 | # 21003-048 21003-0091 K2100-30027 K2100-30048
Close
FITMENT WARNING::
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Stator for Kawasaki KX250F 2004-2010 | Suzuki RMZ250 2004-2006 | # 21003-048 21003-0091 K2100-30027 K2100-30048
Details
Details
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 16 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 375 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : White to Yellow = 3.0 ohms +/-20%
Pickup : Green to Blue/White = 120 ohms +/-20%
Source : White/Red to Black/Red = 38 ohms +/-20%
Interchange Part Nº
Interchange Part Nº
- 21003-0015
- K2100-30027
- K2100-30048
- 21003-0027
- 21003-0048
- 21003-0091
- K2100-30015
Installation
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
