Kit Generator Stator + Cover Gasket for Suzuki LTA 700 X / 750 KingQuad AXi 2005-2018 | OEM# 32101-31G01 / 11483-31G00
RMSTATOR
SKU: RM01358G
In Stock
RMSTATOR
Kit Generator Stator + Cover Gasket for Suzuki LTA 700 X / 750 KingQuad AXi 2005-2018 | OEM# 32101-31G01 / 11483-31G00
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Kit Generator Stator + Cover Gasket for Suzuki LTA 700 X / 750 KingQuad AXi 2005-2018 | OEM# 32101-31G01 / 11483-31G00
Details
Details

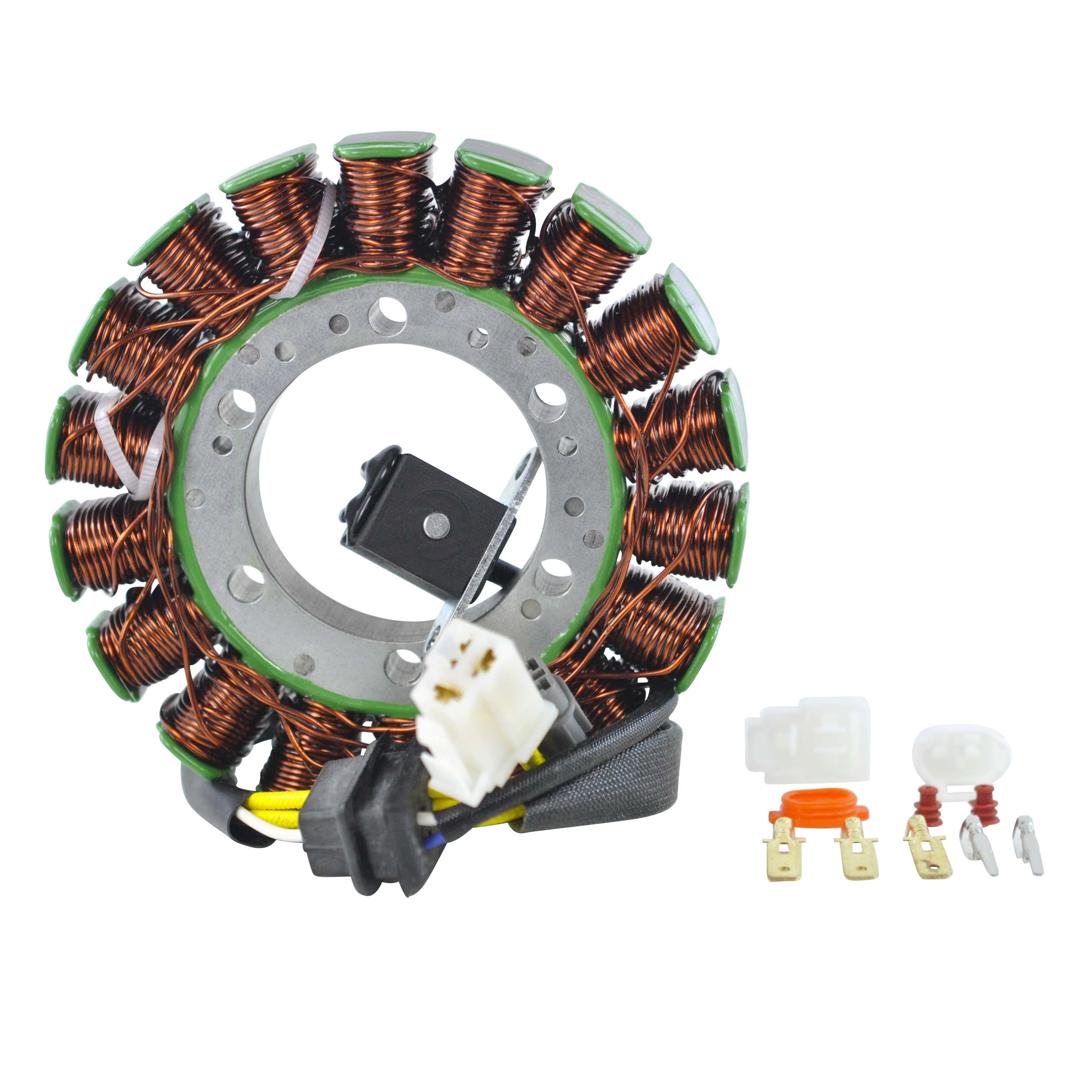

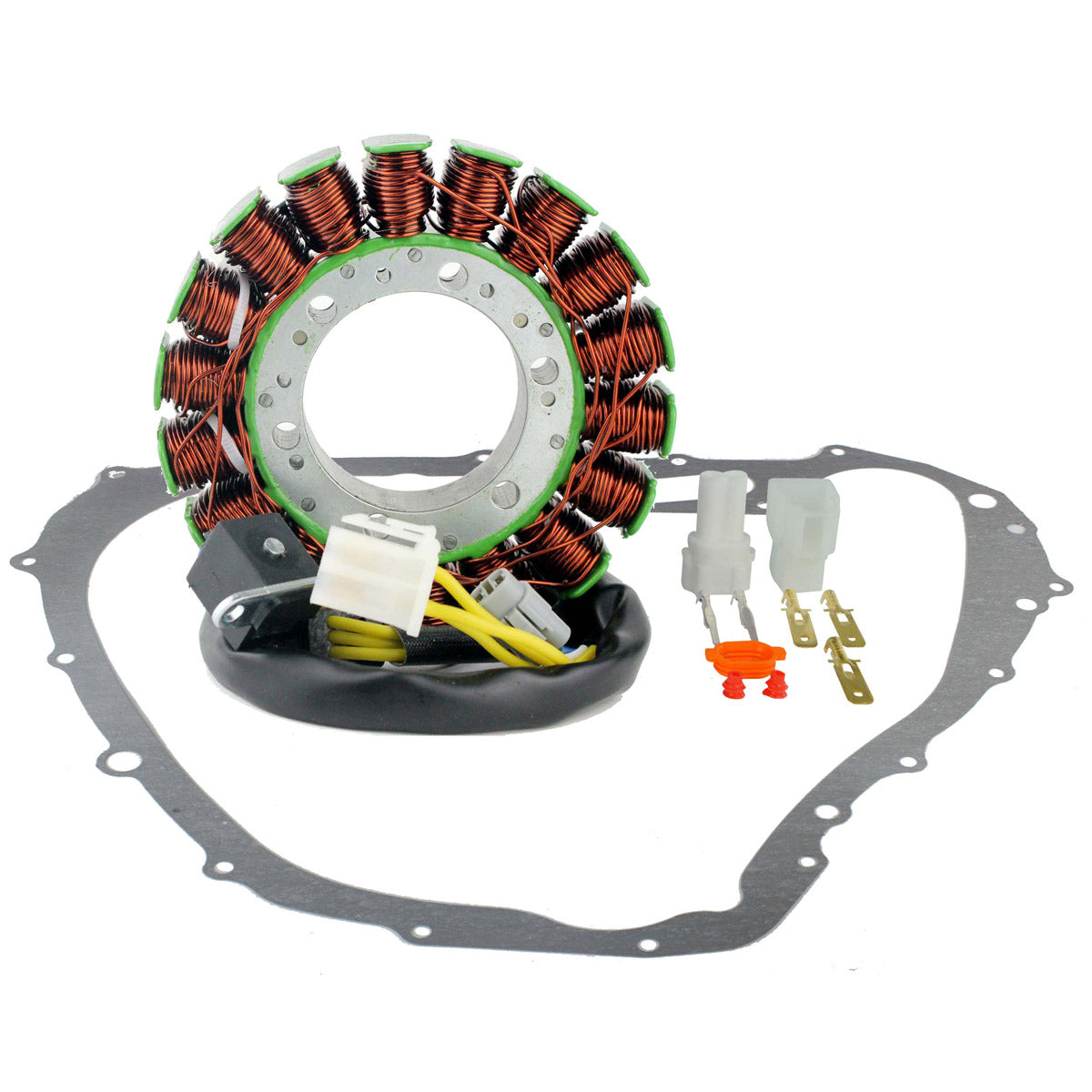

Brand new kit generator stator + stator crankcase cover gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

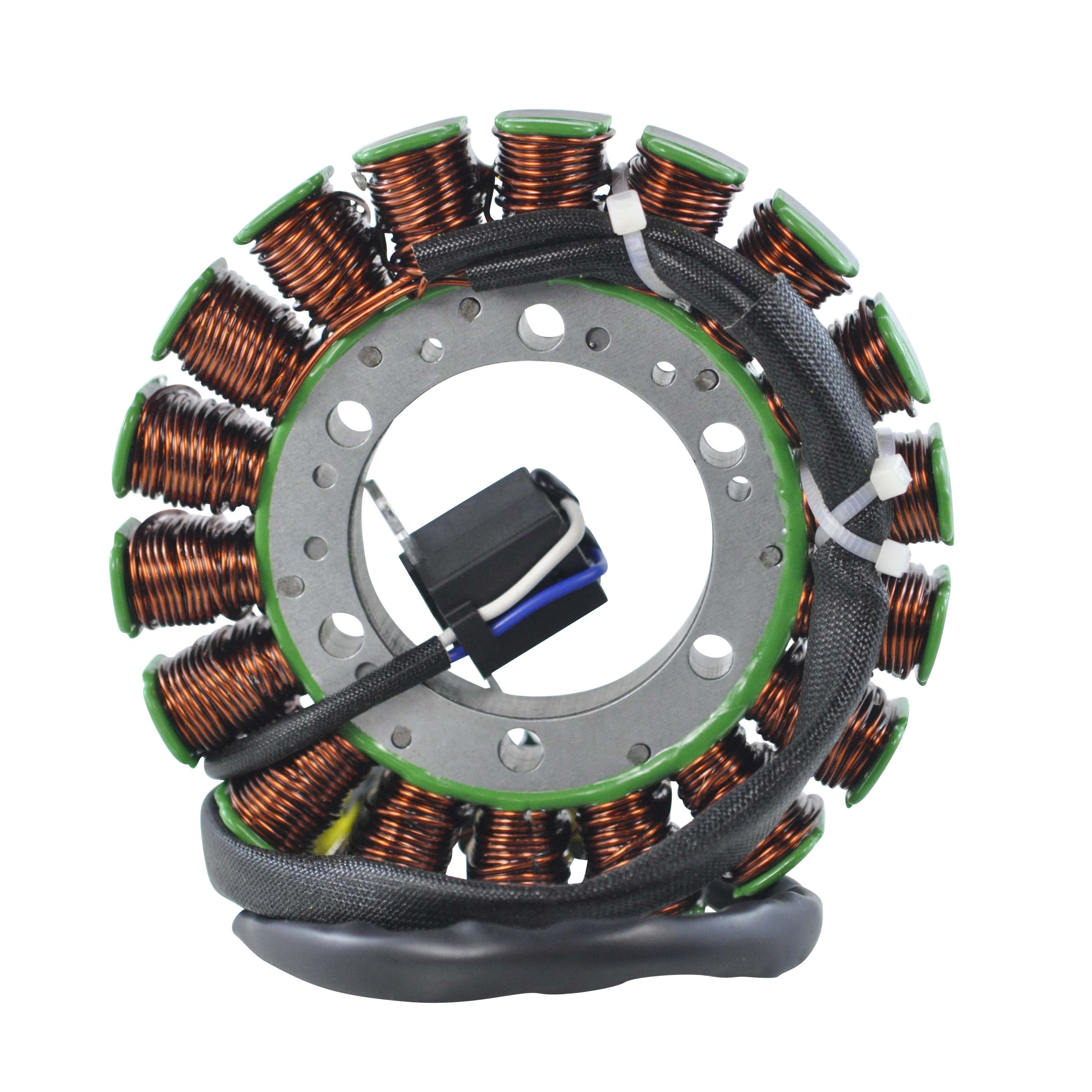

Brand new generator stator- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

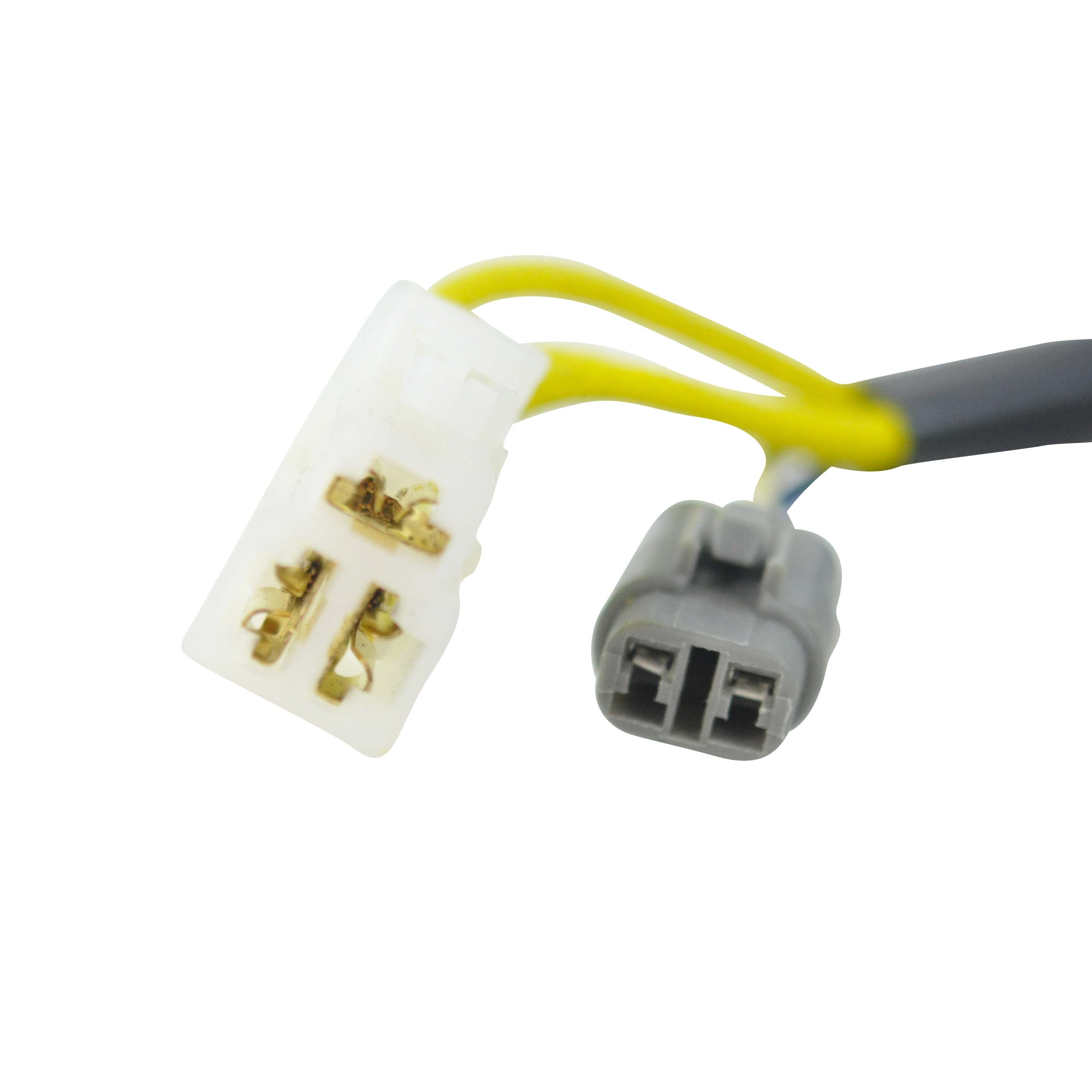

- Connector included
- Rubber grommet included

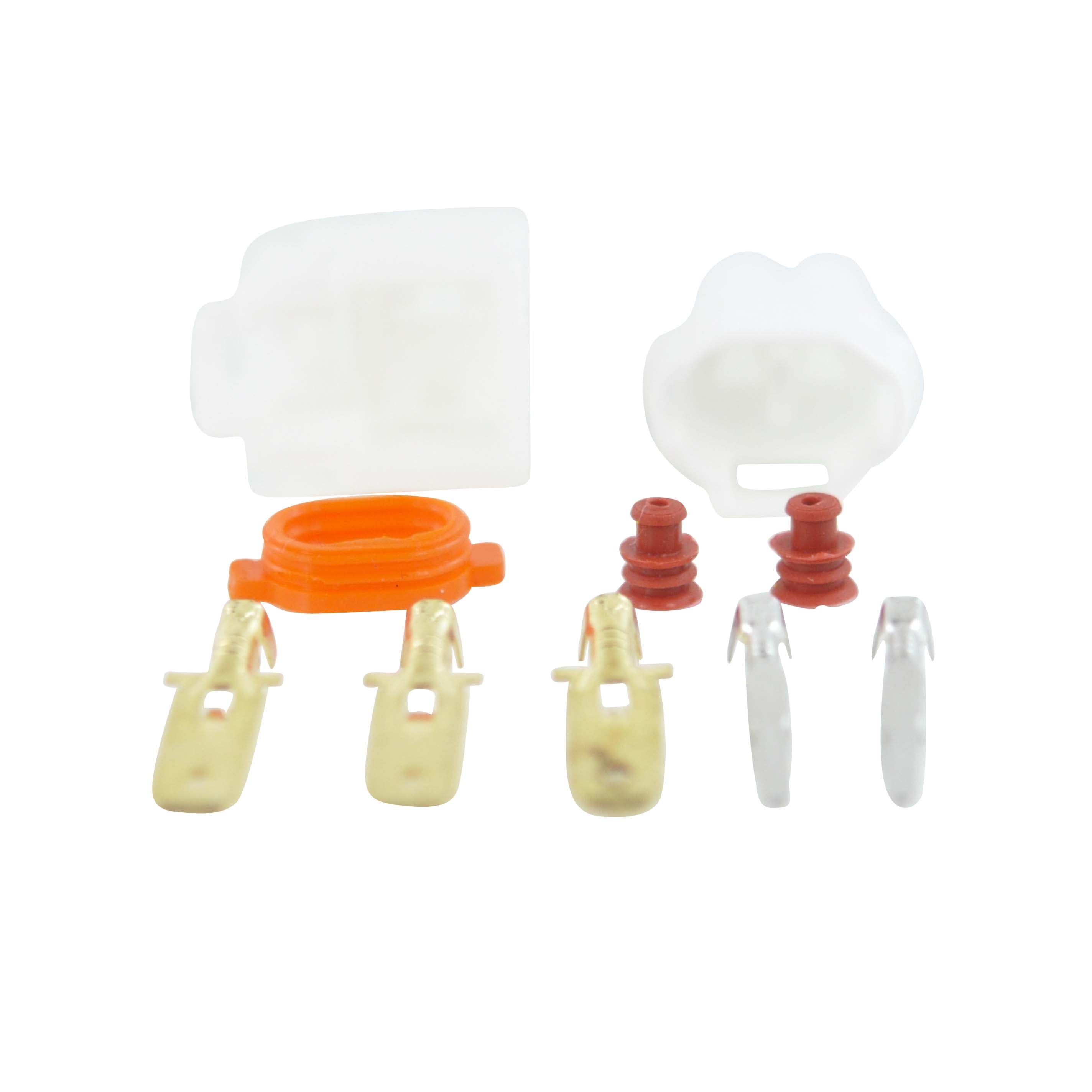

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Specifications
Specifications
Dimensions Stator:
Interior diameter : 53mm
Exterior diameter : 125mm
Thickness : 20mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 435mm & 475mm
Length of pickup coil's wire to grommet : 175mm
Interior diameter : 53mm
Exterior diameter : 125mm
Thickness : 20mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 435mm & 475mm
Length of pickup coil's wire to grommet : 175mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue to White = 208ohms +/-20%
Interchange Part Nº
Interchange Part Nº
-
Stator :
32101-31G00 - 32101-31G01
- 32101-31G02
-

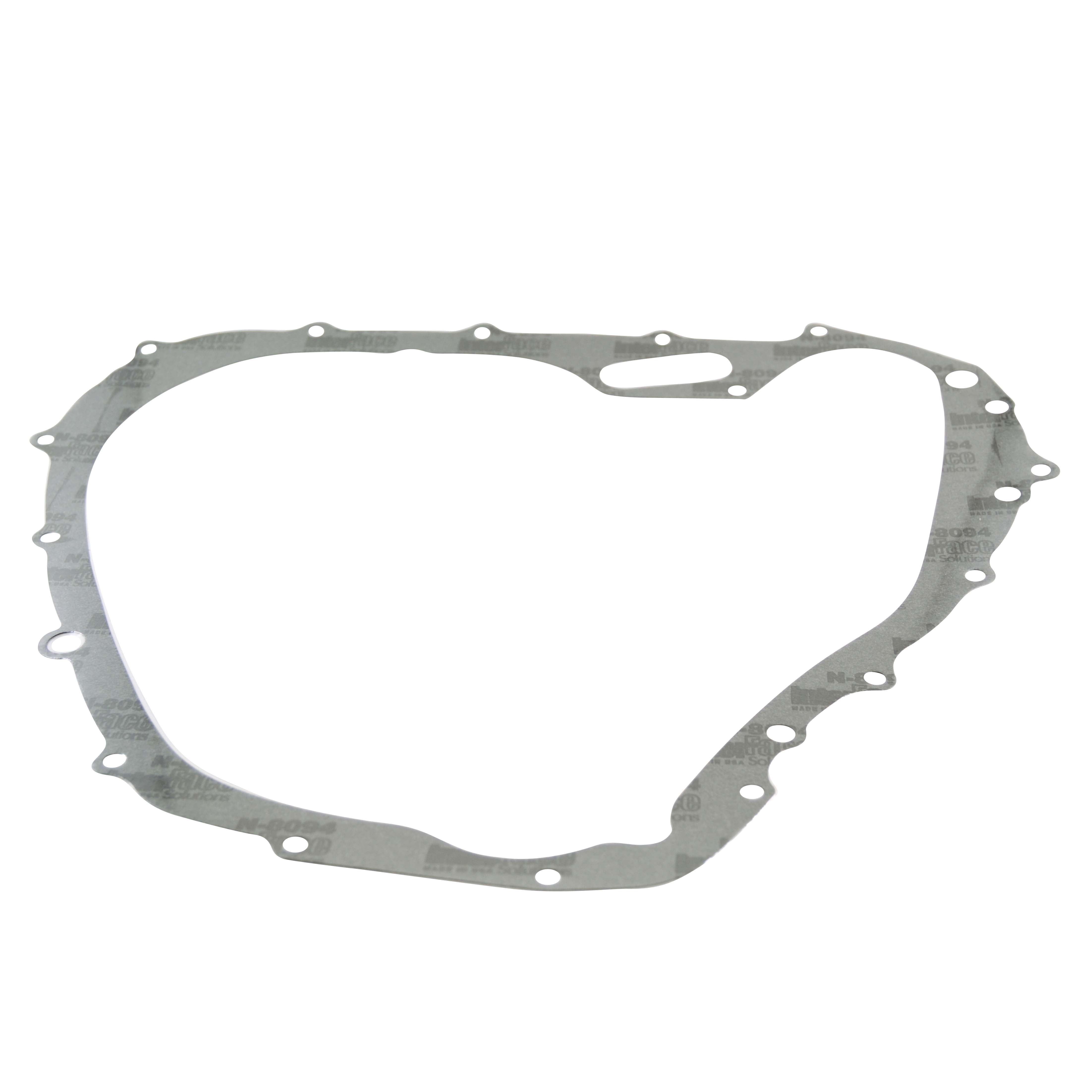

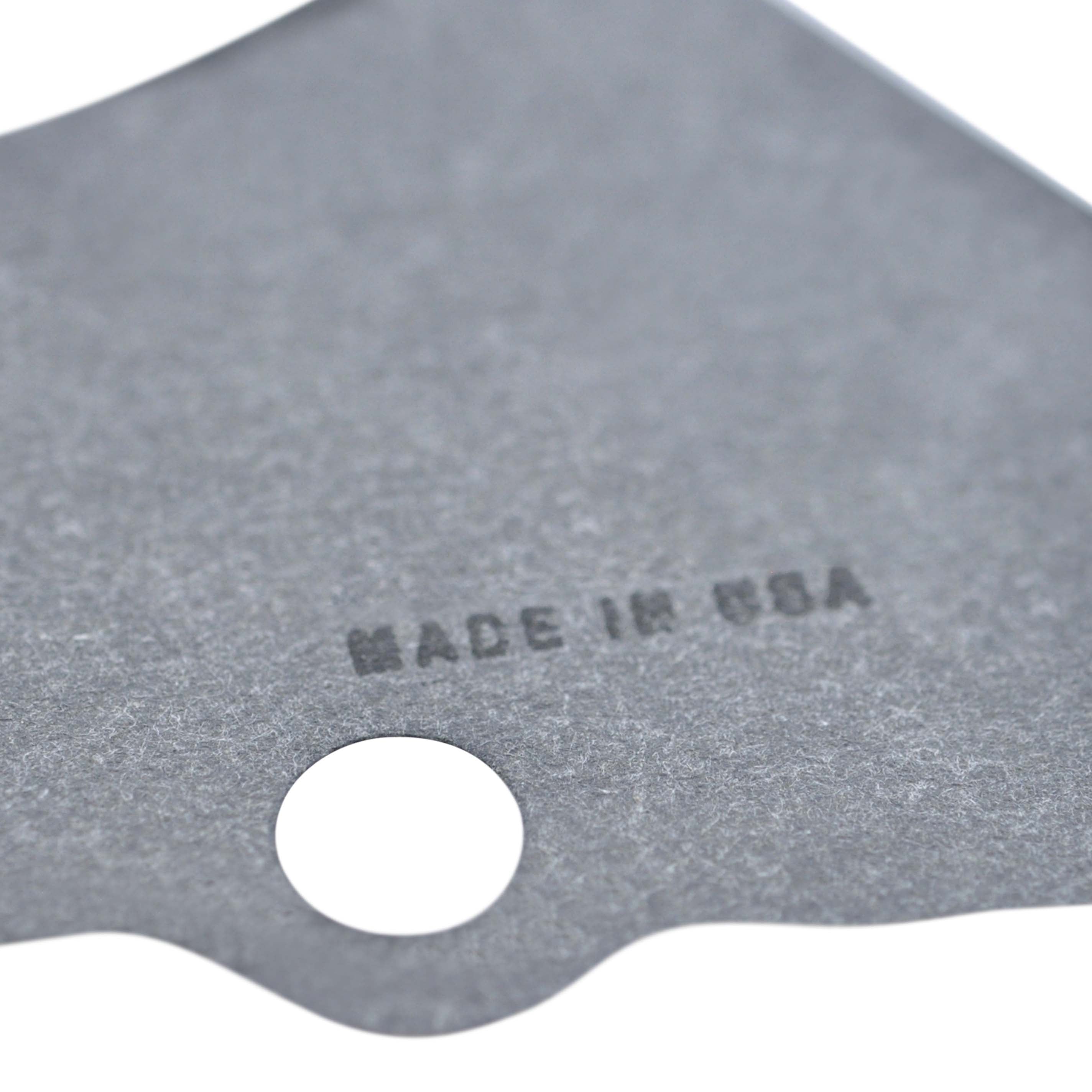

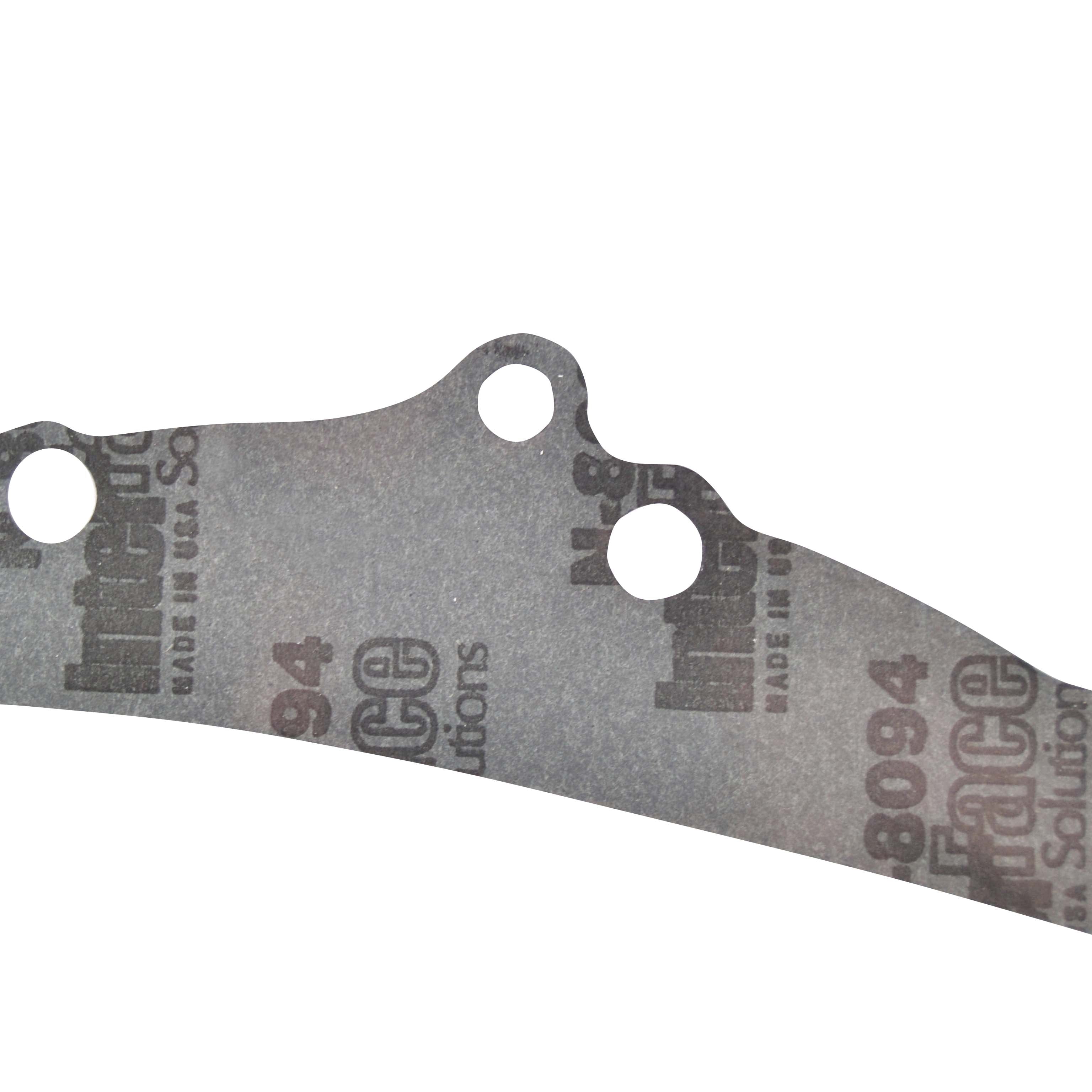

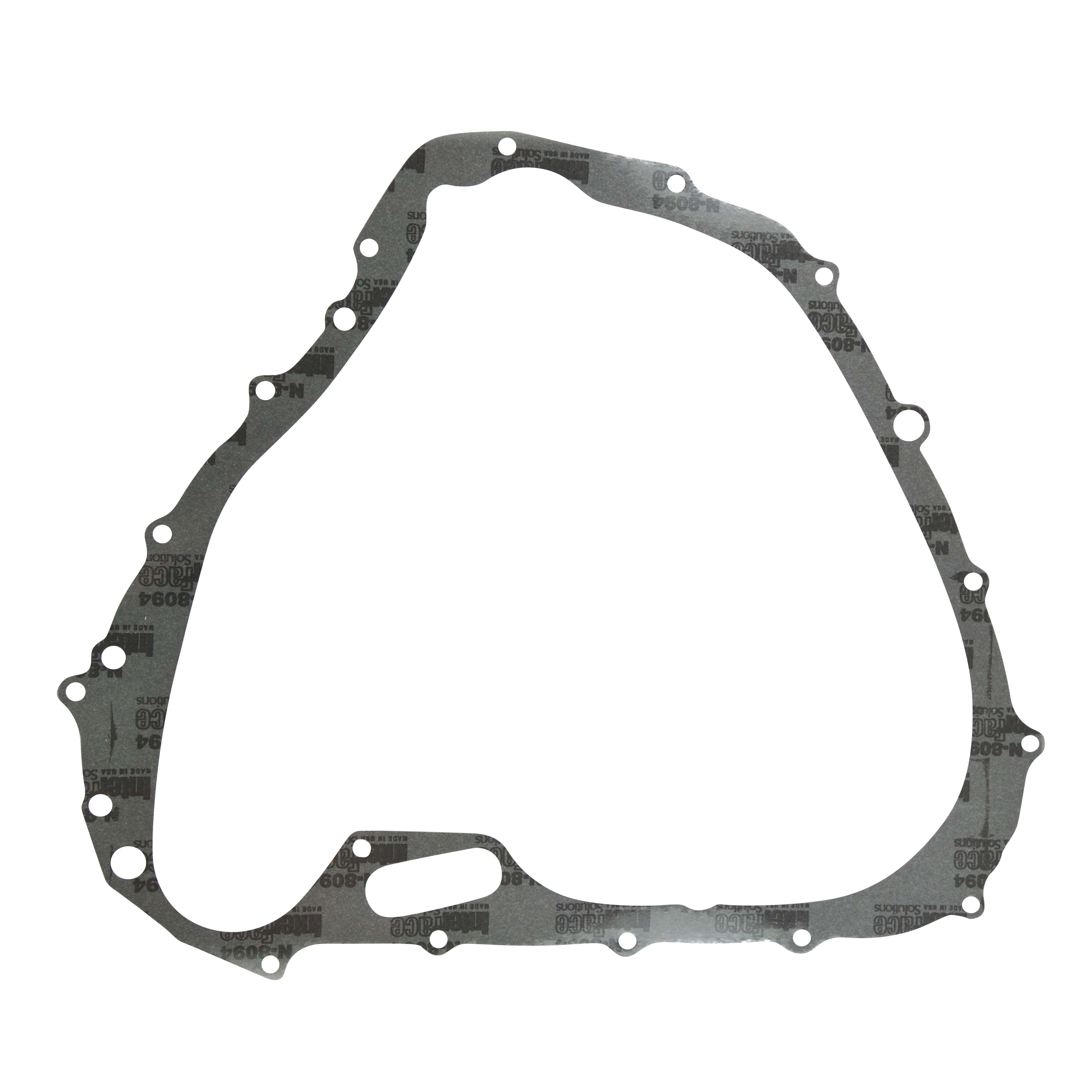

Gasket :
11483-31G00
Installation
Installation
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
