Stator for Polaris RMK 600-900cc | Switchback 600-900cc | IQ Shift 600-800cc (EFI & Carb) 2005-2015 | OEM # 4011449

Stator for Polaris RMK 600-900cc | Switchback 600-900cc | IQ Shift 600-800cc (EFI & Carb) 2005-2015 | OEM # 4011449

Name: Stator for Polaris RMK 600-900cc | Switchback 600-900cc | IQ Shift 600-800cc (EFI & Carb) 2005-2015 | OEM # 4011449
Brand: RMSTATOR
SKU: RM01222
Price: 218.89 USD
Availability: InStock

RMSTATOR

SKU: RM01222

In Stock

RMSTATOR

Stator for Polaris RMK 600-900cc | Switchback 600-900cc | IQ Shift 600-800cc (EFI & Carb) 2005-2015 | OEM # 4011449

$218.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

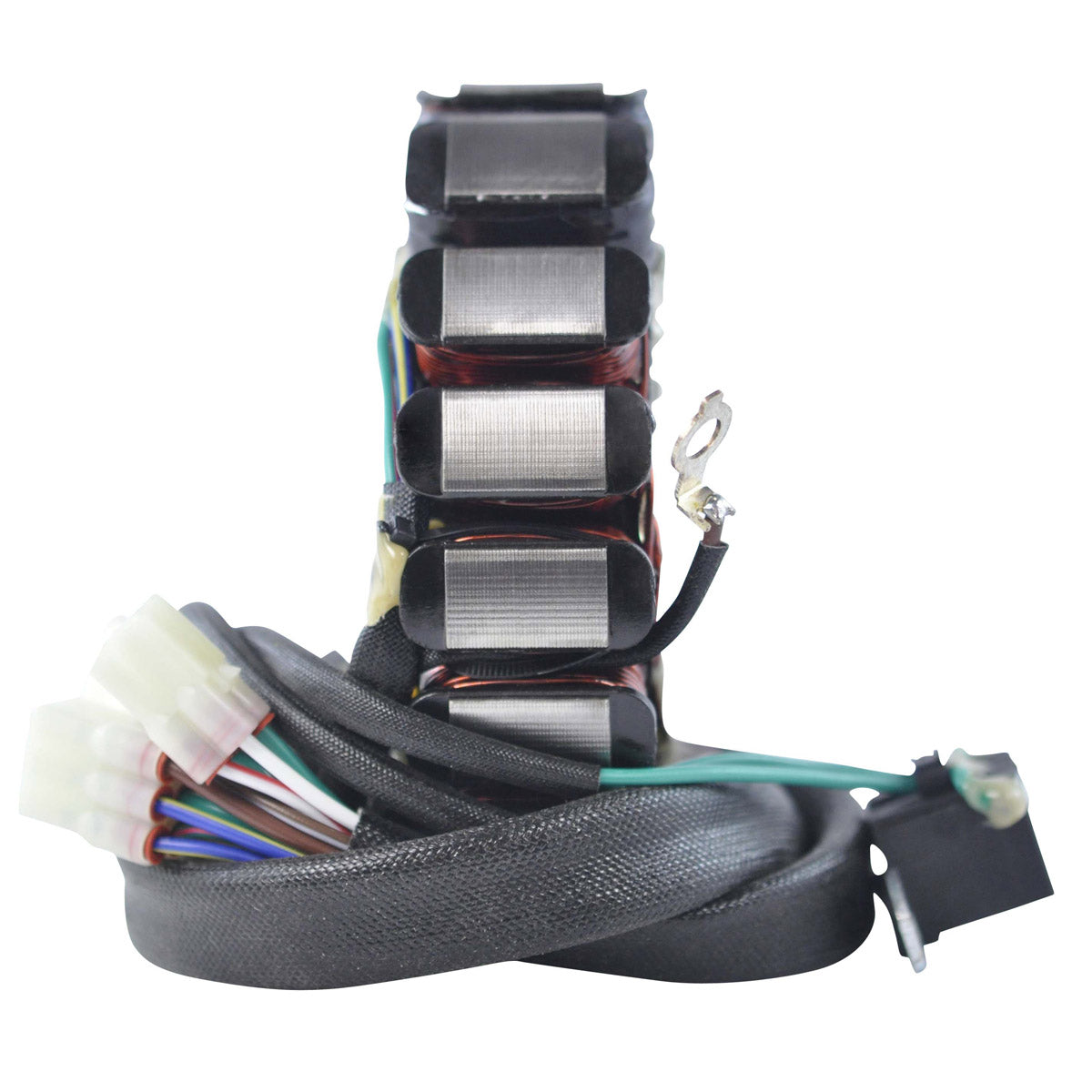

Brand new stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 127 mm
Thickness : 21 mm
Length of wires stator to plug: 600 mm
Length of pickup coil's wire to grommet : 275 mm

Other specifications :
Number of wires : 13
Number of plugs : 3
Number of pins :13

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Pickup : Green to White/Green = 195 ohms +/-20%
Pickup 2 : White to White/Red = 190 ohms +/-20%
Source : Green/Yellow to Brown/White = 15 ohms +/-20%
Source 2 : Green/Yellow to Green/Red = 15 ohms +/-20%
Other: Blue/Yellow to Blue/Yellow = 2.7 ohms +/-20%

Interchange Part Nº

4010727
4011463
4011449

Installation

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
