Stator + Crankcase Cover Gasket for Yamaha YXR700 / YXM700 / YXC700 2008-2018 | OEM# 3B4-15451-00-00 / 5B4-81410-00-00
RMSTATOR
SKU: RM01191G
In Stock
RMSTATOR
Stator + Crankcase Cover Gasket for Yamaha YXR700 / YXM700 / YXC700 2008-2018 | OEM# 3B4-15451-00-00 / 5B4-81410-00-00
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator + Crankcase Cover Gasket for Yamaha YXR700 / YXM700 / YXC700 2008-2018 | OEM# 3B4-15451-00-00 / 5B4-81410-00-00
Details
Details

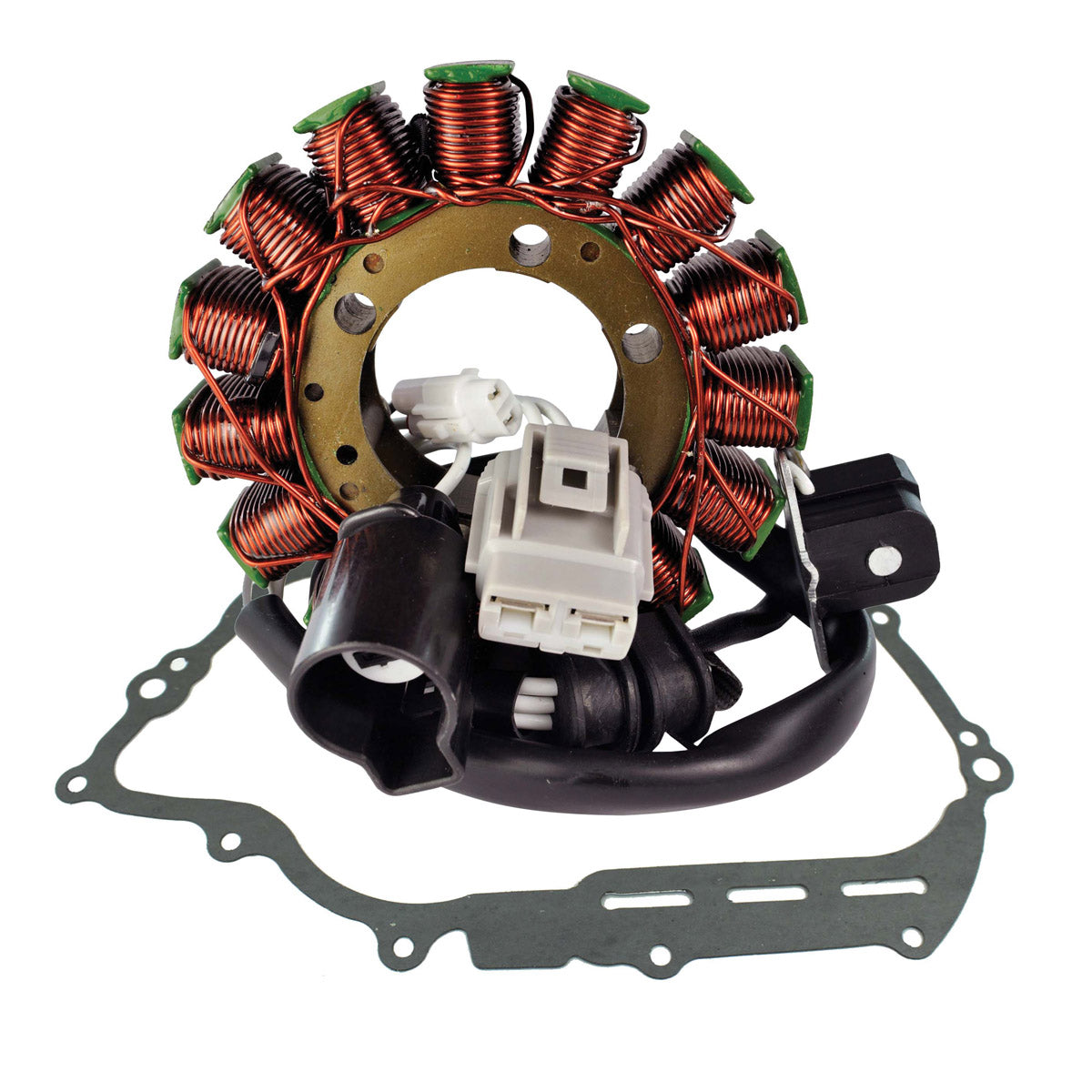

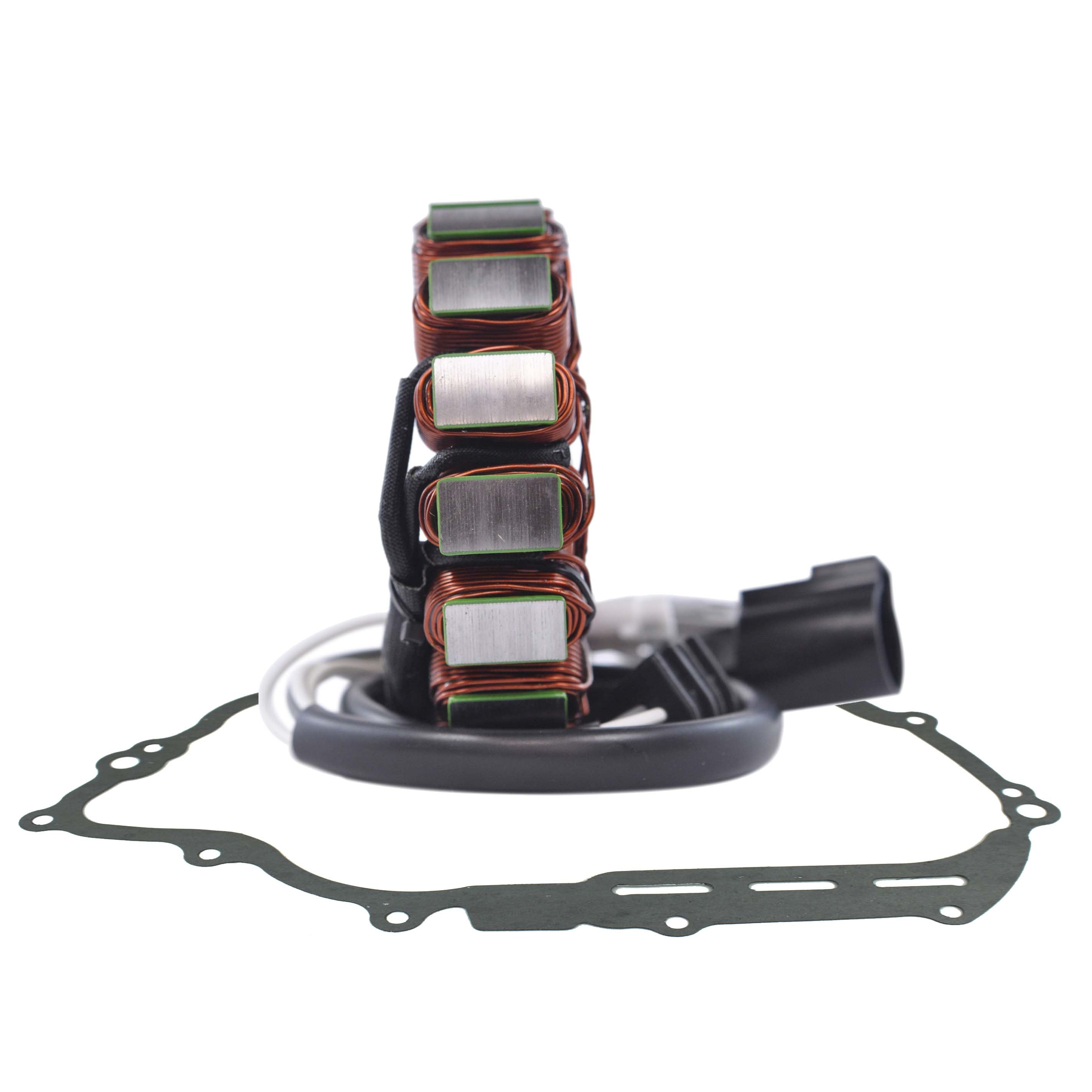

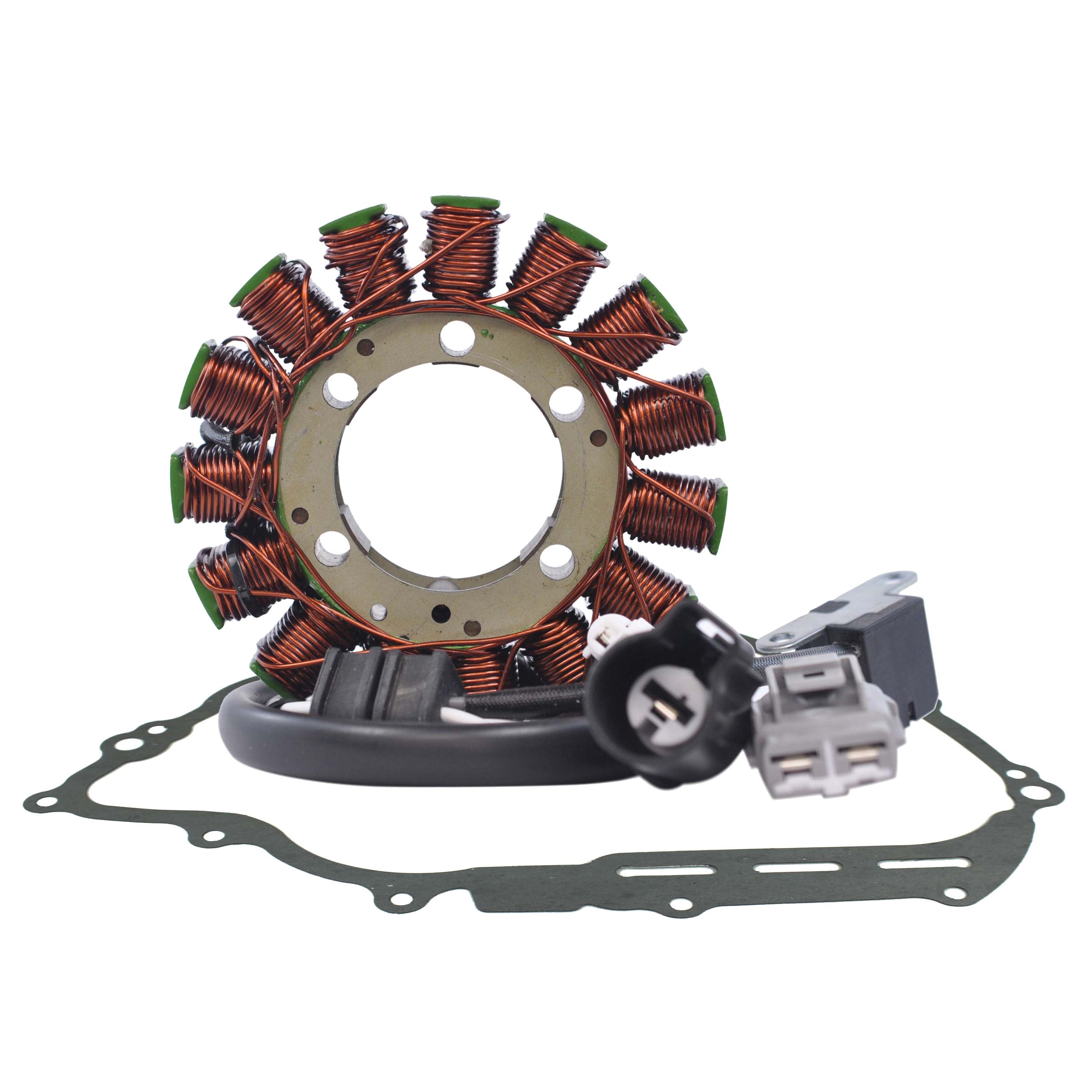

Brand new Kit Stator + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator:- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

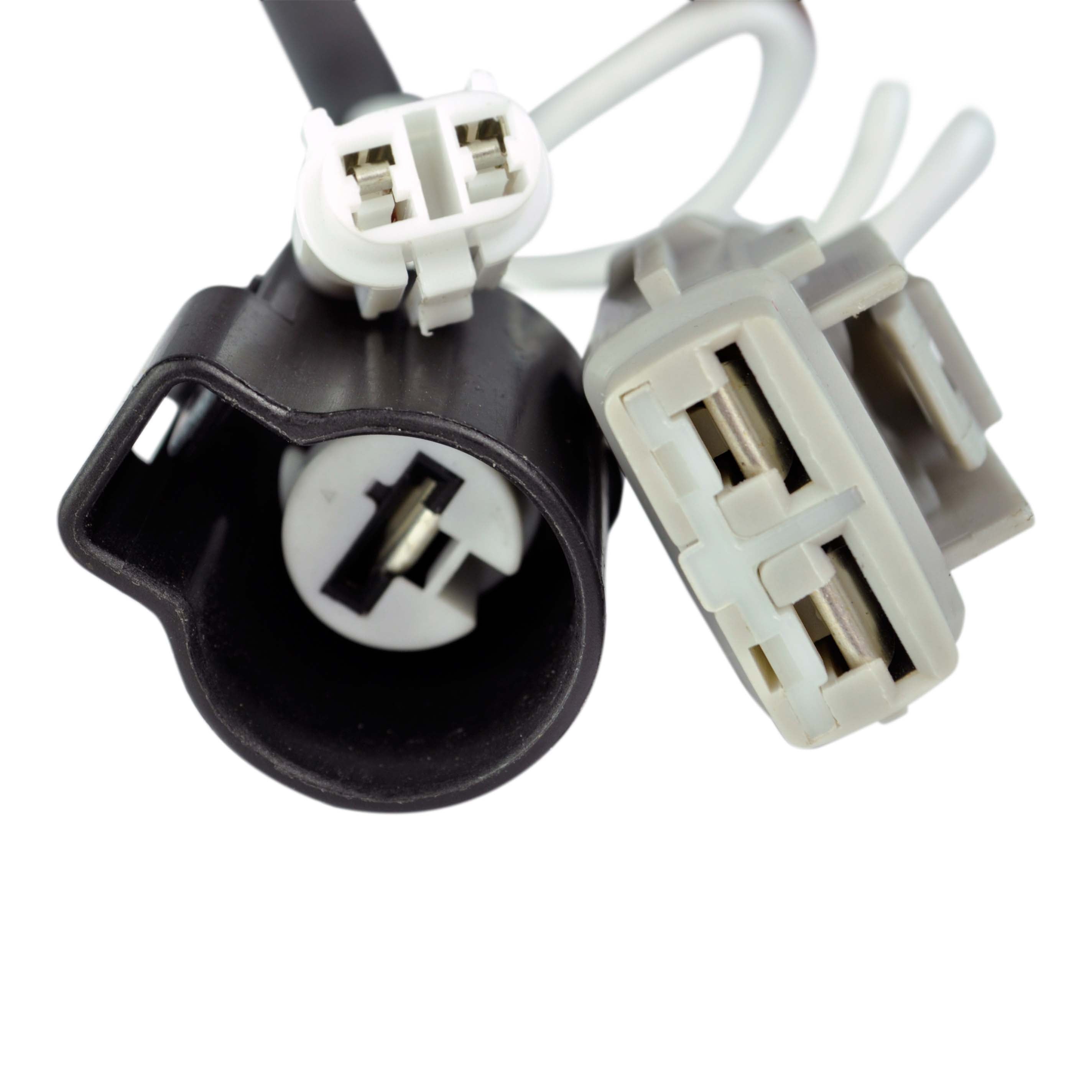

- Connector included
- Rubber grommet included
Specifications
Specifications
Dimensions Stator :
Interior diameter : 41 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 65 mm
Interior diameter : 41 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 65 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%
Interchange Part Nº
Interchange Part Nº
-
Stator :
1XD-81410-00-00 - 5B4-81410-00-00
-
Gasket :
3B4-15451-00-00
Installation
Installation
Before installing your new Stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
