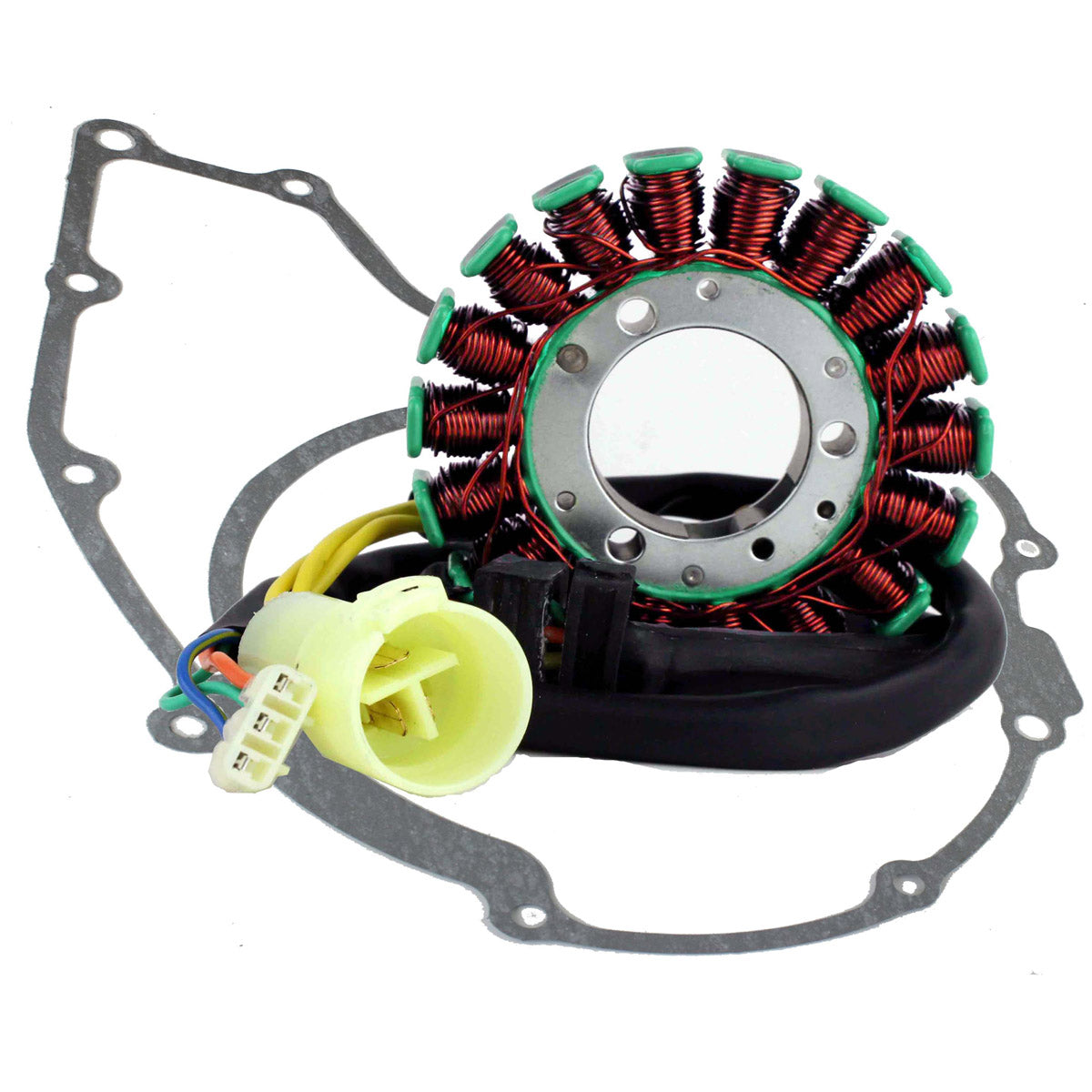

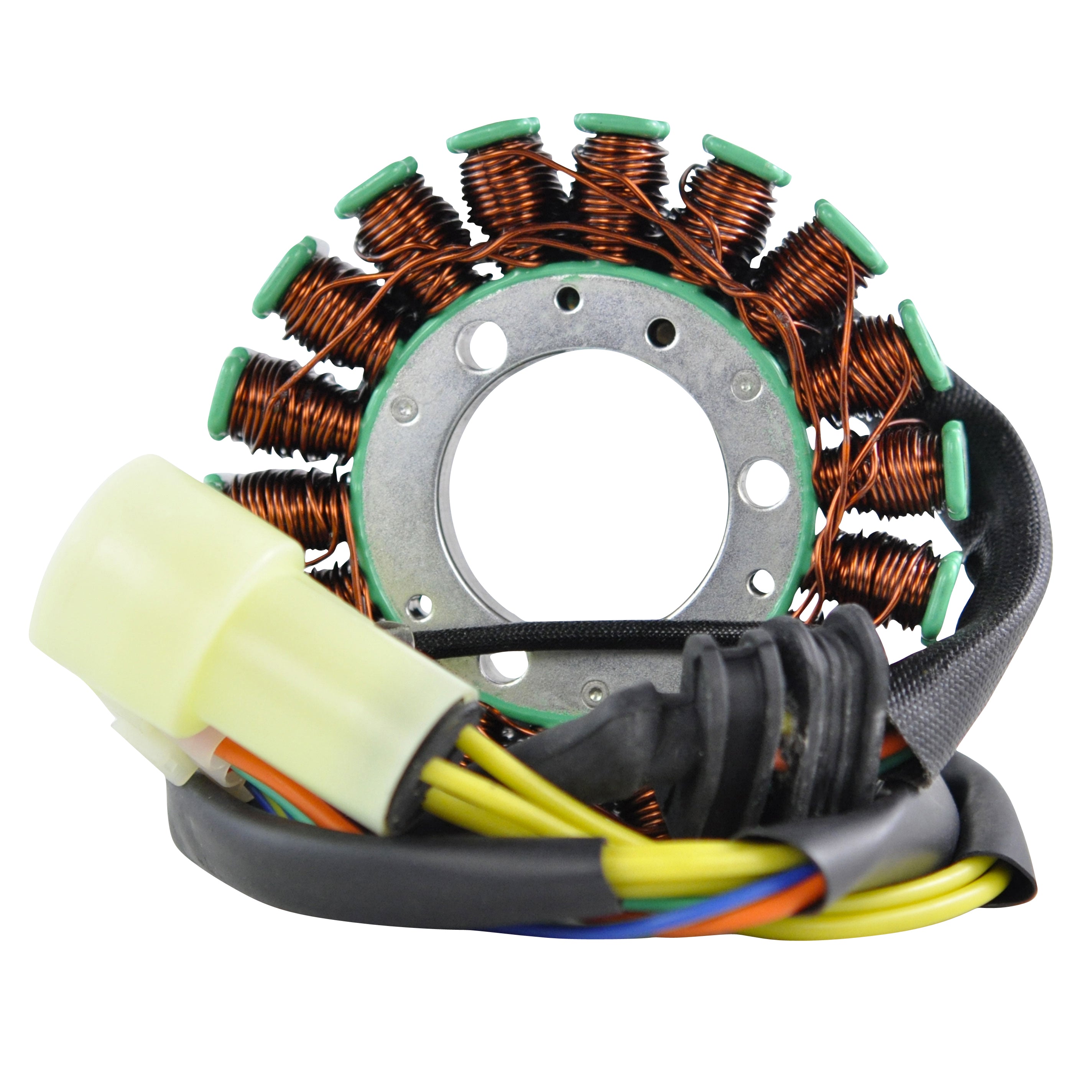

Stator + Stator Cover Gasket for Honda TRX 300 Fourtrax EX TRX 300 Sportrax EX TRX 300 X 1993-2009
Stator + Stator Cover Gasket for Honda TRX 300 Fourtrax EX TRX 300 Sportrax EX TRX 300 X 1993-2009

Details
Details

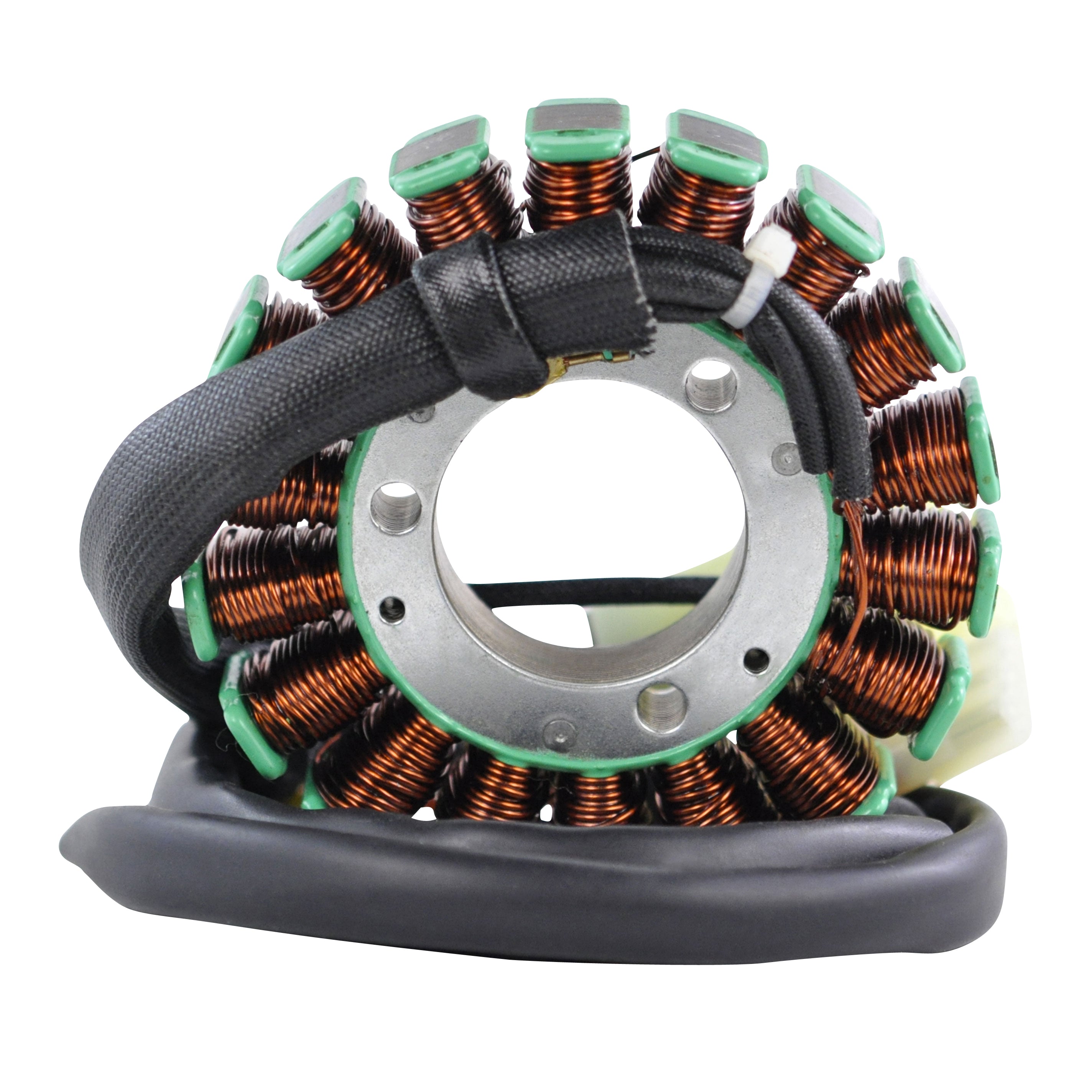

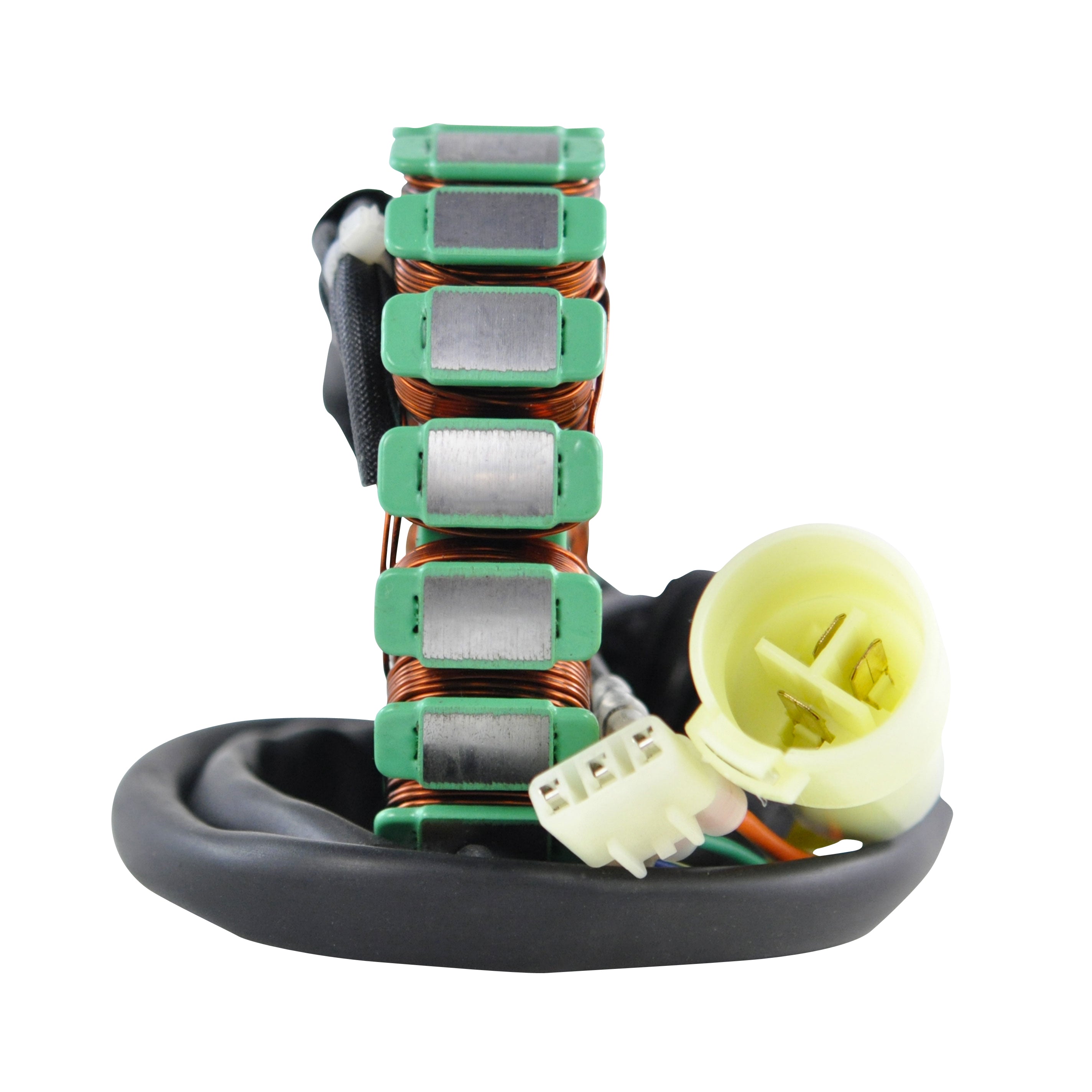

Brand new stator and Gasket kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

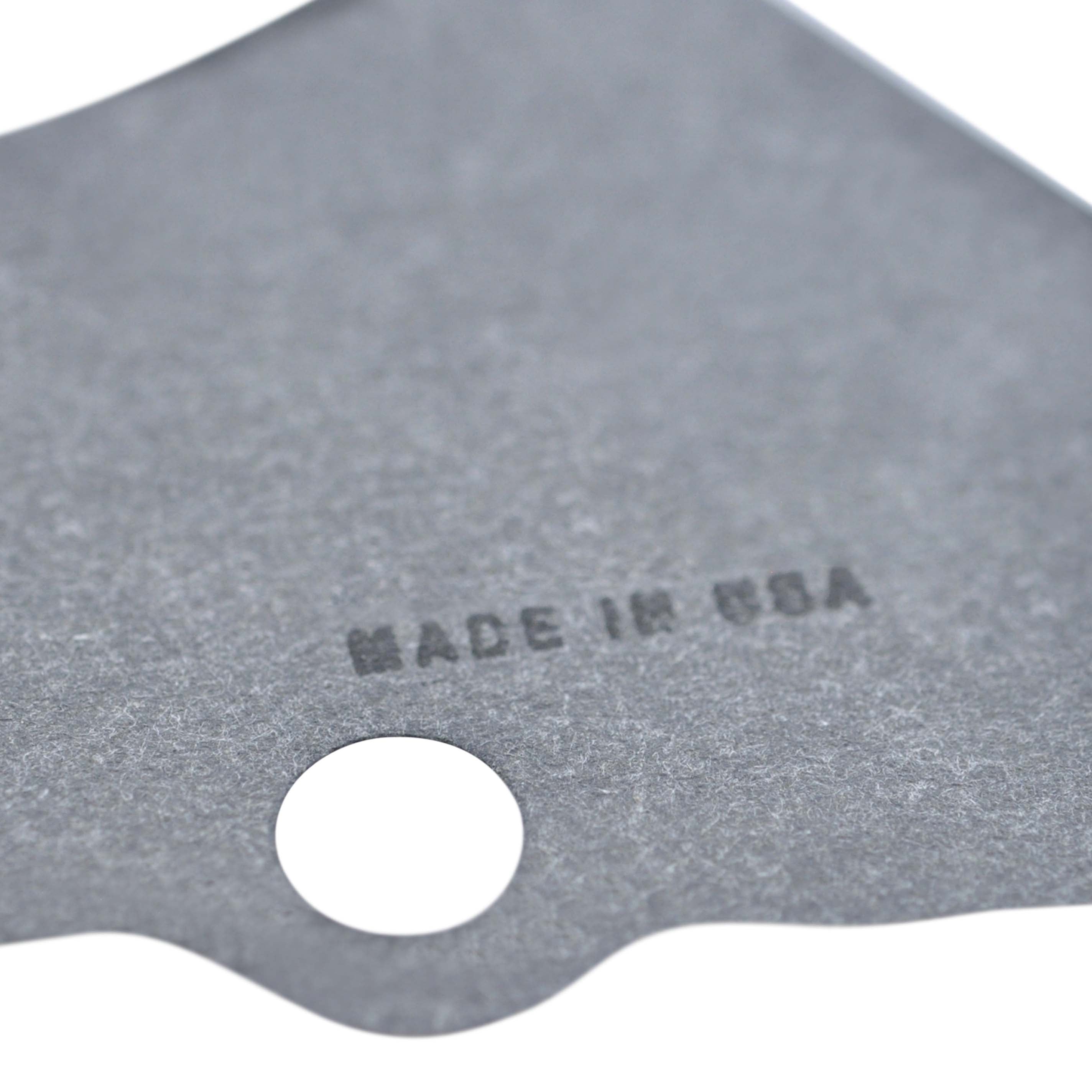

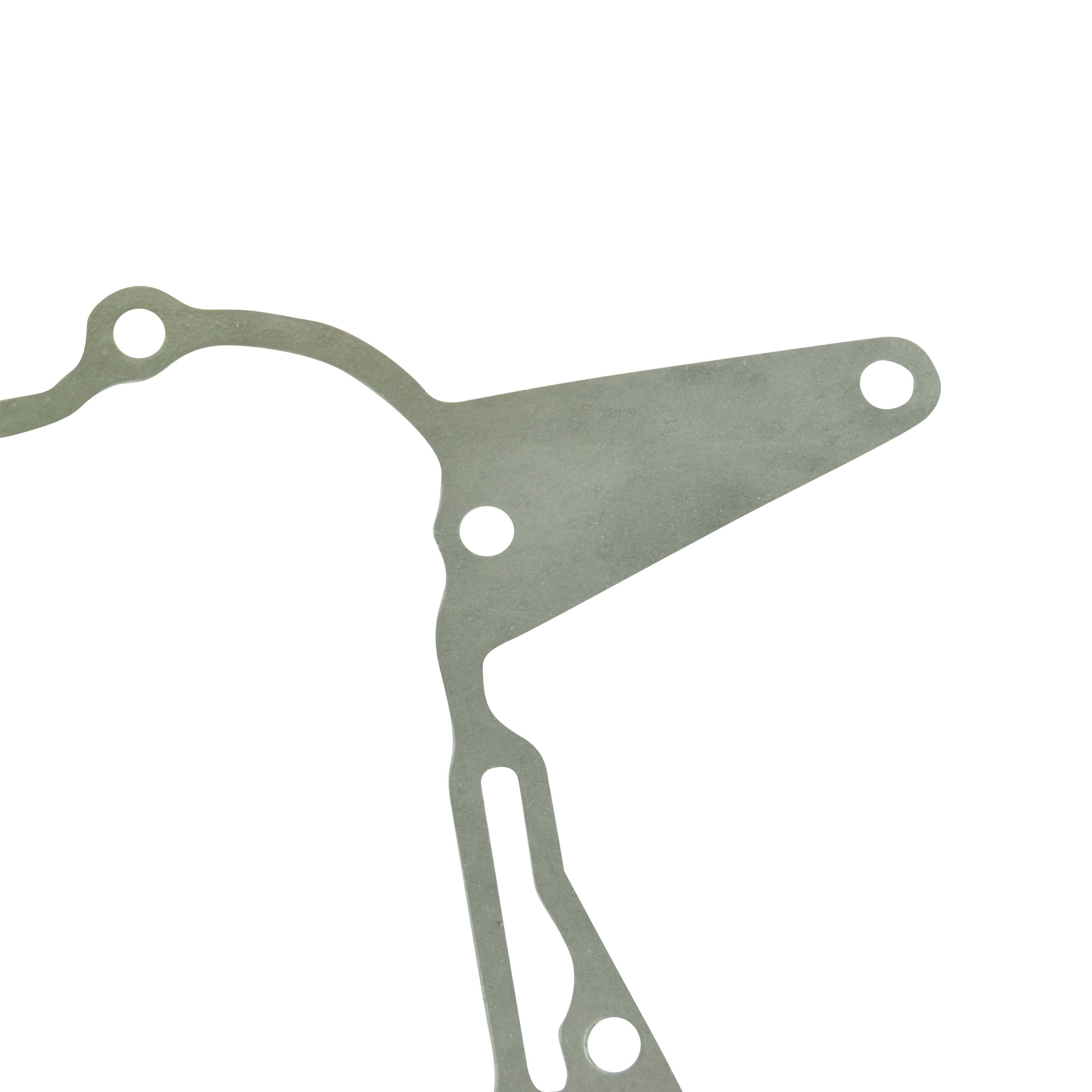

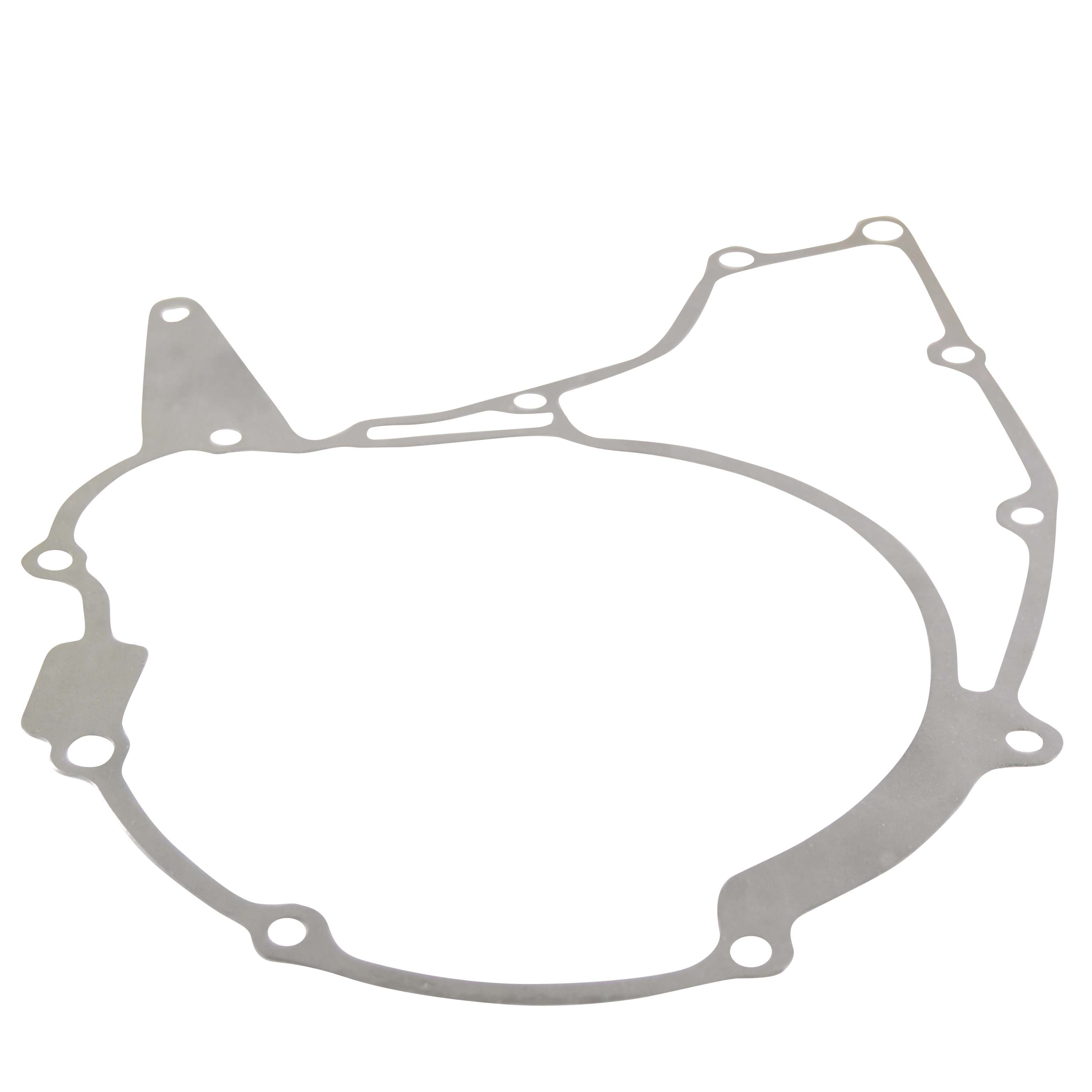

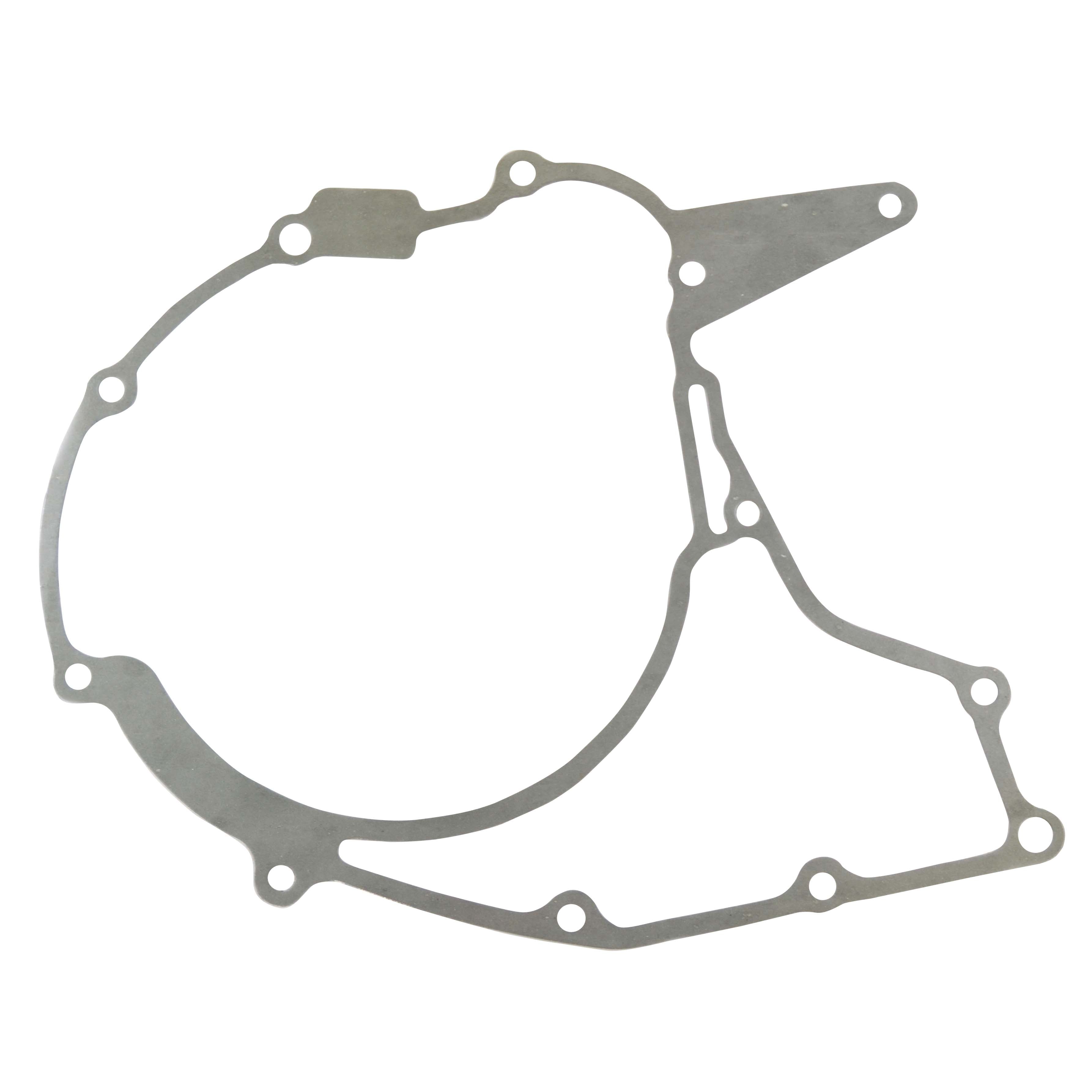

- Gasket included

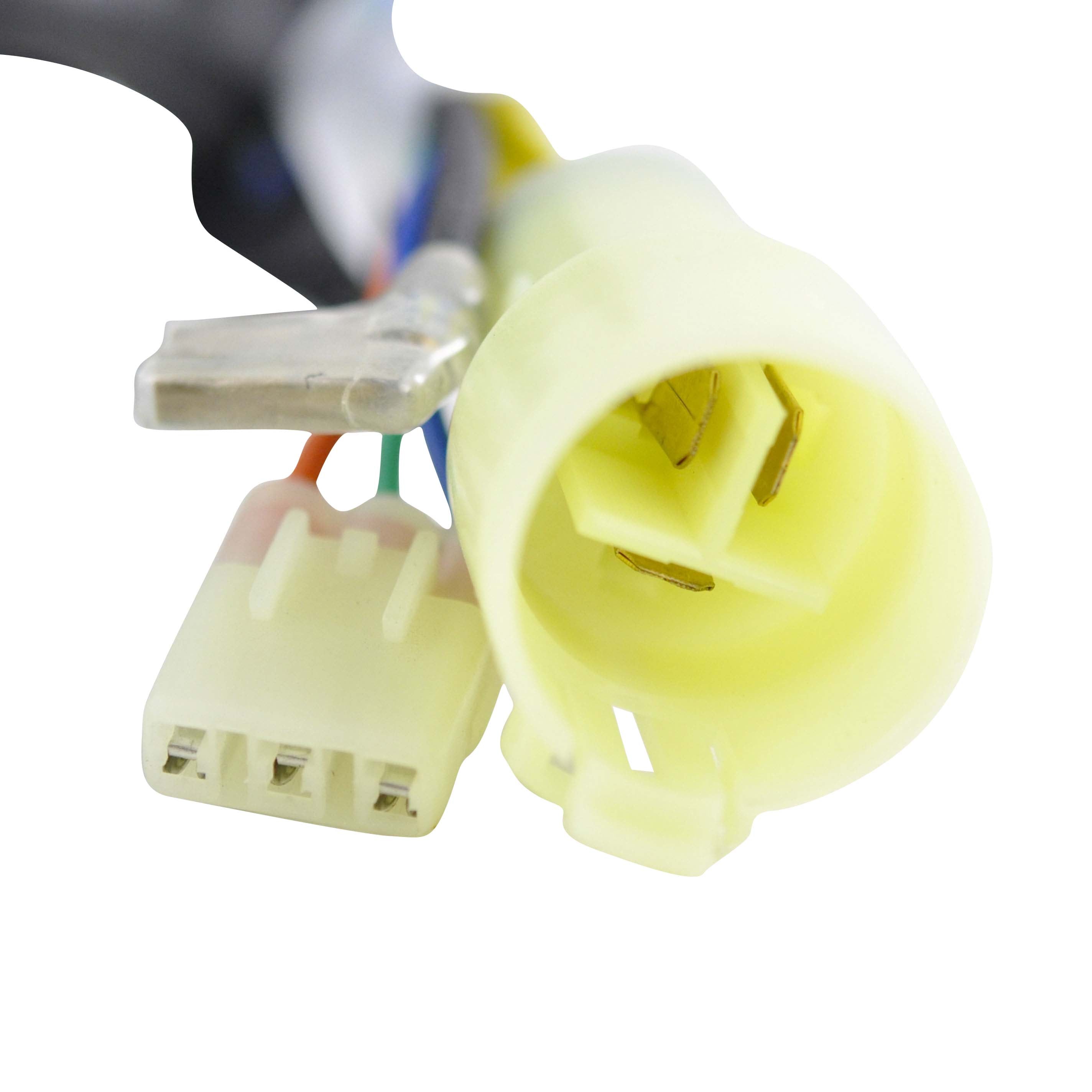

- Connector included
- Rubber grommet included
- All product shipped are tested
At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube. Consult the connector?s circle of death for more information on dielectric grease.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 15mm
Length of wires stator to grommet : 95mm
Length of wires grommet to plug : 75mm 275mm 540mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Interchange Part Nº
Interchange Part Nº
-
Stator :
31120-HM3-671 -
Gasket :
11395-HM3-670
Installation
Installation
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
