Stator for Yamaha 600 700 cc Carb L/C Mountain Max SX Venture V-Max 1997-2001 | OEM# 8CH-85510-02-00 / 8CH-85510-00-00
RMSTATOR
SKU: RM01132
In Stock
RMSTATOR
Stator for Yamaha 600 700 cc Carb L/C Mountain Max SX Venture V-Max 1997-2001 | OEM# 8CH-85510-02-00 / 8CH-85510-00-00
Close
FITMENT WARNING::
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Stator for Yamaha 600 700 cc Carb L/C Mountain Max SX Venture V-Max 1997-2001 | OEM# 8CH-85510-02-00 / 8CH-85510-00-00
Details
Details

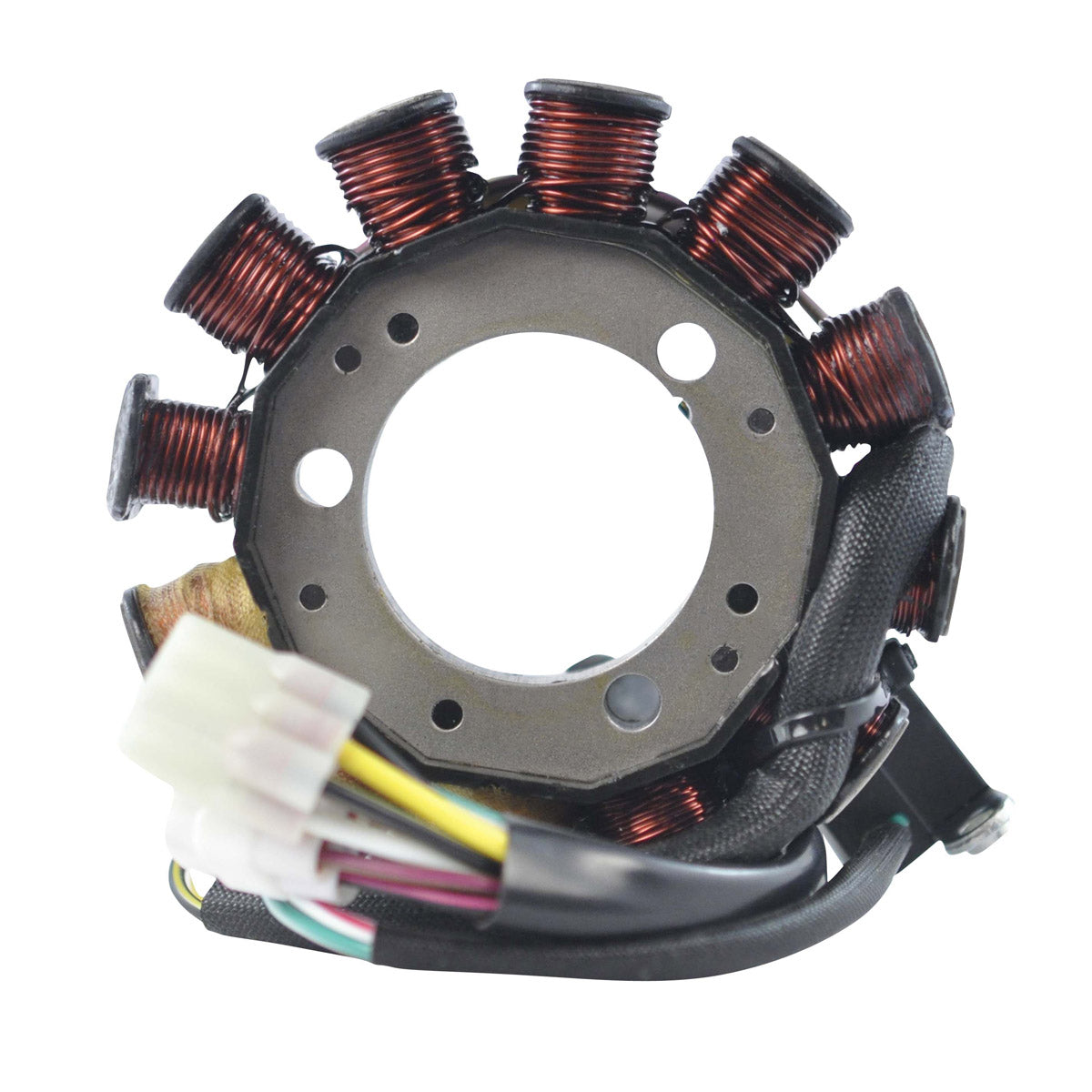

Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- The quality exceeds the OEM equipment
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 15 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 160 mm
Length of pickup coil's wire to grommet : 140 mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to White = 0.04 ohms +/- 20%
Pickup : Whte to White/Red = 225 ohms +/- 20%
Source 1 : Black to Brown/Red = 124 ohms +/- 20%
Source 2 : Brown to Black/Red = 443 ohms +/- 20%
Interchange Part Nº
Interchange Part Nº
- 8CH-85510-00-00
- 8CH-85510-01-00
- 8CH-85510-02-00
Installation
Installation
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
For the pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
