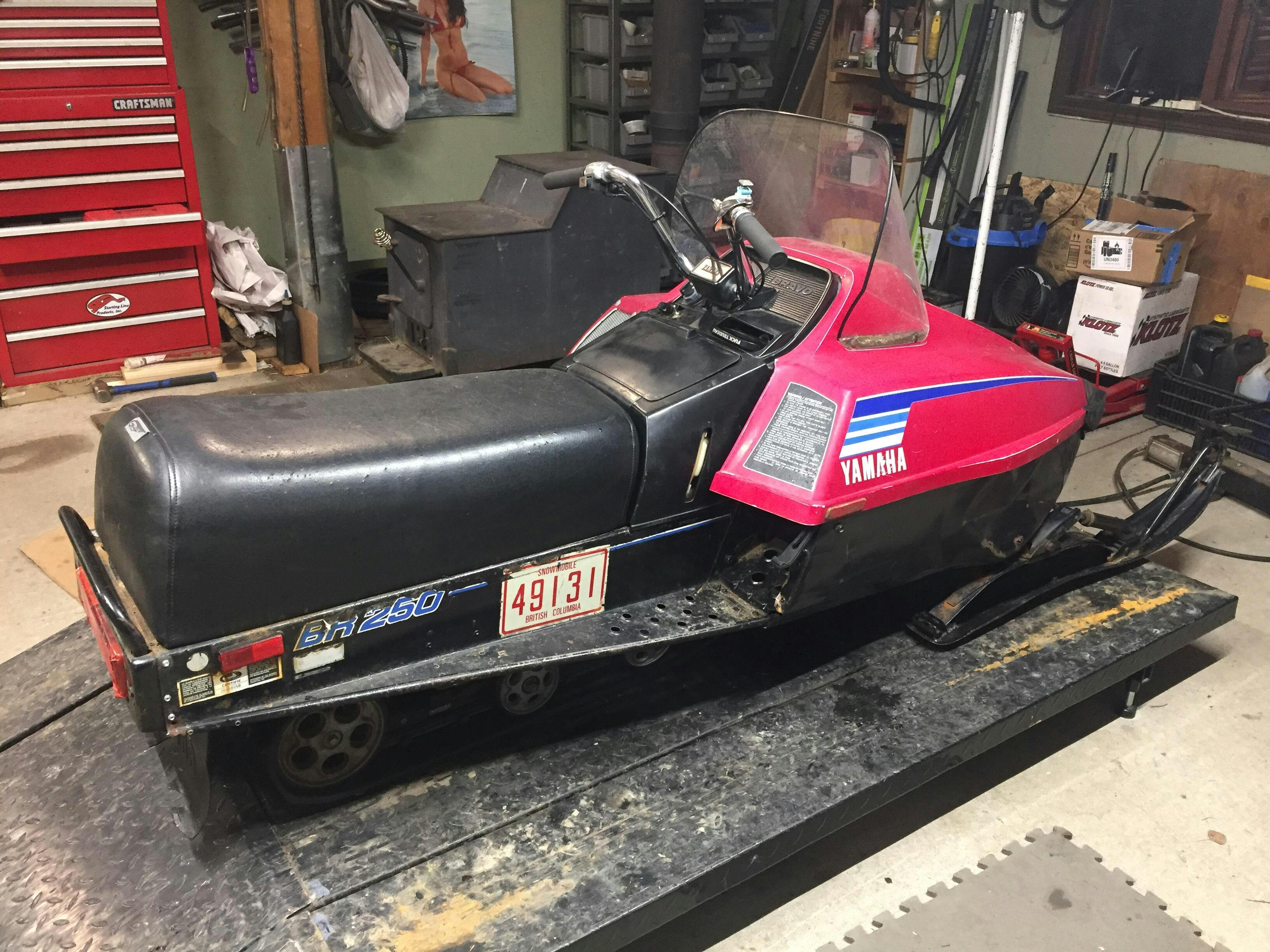

Stator for Yamaha BR250 Bravo 250 Bravo L & LT 1982-1987

Stator for Yamaha BR250 Bravo 250 Bravo L & LT 1982-1987

Name: Stator for Yamaha BR250 Bravo 250 Bravo L & LT 1982-1987
Brand: RMSTATOR
SKU: RM01130
Price: 218.89 USD
Availability: OutOfStock

RMSTATOR

SKU: RM01130

Out of stock

RMSTATOR

Stator for Yamaha BR250 Bravo 250 Bravo L & LT 1982-1987

$218.89

Sold out

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

This stator assembly uses the following coils:

Charge Coil: 8R4-85520-M0-00
Lighting Coil: 8R4-81313-M0-00
Pickup/Pulsar Coil: 8R4-85580-M0-00

Brand new stator

Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius
The quality exceeds the OEM equipment
Rubber grommet included
Back Plate included
All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Wire to wire resistance
Alternator : Black to Yellow = 0.4 ohms +/- 20 %
Pikup Coil : Black to Red/White = 200 ohms +/- 20%
Source : Black to Brown = 397 ohms +/- 20%

Dimension
Interior diameter : 35 mm
Exterior diameter : 95 mm
Thickness : 22 mm

Number of wires : 4
Number of terminals : 4

Interchange Part Nº

8R4-85560-M0-00

Installation

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
