Generator Stator for Polaris Sawtooth 200 / Phoenix 200 2005-2024 | OEM# 0454228 0454947
RMSTATOR
SKU: RM01121
In Stock
RMSTATOR
Generator Stator for Polaris Sawtooth 200 / Phoenix 200 2005-2024 | OEM# 0454228 0454947
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Generator Stator for Polaris Sawtooth 200 / Phoenix 200 2005-2024 | OEM# 0454228 0454947
Details
Details

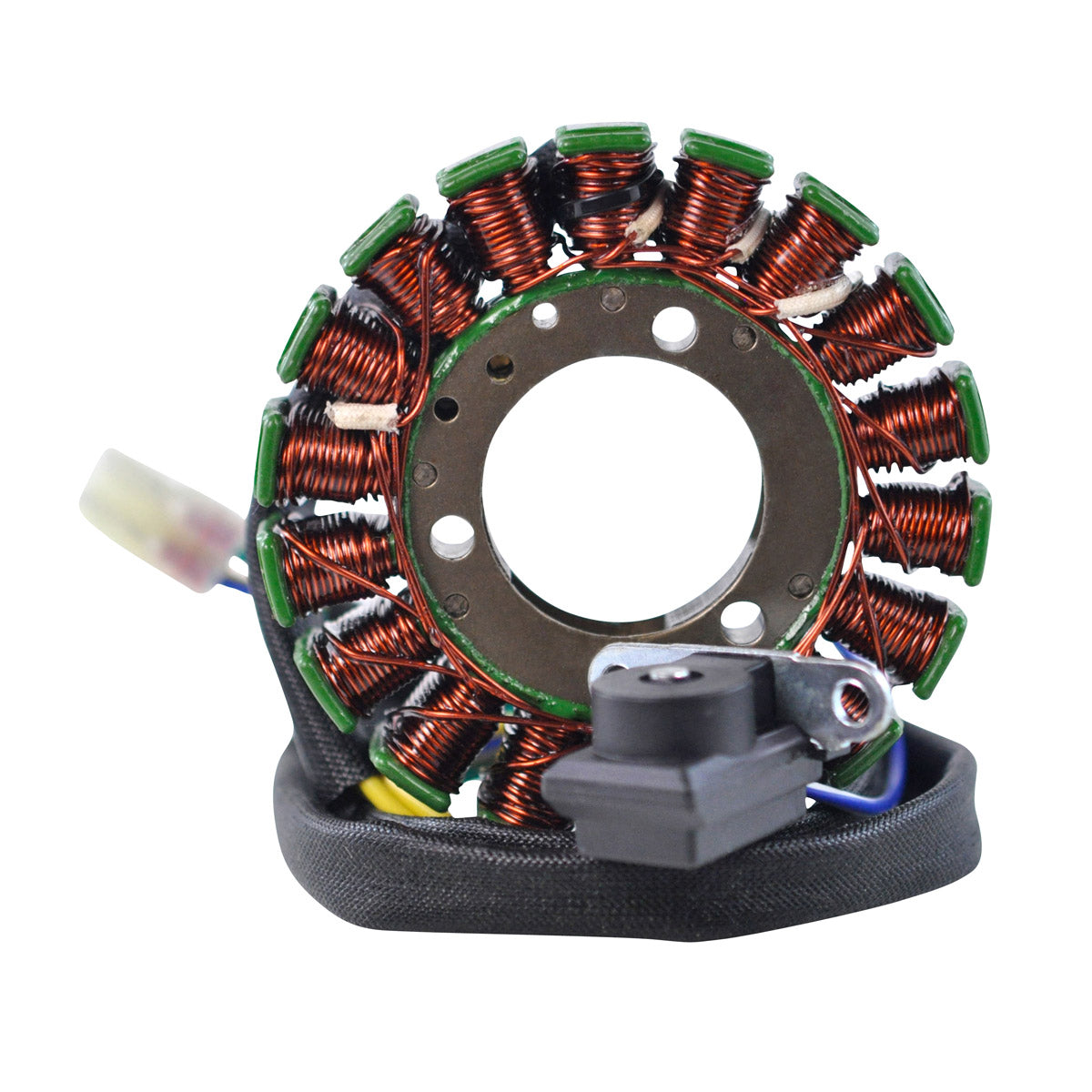

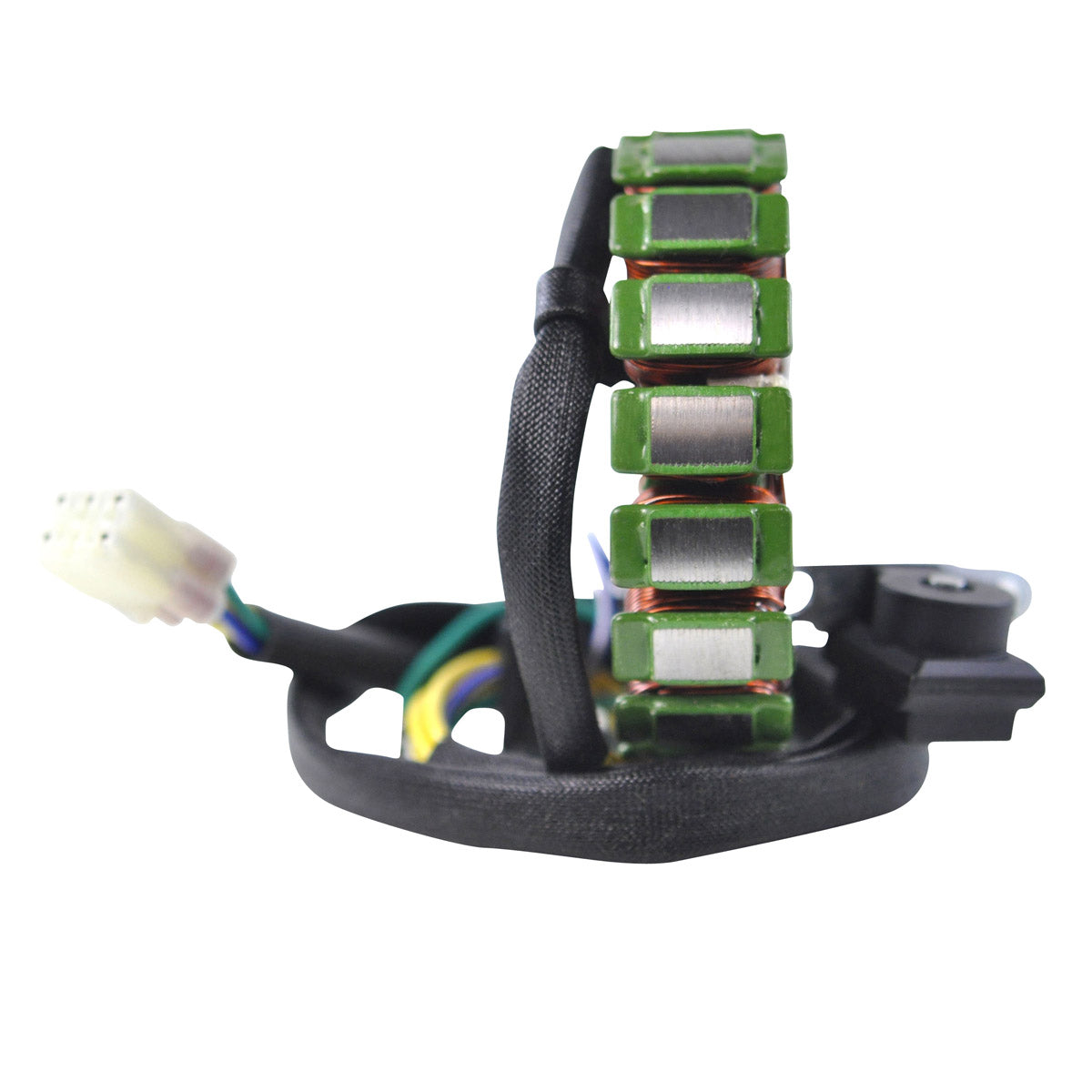

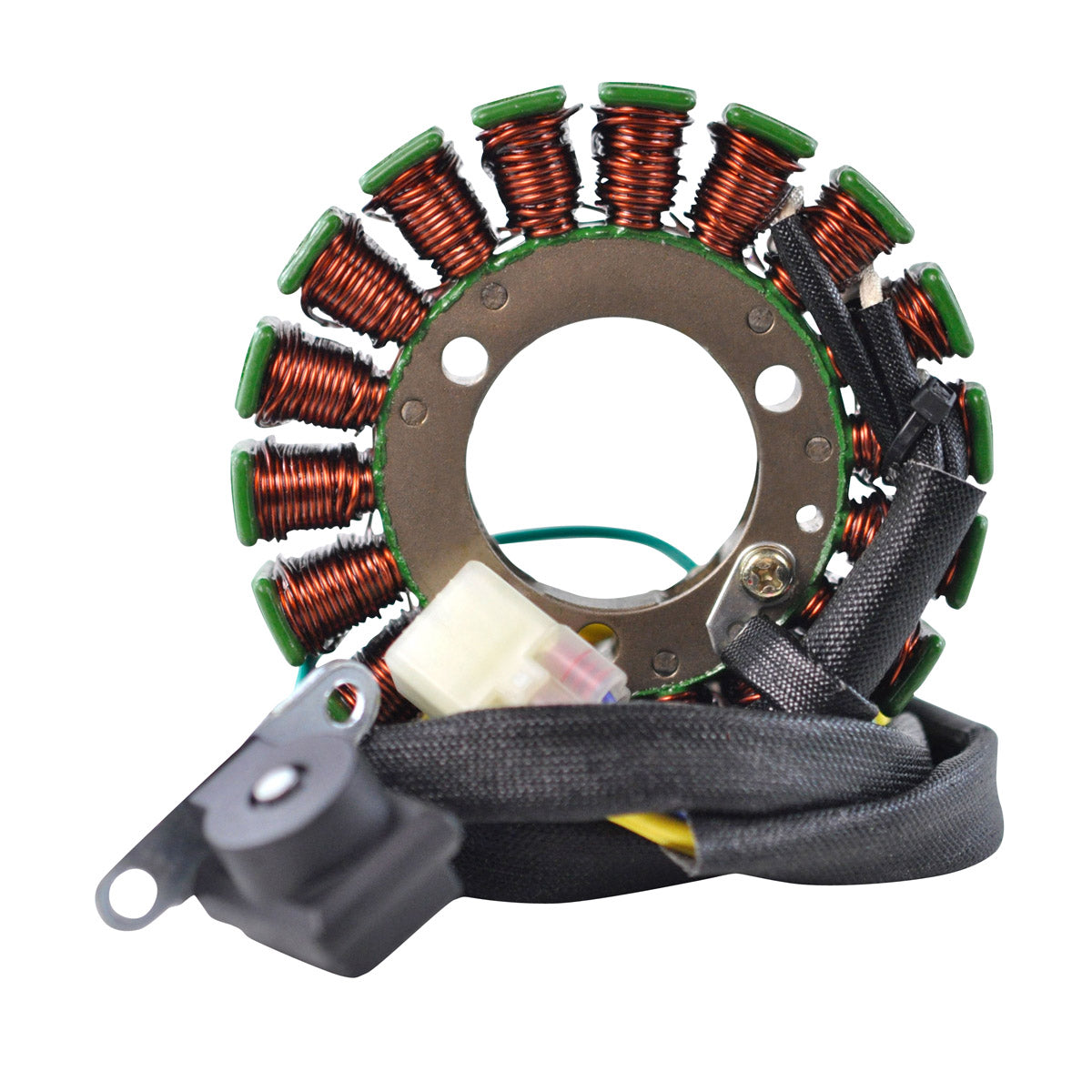

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

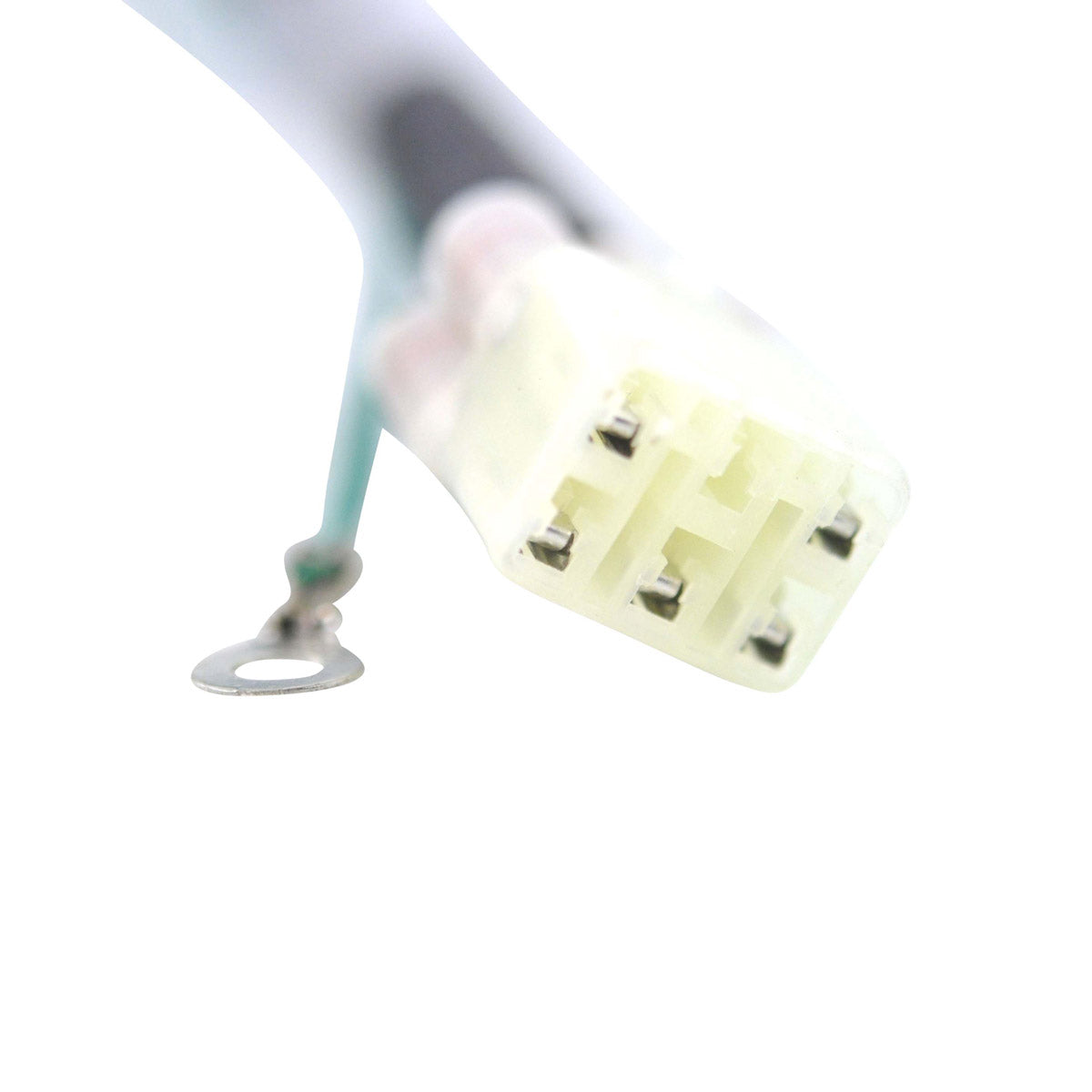

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions :
Interior diameter : 35mm
Exterior diameter : 95mm
Thickness : 15mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 560mm
Length of pickup coil's wire to grommet : 90mm
Interior diameter : 35mm
Exterior diameter : 95mm
Thickness : 15mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 560mm
Length of pickup coil's wire to grommet : 90mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue/White to Green (Ground) = 150ohms +/-20%
Interchange Part Nº
Interchange Part Nº
- 0454947
- 0452449
- 0454228
Installation
Installation
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
