Kit Stator + Crankcase Cover Gasket for Suzuki LTF 400 KingQuad 2008-2024 | # 11483-38F10 32101-27H10
Kit Stator + Crankcase Cover Gasket for Suzuki LTF 400 KingQuad 2008-2024 | # 11483-38F10 32101-27H10

Details
Details

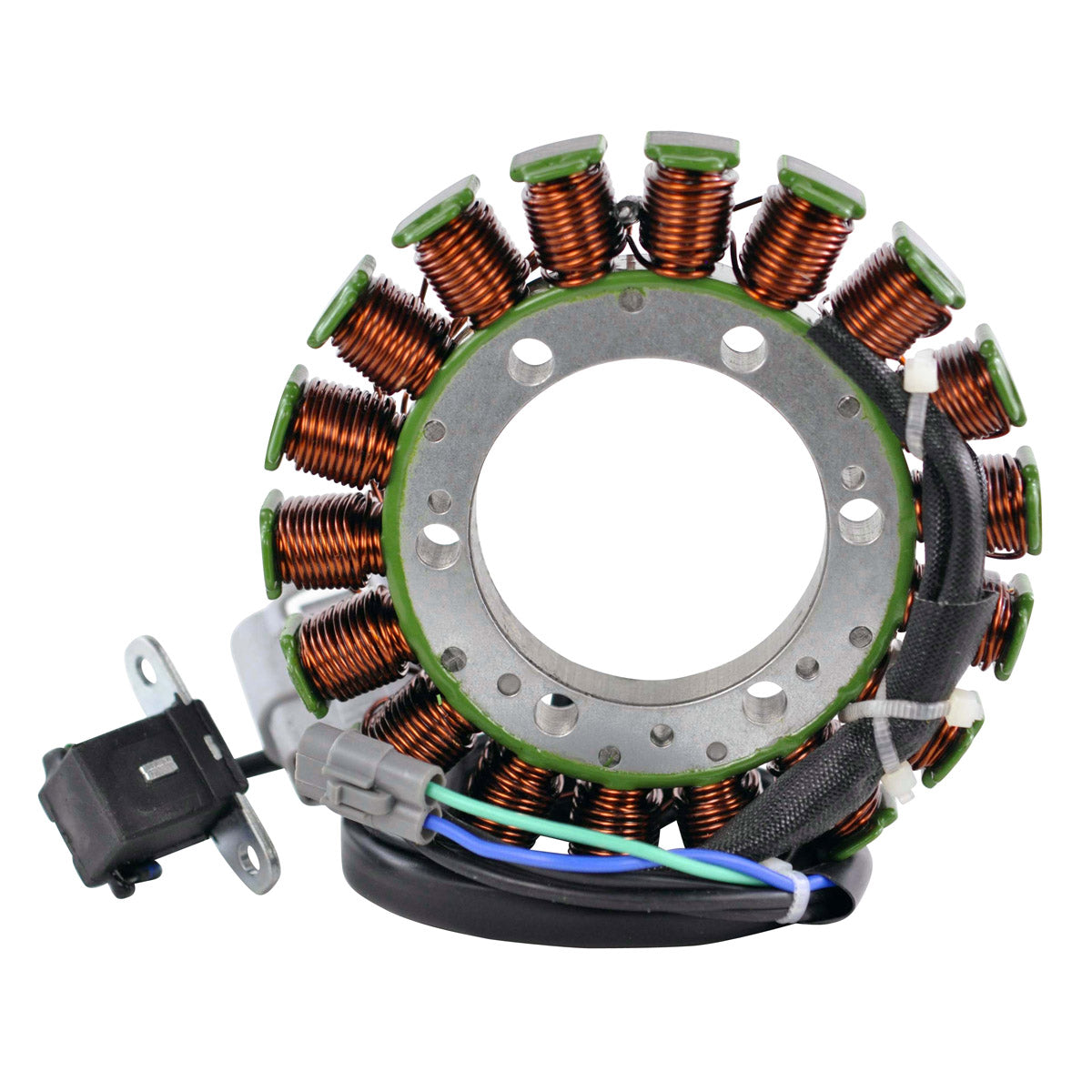

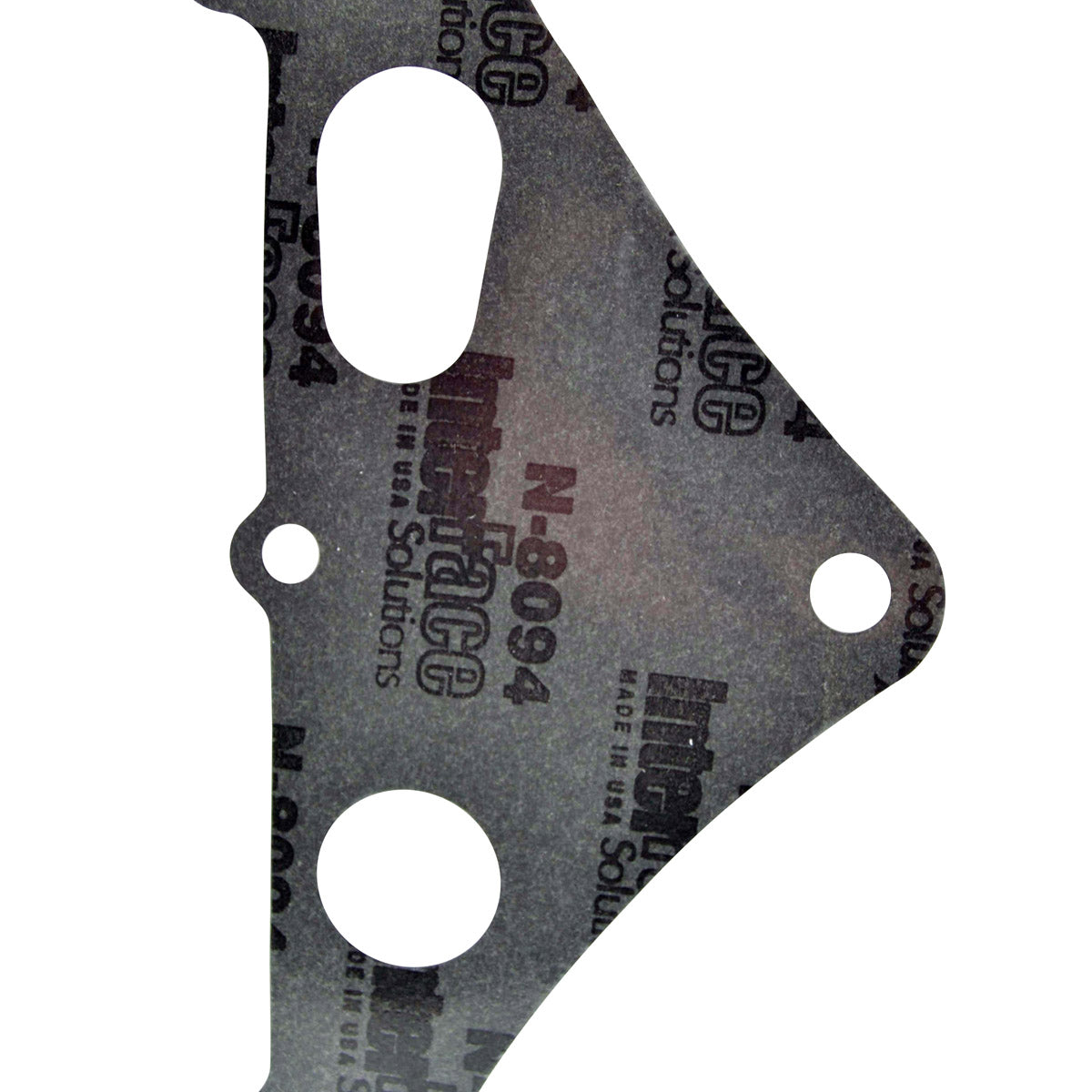

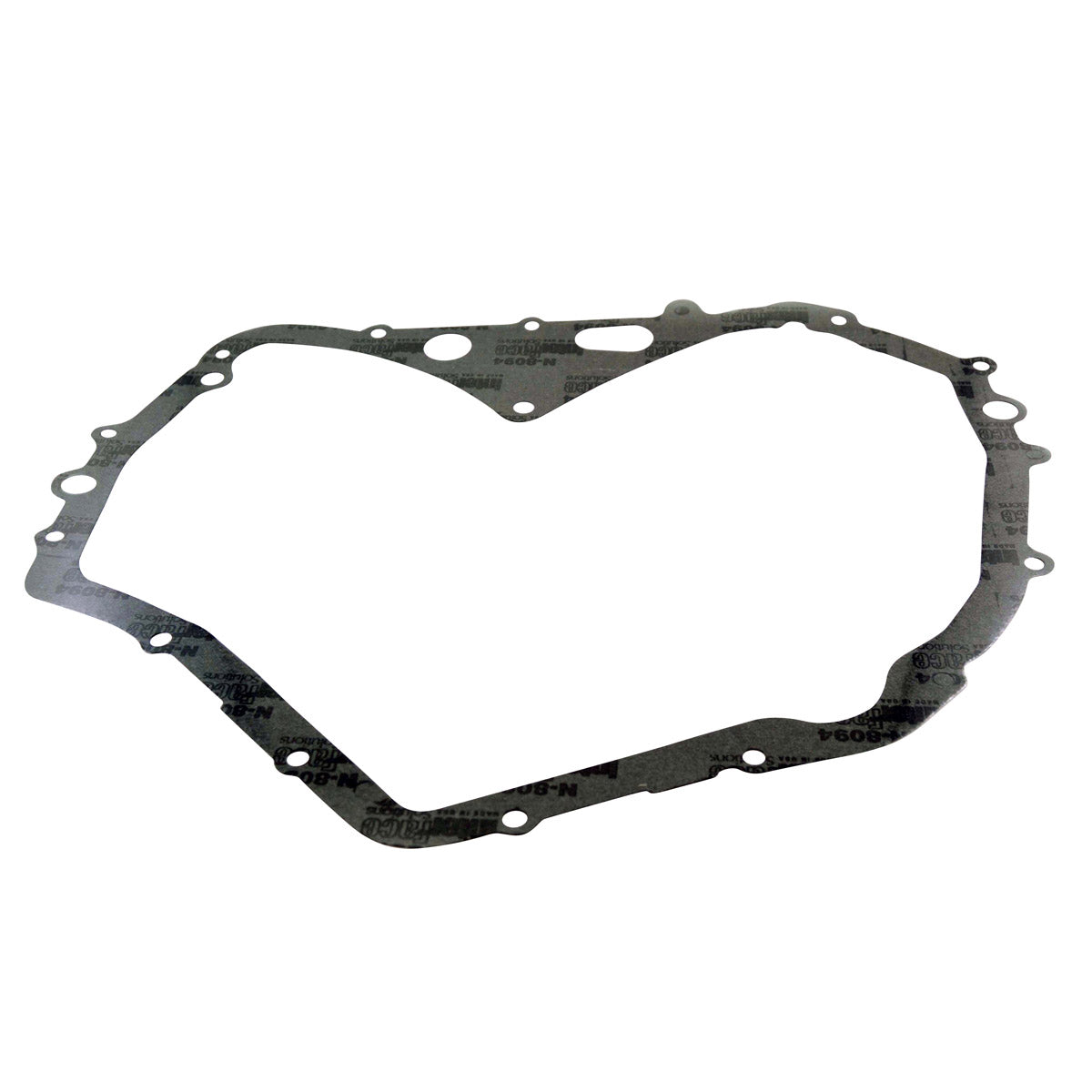

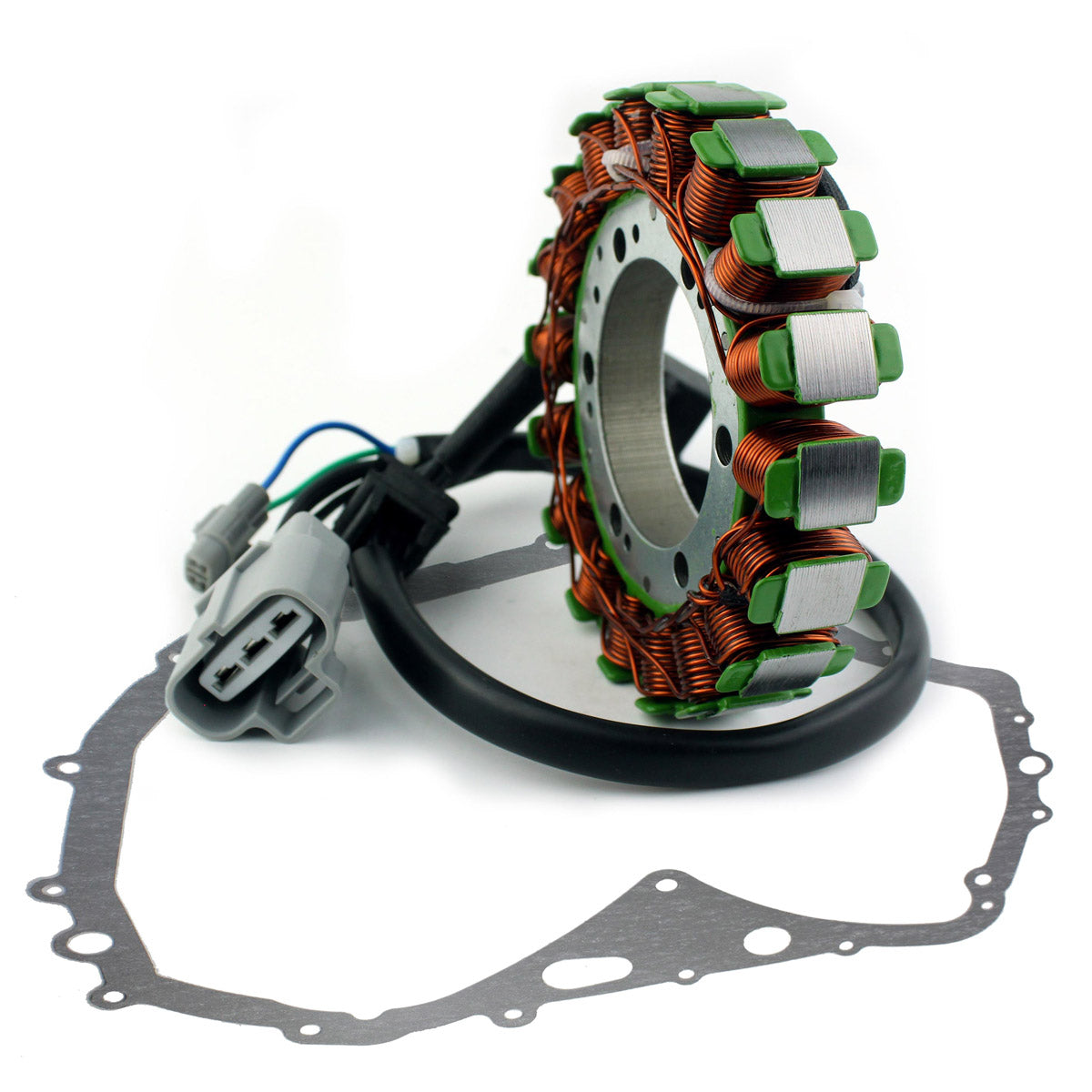

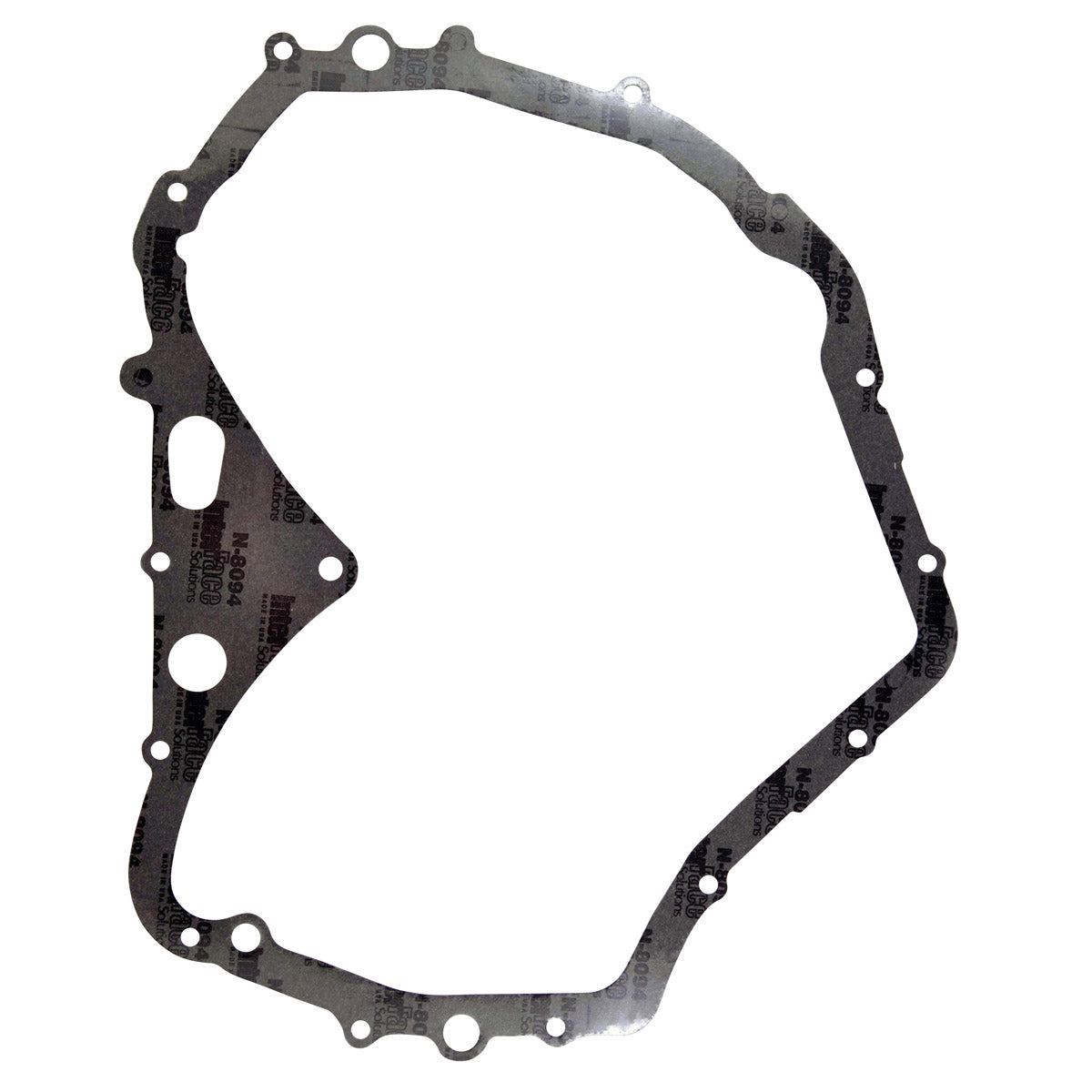

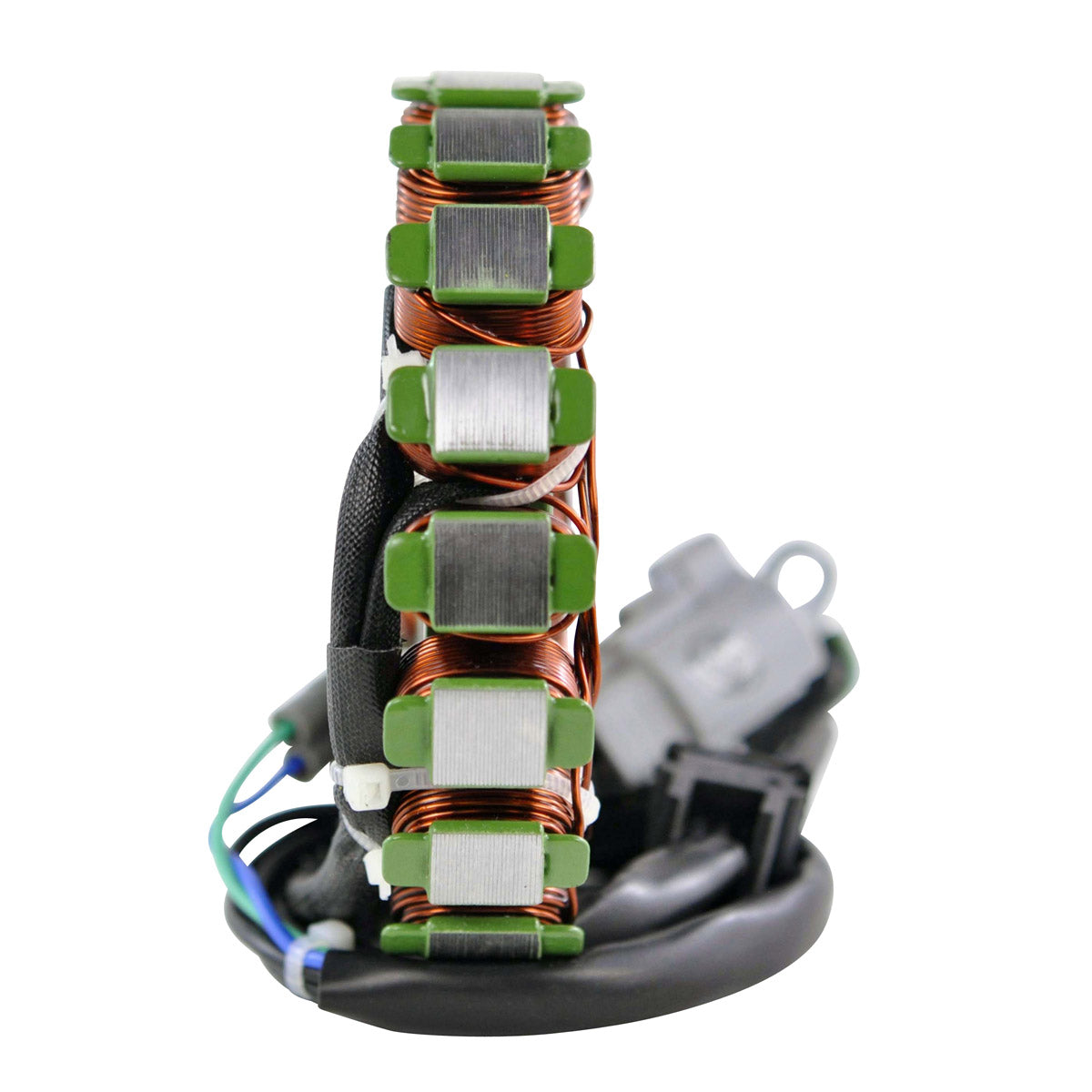

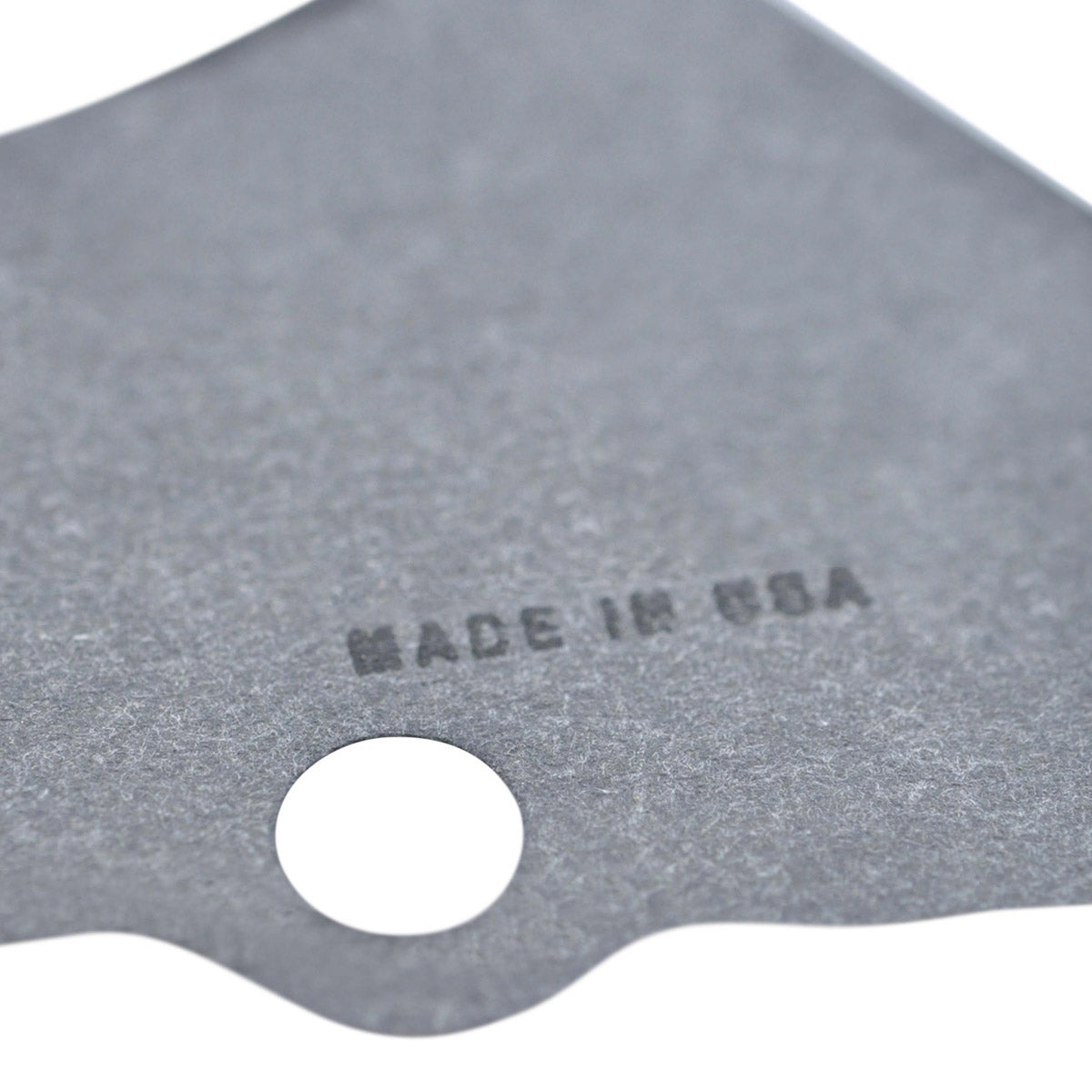

Brand New Kit Stator + Stator Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Brand new stator- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

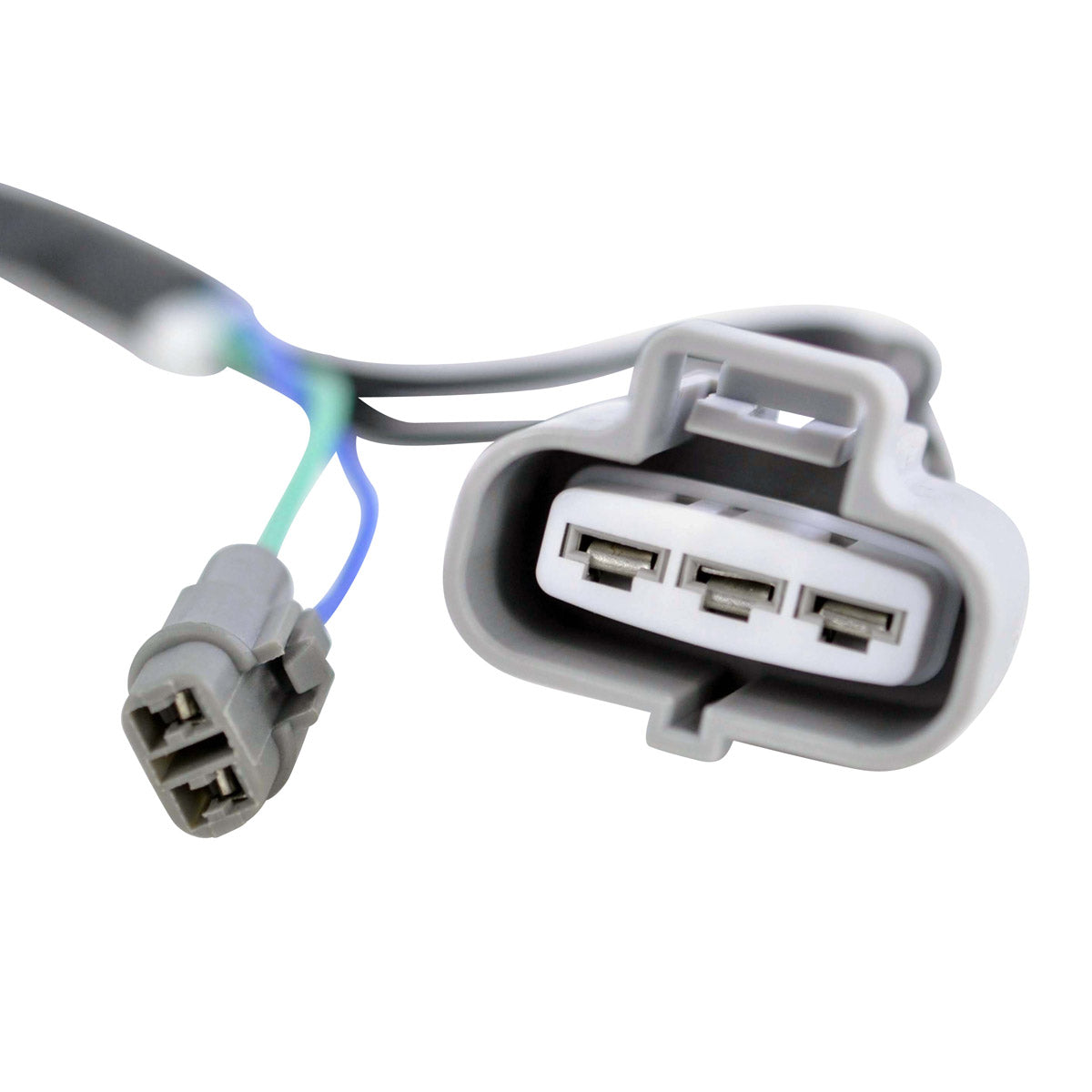

- Connector included
- Rubber grommet included
Specifications
Specifications
Dimensions Stator: :
Interior diameter: 53mm
Exterior diameter: 118mm
Thickness: 15mm
Length of wires stator to grommet: 112mm
Length of wires grommet to plug: 380mm
Length of pickup coil's wire to grommet: 50mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance:
Alternator: Black between each Black = 0.4ohms +/-20%
Pickup: Blue to Green = 196ohms =+/-20%
Interchange Part Nº
Interchange Part Nº
-
Stator :
32101-27H10 - 32101-27H00
-
Gasket :
11483-38F10
Installation
Installation
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
