High Output Performance Generator Stator 100 W for Yamaha YFZ 350 Banshee 1987-1994

High Output Performance Generator Stator 100 W for Yamaha YFZ 350 Banshee 1987-1994

Name: High Output Performance Generator Stator 100 W for Yamaha YFZ 350 Banshee 1987-1994
Brand: RMSTATOR
SKU: RM01044
Price: 152.89 USD
Availability: InStock

RMSTATOR

SKU: RM01044

In Stock

RMSTATOR

High Output Performance Generator Stator 100 W for Yamaha YFZ 350 Banshee 1987-1994

$152.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

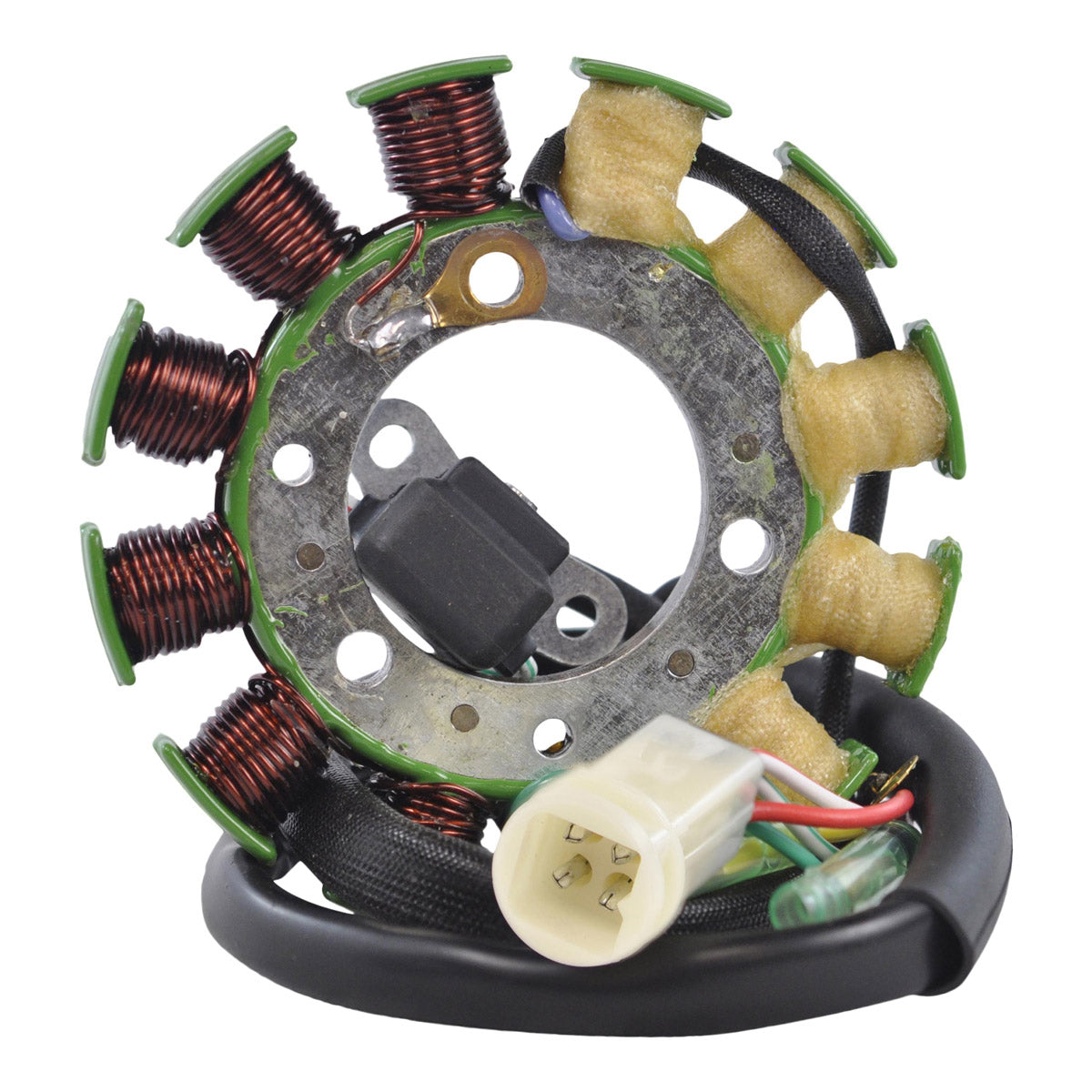

Brand new high output stator 100 watts

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Rubber grommet included
Connector included
All product shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 300 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Black to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 21 ohms +/-20%

Interchange Part Nº

2GU-85510-50-00

Installation

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
