Stator for Polaris Big Boss / Magnum / Ranger / Scrambler / Sportsman / Worker 500 1997-2001 | OEM# 3085561 / 3086821

Stator for Polaris Big Boss / Magnum / Ranger / Scrambler / Sportsman / Worker 500 1997-2001 | OEM# 3085561 / 3086821

Name: Stator for Polaris Big Boss / Magnum / Ranger / Scrambler / Sportsman / Worker 500 1997-2001 | OEM# 3085561 / 3086821
Brand: RMSTATOR
SKU: RM01007
Price: 196.89 USD
Availability: InStock

RMSTATOR

SKU: RM01007

In Stock

RMSTATOR

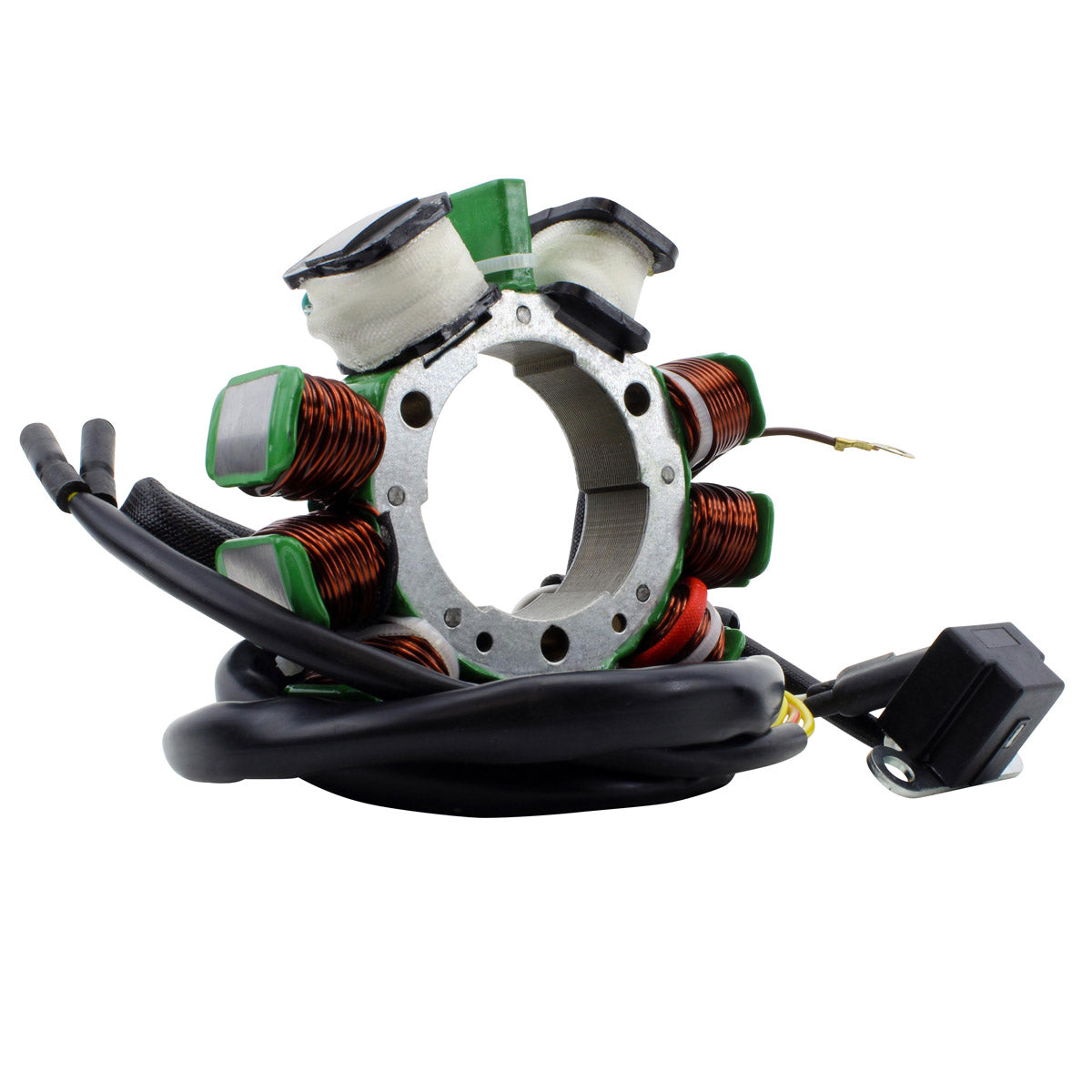

Stator for Polaris Big Boss / Magnum / Ranger / Scrambler / Sportsman / Worker 500 1997-2001 | OEM# 3085561 / 3086821

$196.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Brand new stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm

Other specifications:
Number of wires: 9
Number of plugs: 7
Number of pins: 10

Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms +/-20%
Source: Green to Red/Black = 450 ohms +/-20%
Source 2: Green to Black = 3.8 ohms +/-20%

Interchange Part Nº

3085561
3086821

Installation

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
