Pickup Coil 425 ohms for Suzuki LT 160 E Quadrunner LTF 160 Quadrunner 1989-1999

Pickup Coil 425 ohms for Suzuki LT 160 E Quadrunner LTF 160 Quadrunner 1989-1999

Name: Pickup Coil 425 ohms for Suzuki LT 160 E Quadrunner LTF 160 Quadrunner 1989-1999
Brand: RMSTATOR
SKU: RM00157
Price: 64.89 USD
Availability: InStock

RMSTATOR

SKU: RM00157

Low Stock

RMSTATOR

Pickup Coil 425 ohms for Suzuki LT 160 E Quadrunner LTF 160 Quadrunner 1989-1999

$64.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Pickup Coil 425 ohms for Suzuki LT 160 E Quadrunner LTF 160 Quadrunner 1989-1999

$64.89

Details

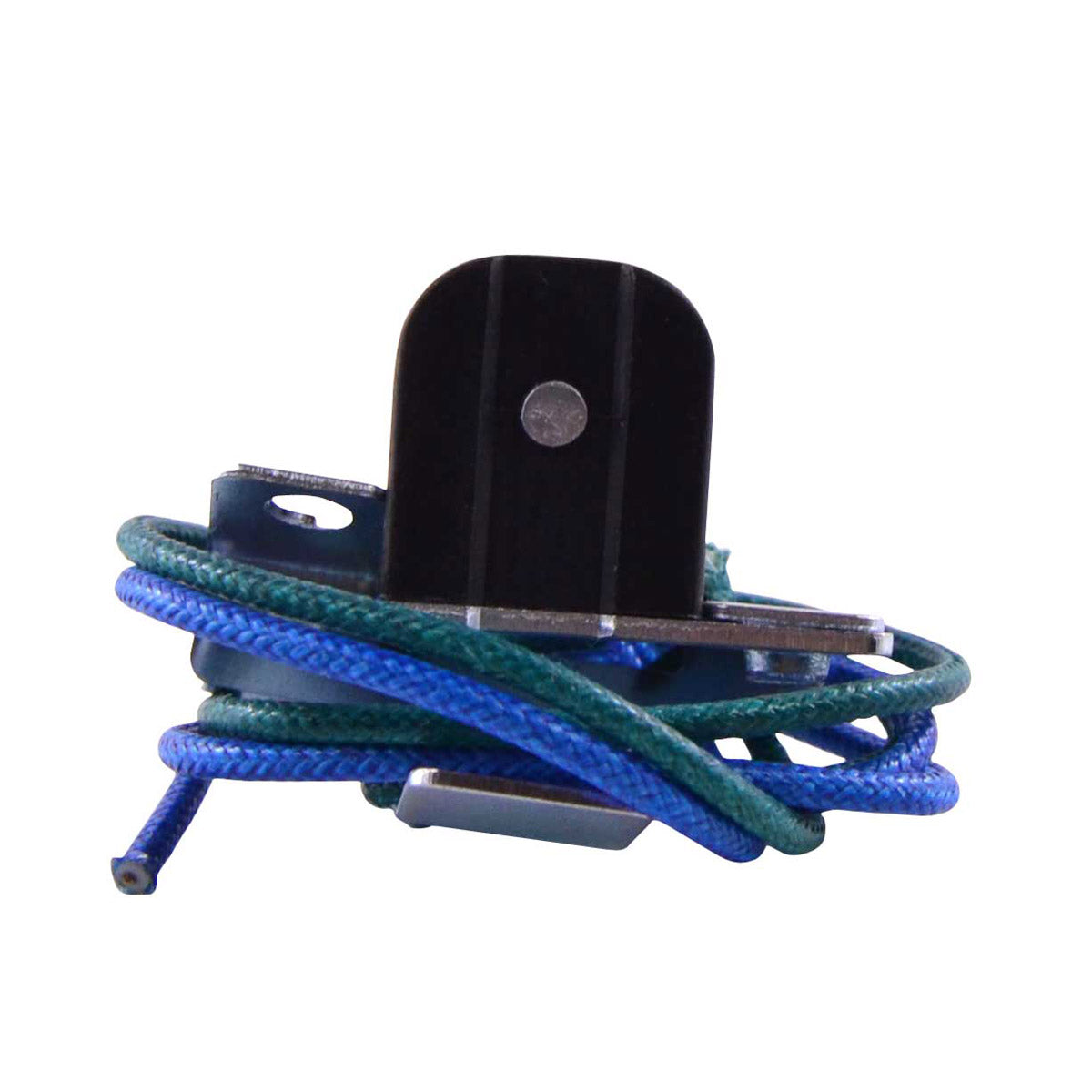

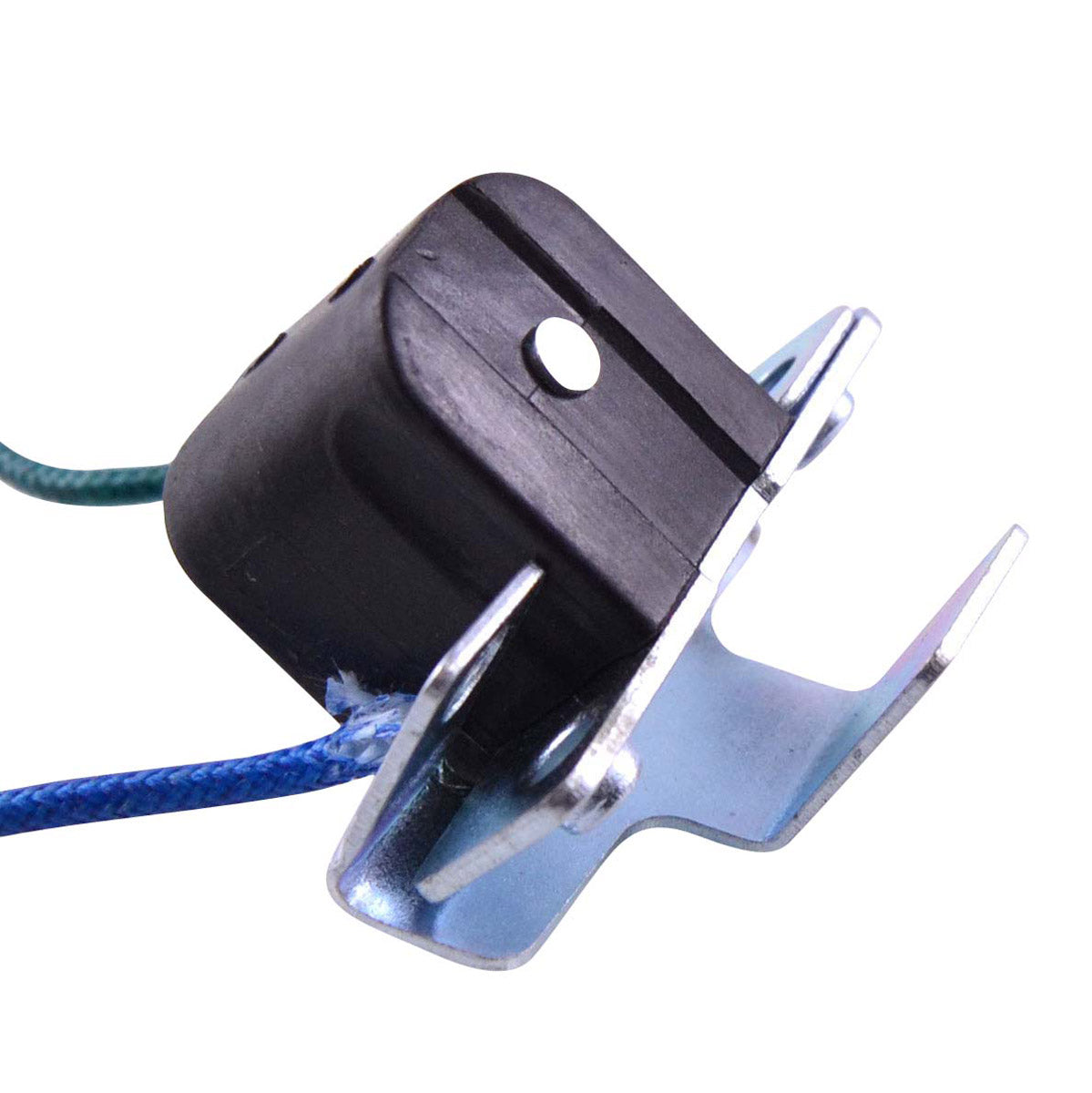

Brand new pick up coil for Stator 425 ohms

We offer a brand new pickup/pulsar coil for you to repair your stator.
Often unavailable from the OEM manufacturer
All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions:

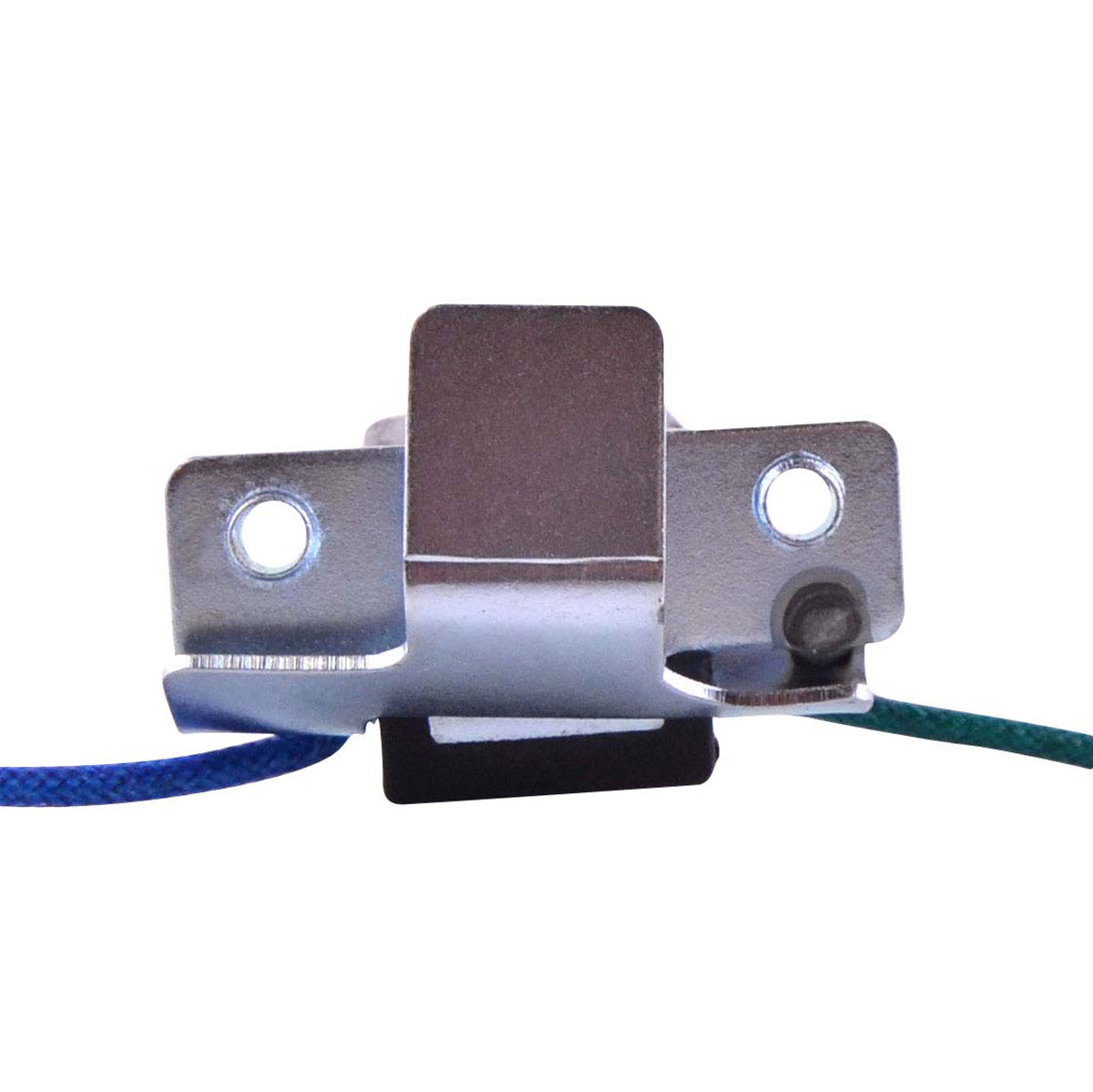

Bracket center to center: 30 mm
Wires length: 380 mm

Wire to wire resistance:

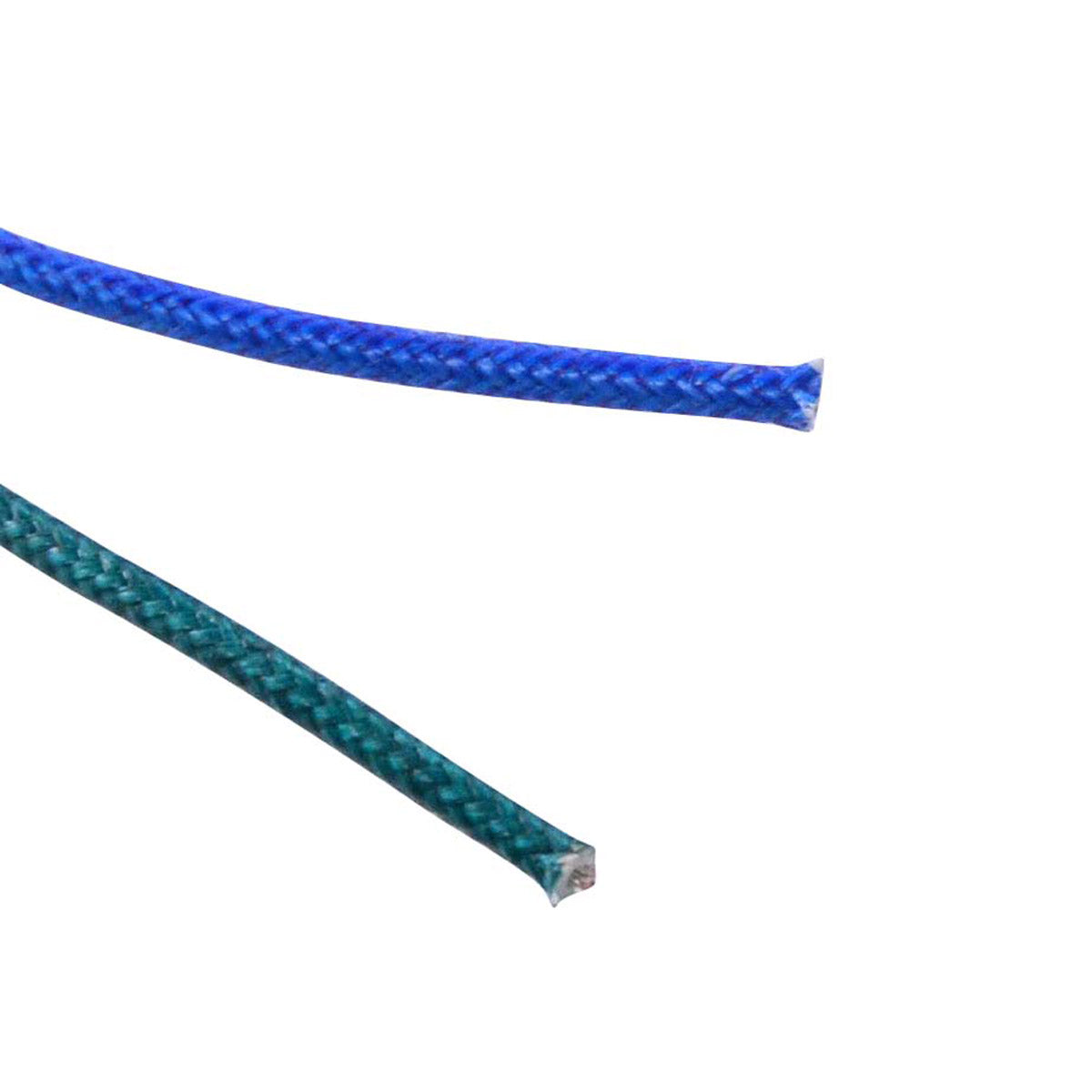

Blue to Green = 425 ohms +/-20%

Interchange Part Nº

32101-02C00

Installation

Not following these instructions may result in damaging the part or other components on your vehicle.

By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
Insulate your solders with heat shrink tubes.
Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
Rotate the flywheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
If no spark or erratic spark, switch the wires at the plug.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
