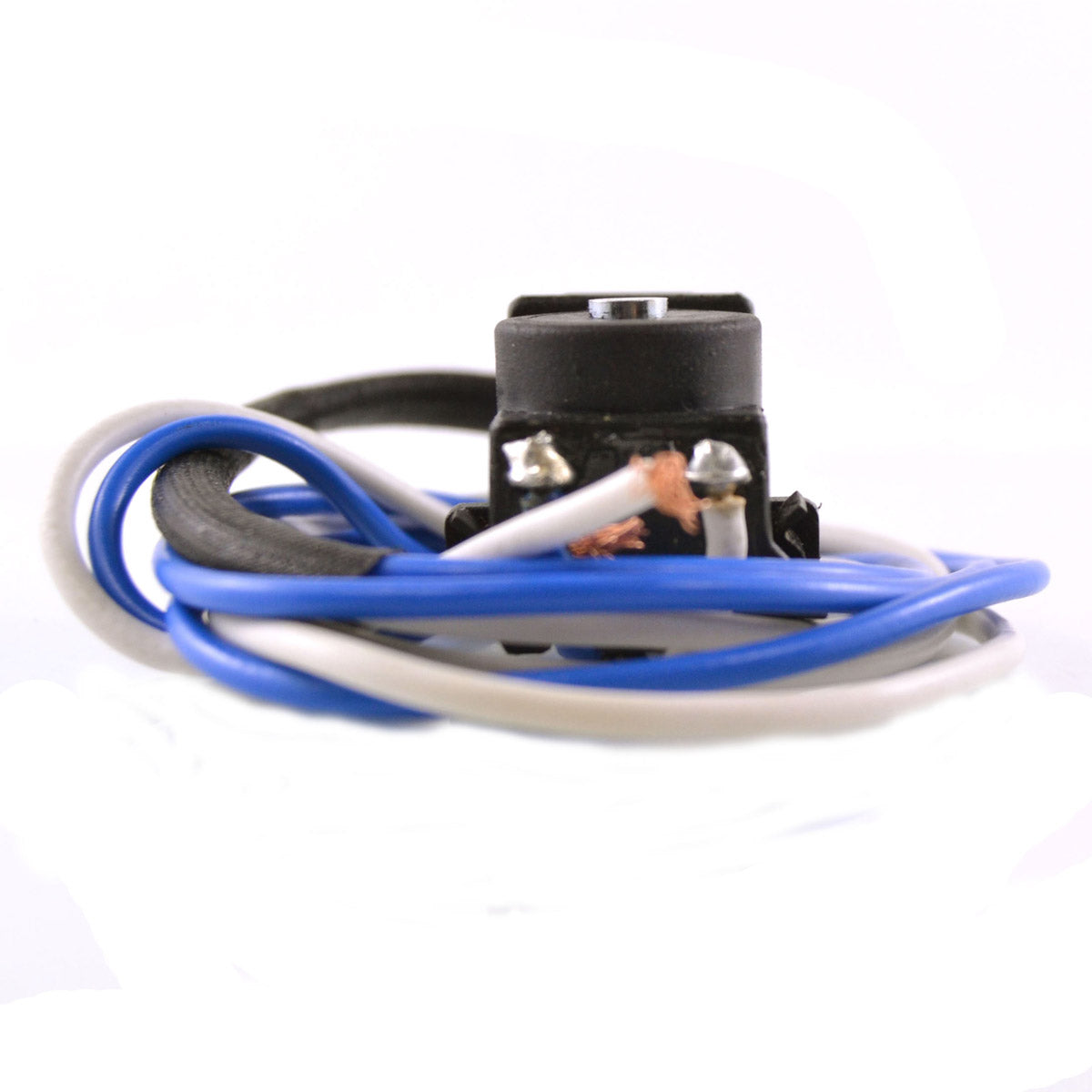

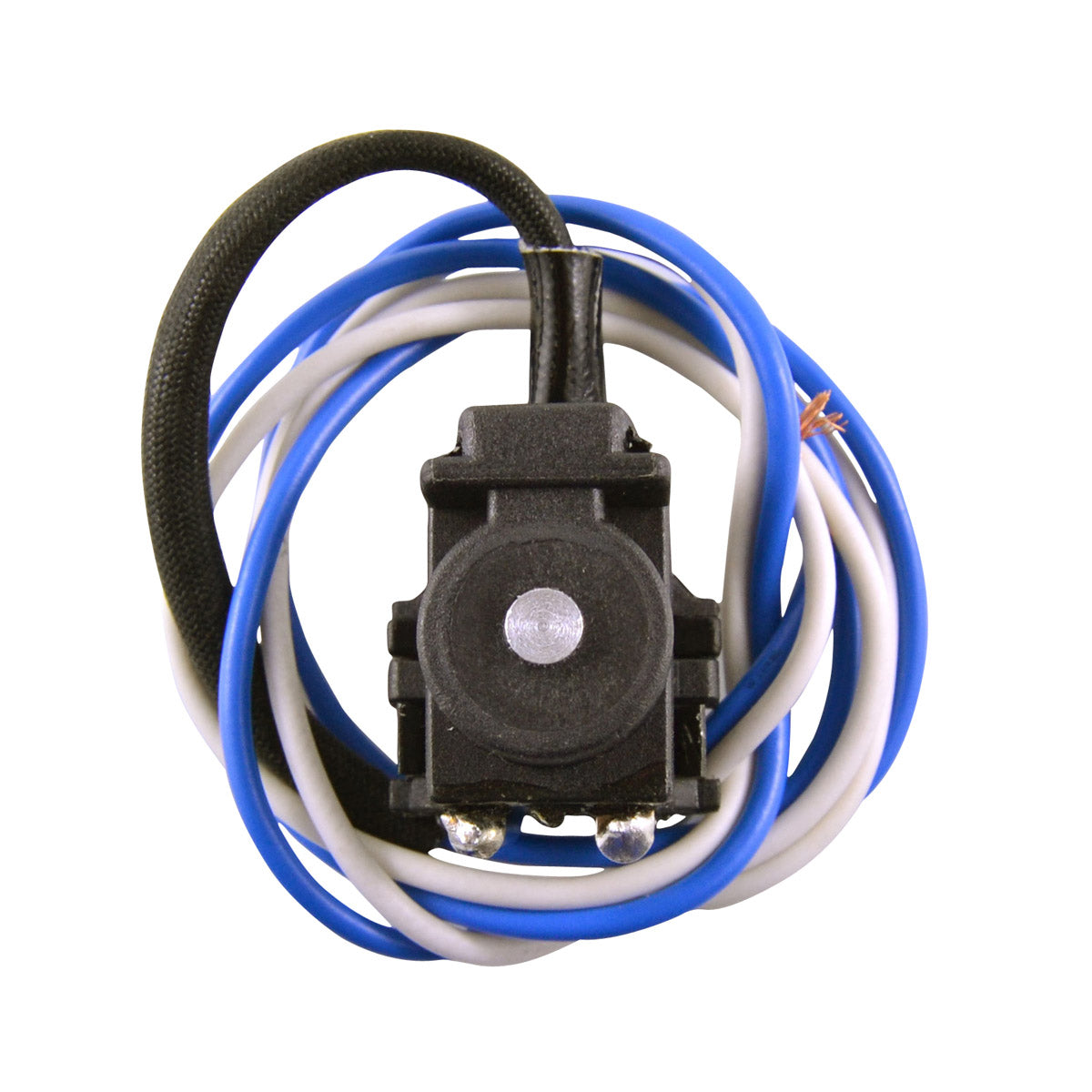

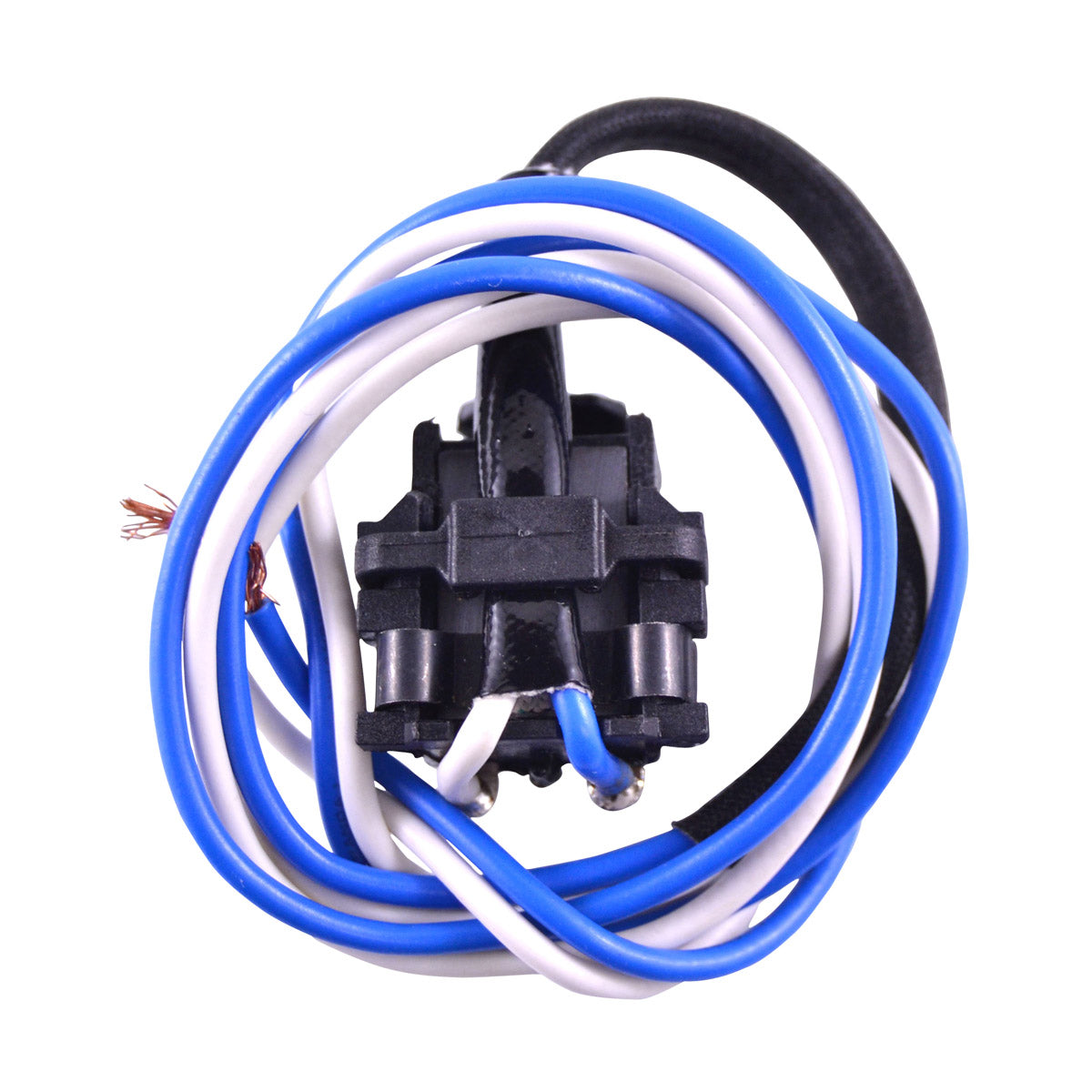

Stator Pickup Pulsar Coil for Can-am Traxter / Traxter XT / Traxter Max XT / Traxter XL 500 650 cc 1999-2005
RMSTATOR
SKU: RM00146
In Stock
RMSTATOR
Stator Pickup Pulsar Coil for Can-am Traxter / Traxter XT / Traxter Max XT / Traxter XL 500 650 cc 1999-2005
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator Pickup Pulsar Coil for Can-am Traxter / Traxter XT / Traxter Max XT / Traxter XL 500 650 cc 1999-2005
Details
Details
Brand new pick up coil 250 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- The fixing bracket is not included, you need to re-install your OEM fixing bracket
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Height: 27 mm
Length: 22 mm
Width: 21 mm
Bracket center to center: N/A
Wires length : 225 mm
Other specifications:
Number of wires : 2
Number of pins: N/A
Wire to wire resistance:
Blue to White = 245 ohms+/-20%
Height: 27 mm
Length: 22 mm
Width: 21 mm
Bracket center to center: N/A
Wires length : 225 mm
Other specifications:
Number of wires : 2
Number of pins: N/A
Wire to wire resistance:
Blue to White = 245 ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 420296321
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.

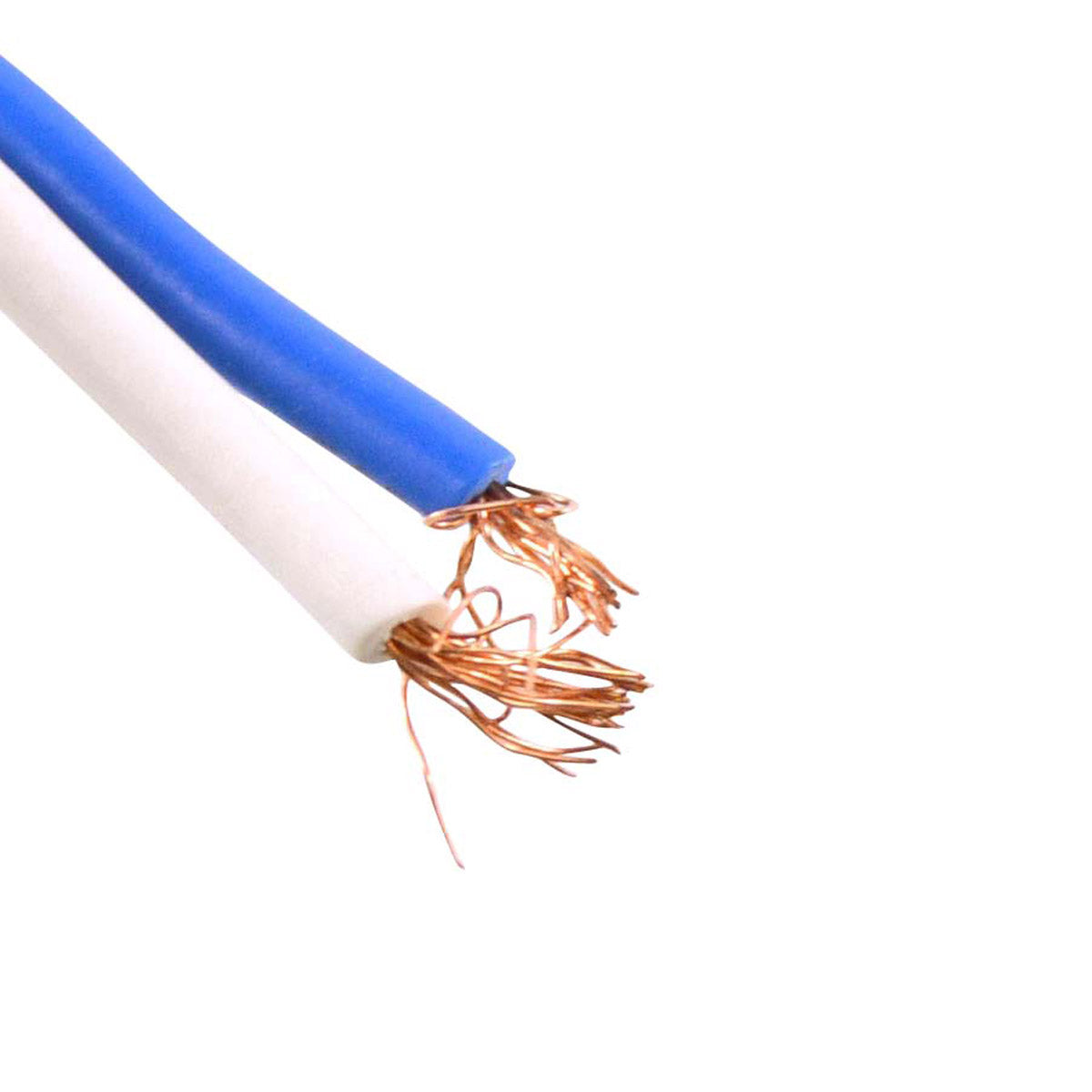

- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
