Stator Pickup Coil 177 ohms for Suzuki LTF 250 Ozark Manual LTZ 250 Quadsport Z250 2002-2014
RMSTATOR
SKU: RM00142
In Stock
RMSTATOR
Stator Pickup Coil 177 ohms for Suzuki LTF 250 Ozark Manual LTZ 250 Quadsport Z250 2002-2014
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator Pickup Coil 177 ohms for Suzuki LTF 250 Ozark Manual LTZ 250 Quadsport Z250 2002-2014
Details
Details

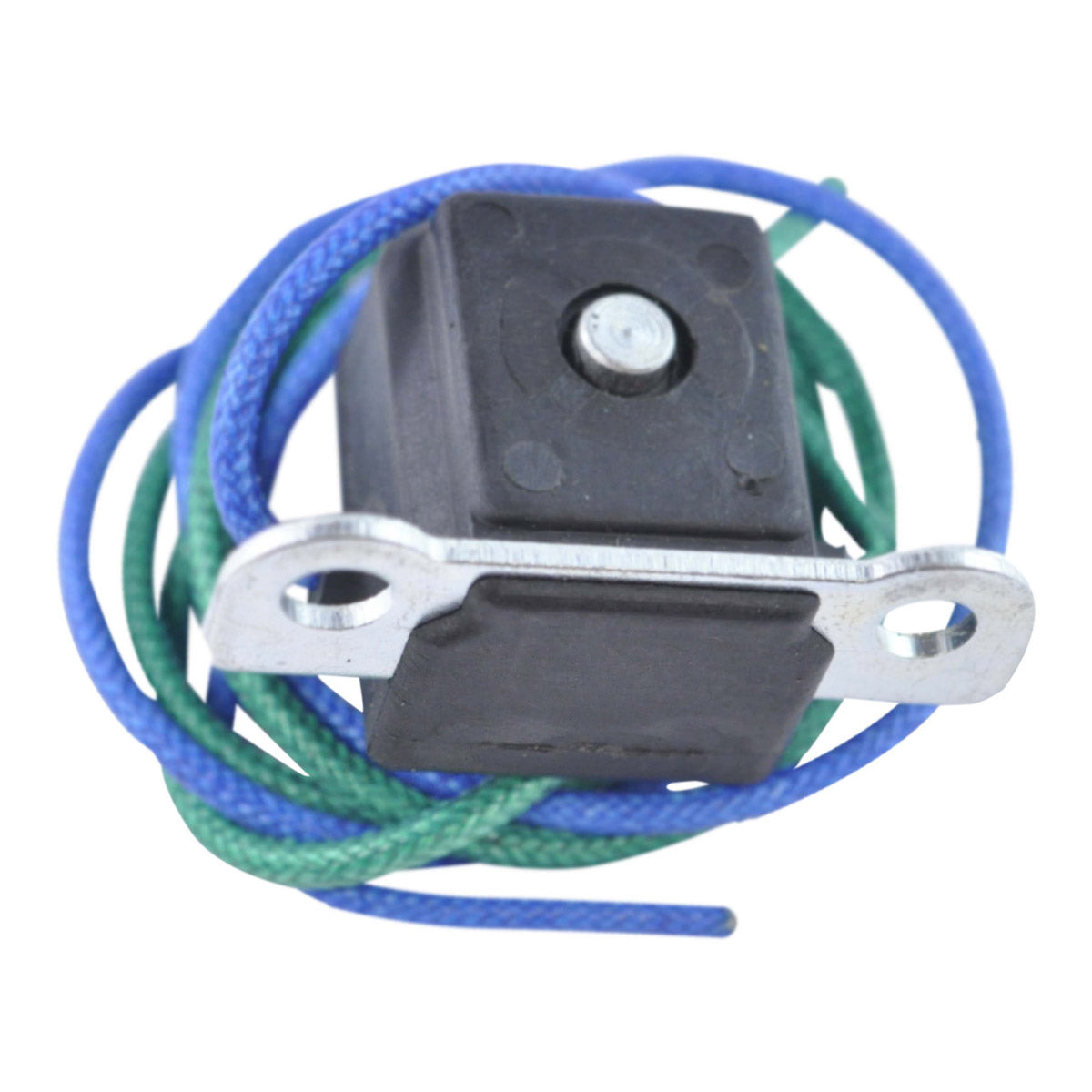

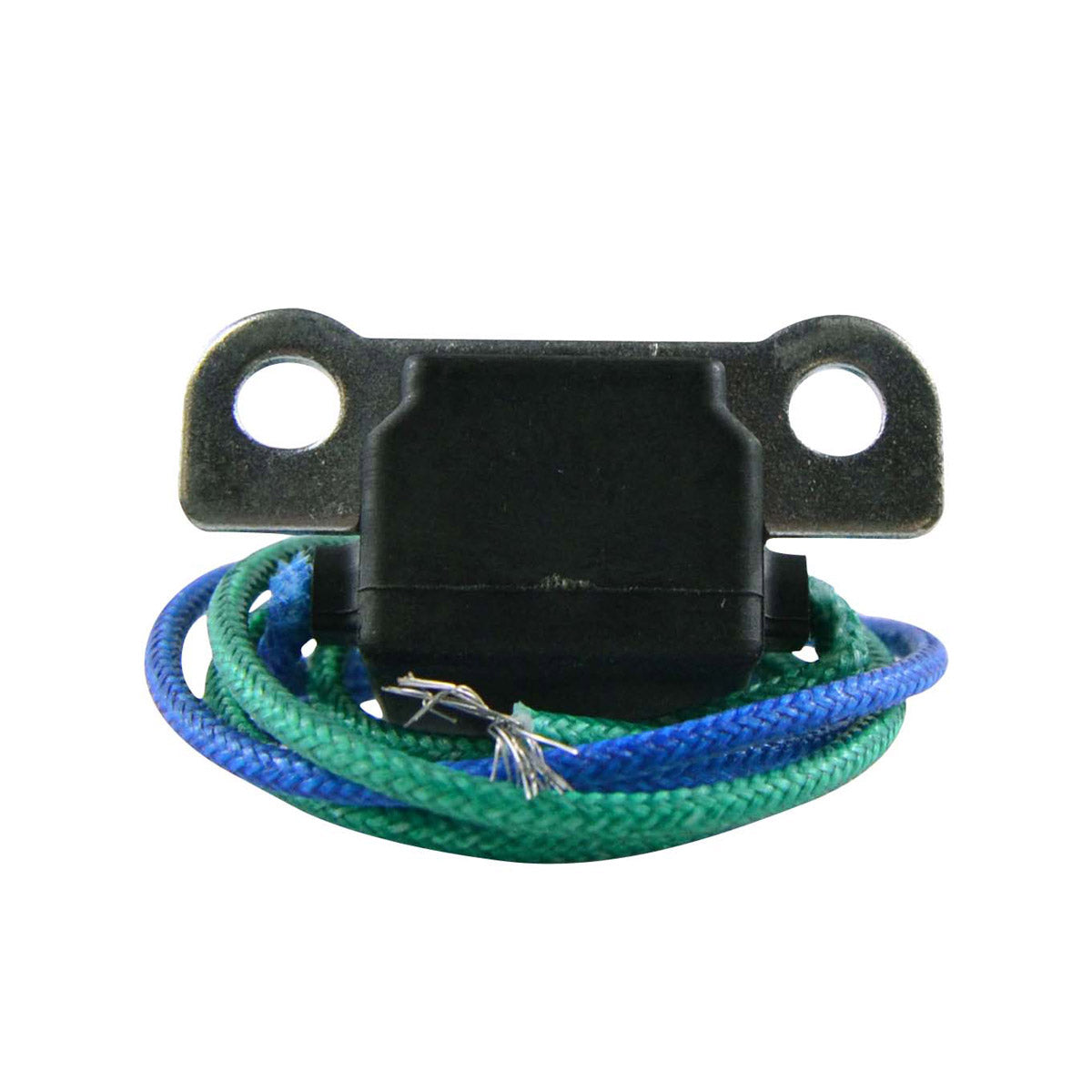

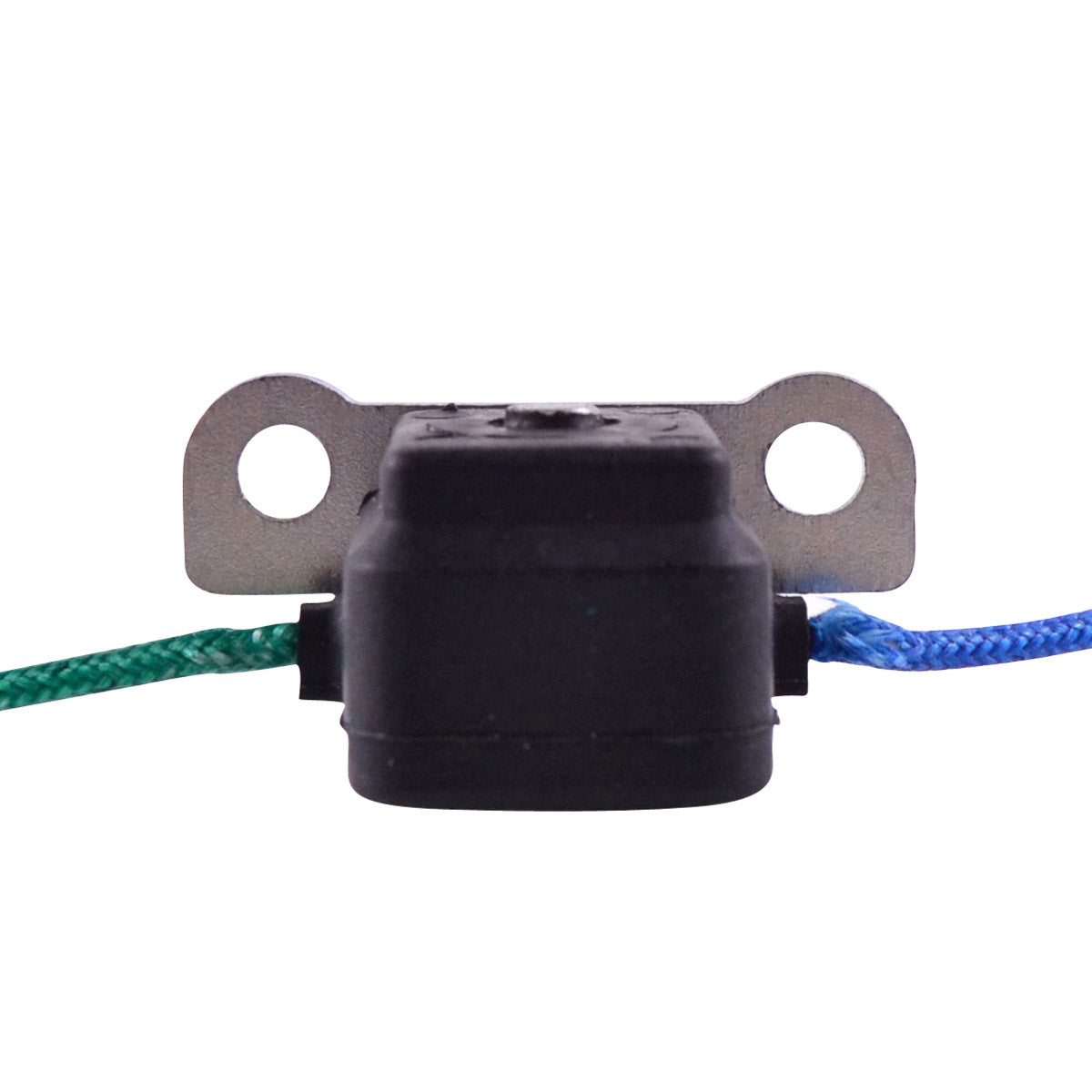

Brand new pick up coil for Stator 500 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Bracket center to center: 30mm
Wires length : 280mm
Other specifications:
Number of wires : 2

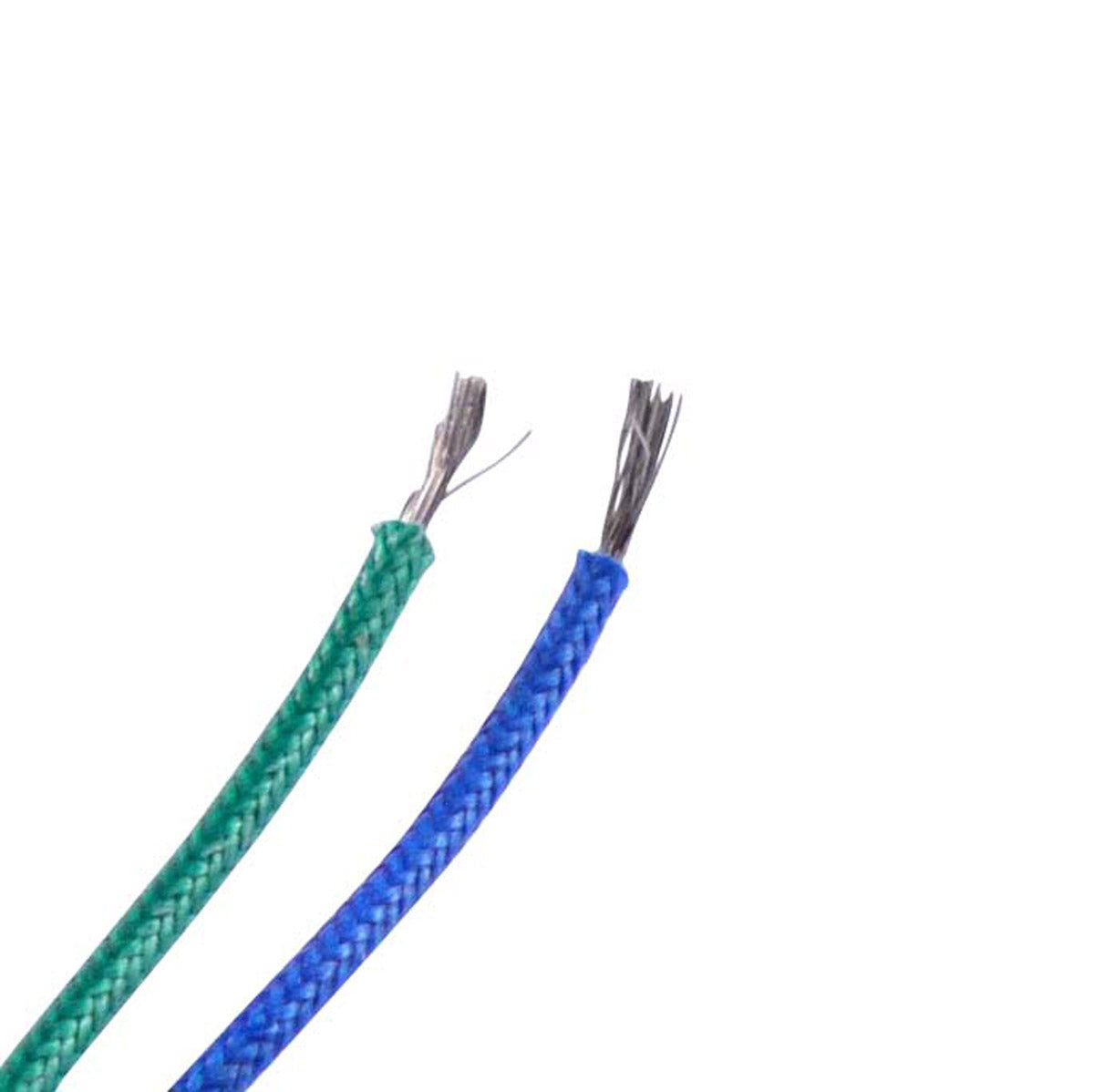

Color of wires: Blue Green
Number of pins: N/A
Wire to wire resistance:
Blue to Green = 177.2 ohms+/-20%
Bracket center to center: 30mm
Wires length : 280mm
Other specifications:
Number of wires : 2
Color of wires: Blue Green
Number of pins: N/A
Wire to wire resistance:
Blue to Green = 177.2 ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 32101-05G00
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
