Stator Pickup Pulsar Coil 200 ohms for Honda TRX 680 Rincon 2006-2014

Stator Pickup Pulsar Coil 200 ohms for Honda TRX 680 Rincon 2006-2014

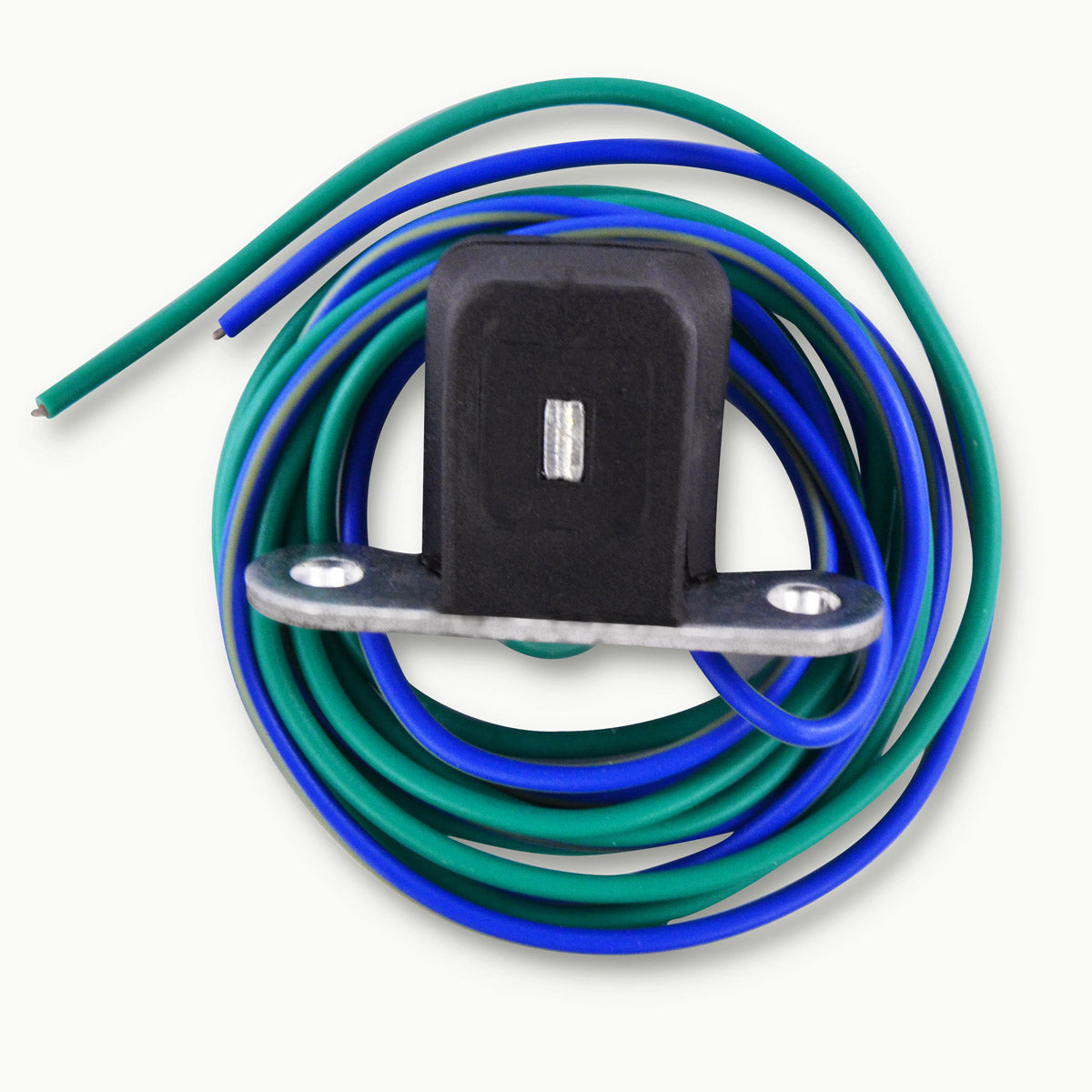

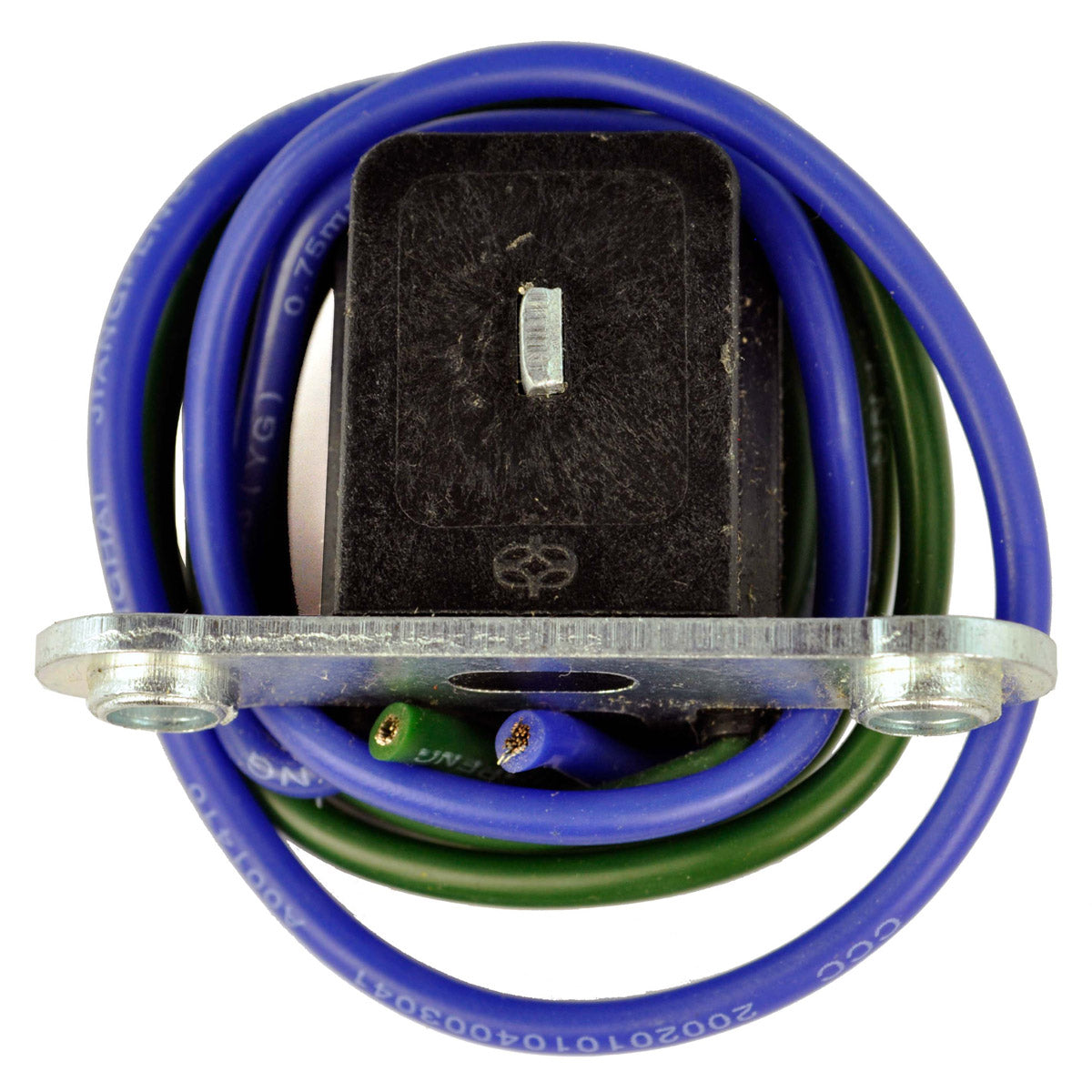

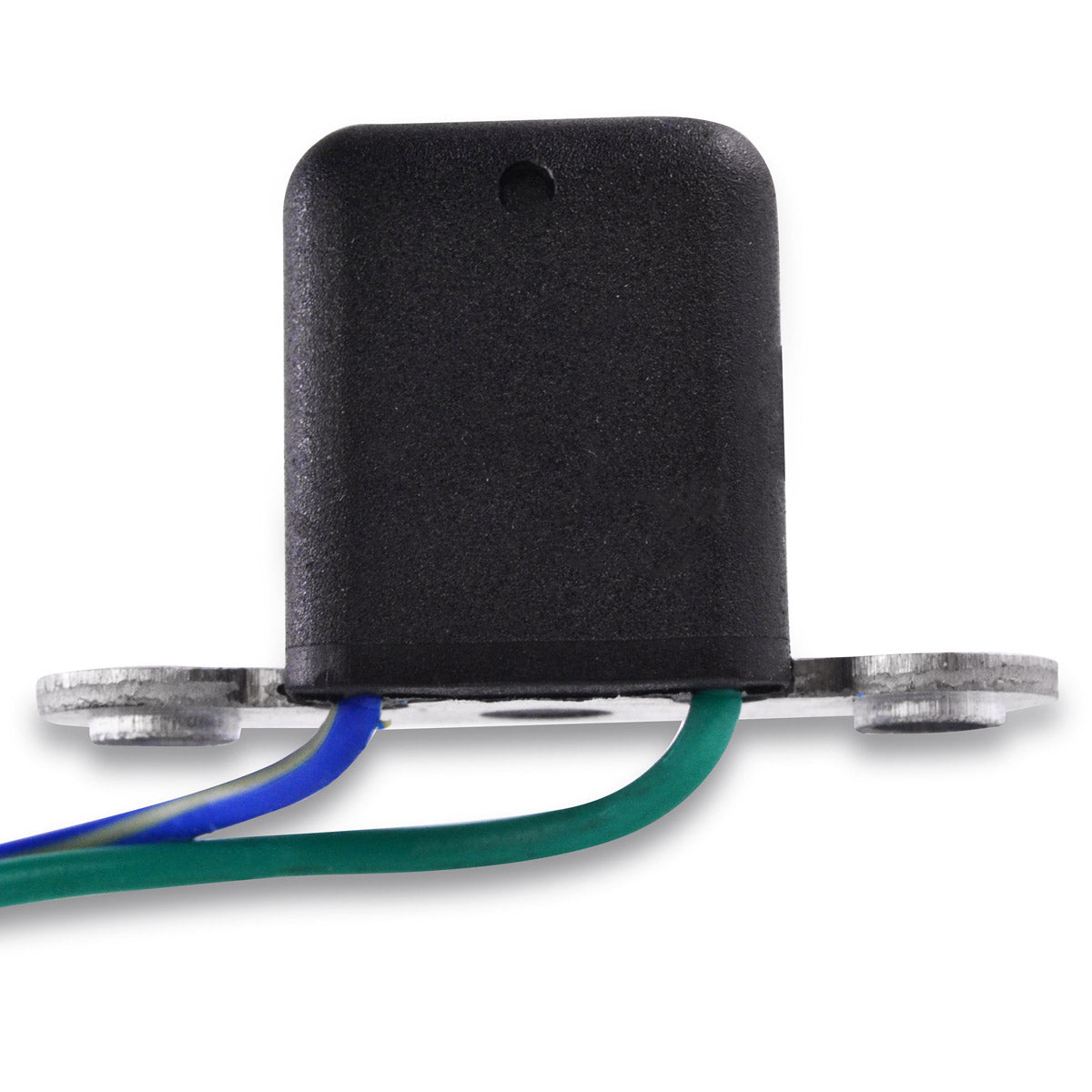

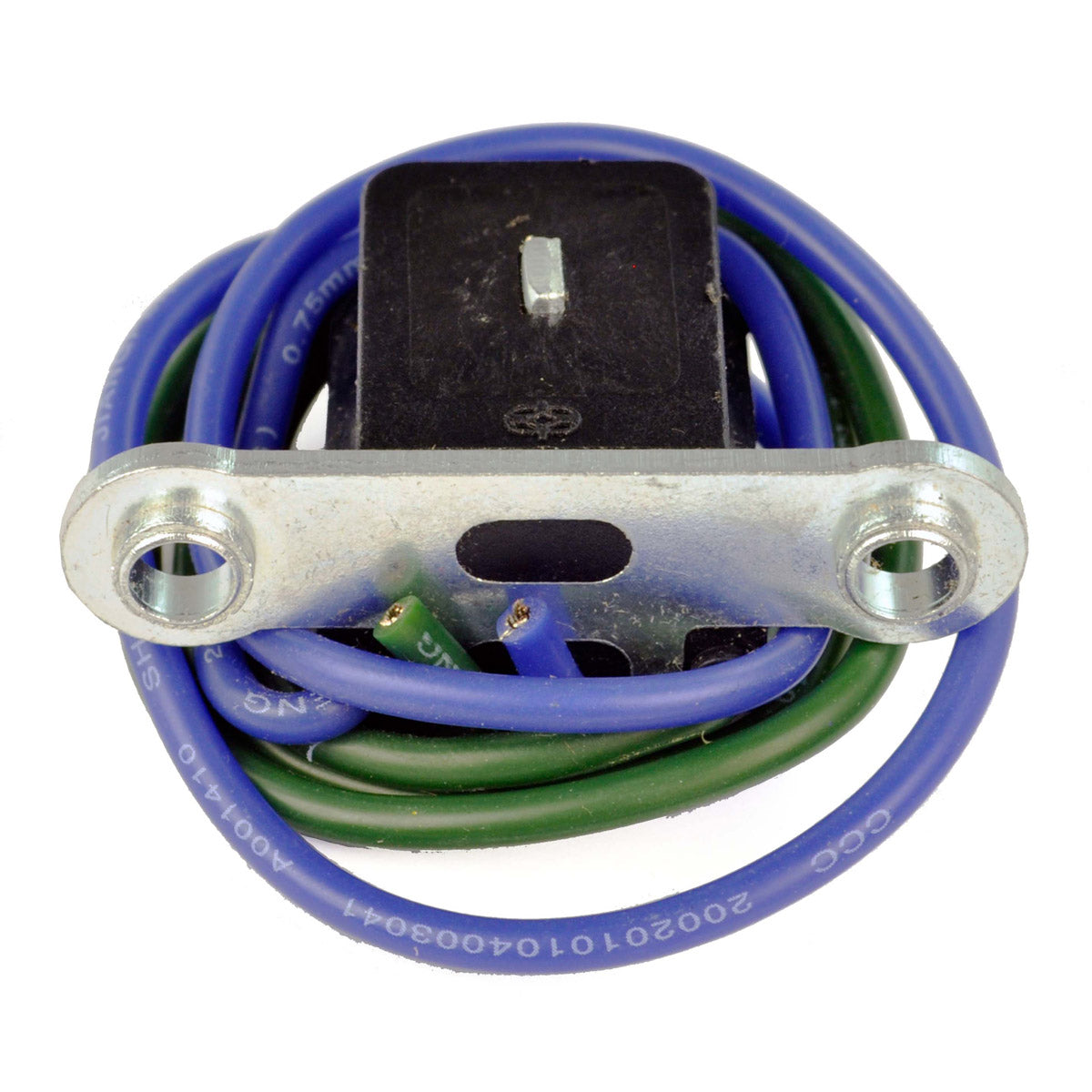

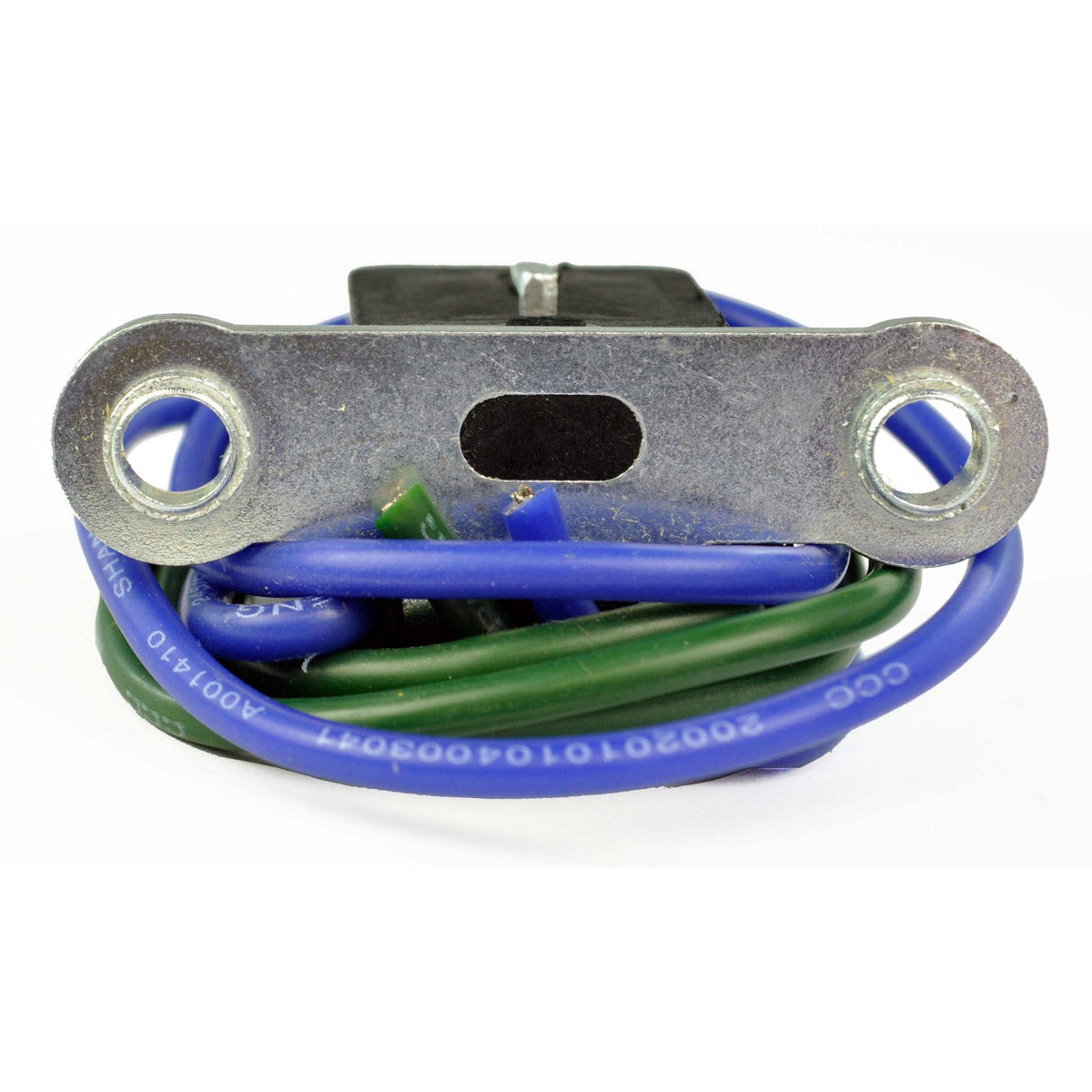

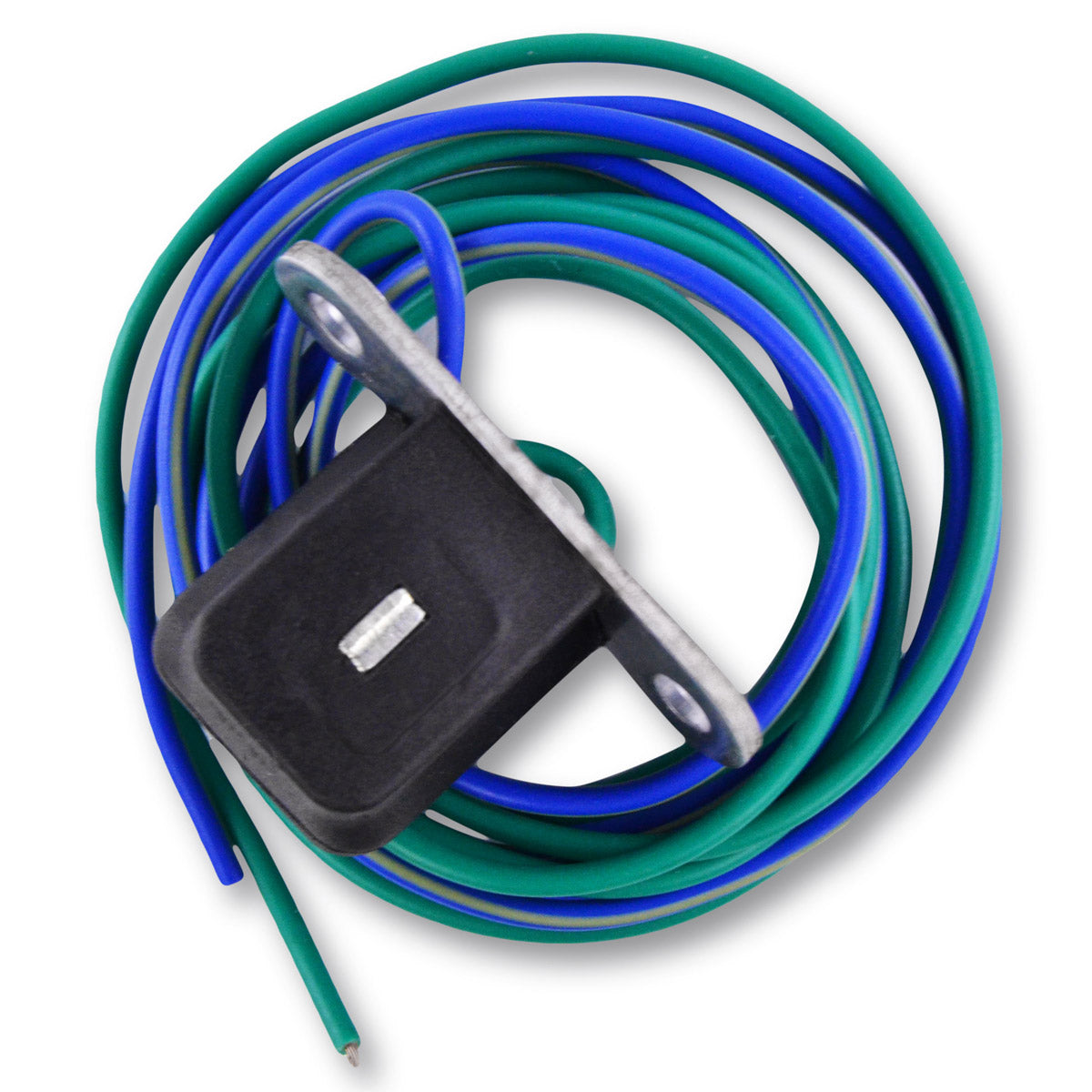

Name: Stator Pickup Pulsar Coil 200 ohms for Honda TRX 680 Rincon 2006-2014
Brand: RMSTATOR
SKU: RM00132
Price: 43.79 USD
Availability: InStock

RMSTATOR

SKU: RM00132

In Stock

RMSTATOR

Stator Pickup Pulsar Coil 200 ohms for Honda TRX 680 Rincon 2006-2014

$43.79

This product fits your

FITMENT WARNING:

This product does not fit your

This product is ride specific

Shop By Vehicle

Stator Pickup Pulsar Coil 200 ohms for Honda TRX 680 Rincon 2006-2014

$43.79

Details

Brand new pick up coil 200 ohms

We offer a brand new pickup/pulsar coil for you to repair your stator.
Often unavailable from the OEM manufacturer
All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Height: 18 mm
Length: 25 mm
Width: 22 mm

Bracket center to center: 35 mm

Wires length: 325

Other specifications:

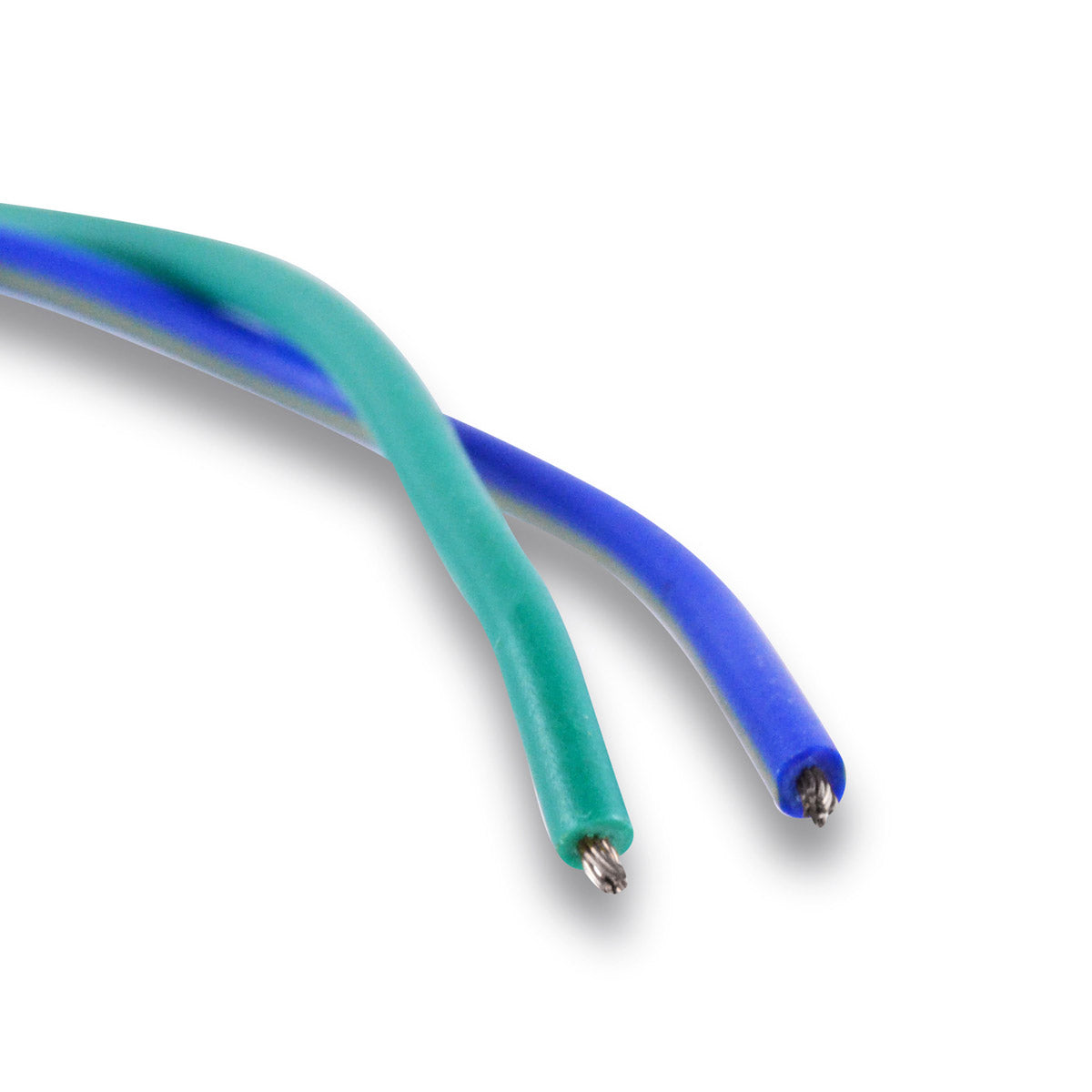

Number of wires: 2
Number of pins: 2

Wire to wire resistance: Blue to Green = 200 ohms +/-20%

Interchange Part Nº

31120-HN8-A60
31120-HN8-A61
31120-HN8-A62

Installation

Not following these instructions may result in damaging the part or other components on your vehicle.

By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
Insulate your solders with heat shrink.
Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010ﾒﾒ.
If no spark or erratic spark, switch the wires at the plug.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
