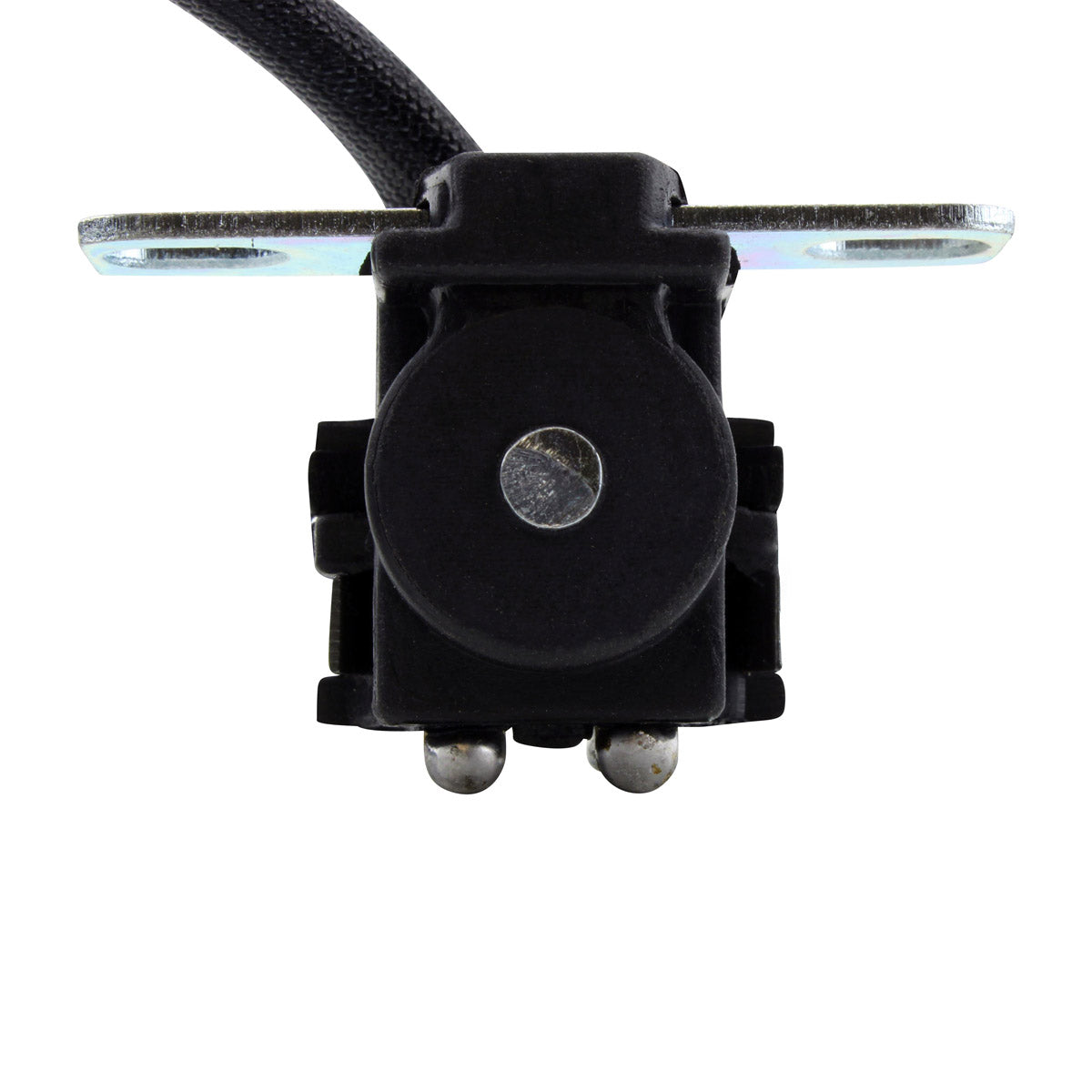

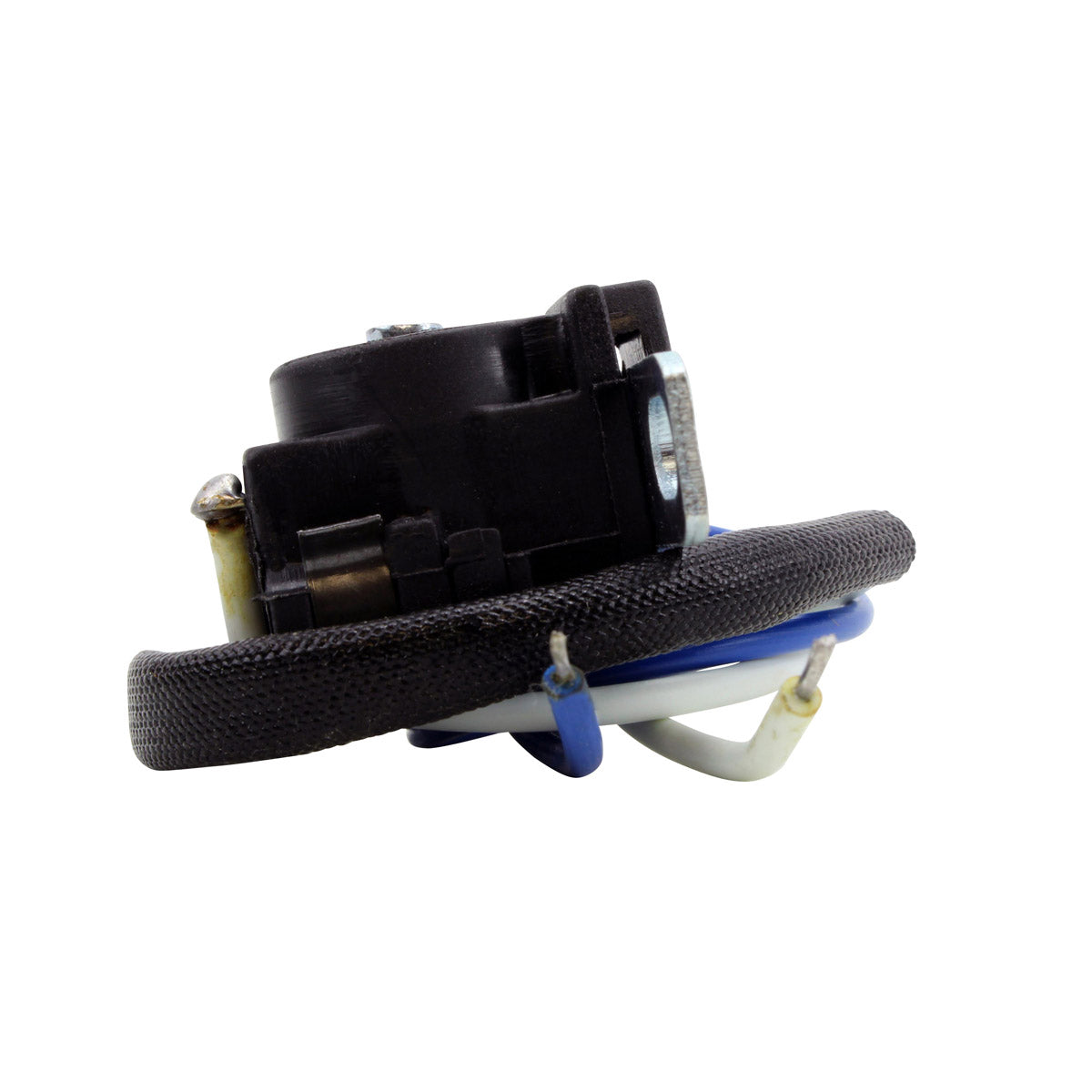

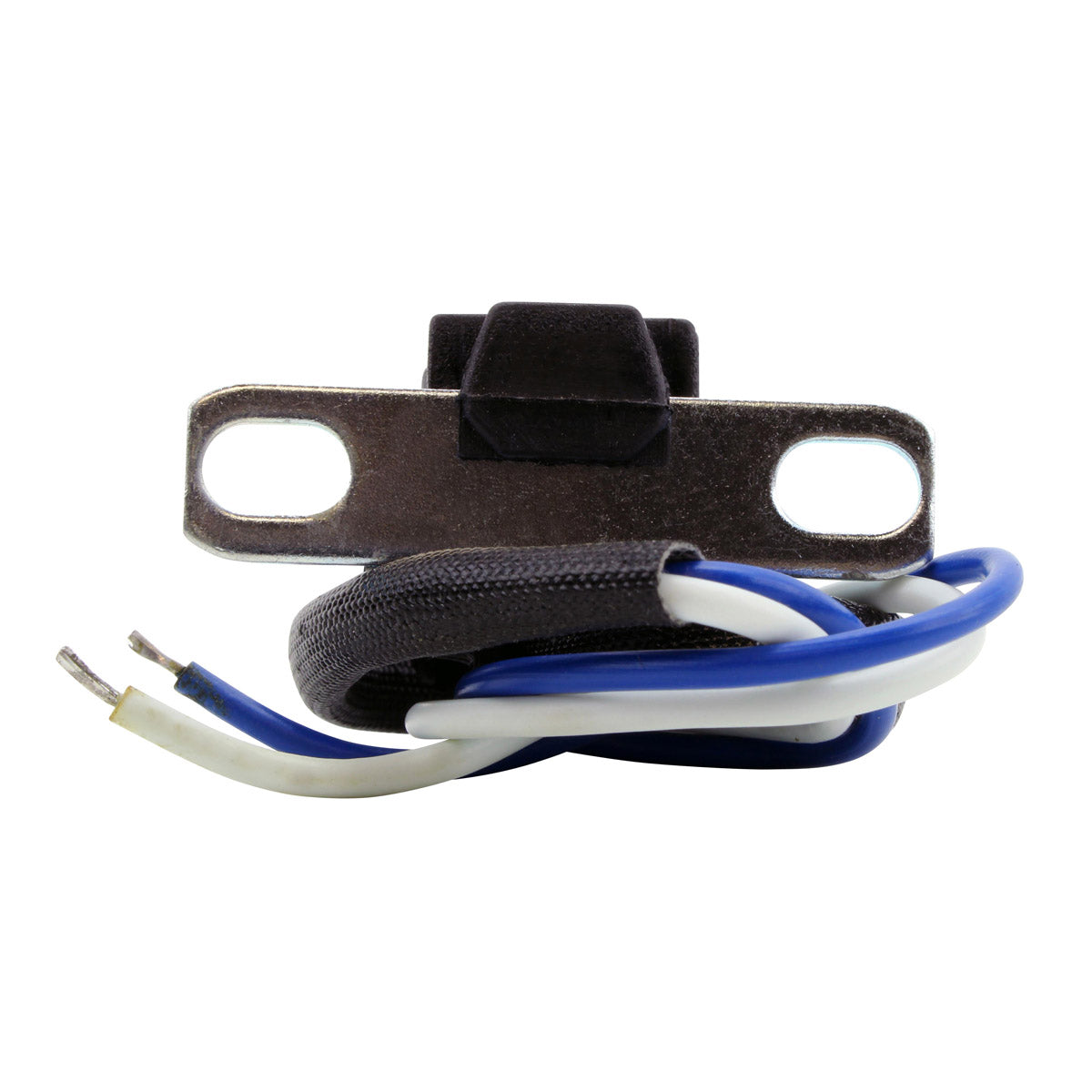

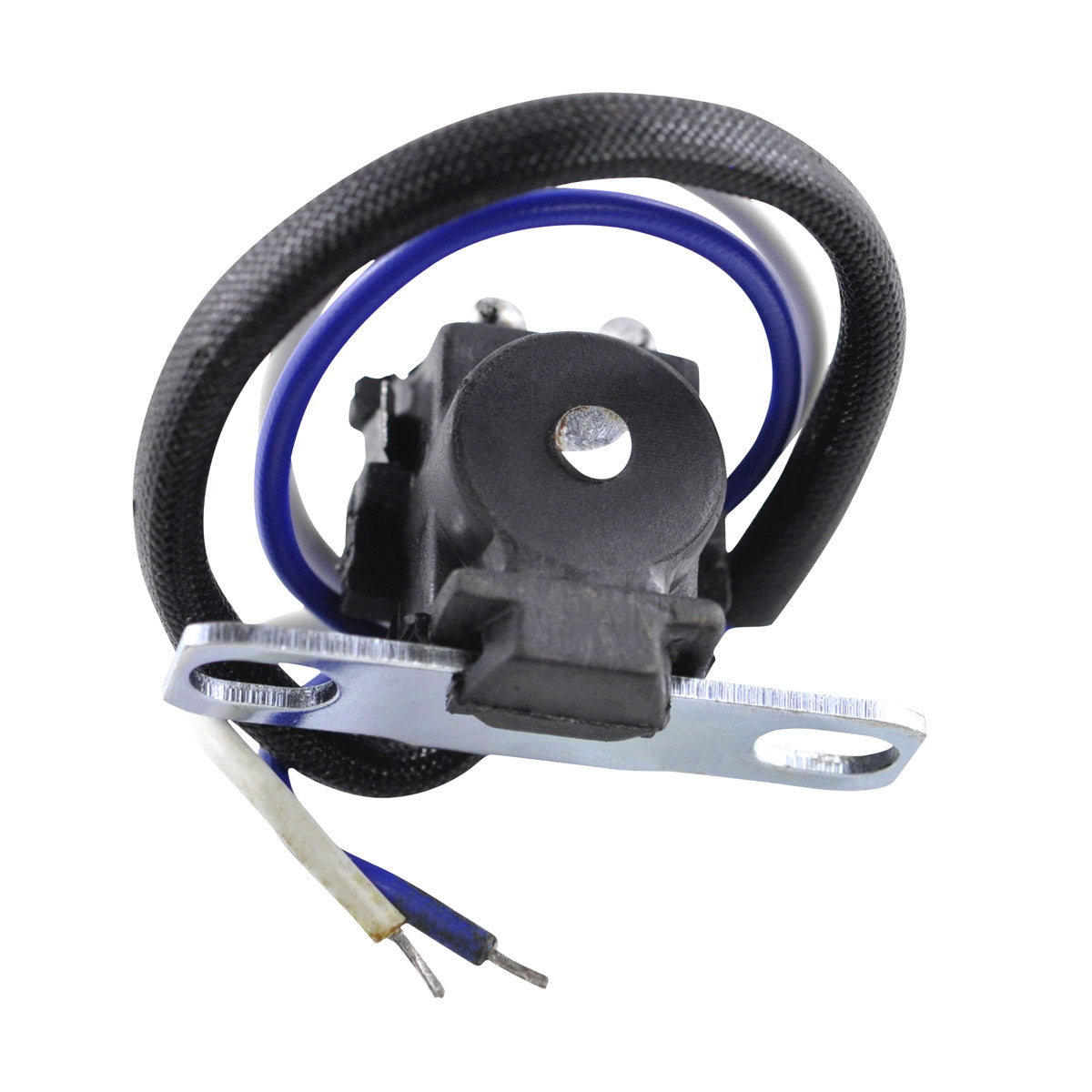

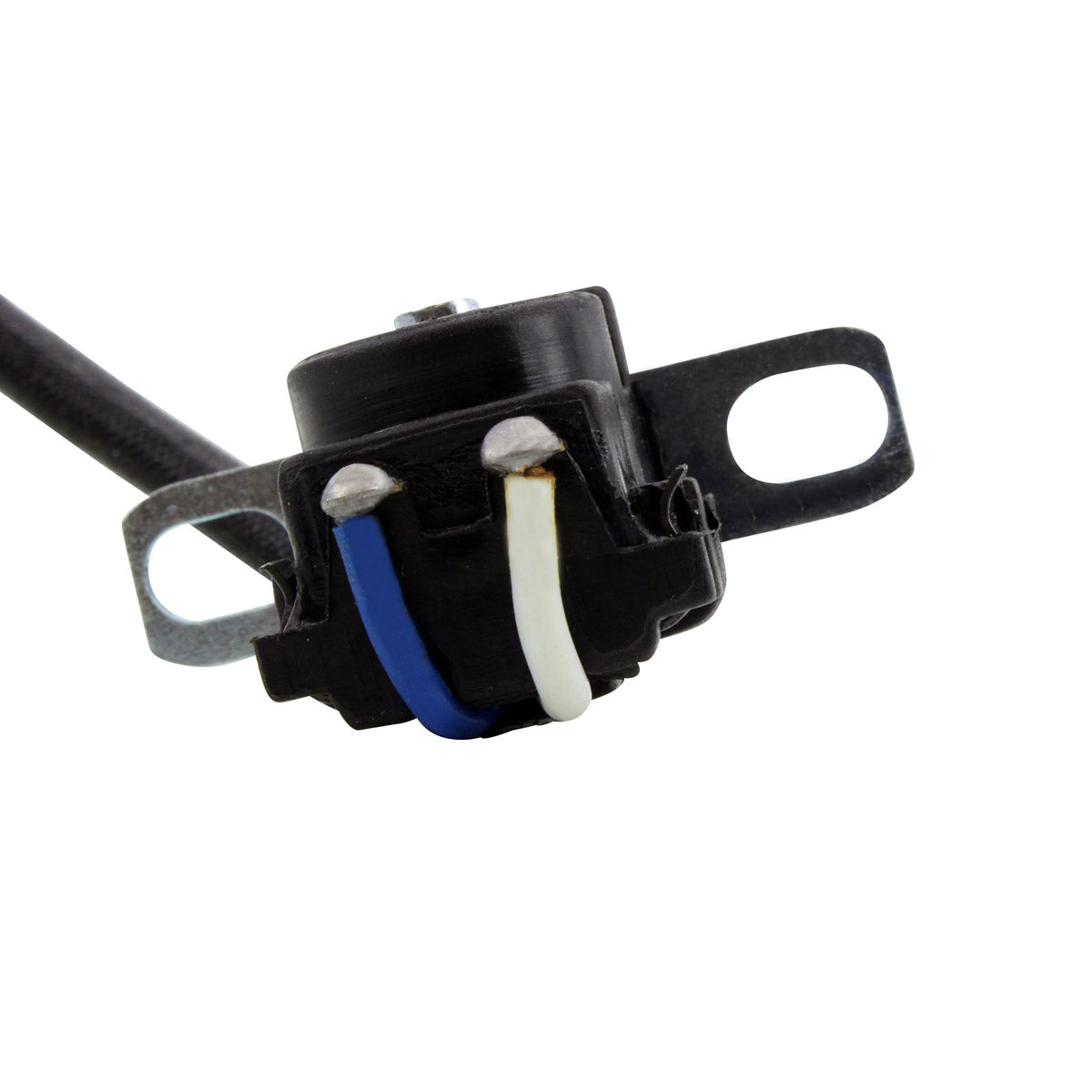

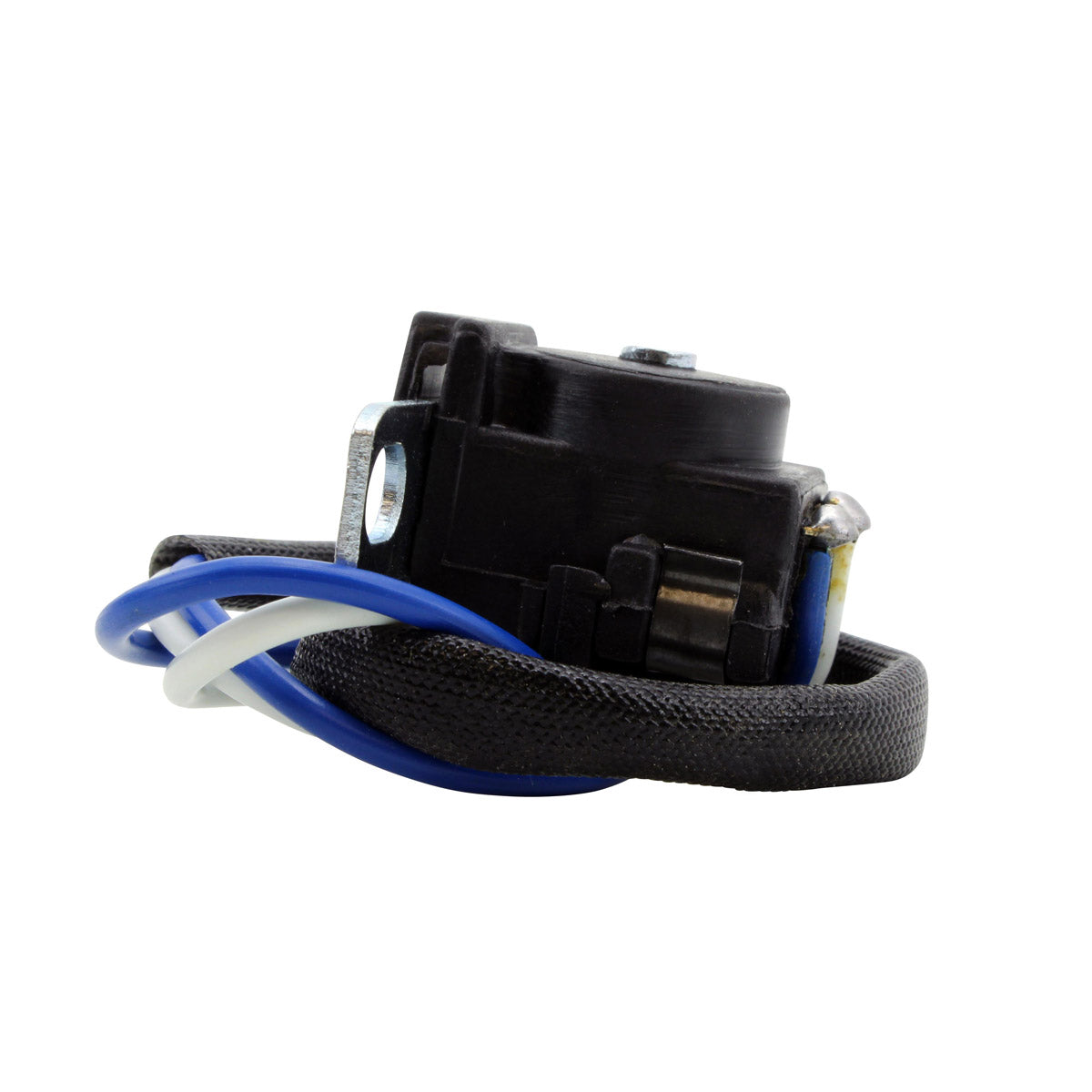

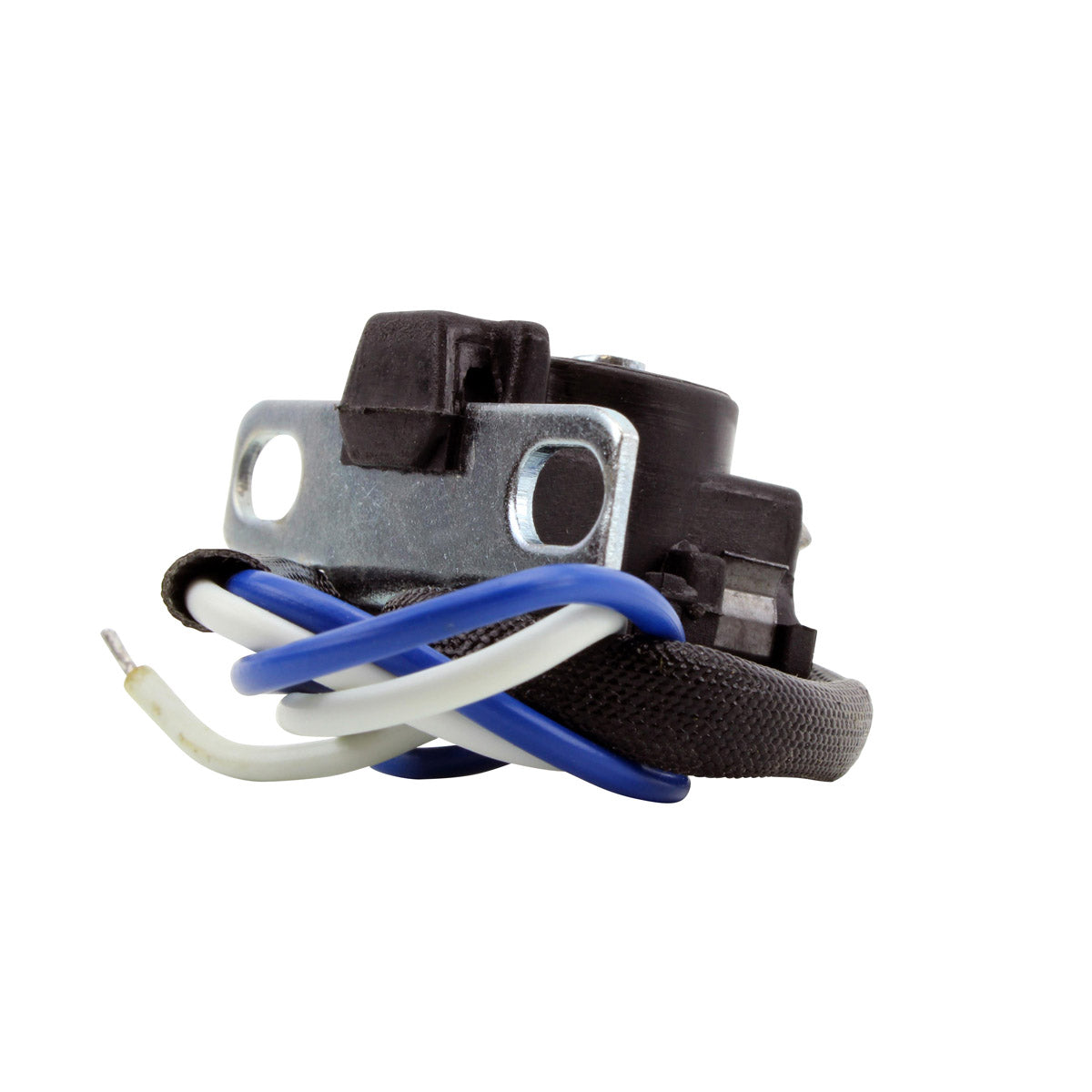

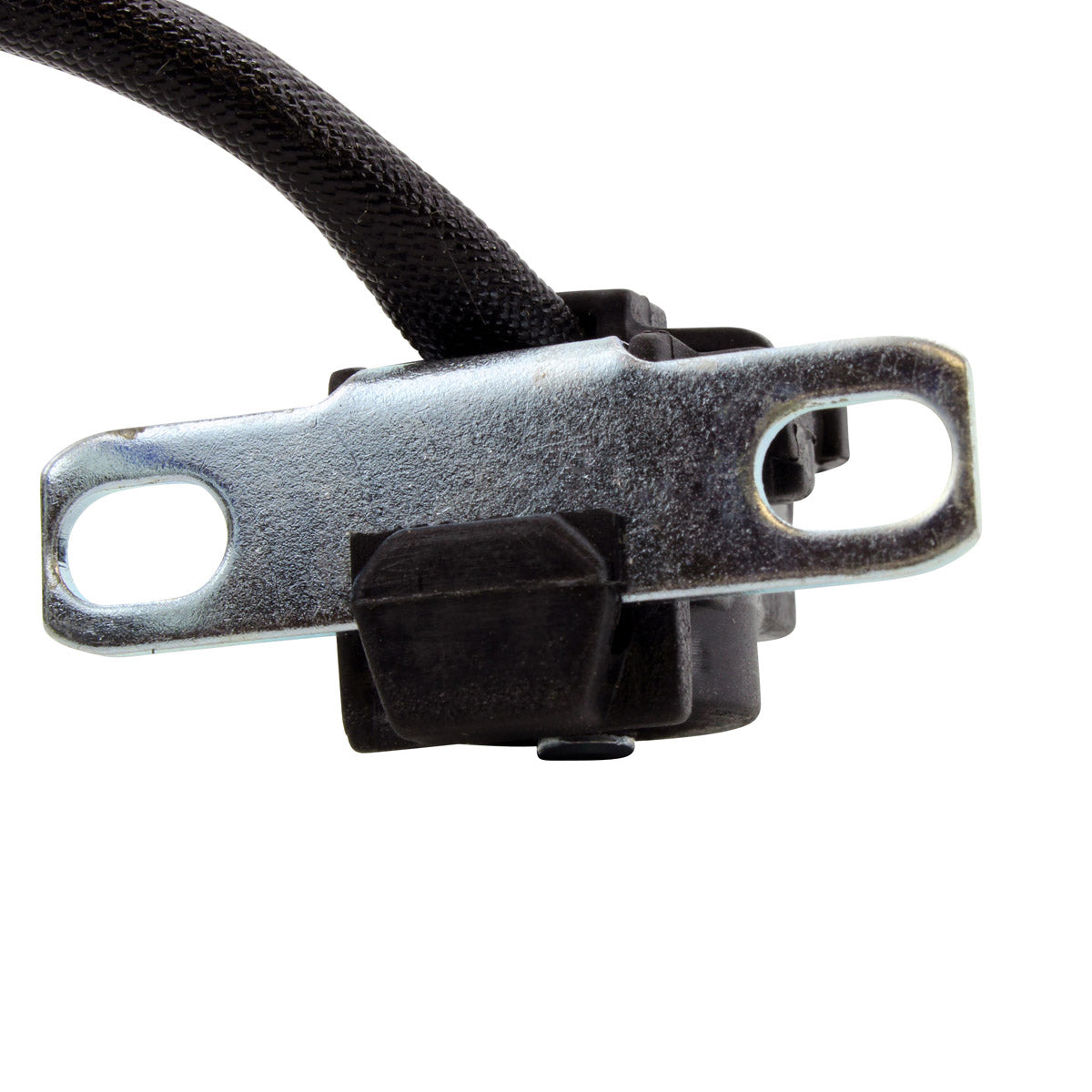

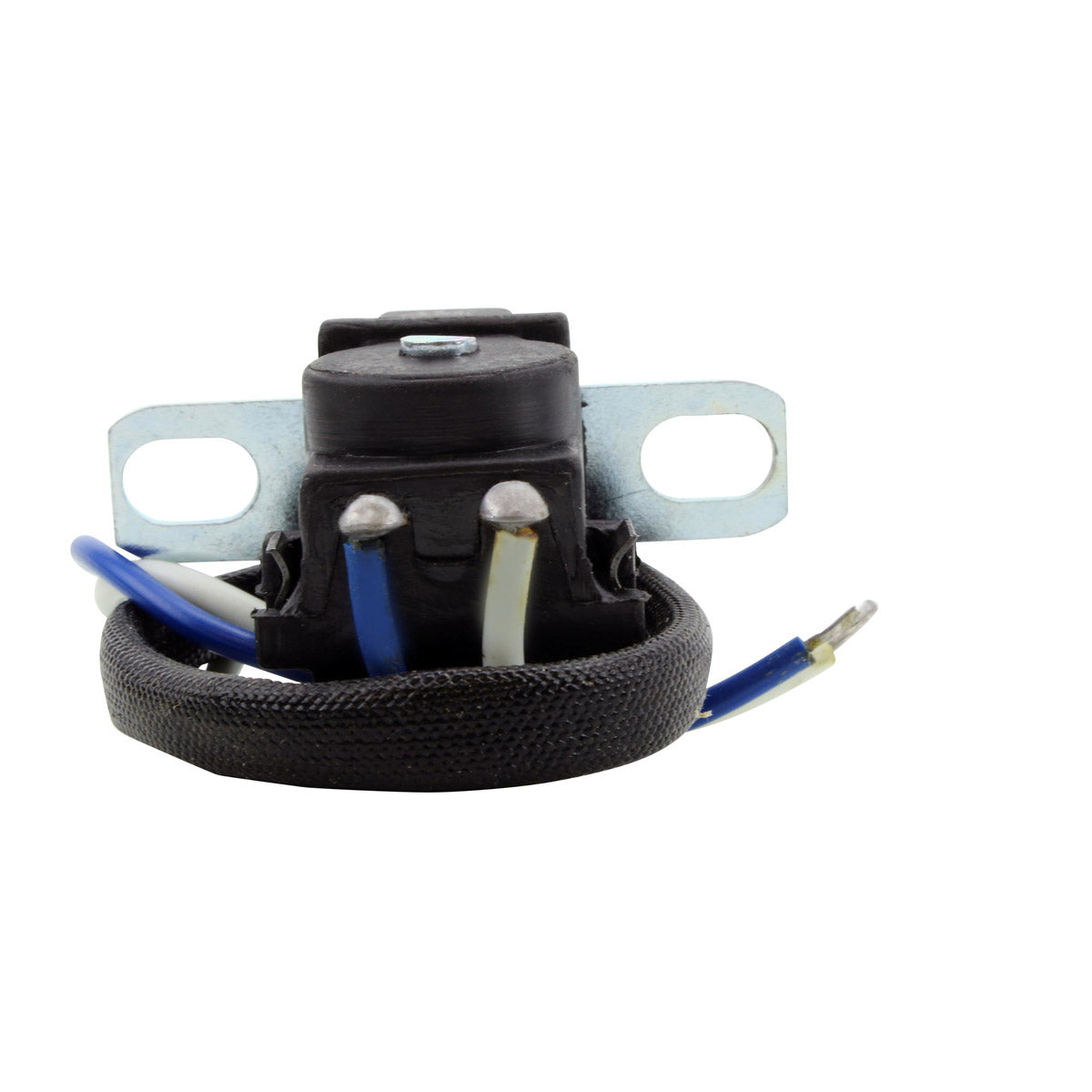

Stator Pickup Pulsar Coil for Ski-Doo 440 467 470 500 580 583 650 670 700 780 800 cc Carb L/C 1993-2000
RMSTATOR
SKU: RM00116
In Stock
RMSTATOR
Stator Pickup Pulsar Coil for Ski-Doo 440 467 470 500 580 583 650 670 700 780 800 cc Carb L/C 1993-2000
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator Pickup Pulsar Coil for Ski-Doo 440 467 470 500 580 583 650 670 700 780 800 cc Carb L/C 1993-2000
Details
Details
Brand new pick up coil 250 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Height: 26mm
Length: 23mm
Width: 22mm
Bracket center to center: 35mm
Wires length : 305mm
Other specifications:
Number of wires : 2
Number of pins: 2
Wire to wire resistance:

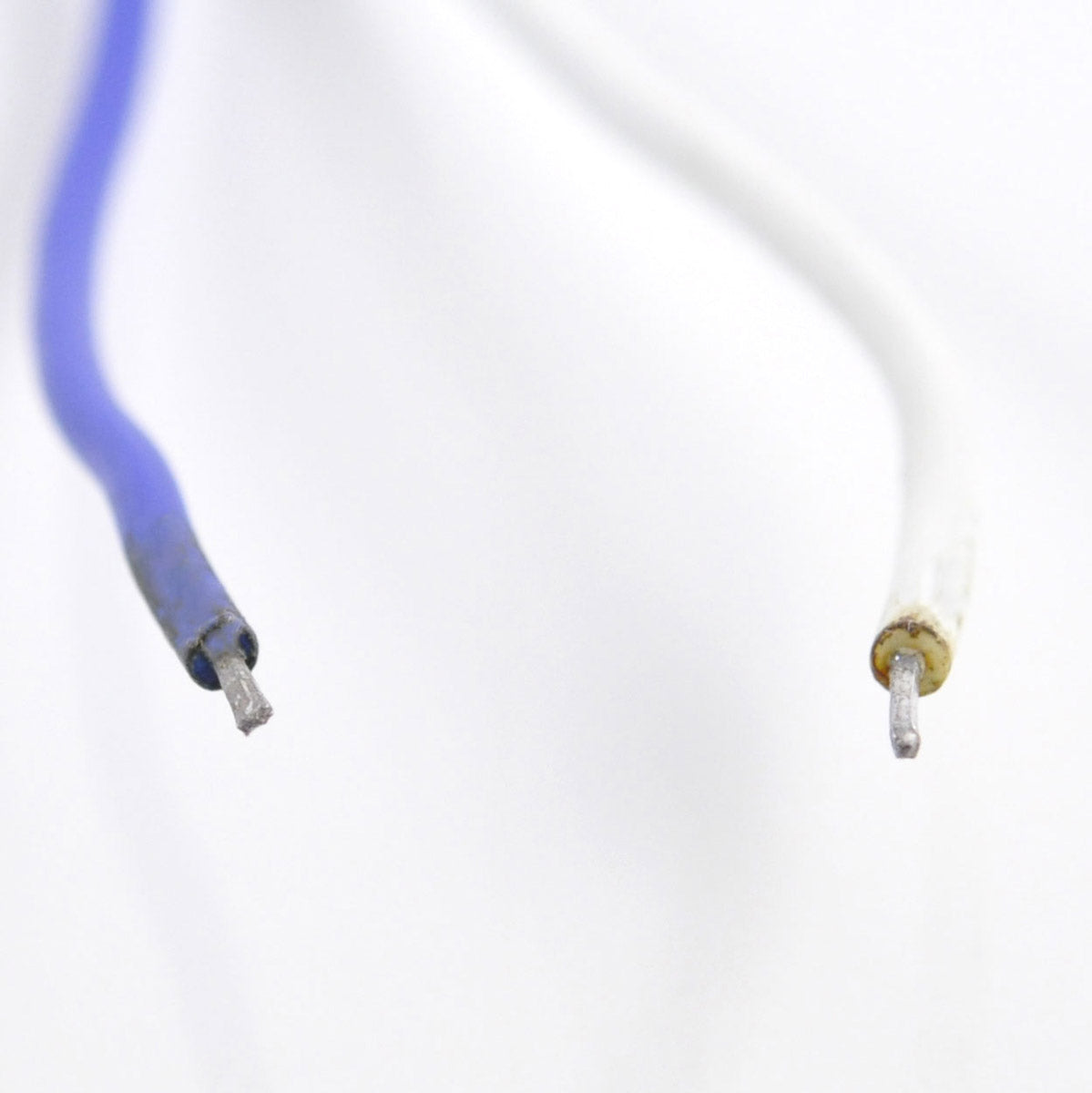

Blue to White = 250ohms+/-20%
Height: 26mm
Length: 23mm
Width: 22mm
Bracket center to center: 35mm
Wires length : 305mm
Other specifications:
Number of wires : 2
Number of pins: 2
Wire to wire resistance:
Blue to White = 250ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 420965642
- 410921100
- 410916700
- 410922900
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010ﾒﾒ.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Vehicle Fitments
Vehicle Fitments
Vehicle Fitments
