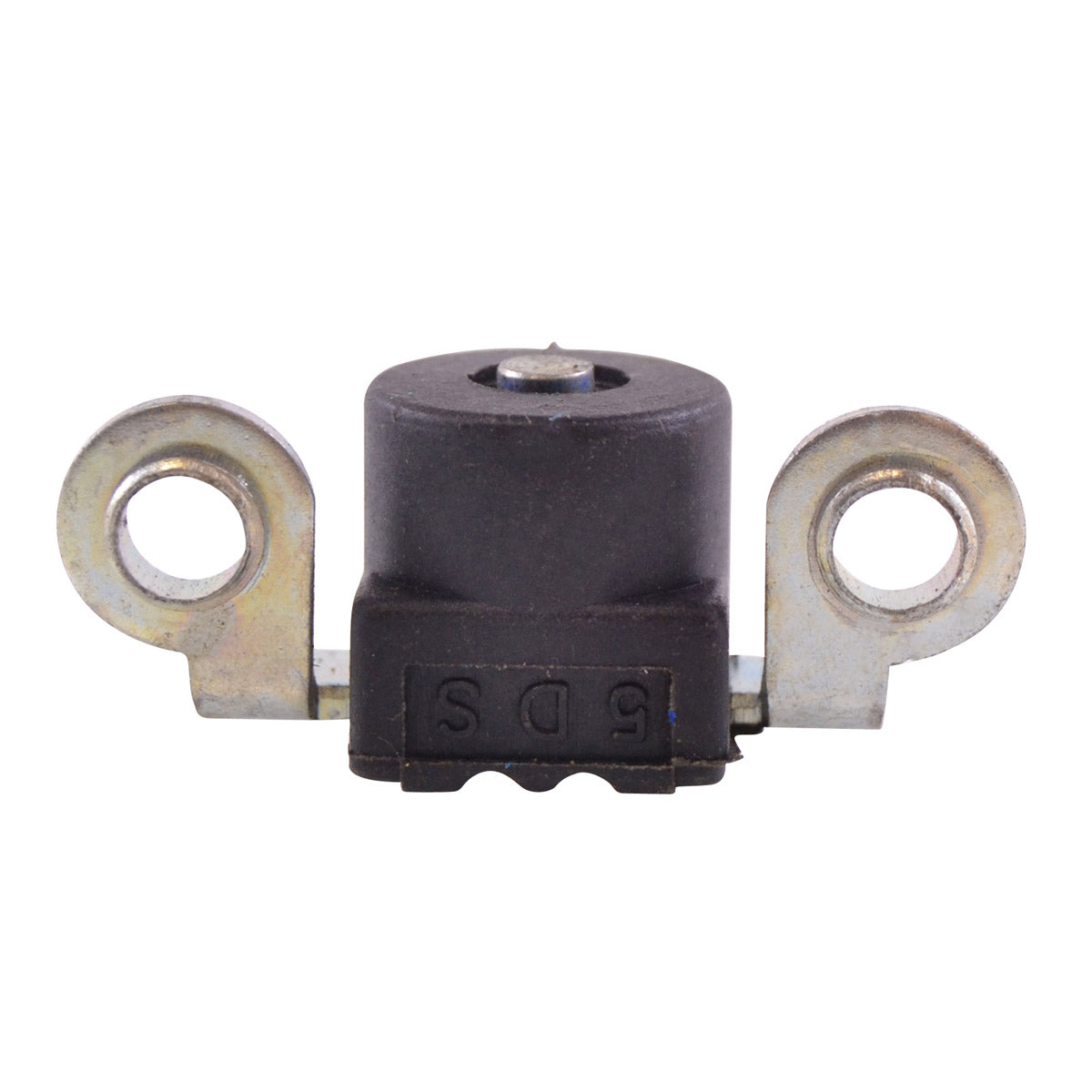

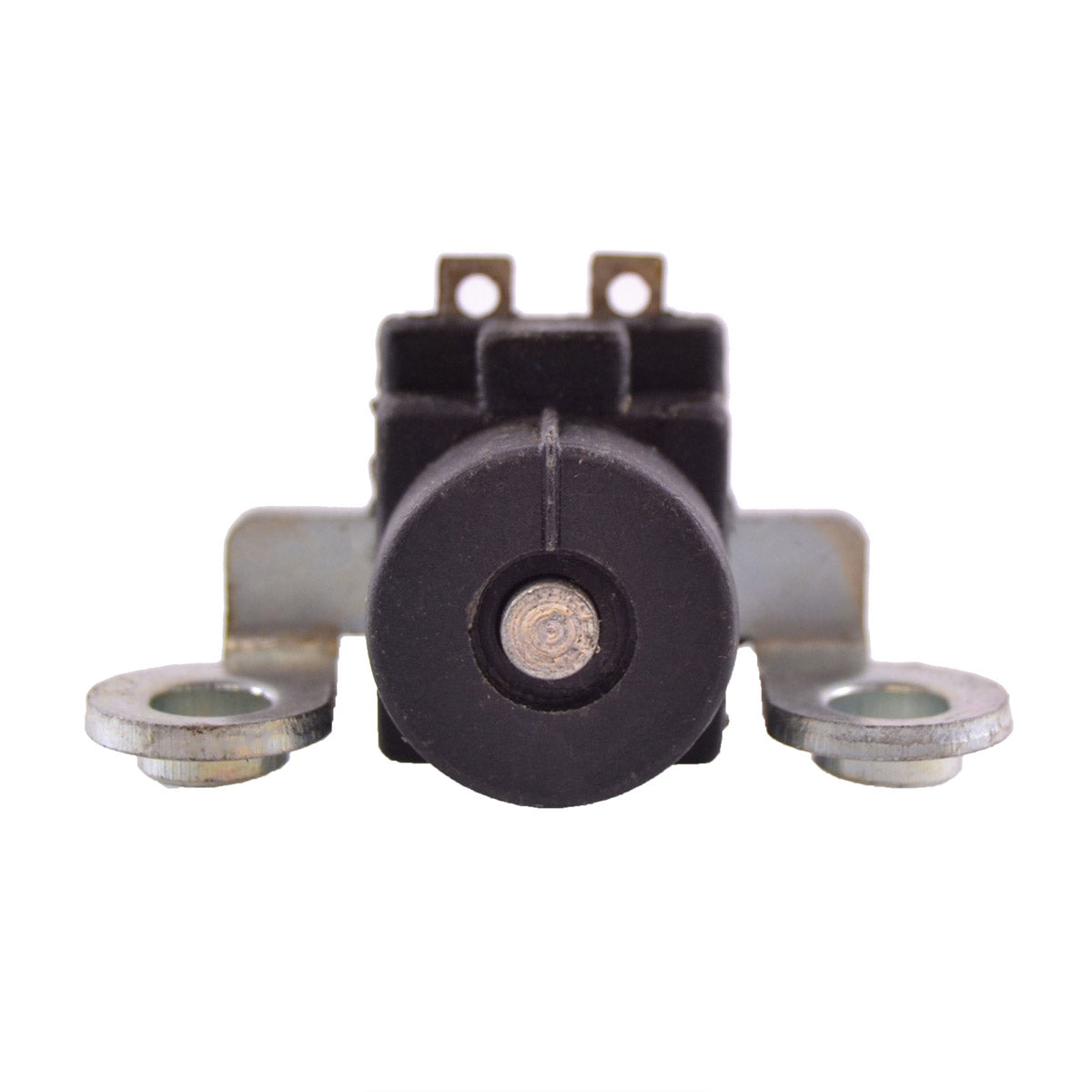

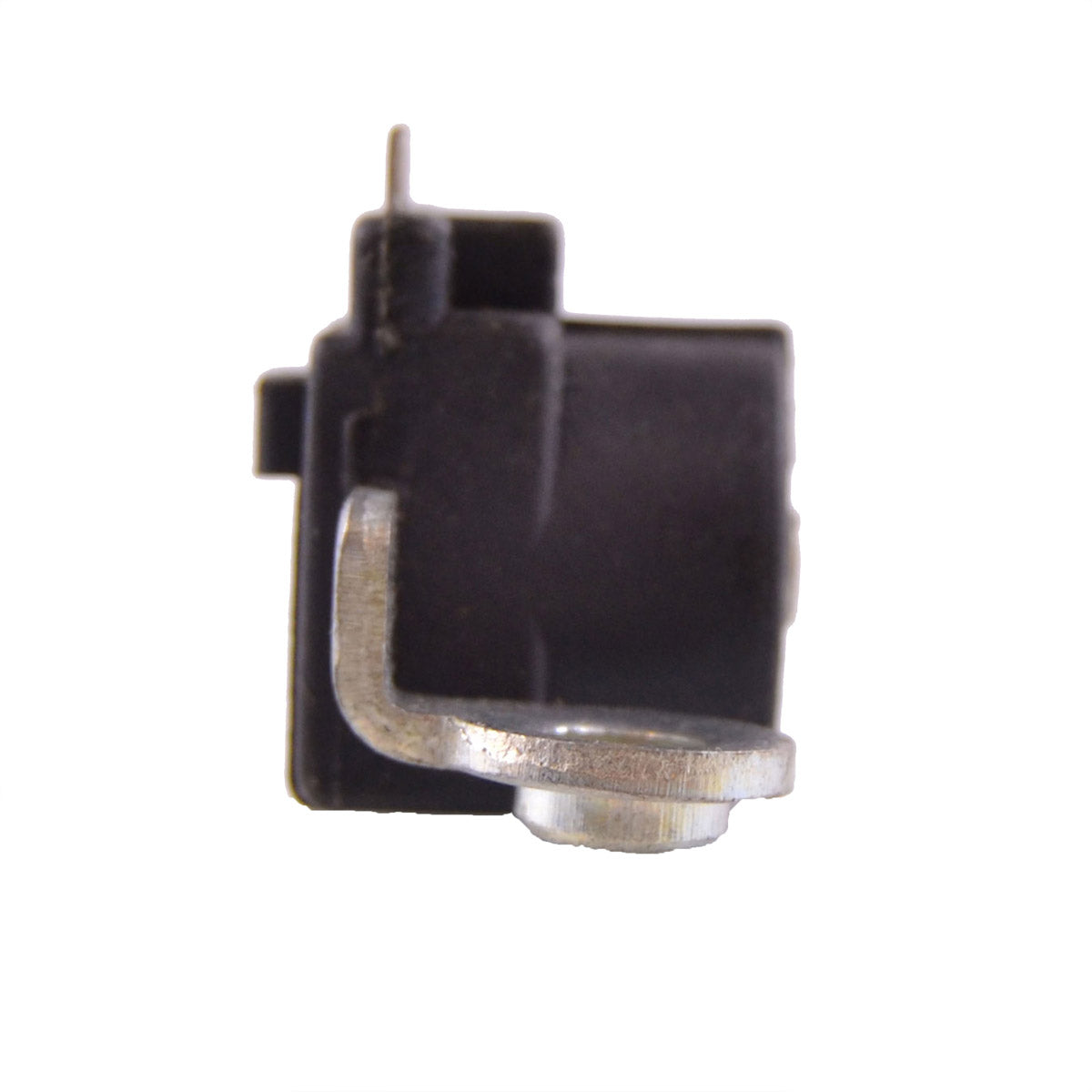

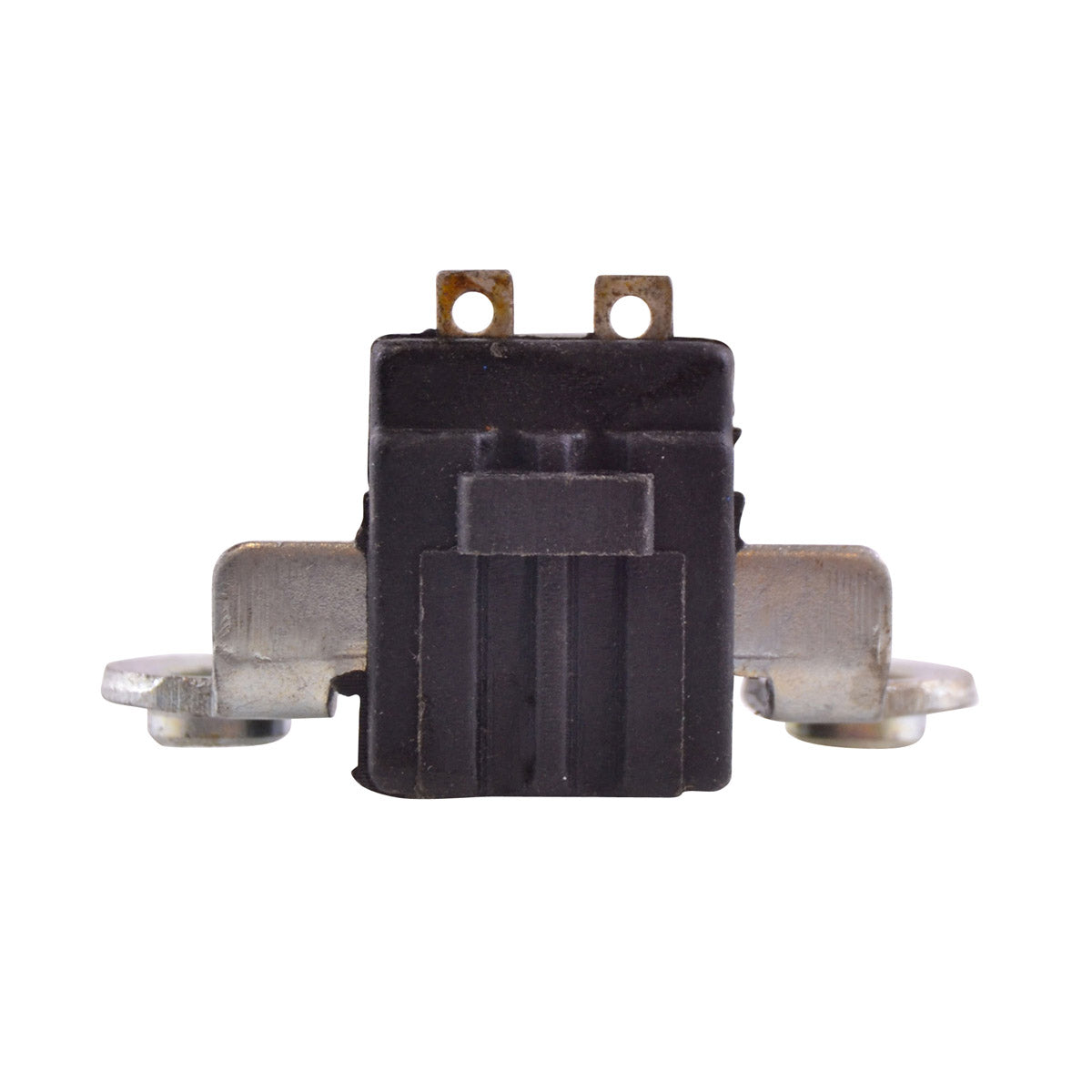

Stator Pickup Pulsar Coil for Yamaha YFZ 450 / YFZ 450 X / YFZ 450 R 2004-2024 | WR 250 F 2005-2013
Stator Pickup Pulsar Coil for Yamaha YFZ 450 / YFZ 450 X / YFZ 450 R 2004-2025 | WR 250 F 2005-2013 | # 5TG-81410-01-00
$70.16

Details

Brand new pick up coil 300 ohms

  • We offer a brand new pickup/pulsar coil for you to repair your stator.
  • Often unavailable from the OEM manufacturer
  • All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Height: 18mm
Length: 23mm
Width: 19mm
Bracket center to center: 35mm

Other specifications:
Number of wires : 0
Number of pins: 2

Wire to wire resistance:
Pin to Pin = 300 ohms+/-20%

Interchange Part Nº

  • 18P-81410-02-00
  • 5UM-81410-30-00
  • 5UM-81410-20-00
  • 5UM-81410-31-00
  • 5UM-81410-10-00
  • 18P-81410-00-00
  • 5TG-81410-10-00
  • 5TG-81410-03-00
  • 5TG-81410-02-00
  • 5TG-81410-01-00
  • 5TG-81410-00-00

Installation

Not following these instructions may result in damaging the part or other components on your vehicle.
  • By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
  • Insulate your solders with heat shrink.
  • Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
  • Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010??.
  • If no spark or erratic spark, switch the wires at the plug.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
