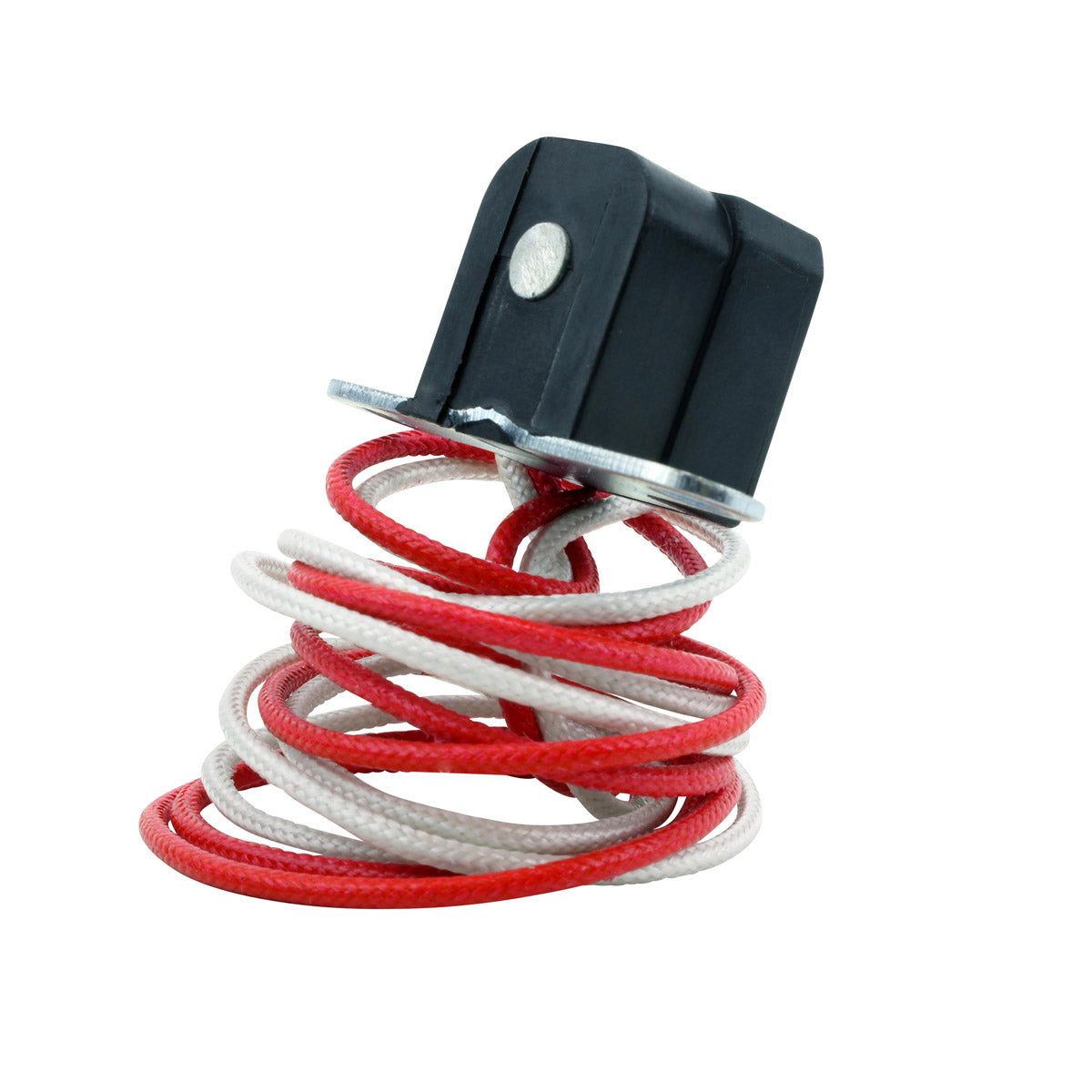

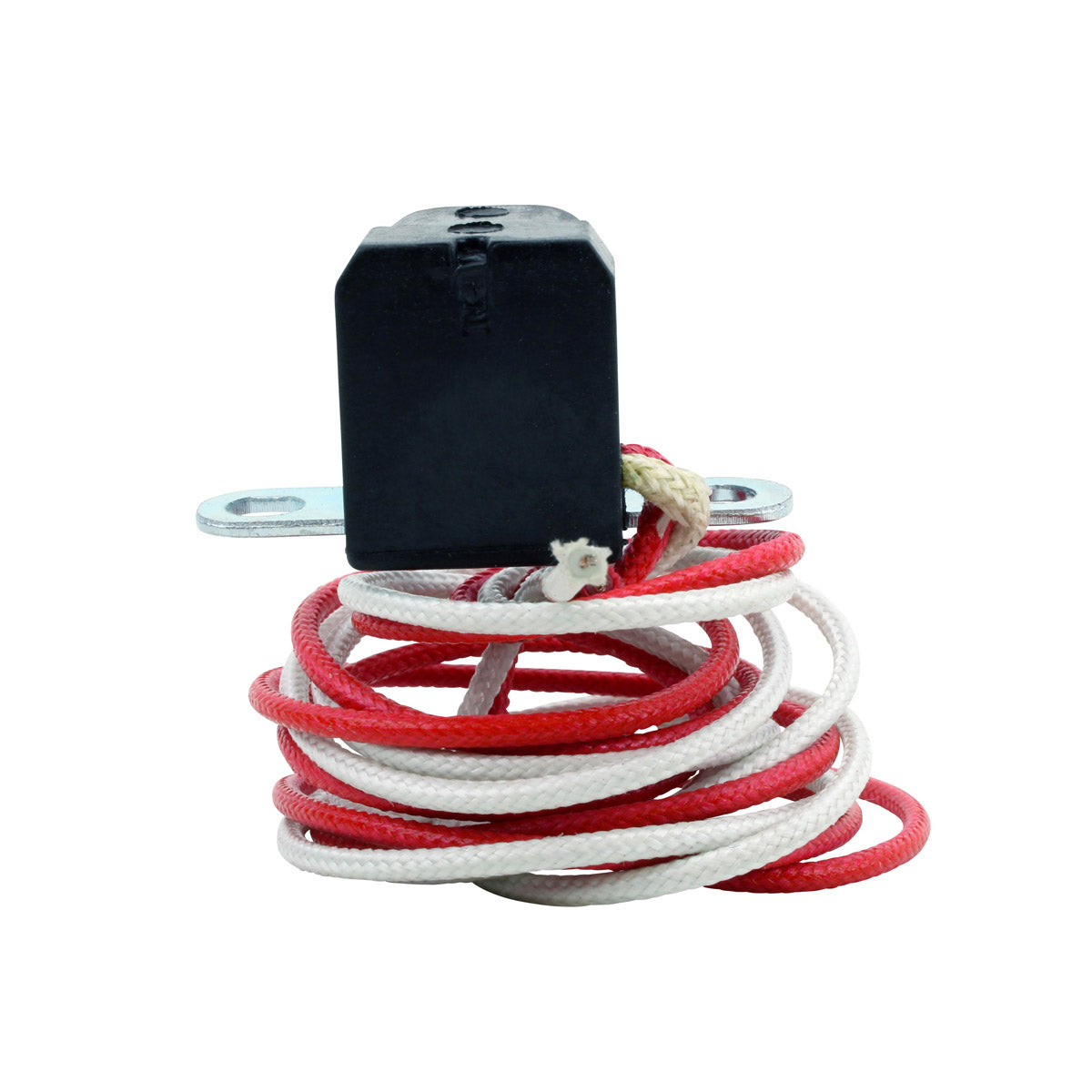

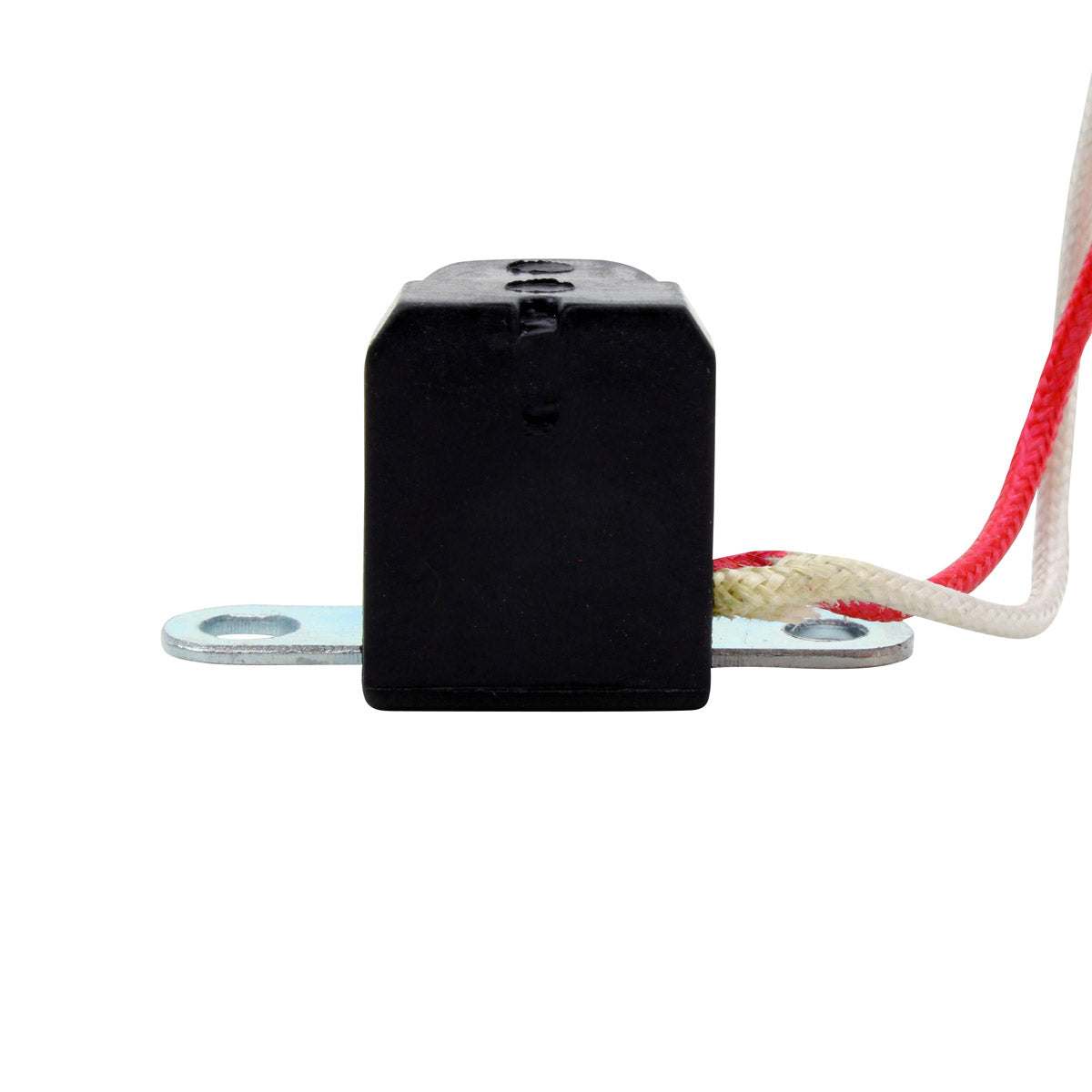

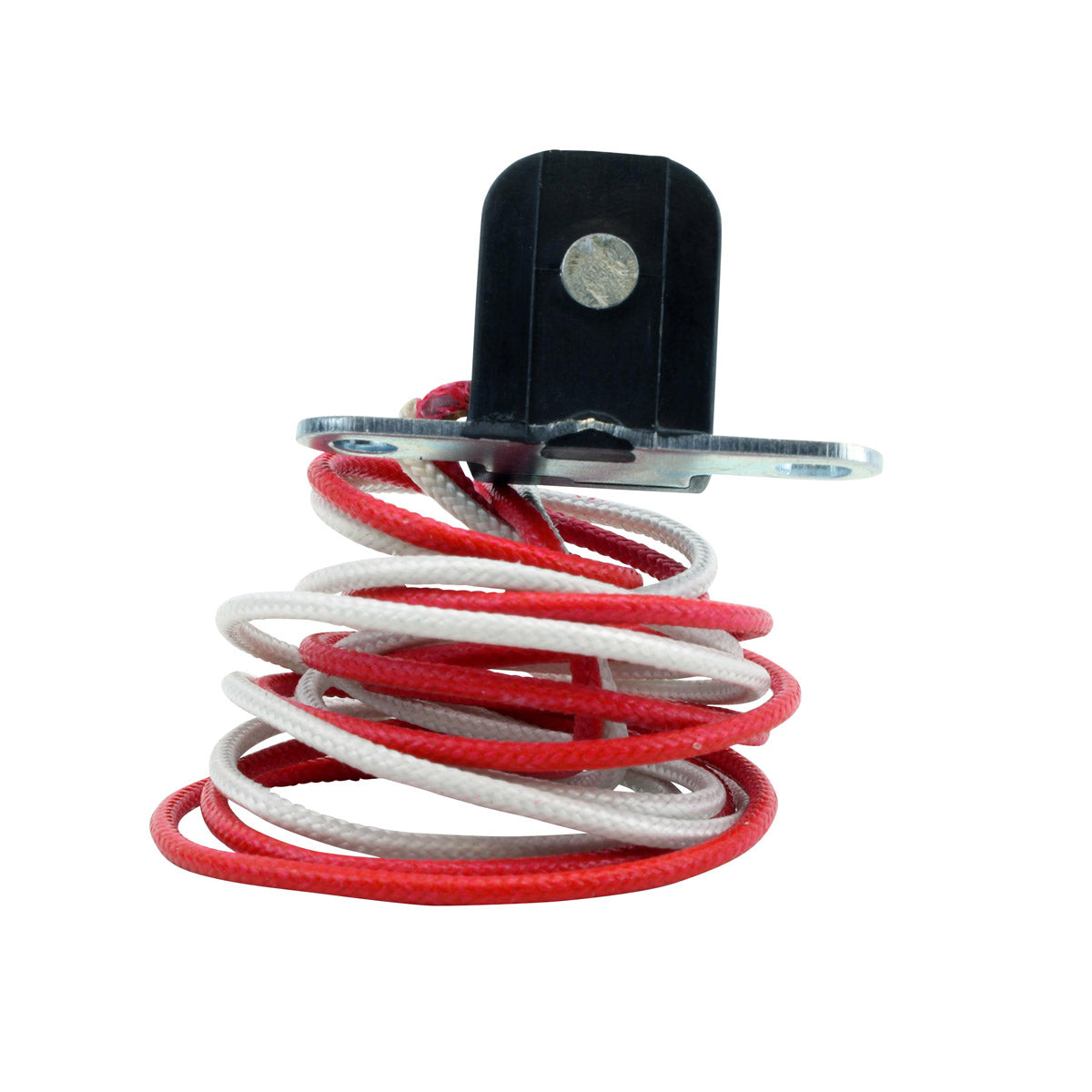

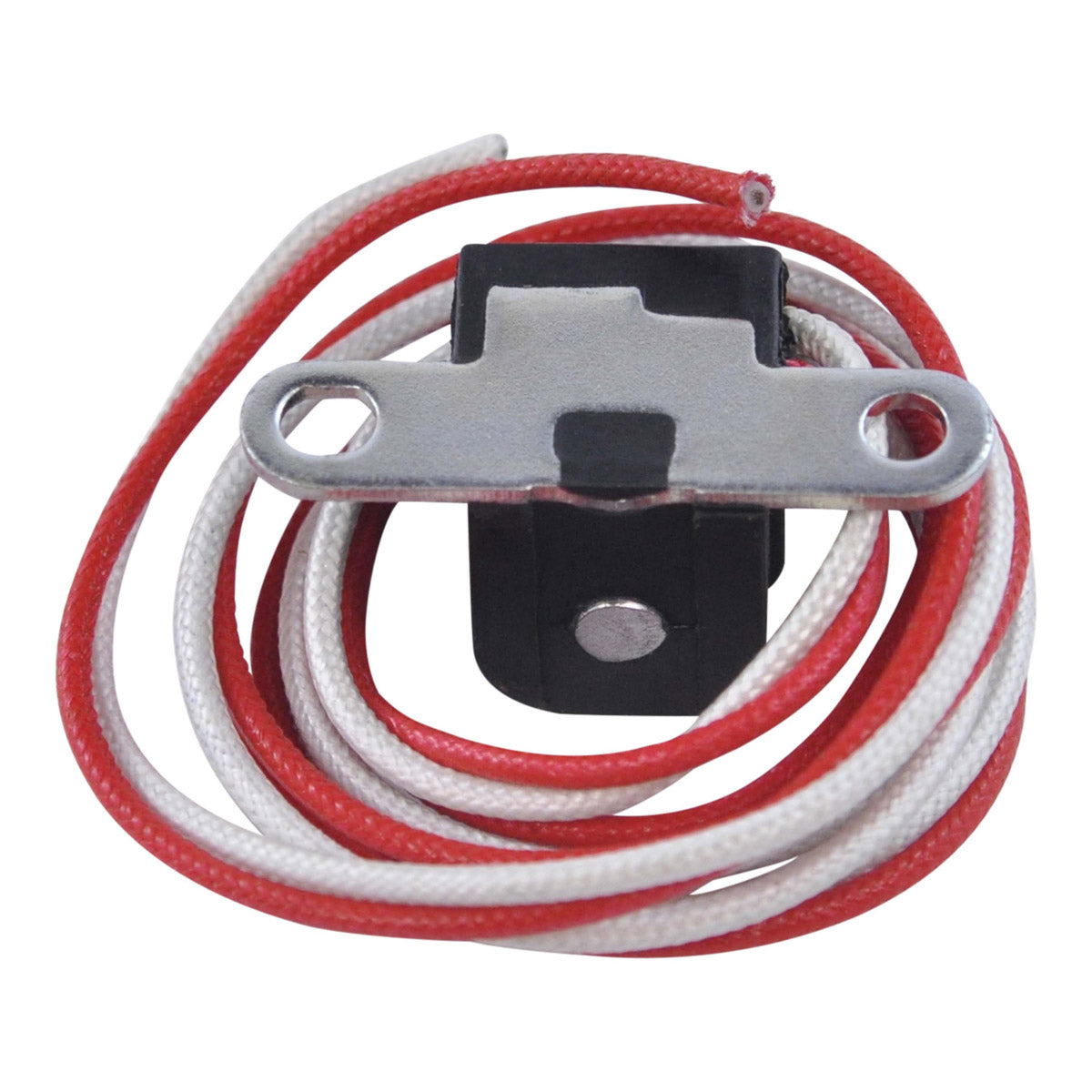

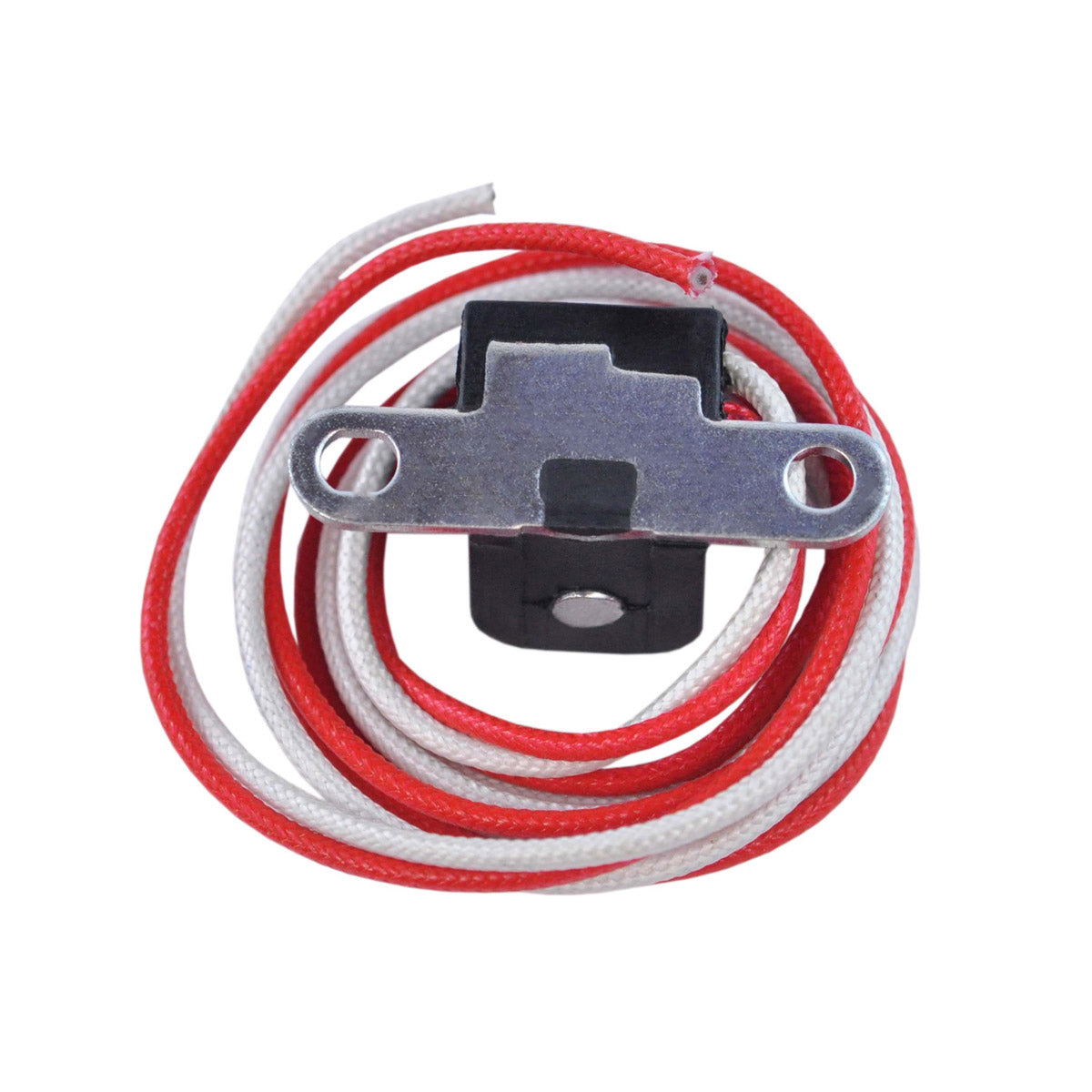

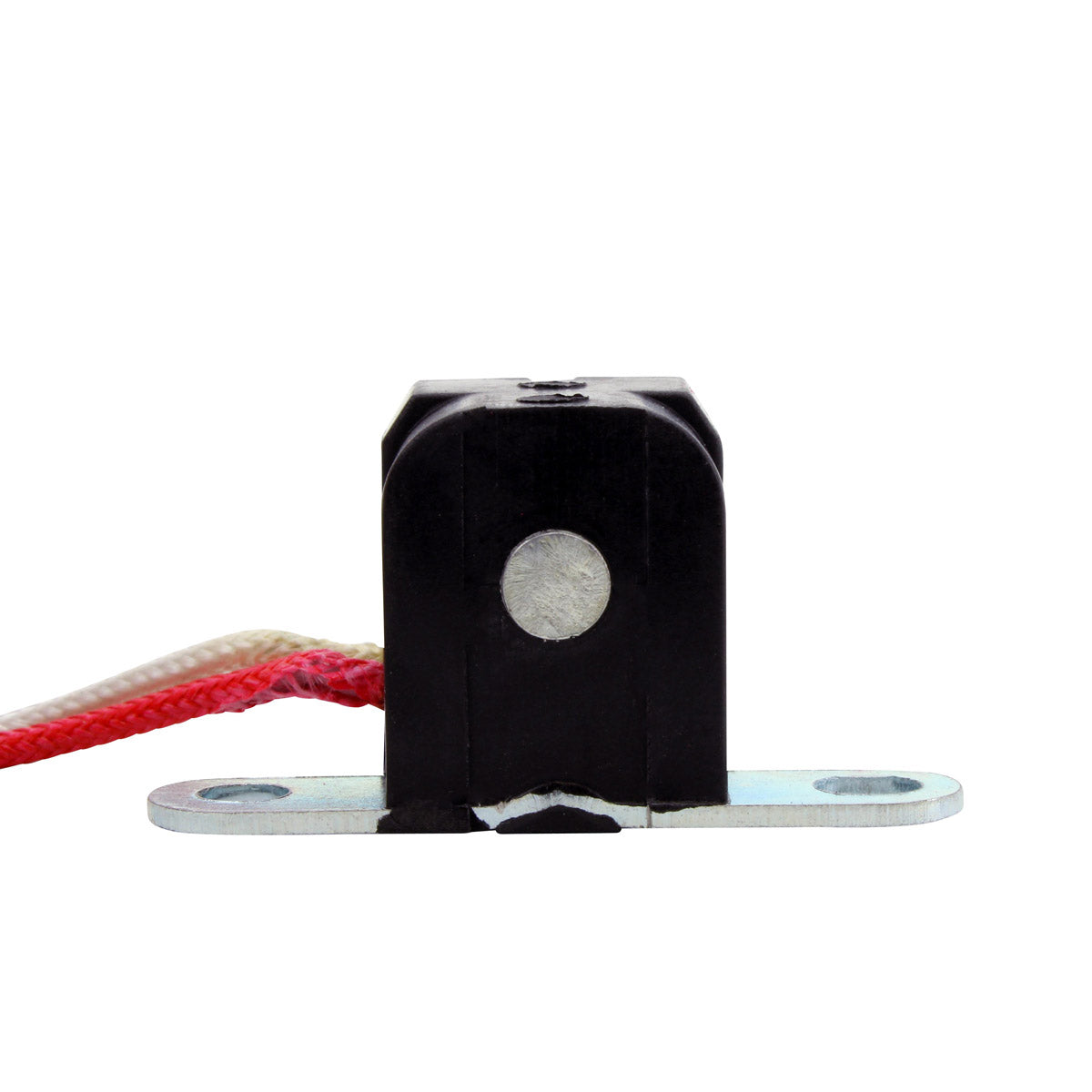

Stator Pick-up Pulsar Coil for ATV PWC Scooter Arctic Cat Can Am Kawasaki Yamaha Suzuki 1992-2024

RMSTATOR
SKU: RM00102
In Stock
RMSTATOR

Stator Pick-up Pulsar Coil for ATV PWC Scooter Arctic Cat Can Am Kawasaki Yamaha Suzuki 1992-2024

$41.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle
Stator Pick-up Pulsar Coil for ATV PWC Scooter Arctic Cat Can Am Kawasaki Yamaha Suzuki 1992-2024
Stator Pick-up Pulsar Coil for ATV PWC Scooter Arctic Cat Can Am Kawasaki Yamaha Suzuki 1992-2024
$41.89

Details

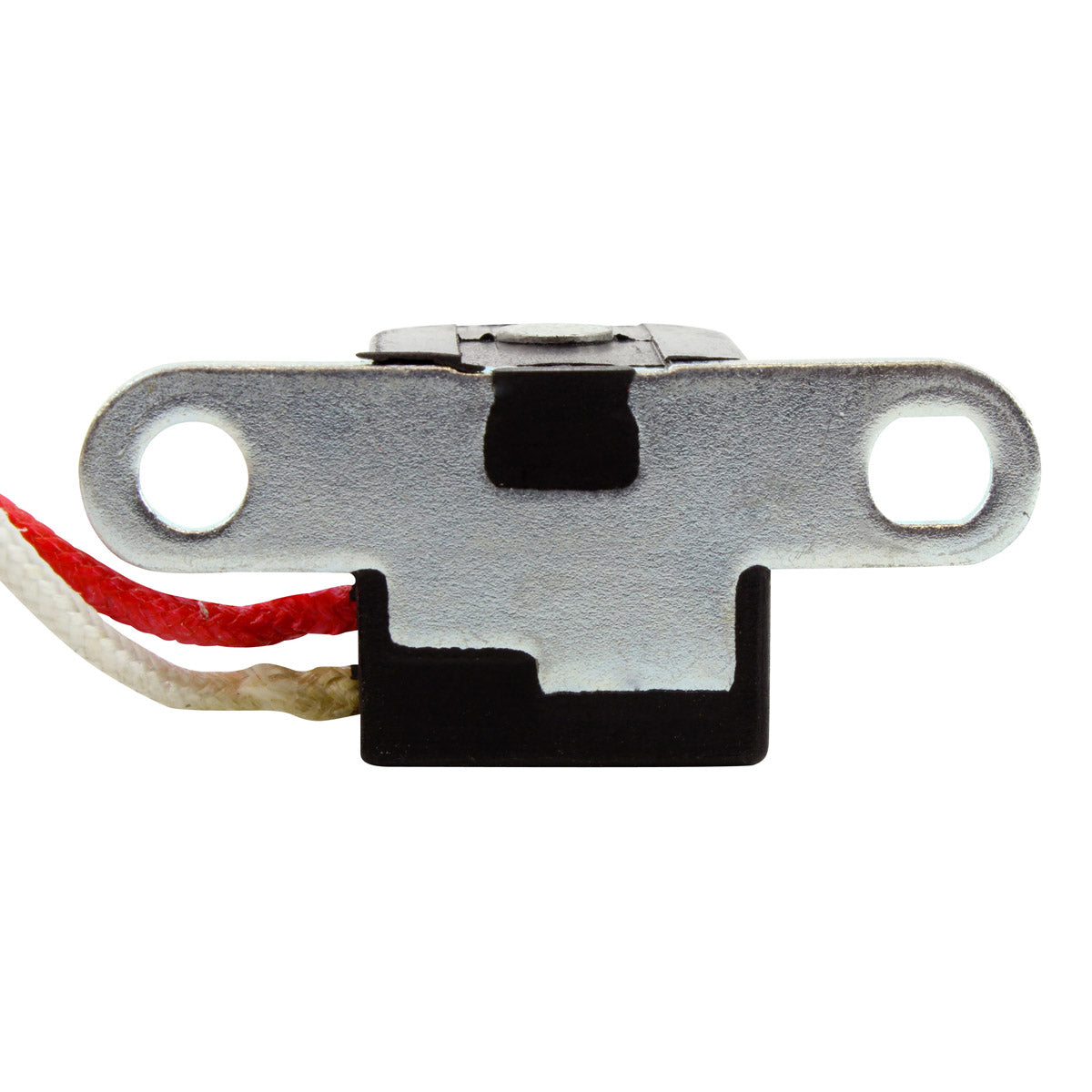

Brand new pick up coil 500 ohms

  • We offer a brand new pickup/pulsar coil for you to repair your stator.
  • Often unavailable from the OEM manufacturer
  • All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Height: 23 mm
Length: 19 mm
Width: 19 mm
Bracket center to center: 35 mm

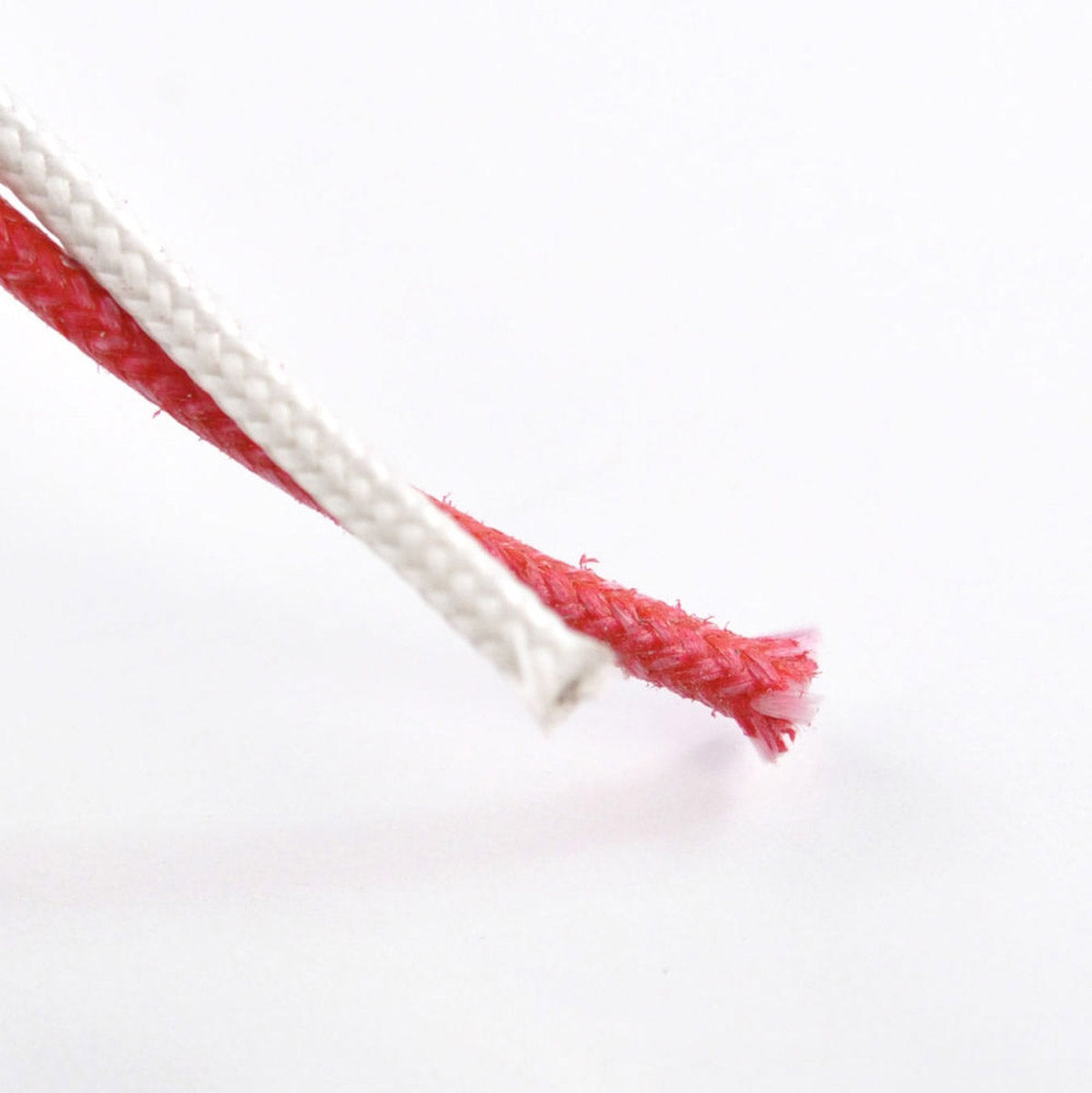

Wires length : 800mm

Other specifications:

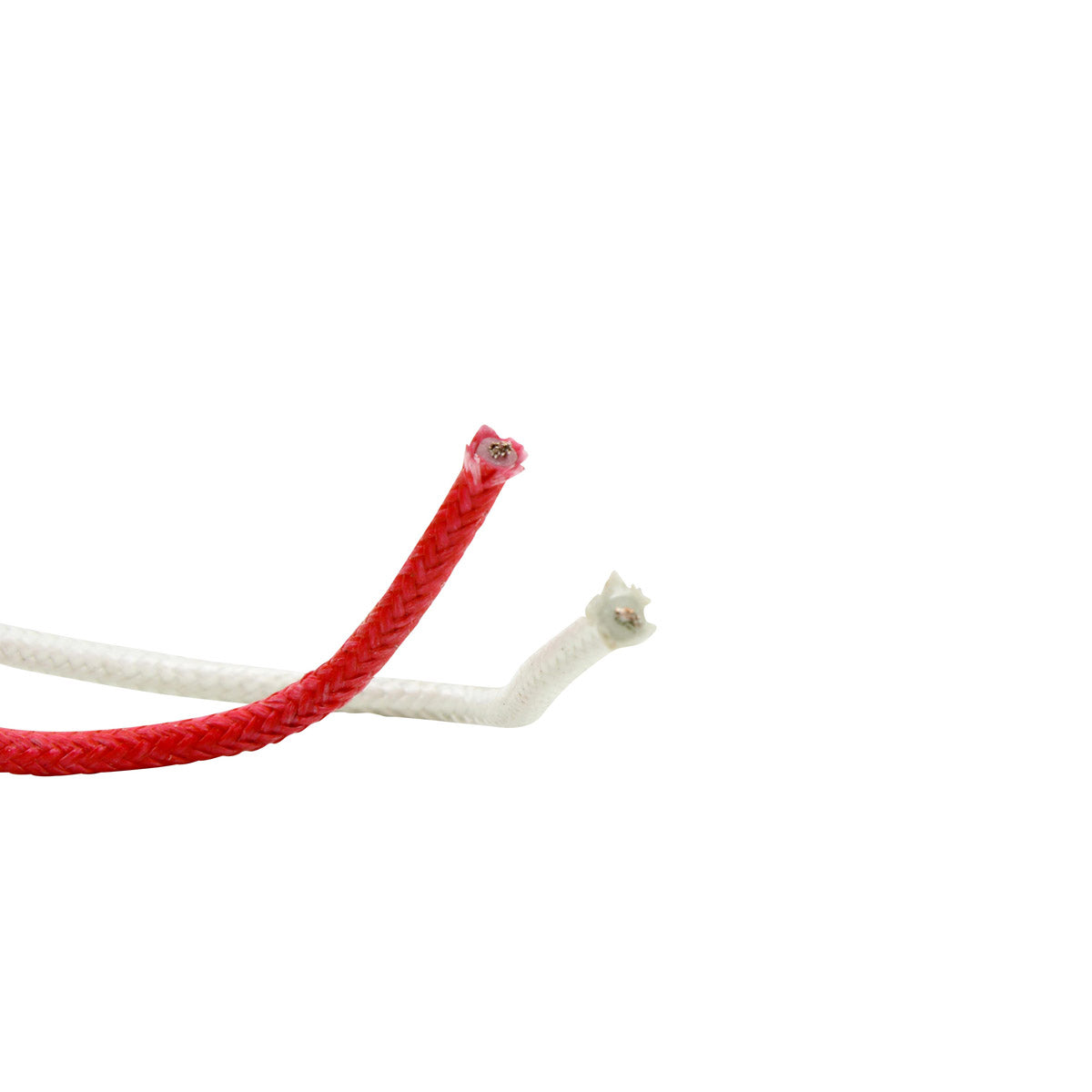

Number of wires : 2
Number of terminals: 2

Wire to wire resistance:
Red to white = 500 ohms+/-20%

Interchange Part Nº

  • 66V-85510-00-00
  • 21003-3746
  • 21003-3740
  • 21003-3726
  • 32101-13F00
  • 32101-07G00
  • 4XE-81410-00-00
  • 5NF-81410-00-00
  • 4KB-85510-12-00
  • 5FU-81410-00-00
  • 4GB-85510-00-00
  • 4KB-85510-11-00
  • 5ND-81410-00-00
  • 5GH-81410-00-00
  • 3HN-85510-10-00
  • 5EH-85510-00-00
  • 21003-1243
  • 21003-S006
  • 3409-026
  • 3430-458
  • 4KB-85510-00-00
  • 5LP-81410-00-00
  • 5LP-81410-01-00
  • 5LP-81410-02-00
  • 5KM-81410-01-00
  • 1P0-H1410-00-00
  • 1PO-H1410-00-00
  • 21003-3720
  • 4KB-85510-10-00
  • 4WV-85510-00-00
  • 5GT-85510-00-00
  • 5KM-81410-00-00
  • S31120RCA000
  • 2P5-81410-00-00
  • 5UH-81410-00-00
  • 32101-13F01
  • 32101-07G01
  • 21003-S012

Installation

Not following these instructions may result in damaging the part or other components on your vehicle.
  • By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
  • Insulate your solders with heat shrink.
  • Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
  • Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010メメ.
  • If no spark or erratic spark, switch the wires at the plug.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
