Stator Pickup Pulsar Coil for Arctic Cat Suzuki Yamaha ATV & Motorcycle 125 200 225 250 350 400 454 500 1986-2024
RMSTATOR
SKU: RM00101
In Stock
RMSTATOR
Stator Pickup Pulsar Coil for Arctic Cat Suzuki Yamaha ATV & Motorcycle 125 200 225 250 350 400 454 500 1986-2024
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator Pickup Pulsar Coil for Arctic Cat Suzuki Yamaha ATV & Motorcycle 125 200 225 250 350 400 454 500 1986-2024
Details
Details

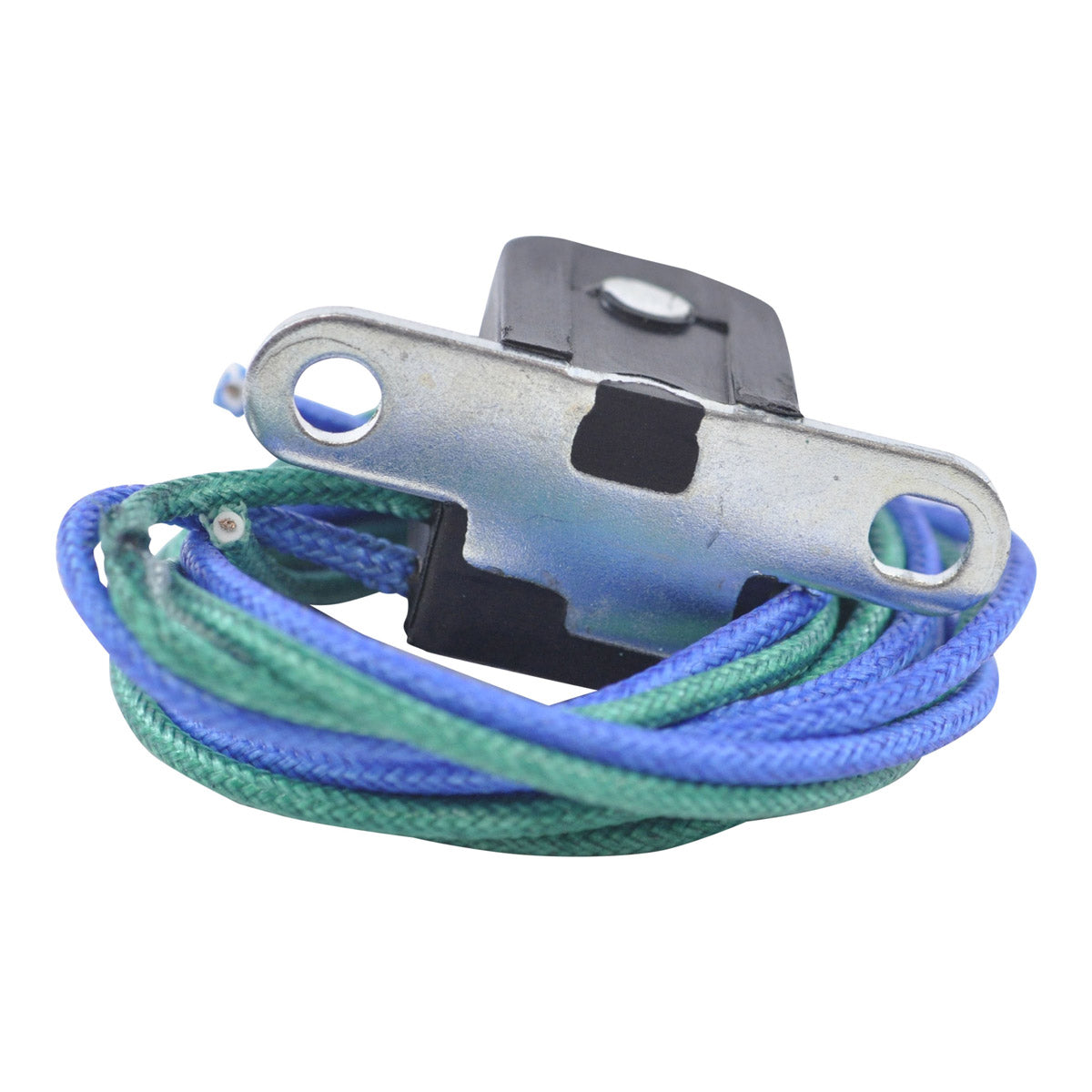

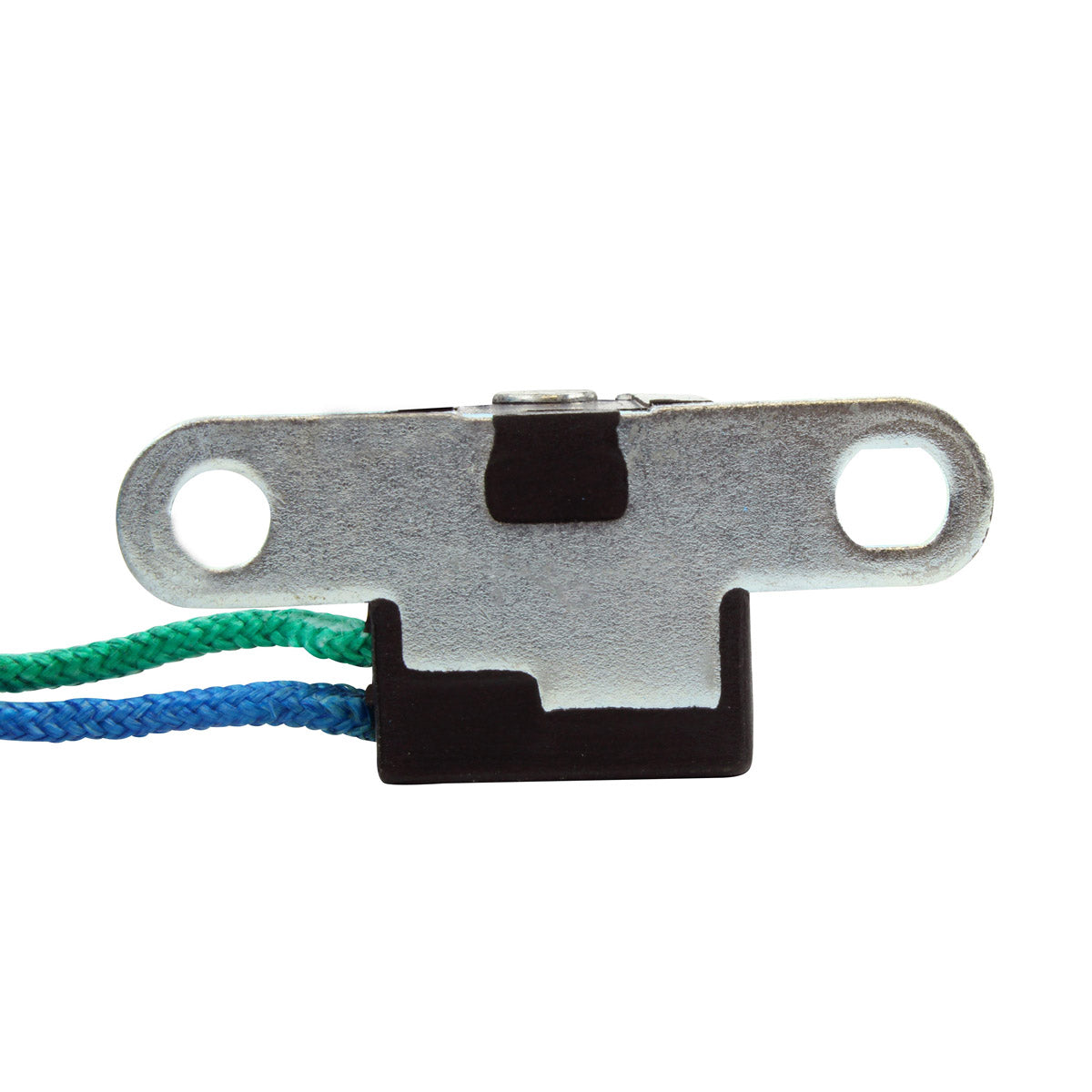

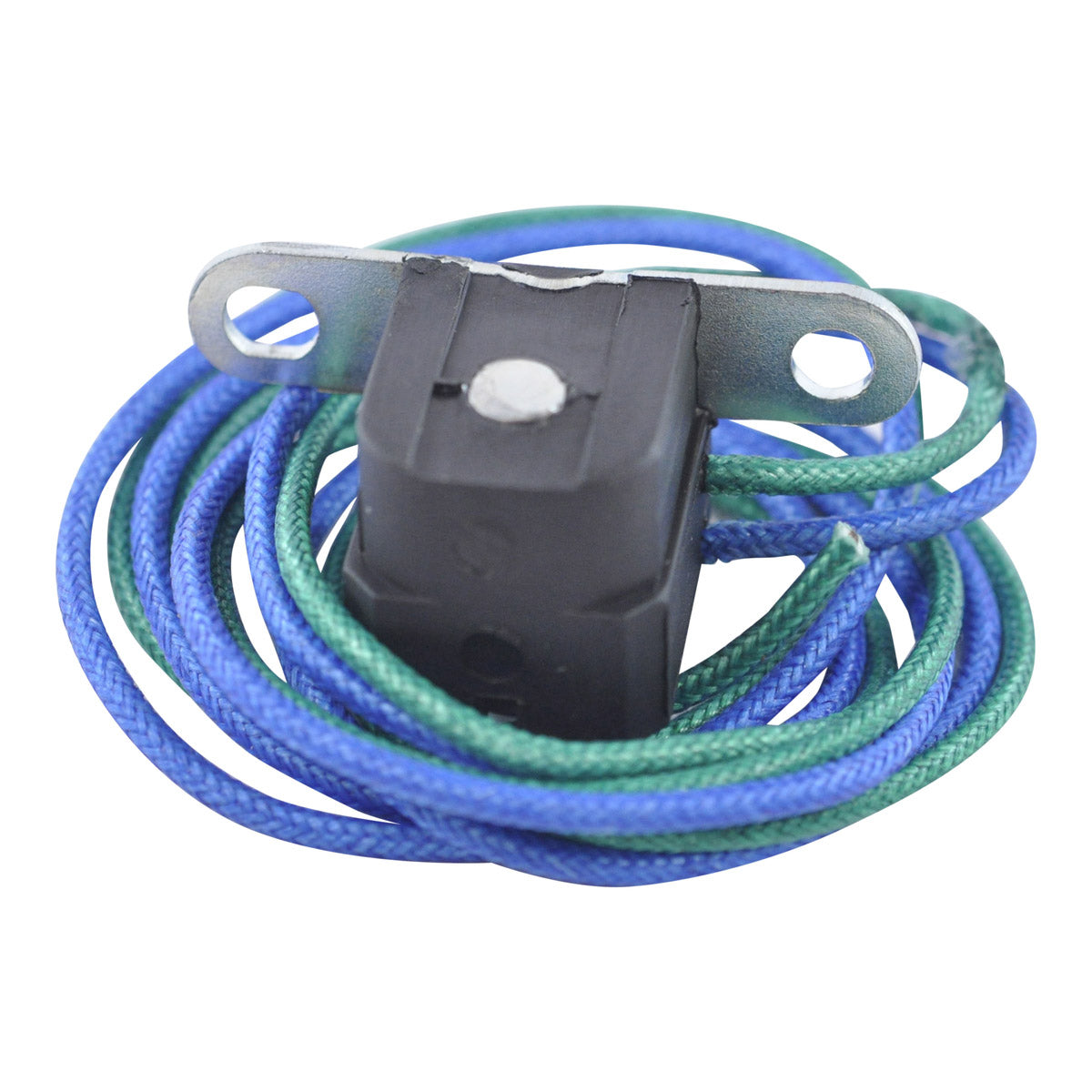

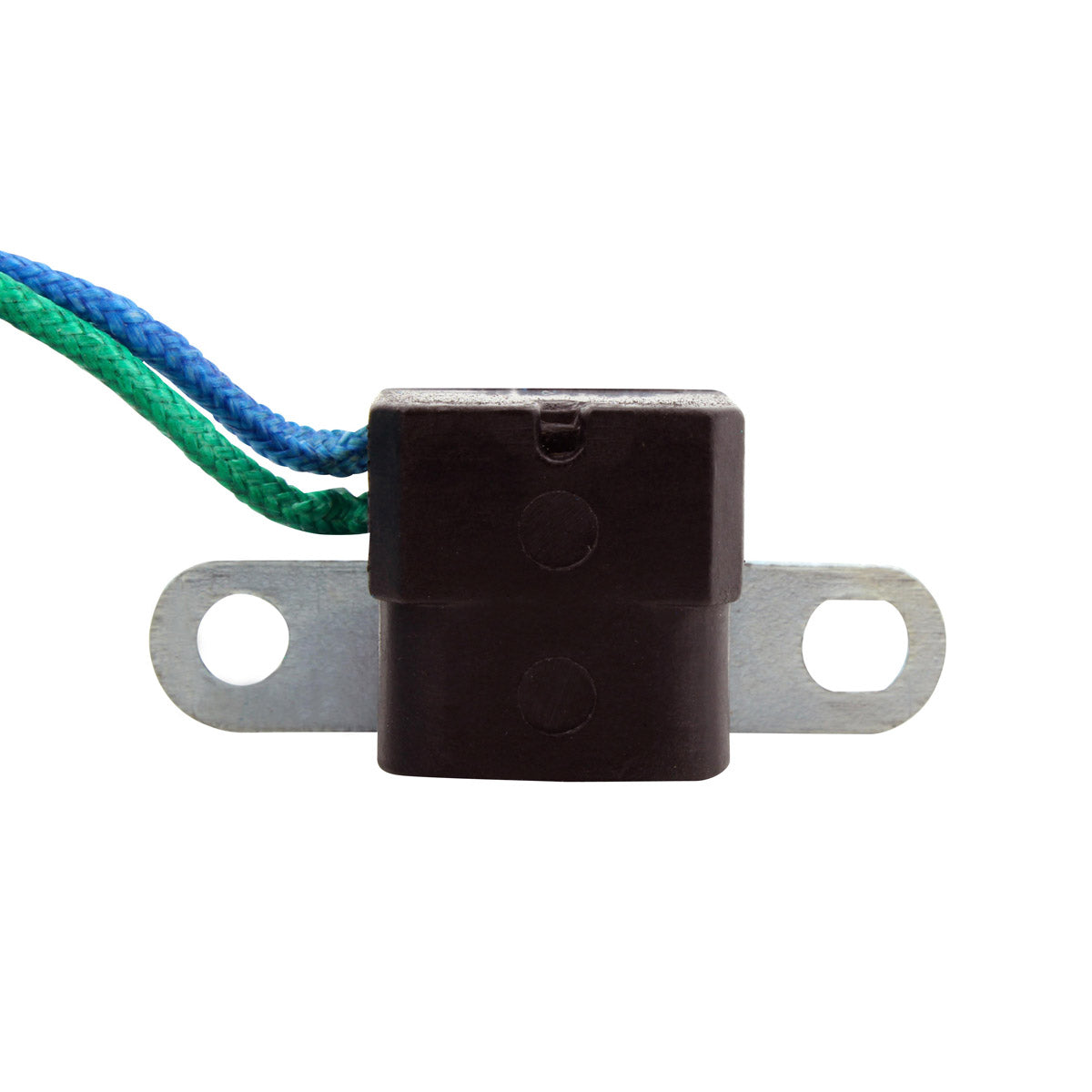

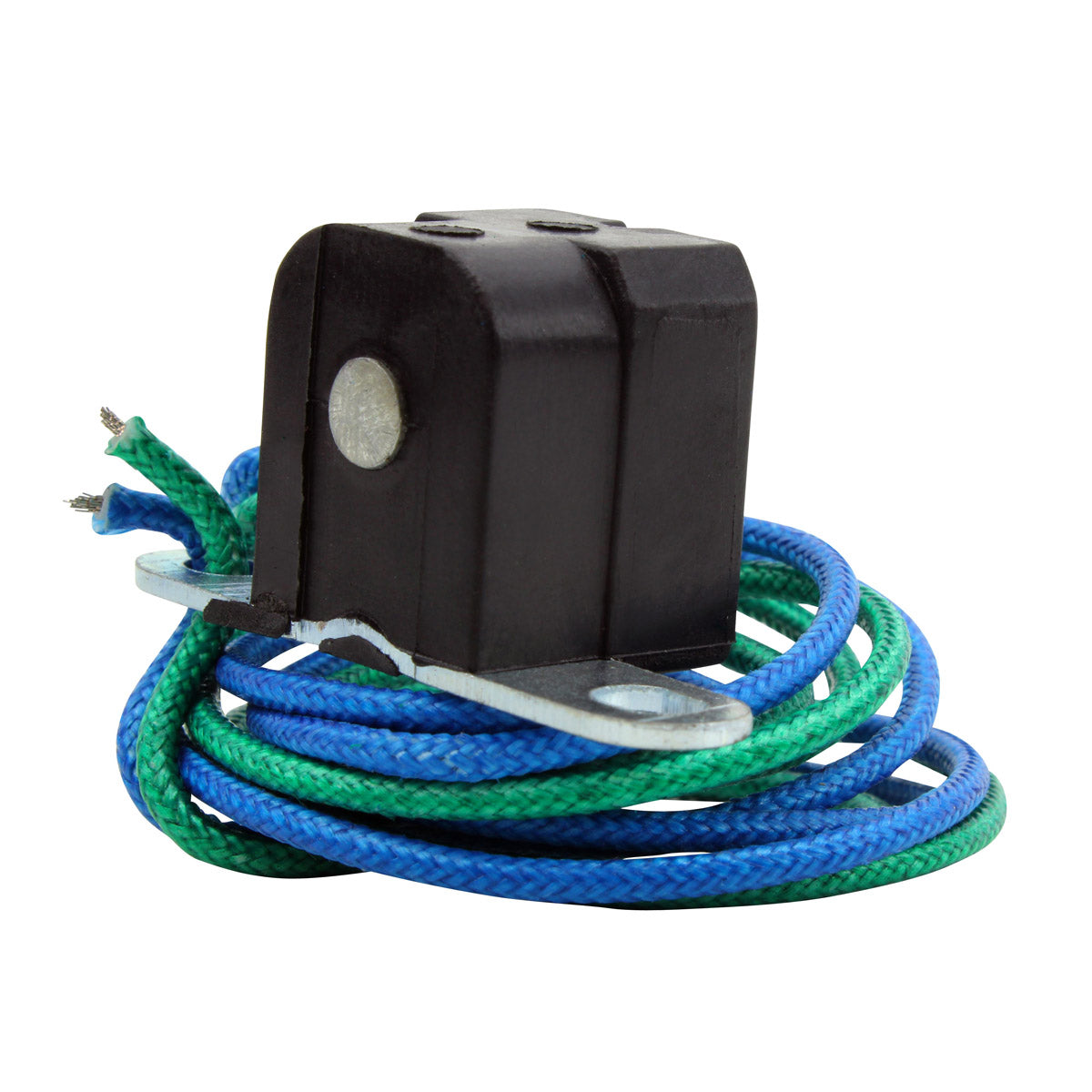

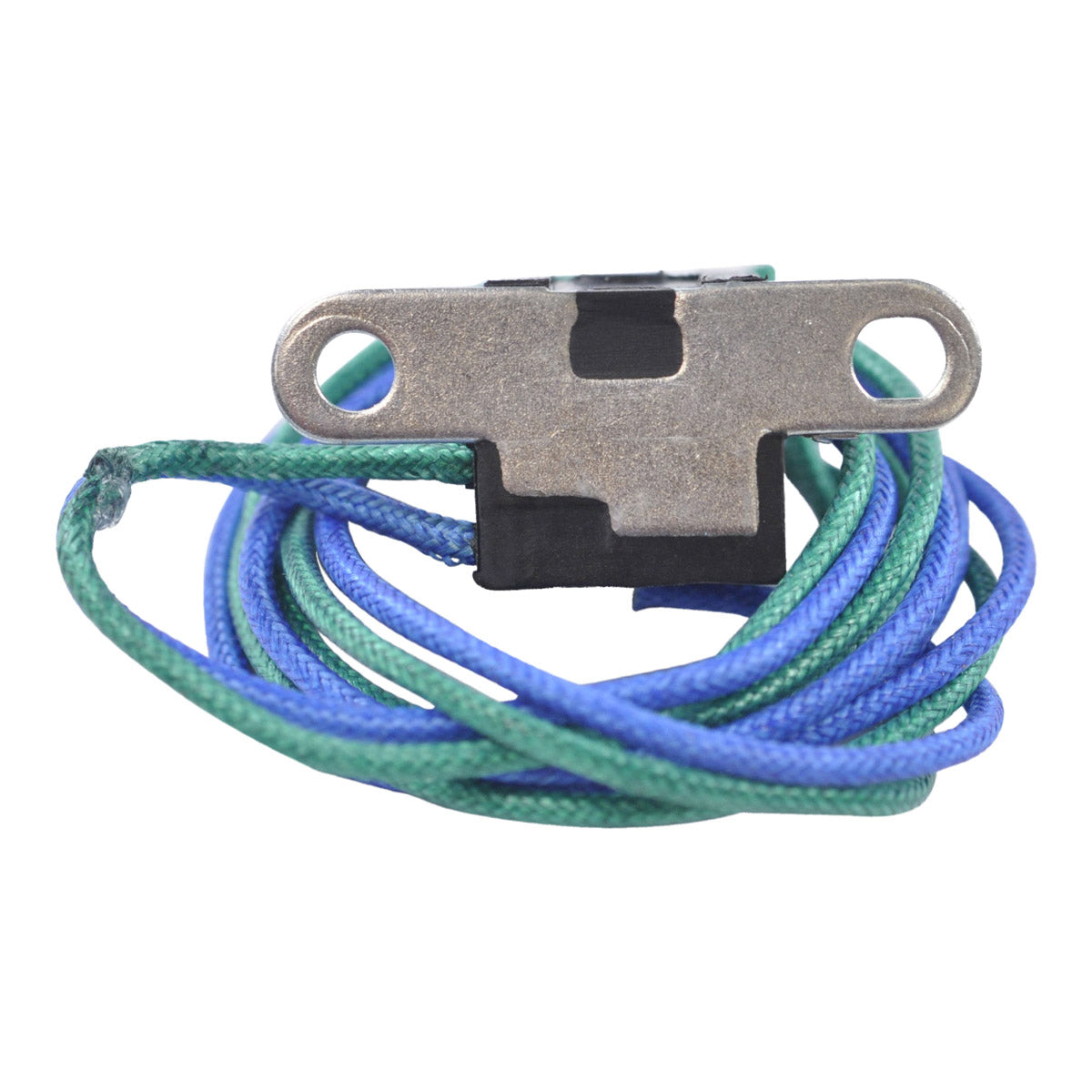

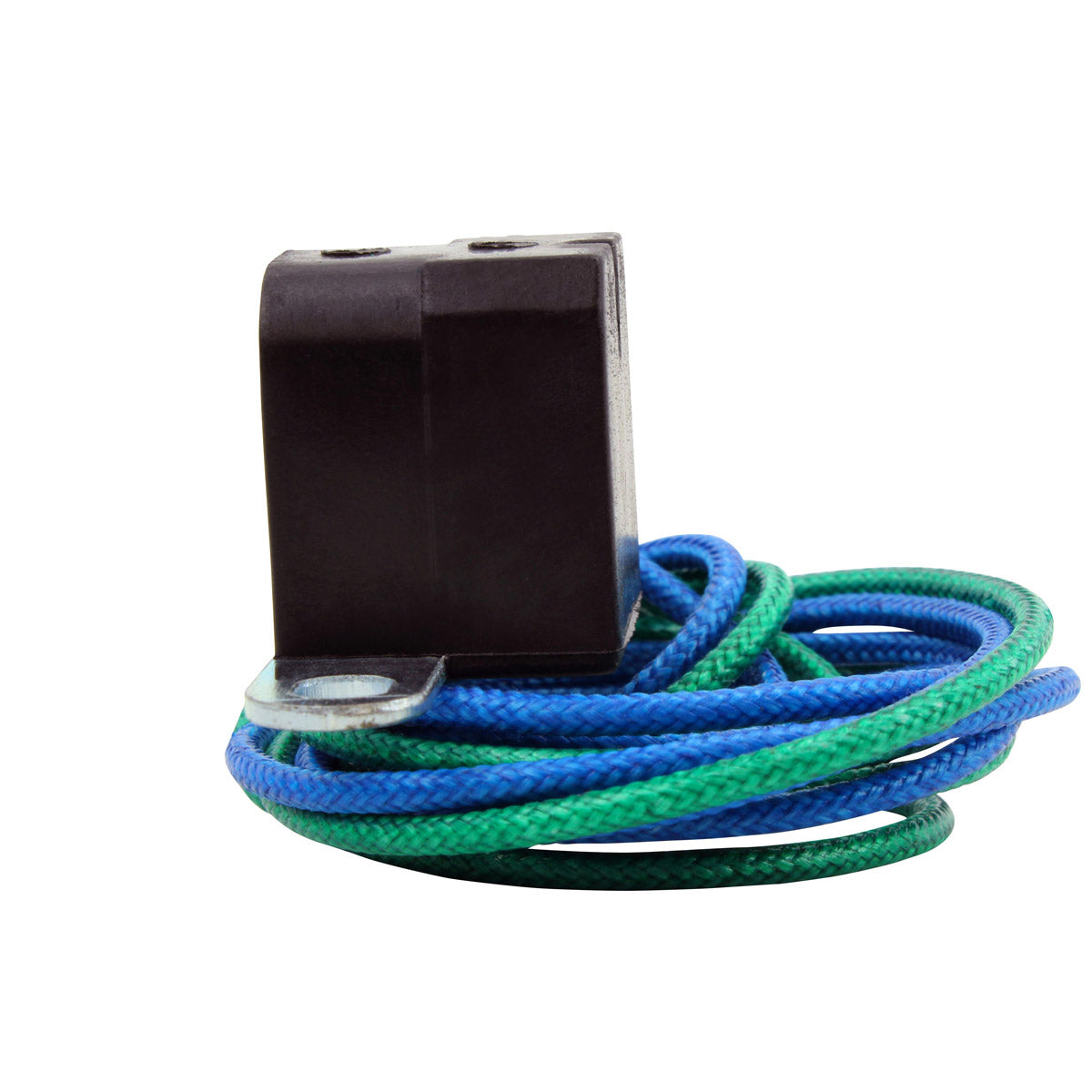

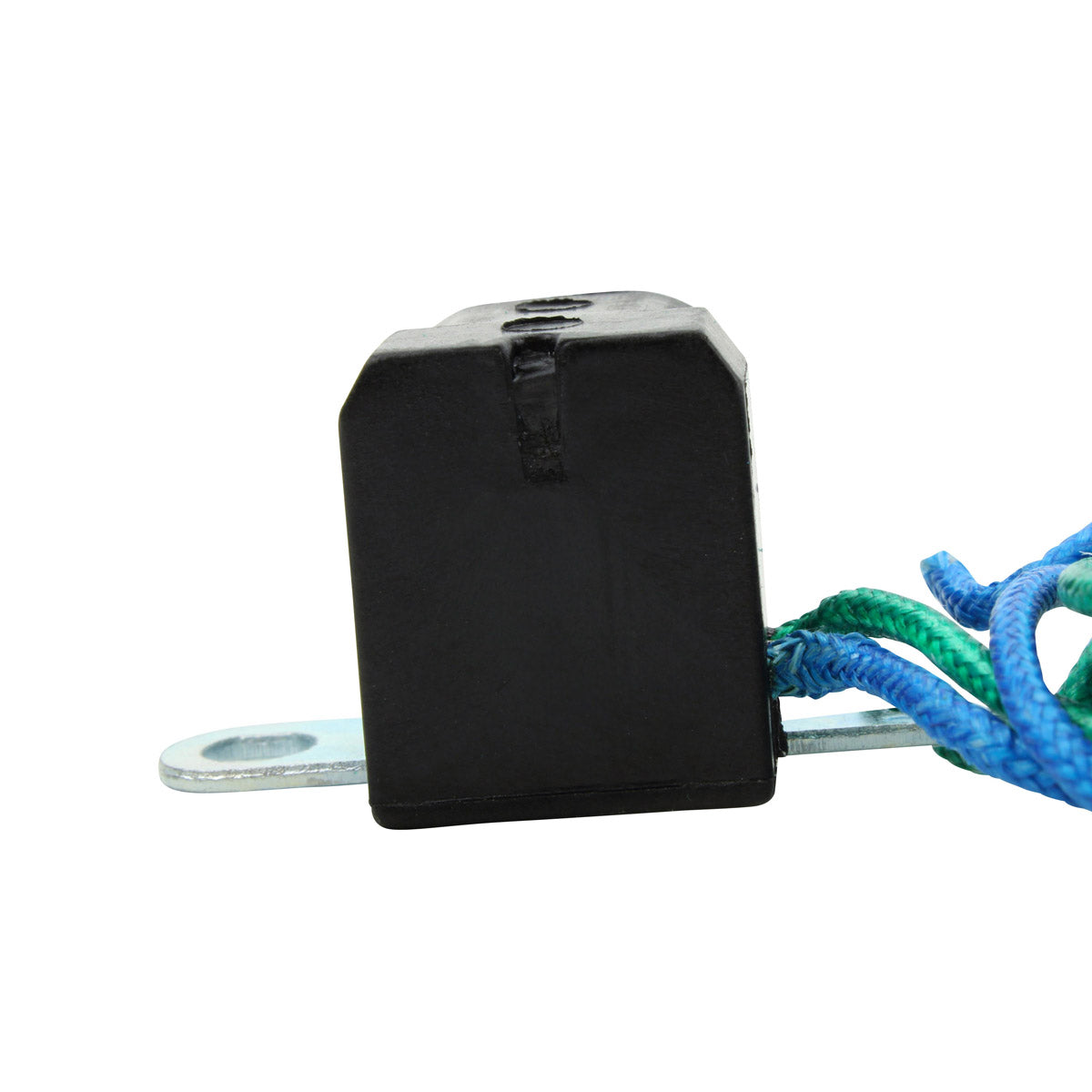

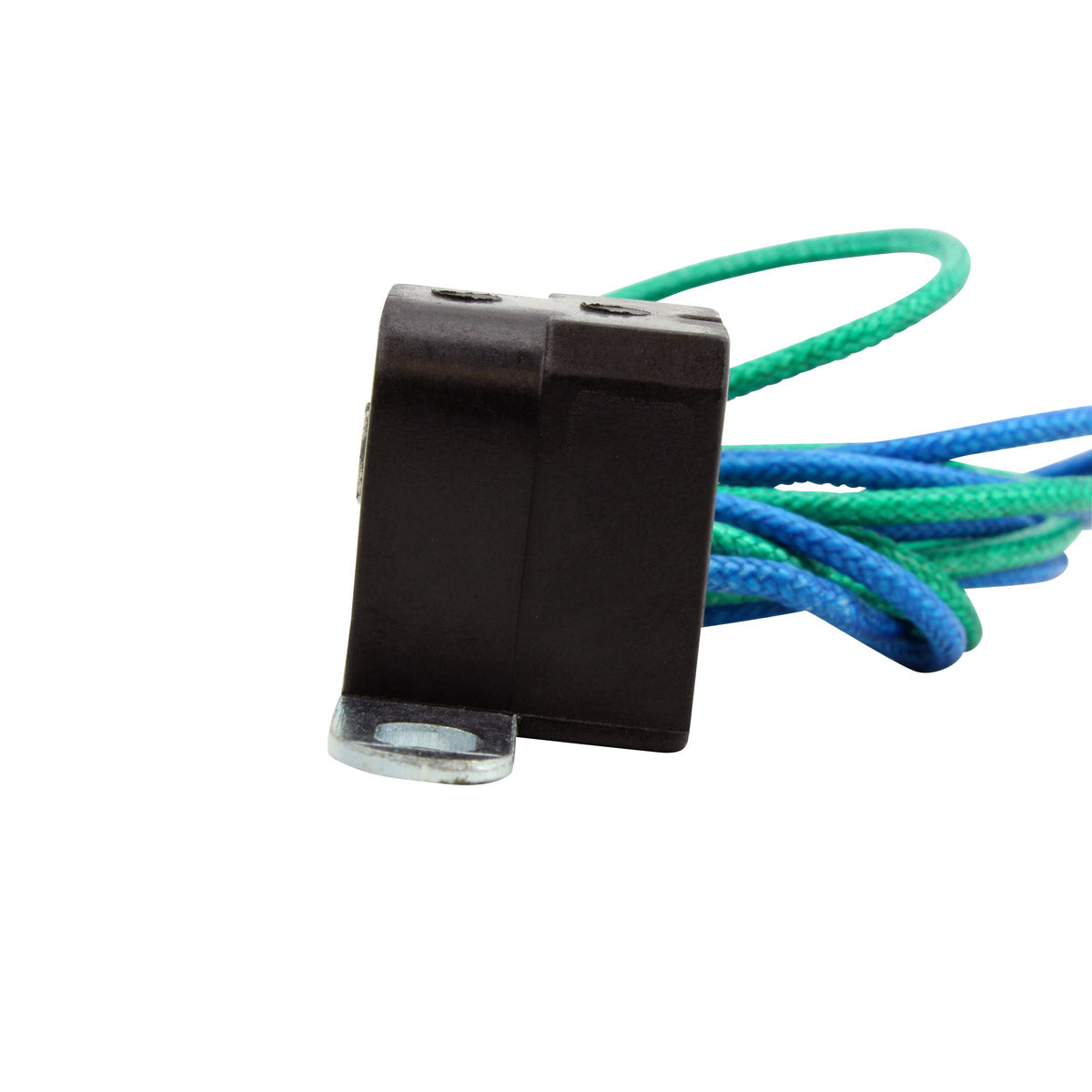

Brand new pick up coil 200 ohms
- We offer a brand new pickup/pulser coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Height: 23 mm
Length: 20 mm
Width: 19 mm
Bracket center to center: 35 mm
Wires length : 700 mm
Other specifications:

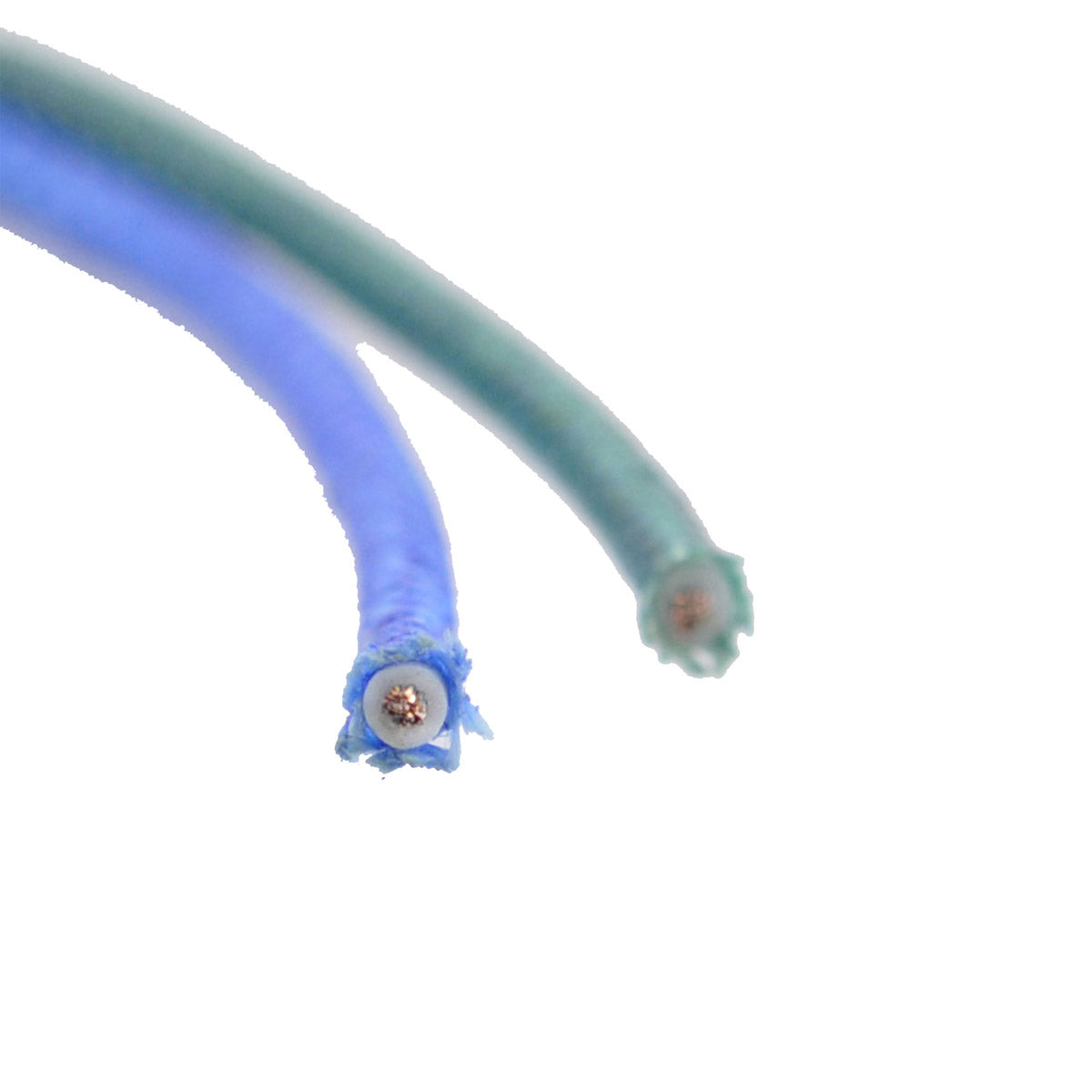

Number of wires : 2
Number of terminals: 2
Wire to wire resistance:
Blue to Green = 200 ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 32101-10F12
- T1300039
- 32101-09F02
- 32101-33H01
- 32150-09D10
- 32101-32E01
- 32101-35K00
- 32150-19A00
- 4GY-81410-02-00
- 21V-85580-20-00
- 32101-09F00
- 32101-19A00
- 32101-24B00
- 32101-24B01
- 32101-09F01
- 32101-24B02
- 32101-38B02
- 32101-45G00
- 32101-45G10
- 32150-19A10
- 32101-09F20
- 32101-32E00
- 32101-09F40
- 32101-09F30
- 32101-10F01
- 32101-12D00
- 32101-27H00
- 32101-27H10
- 32101-38B00
- 32101-38B01
- 4EX-85510-00-00
- 4JY-85510-00-00
- 59V-85510-20-00
- 59V-85580-20-00
- 4GY-81410-01-00
- 4VR-81410-00-00
- 4JH-81410-00-00
- 4TV-81410-00-00
- 4TV-81410-01-00
- 1YW-85510-21-00
- 2NL-85580-20-00
- 2XK-85510-20-00
- 1UY-85510-20-00
- 3HN-85510-00-00
- 3430-053
- 3430-011
- 3089254
- 32101-38F00
- 4011609
- 3430-045
- 3430-058
- 32101-33H00
- 4BD-85580-00-00
- 4BD-85510-00-00
- 4BD-85510-20-00
- 32101-10F11
- 32101-10F10
- 0802-065
- 0802-041
- 0802-037
- 0802-073
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the flywheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
